High-power DC Geared Motor Driver Board Motor Driver MCU Control 200W Support PWM Drive Signal

High-power DC Geared Motor Driver Board Motor Driver MCU Control 200W Support PWM Drive Signal

Rated Parameters:
Input voltage: DC: 5V-24V
Output power: 200W
Standby current: +/-200mA
Current output range: 0A-10A
PWM control mode: 20KHz-30KHz (30KH recommended) PWM signal
Cooling method: large heat sink cooling

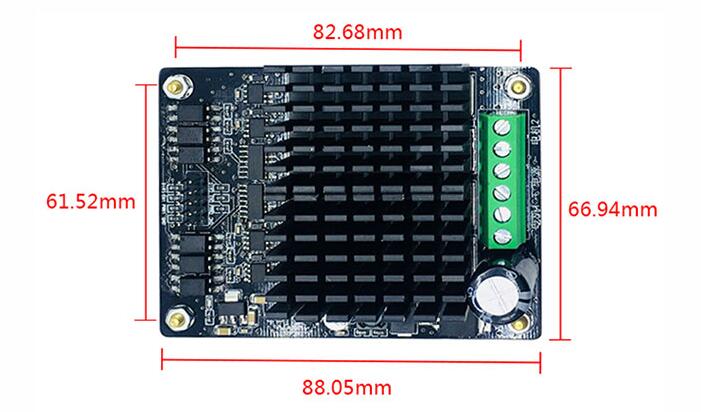

Size: 88.05*66.94mm
Weight: 115g

Limit Parameters:
Limit input voltage: DC: 5V-30V
Limit output current: 10A
Limit input power: 240W

Features:
-High power output
-Wide voltage input range
-Support rotation direction control
-Support PWM control signal, stepless speed control

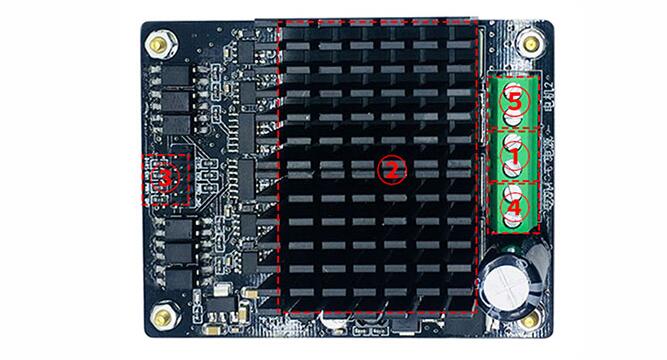

1. DC power interface, input voltage 12-24V
2. Large heat sink: strengthen the heat dissipation effect
3. Two-way DC PWM drive signal input interface (DIR1 is the first way, DIR2 is the second way)
4. The first DC motor PWM drive signal output port
5. The second DC motor PWM drive signal output port

Package List:
1 x Driver Board
