High-Precision Laser Line Generator (Green Cross-Line Beam Full Kit 26x110mm) for Stone and Woodworking

Professional Positioner for Stone, Cutting Table and Woodworking

* Large-size laser head

* High-brightness long-range model

* Beam options: Single-line red, Cross red, Single-line green, Cross green

Premium Imported Laser Diode (LD)

* High brightness for indoor and outdoor use

* Emits clear, bright, straight laser lines; supports 24/7 continuous operation

Laser Interface

* Standard national DC interface

Rocker Switch Design

* Service life over 50,000 uses; strong resistance to acid, alkali and salt corrosion

Imported Optical Lens

* Effective anti-fog, easy to clean.

* Adopts imported optical glass lens, producing uniform, clear, straight lines; waterproof, anti-fog and durable.

* Note: This laser positioning light can be used for stone cutting, cutting table positioning, and waterjet cutting. It operates normally in high water mist conditions, but cannot be used for diving.

Six Core Advantages

* Multiple Application Scenarios

* Multiple Light Effects

* Precise Horizontal Positioning

* Rotary Focusing

* Imported Lens

* Adjustable Angle

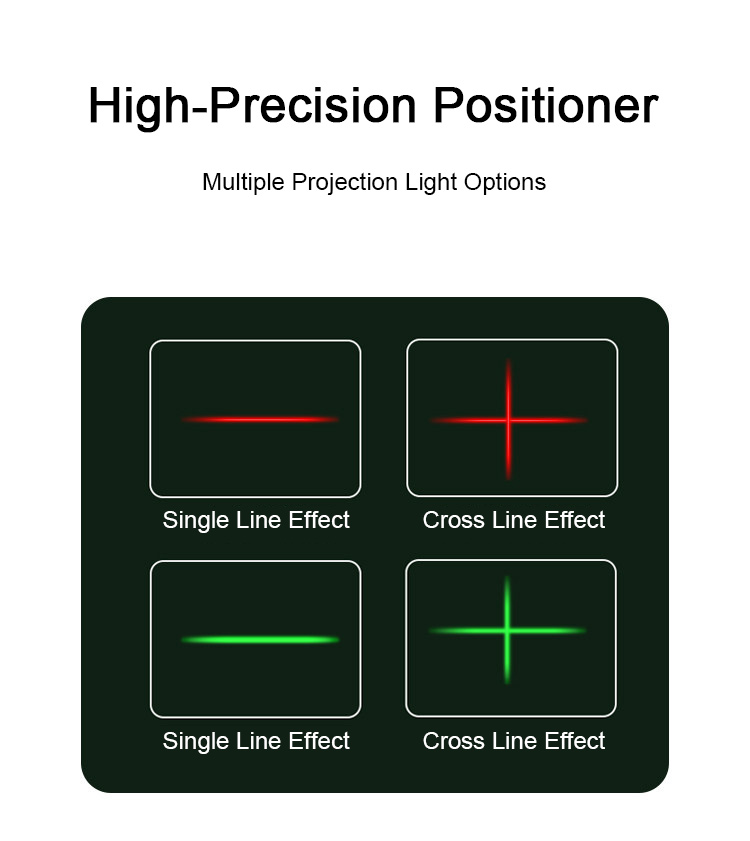

Multiple Projection Light Options

* Red Single-Line Effect

* Red Cross-Line Effect

* Green Single-Line Effect

* Green Cross-Line Effect

Versatile Application Scenarios

* Improve work efficiency

* This laser product can be applied to woodworking, stone processing, mechanical equipment, garment cutting (strip and grid alignment), and security applications

* Stone Cutting: Accurate and bright marking lines for stone cutting

* Woodworking Alignment: High straightness and stability

* Mechanical Marking: Convenient marking for mechanical operations

* Cutting Table Positioning: Straight and uniform lines for cutting tables

* Product Name: Laser Marker

* Beam Head Style: Single-line, Cross-line (Optional)

* Model No.: RB650-100G2

* Central Wavelength: 658nm

* Wavelength Tolerance: ±5nm

* Diode Power: 100mW

* Output Power: ≥50mW

* Operating Voltage: 5V (customizable) or dedicated power supply

* Operating Current: ≤200mA

* Operating Mode: Continuous

* Lens Type: Coated Glass Lens

* Beam Divergence Angle: ≥90°

* Laser Line Width: ≤1mm (at 2m)

* Dimensions: Ø26x110mm/22x85mm (Optional)

* Operating Temperature: -10℃ to 75℃

* Storage Temperature: -40℃ to 85℃

* Service Life: Over 10,000 hours

* Model: RP040929

* Input: 100-240VAC 50/60Hz

* Output: 5V 500mA

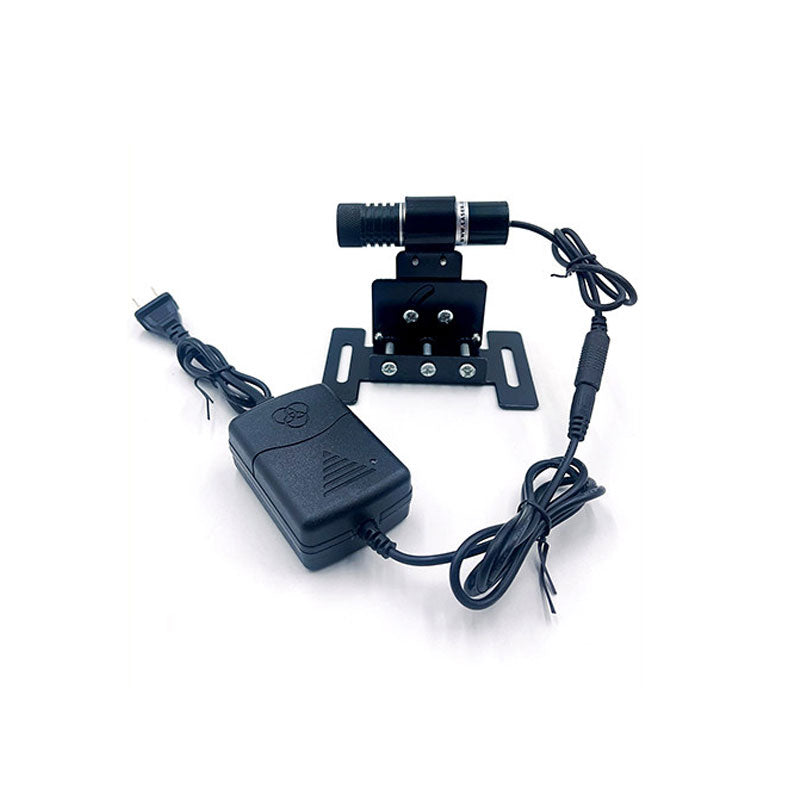

Full Kit:

* 1 x Laser Head

* 1 x Bracket

* 1 x Power Supply

Switching Power Supply:

* 1 x Power Supply

Full Kit:

* Package weight: 0.5kg

Switching Power Supply:

* Package weight: 0.15kg
