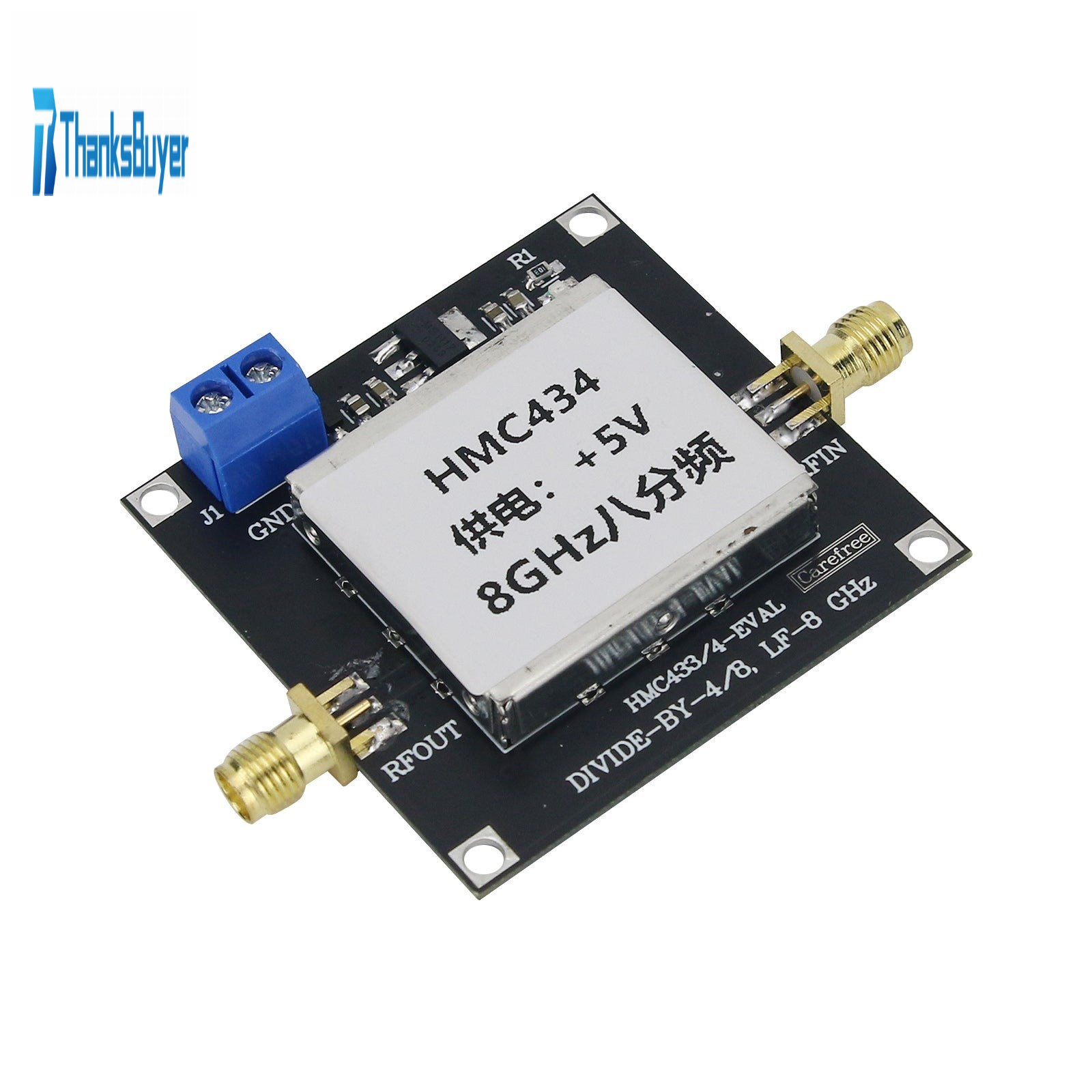

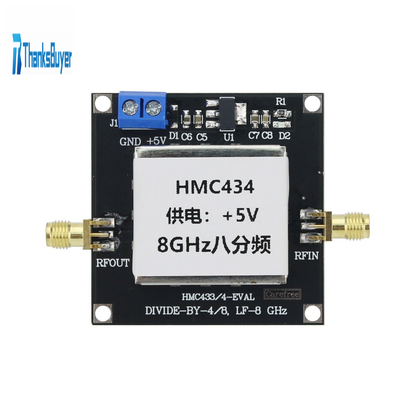

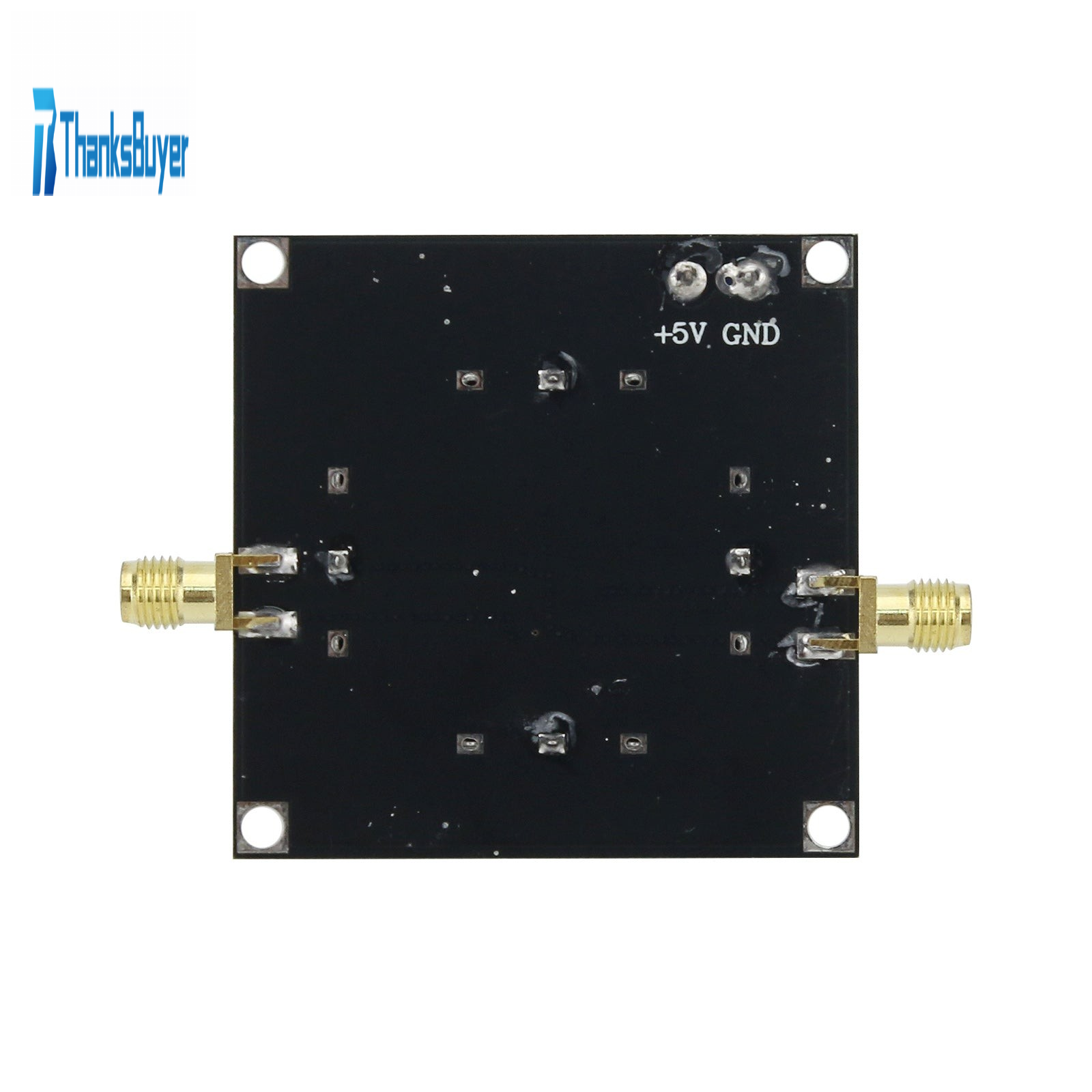

HMC434 8GHZ Frequency Divider 8 Frequency Division Microwave Prescaler -150dBc Low Noise

HMC434 8GHZ Frequency Divider 8 Frequency Division Microwave Prescaler -150dBc Low Noise

Description:
-The HMC434 is a low noise, static, divide by 8 prescaler monolithic microwave integrated circuit (MMIC) utilizing indium gallium phosphide/gallium arsenide (InGap/GaAs) heterojunction bipolar transistor (HBT) technology in an ultra-small surface-mount 6-lead SOT-26 package.
-The HMC434 operates from DC (with square wave input) to 8GHz input frequency with a single 3V DC supply.
-The HMC434 features single-ended inputs and outputs for reduced component count and cost. The low additive single sideband (SSB) phase noise of -150dBc/Hz at 100 KHz offset helps the user maintain optimal system noise performance.

Features:
-Ultra-low SSB phase noise: -150dBc/Hz typical
-Single-ended input/outputs
-Output power: -2dBm typical
-Single supply operation: 3V
-Ultra small, surface-mount, 2.9mm x 2.8mm, 6-lead SOT package

Applications:
-DC to C band PLL prescalers
-Very small aperture terminal (VSAT) radios
-Unlicensed national information infrastructure (UNII) and point to point radios
-EEE 802.11a and high performance radio local area network (HiperLAN ) WLAN
-Fibber optics
-Cellular/3G infrastructure

Package List:
1 x Frequency Divider
