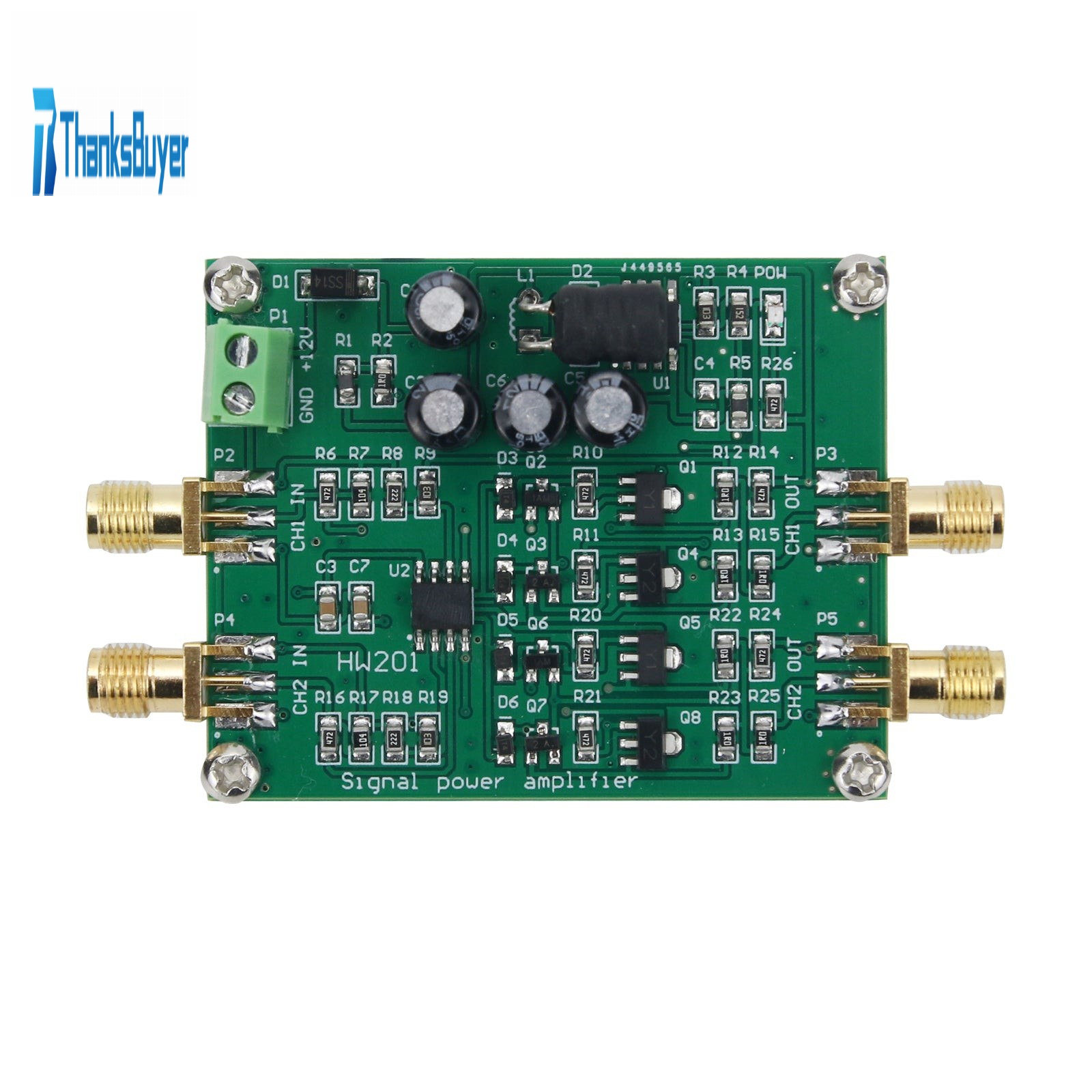

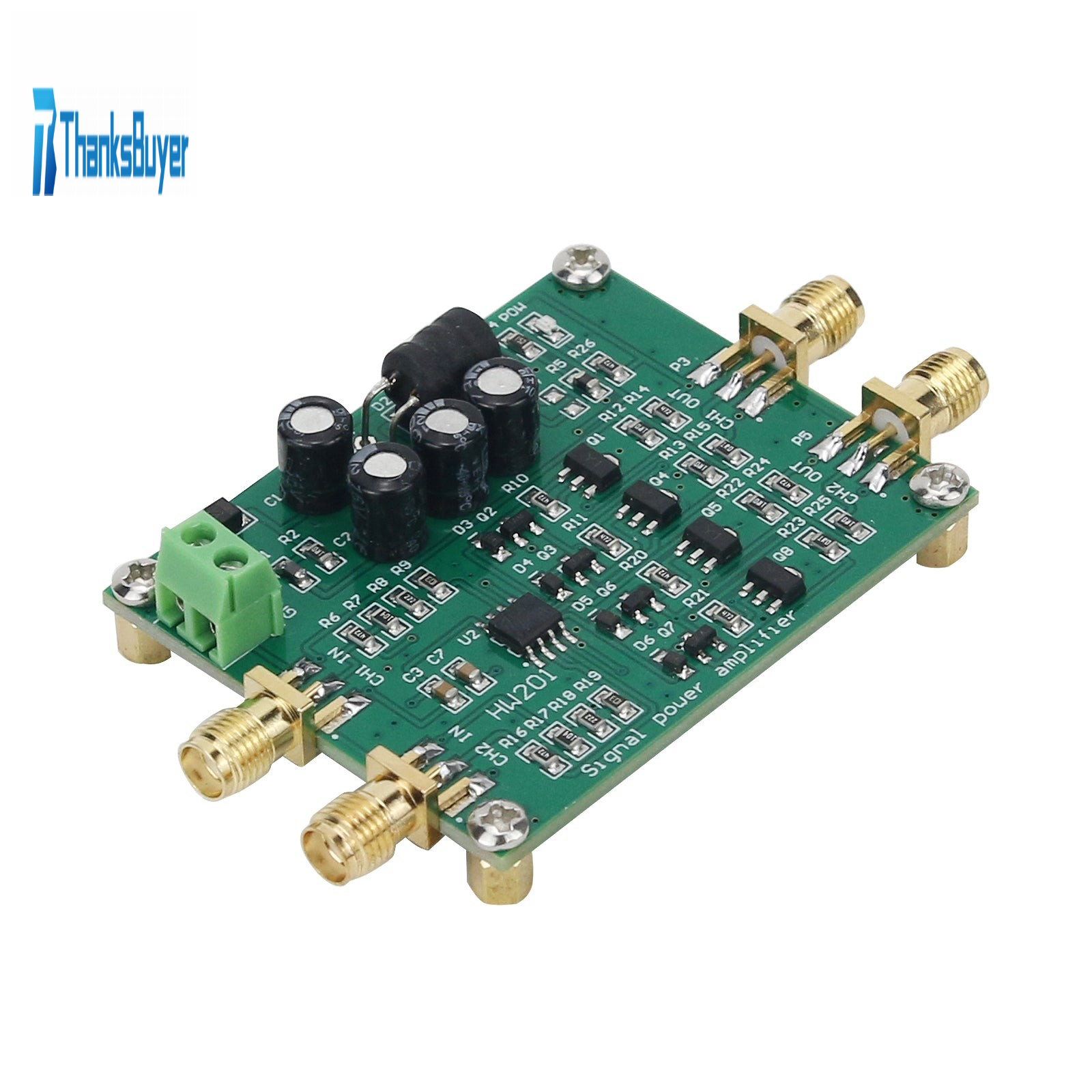

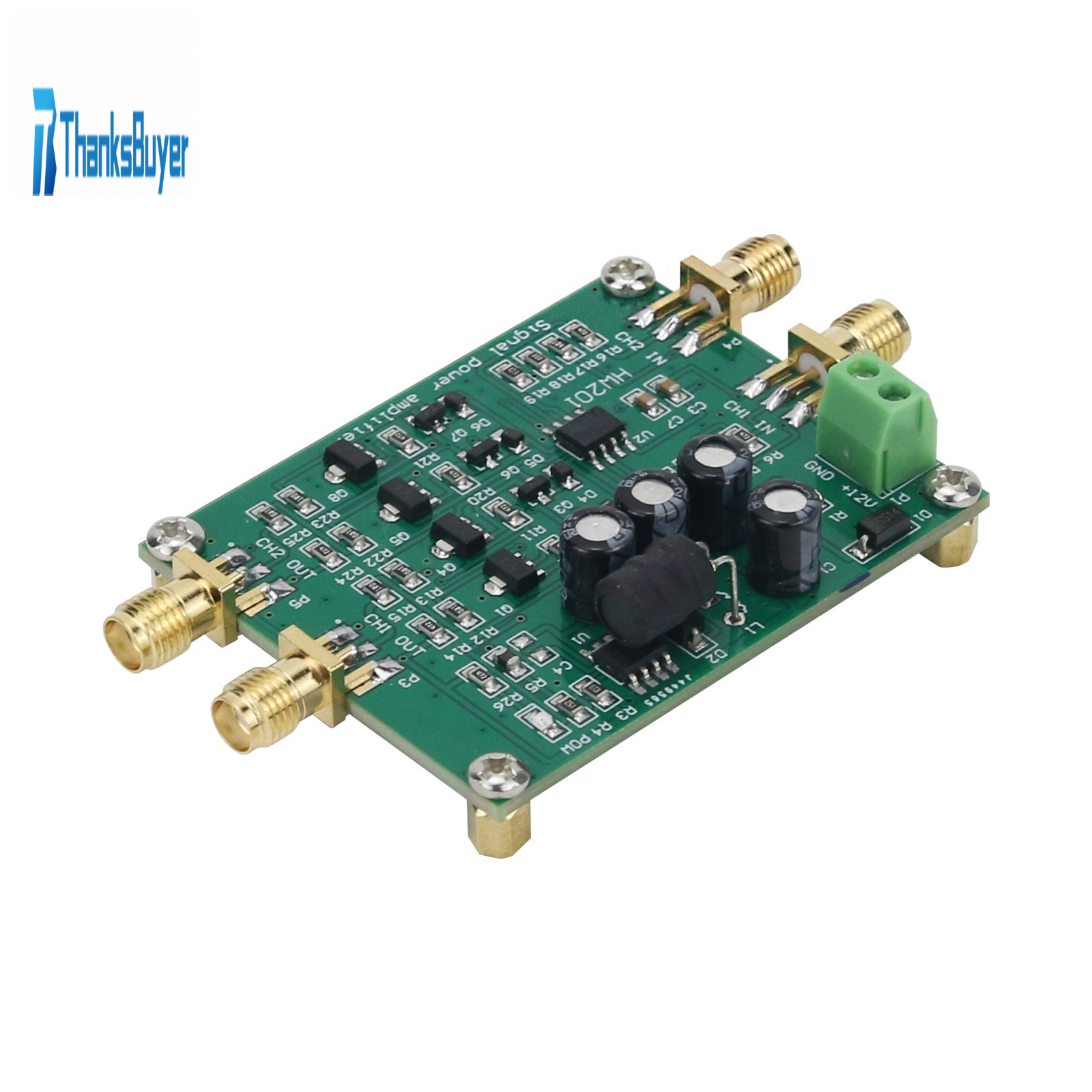

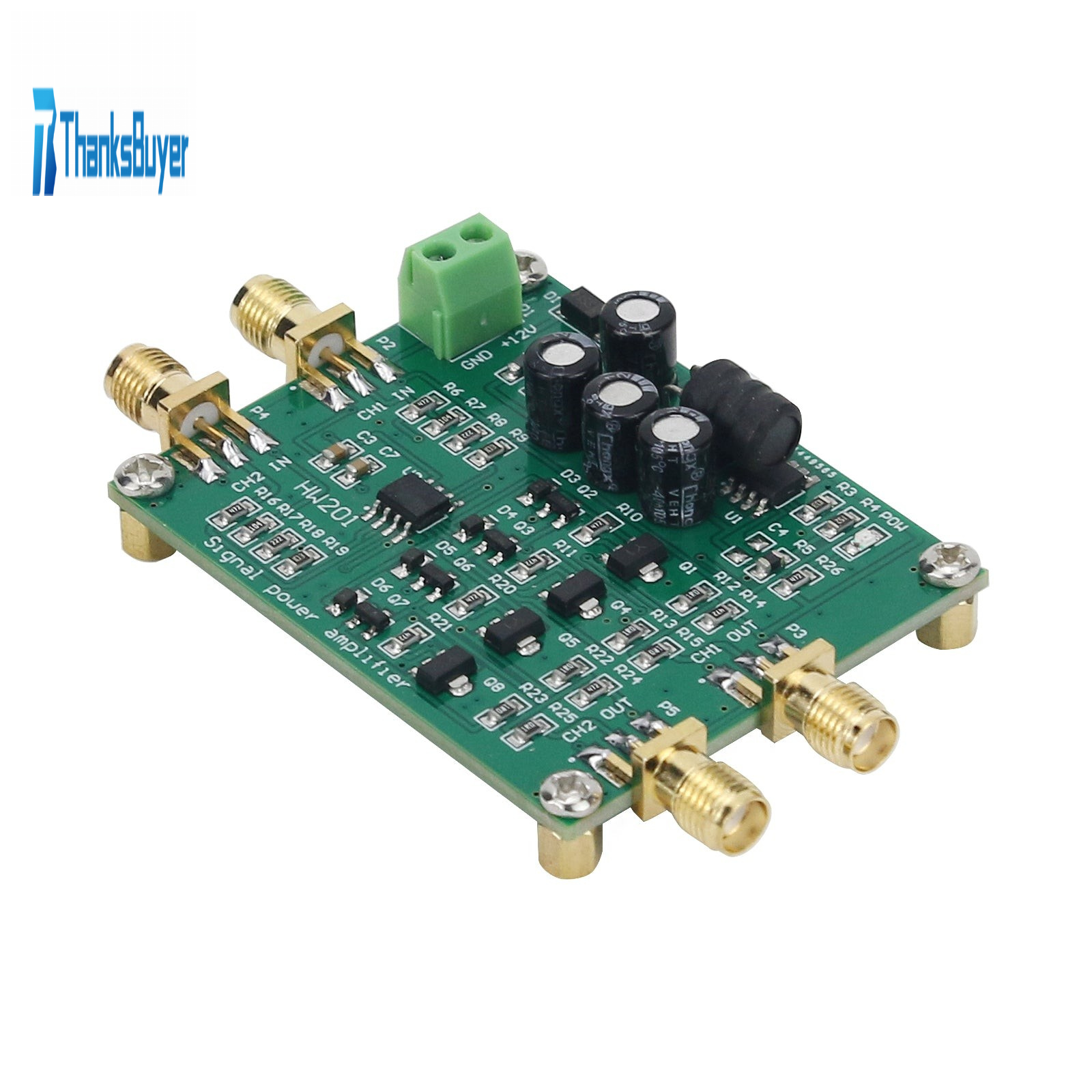

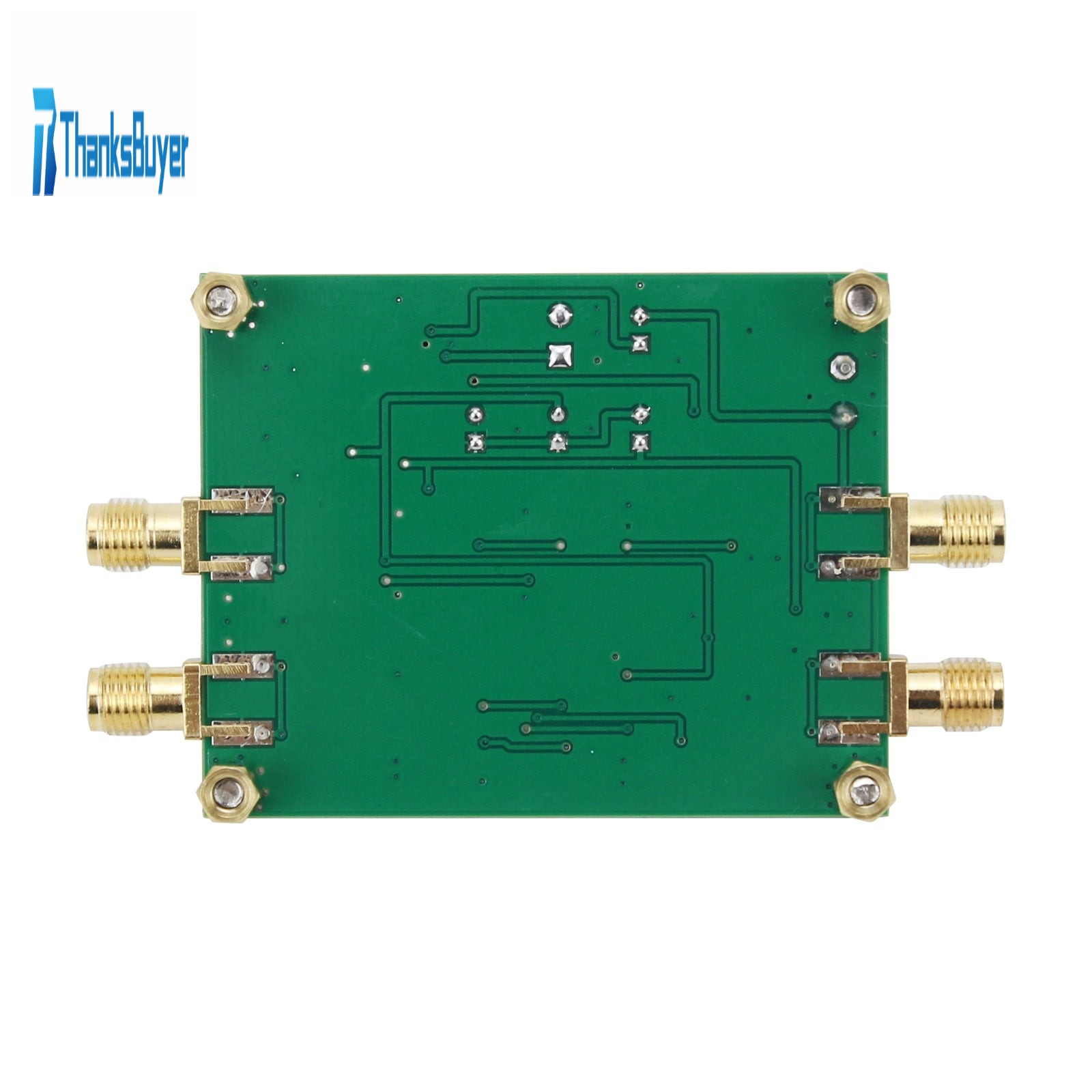

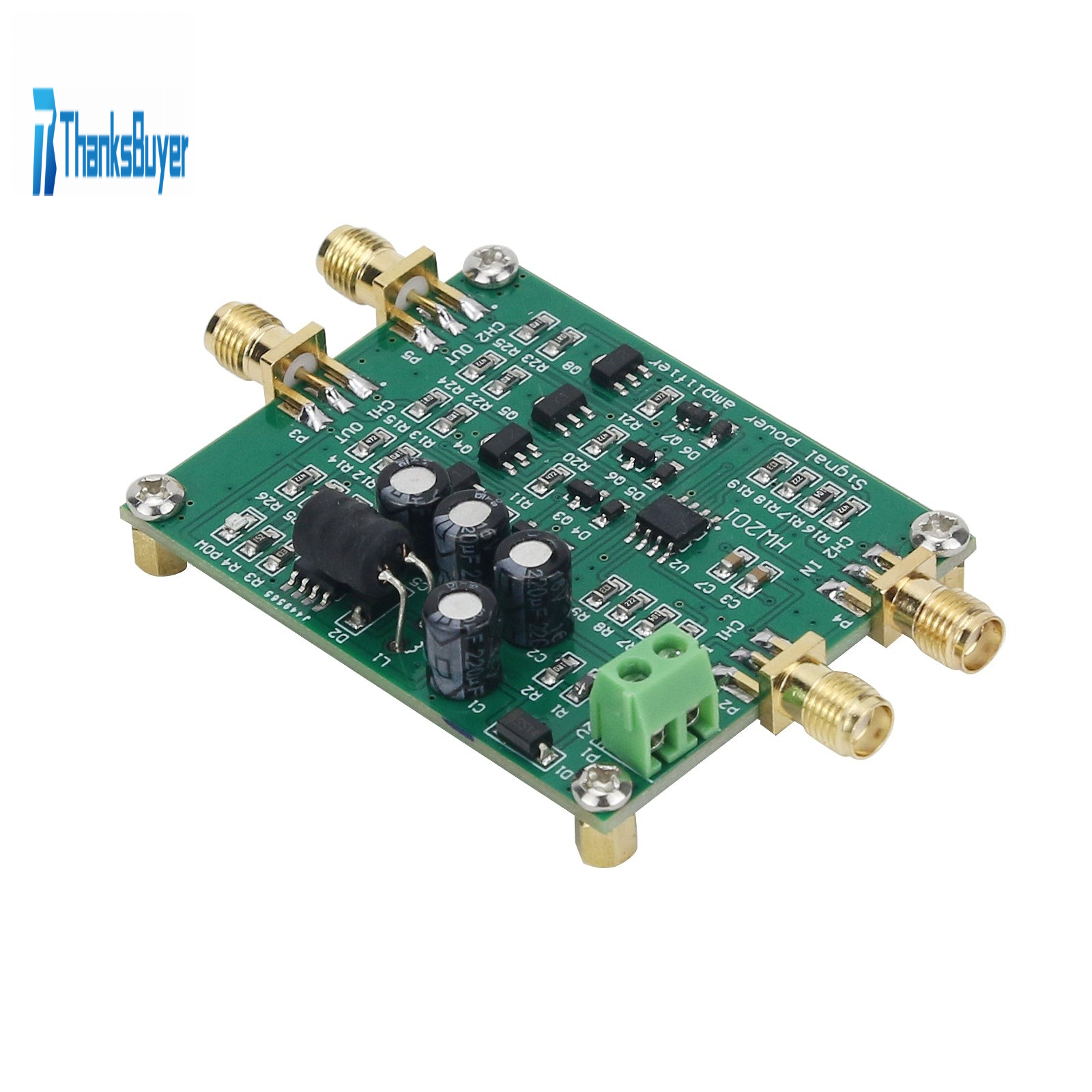

HW201 50Hz-25MHz Signal RF Power Amplifier Module Dual-Channel RF Power Amp Working Voltage 12V
Module Parameters:
- Input frequency range: 50Hz~25MHz
- Maximum input voltage: 8Vpp
- Maximum output voltage: 8Vpp
- Operating voltage: 12V
- Size: 56 x 45mm/2.2 x 1.8"
Interfaces:
- P1 interface: VDD: power supply +; GND: power supply-
- P2 interface: CH1 input signal (RP SMA KE KHD female connector)
- P4 interface: CH2 input signal (RP SMA KE KHD female connector)
- P3 interface: CH1 output signal (RP SMA KE KHD female connector)
- P5 interface: CH2 output signal (RP SMA KE KHD female connector)
Package Included:
- 1 x Power Amplifier Module
