LZ60-2 Aluminum Alloy Z-Axis Double-rail Trimming Platform 58.8N Load High Precision Sliding Table

LZ60-2 Aluminum Alloy Z-Axis Double-rail Trimming Platform 58.8N Load High Precision Sliding Table

Features:
- By using cross roller guide rails, high-precision and smooth movement can be achieved.
- The main material is aluminum alloy, which is lightweight and suitable for placement in other devices.
- The driving method is micro split head.

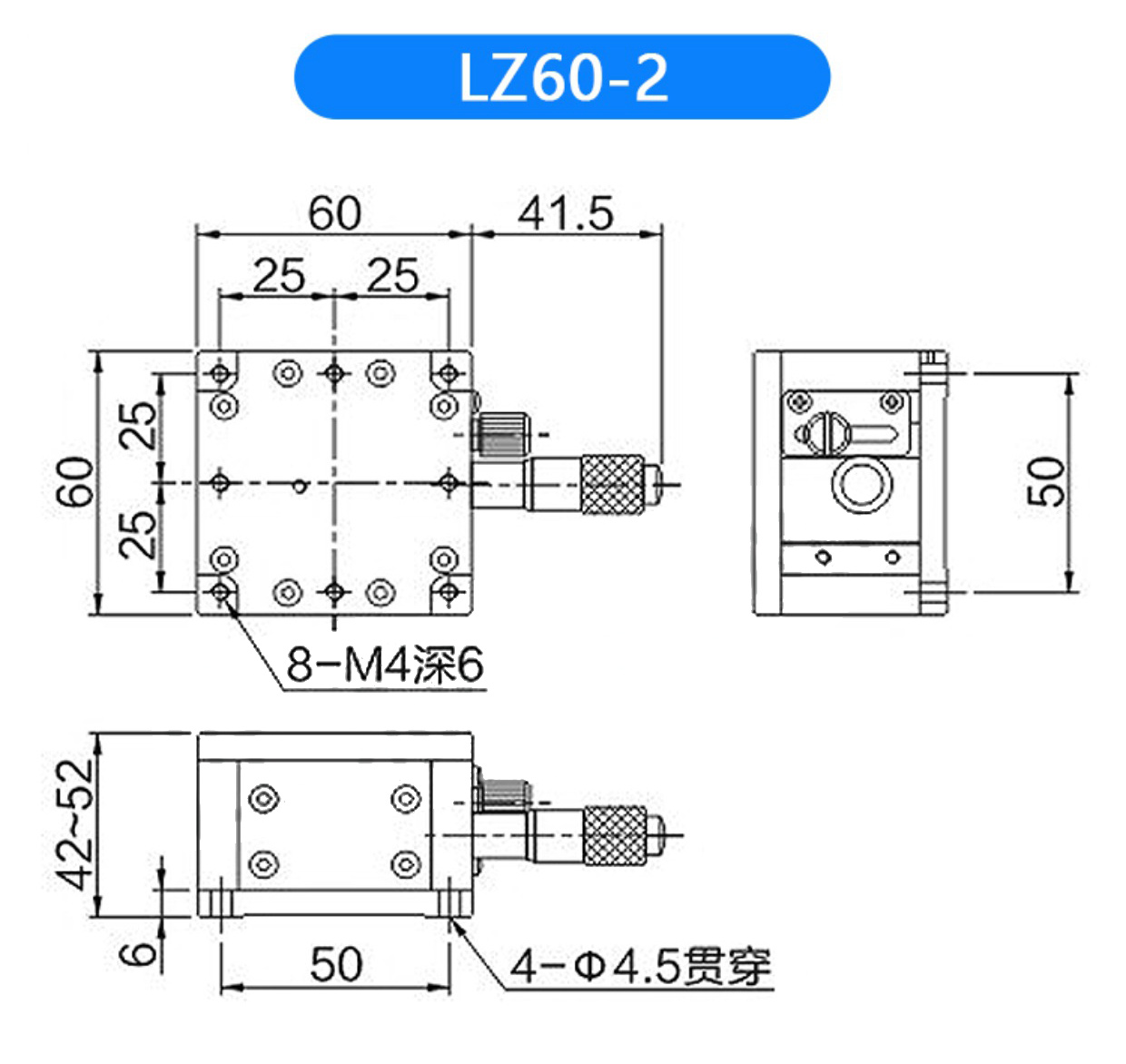

Specification:
- Model:LZ60-2
- Table Size: 60 x 60MM
- Movement mode: parallel
- Direction of movement: Z Level Axis
- Stroke: 10mm
- Load: 58.8N (6kgf)
- Material: aluminum alloy
- Minimum scale: 0.01mm
- Precision: 0.02mm
- Parallelism: 0.05mm
- Net weight: 0.39kg

Package Included:
- 1 x Sliding Table
