M5Stack Stick C Built-in MLX90640 Thermopile Sensor Compatible with Human Infrared Thermal Camera Hat

M5Stack Stick C Built-in MLX90640 Thermopile Sensor Compatible with Human Infrared Thermal Camera Hat

Description:

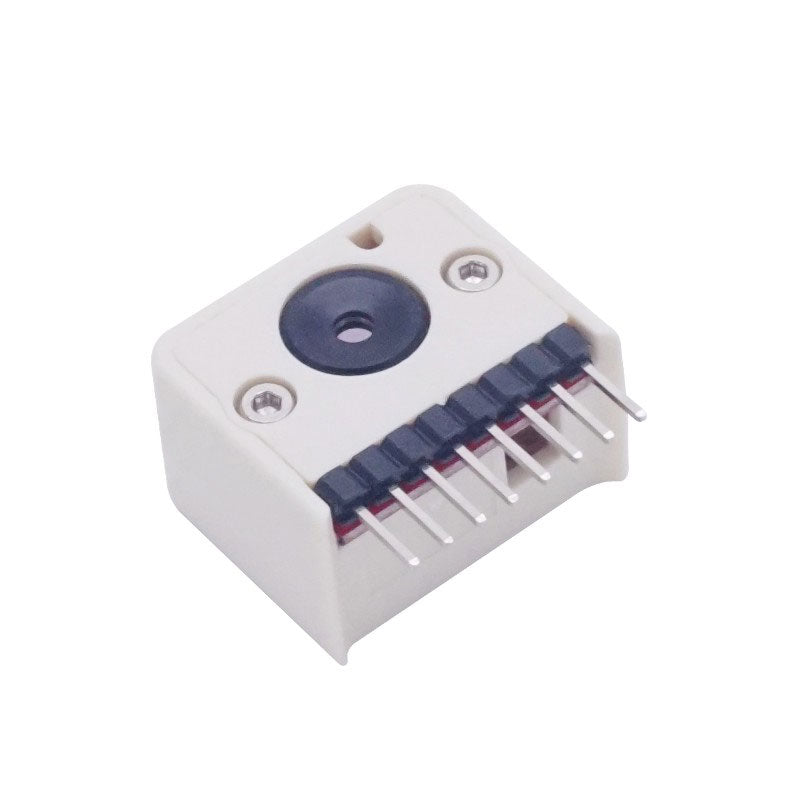

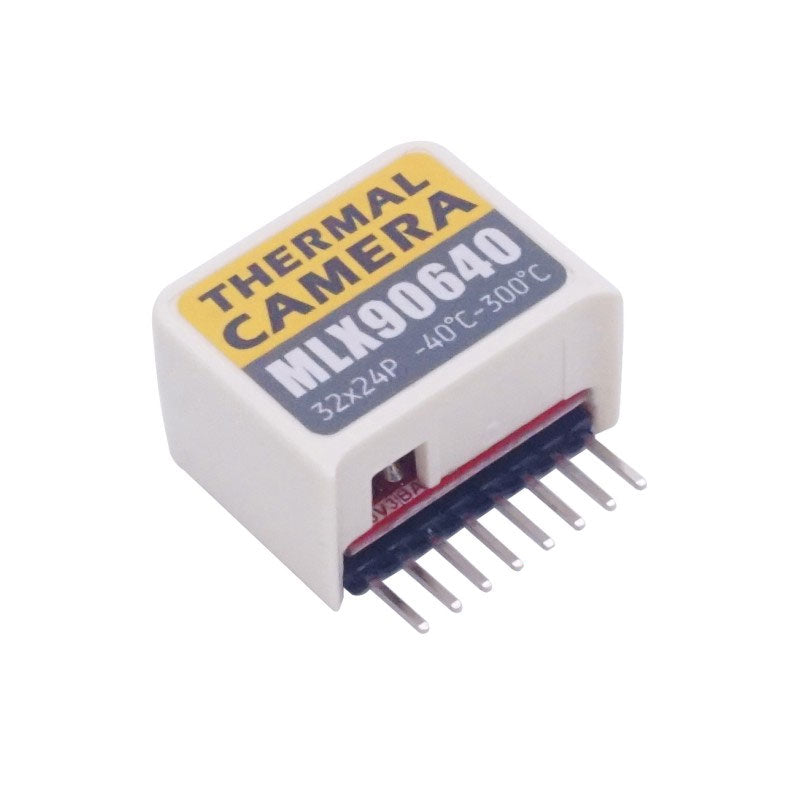

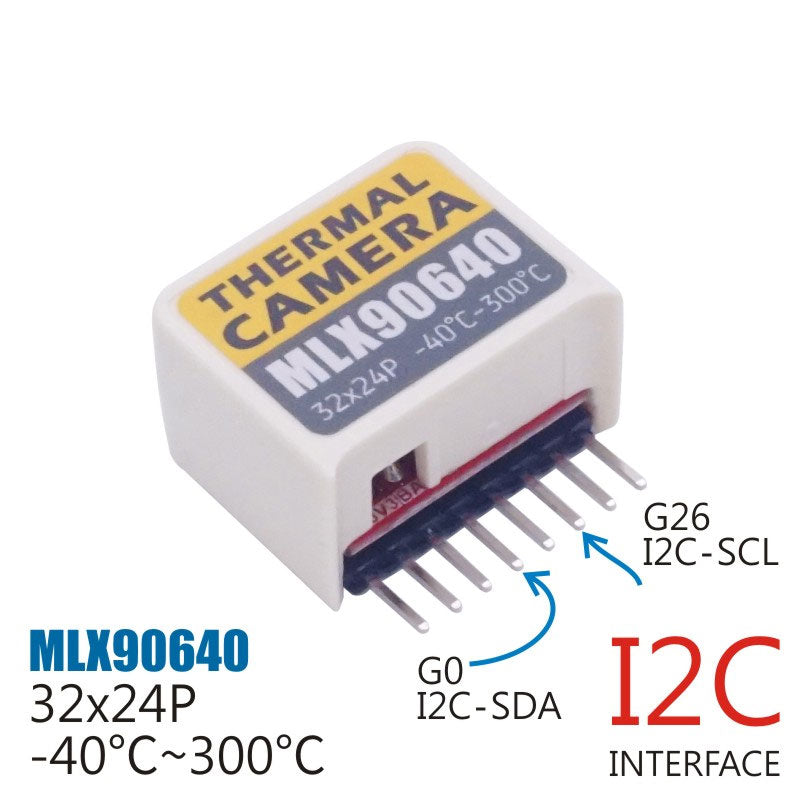

- THERMAL HAT is an M5StickC-compatible human infrared thermal imaging. Built-in MLX90640 thermopile sensor that measures the surface temperature of an object and generates a thermal image through a temperature gradient formed by the surface temperature. Resolution is 32 x 24)

- MLX90640 Infrared (IR) sensor arrays offer high resolution and the ability to work reliably in harsh environments. Compared to expensive high-end thermal imaging cameras, Hat-Thermal is a cost-effective alternative. Relatively general Micro-bolometer, the advantage of this sensor is that it does not require frequent re-calibration, thus ensuring continuity of detection and reducing system maintenance costs. The field of view provides a wide-angle version (110° x 75°).

Specification:
- Operating Voltage: 3V ~ 3.6V
- Current Consumption: 23mA
- Field of View: 110° x 75°
- Measurement Range: -40°C ~ 300°C
- Resolution: ±1.5°C
- Refresh Rate: 0.5Hz - 64Hz
- Operating temperature: -40°C ~ 85°C
- Product size: 24 x 30 x 17mm
- Net weight: 3g

Application:
- High precision non-contact temperature measurements
- Intrusion / Movement detection
- Visual IR thermometers

Package Included:
- 1 x Thermal Hat

More Details:
- https://docs.m5stack.com/en/hat/hat-thermal
