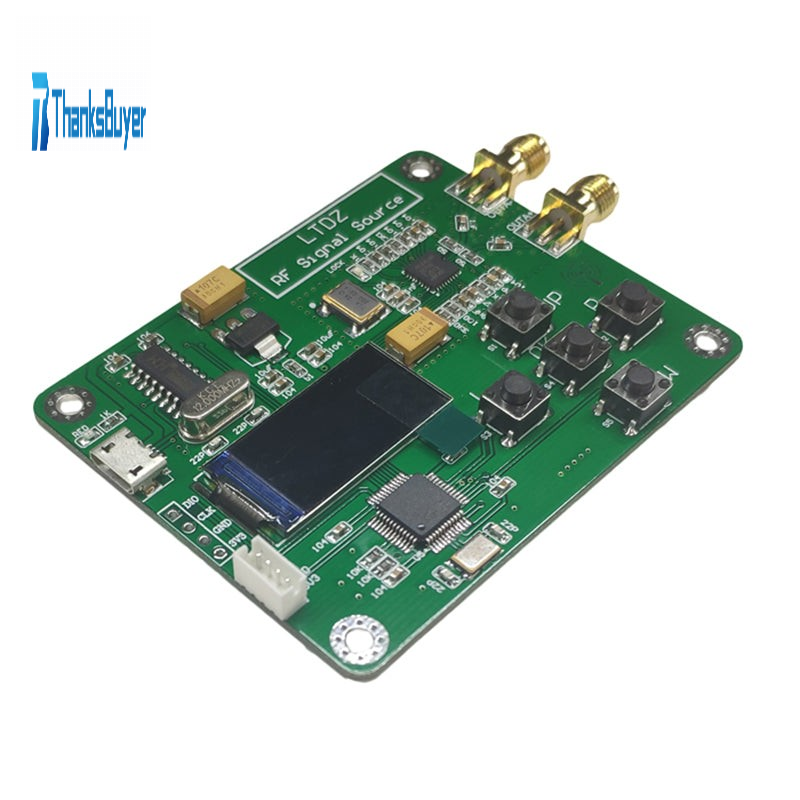

MAX2870 23.5-6000MHz RF Signal Source Signal Generator Module 0.96 Inch OLED Serial Port Control

MAX2870 23.5-6000MHz RF Signal Source Signal Generator Module 0.96 Inch OLED Serial Port Control

Specification:
Frequency output range: 23.5-6000MHz, (two modes: bot frequency and sweep frequency)
Minimum control accuracy: 0.001MHz
Amplitude control: -4dB, -1dB, +2dB, +5dB
Power supply mode: USB 5V power supply
Size: 80mm*53mm*8mm

Control Method:
-Adjust the frequency output by 5 buttons on the board.
-Serial port control method 1: Onboard USB to serial port chip, computer can directly control, no control software is provided.
-Serial port control mode 2: Through the board serial port interface, controlled by other hardware devices. (provide serial port control communication protocol)

Package List:
-1 x RF Signal Source
-1 x USB Cable
-1 x Serial Cable
