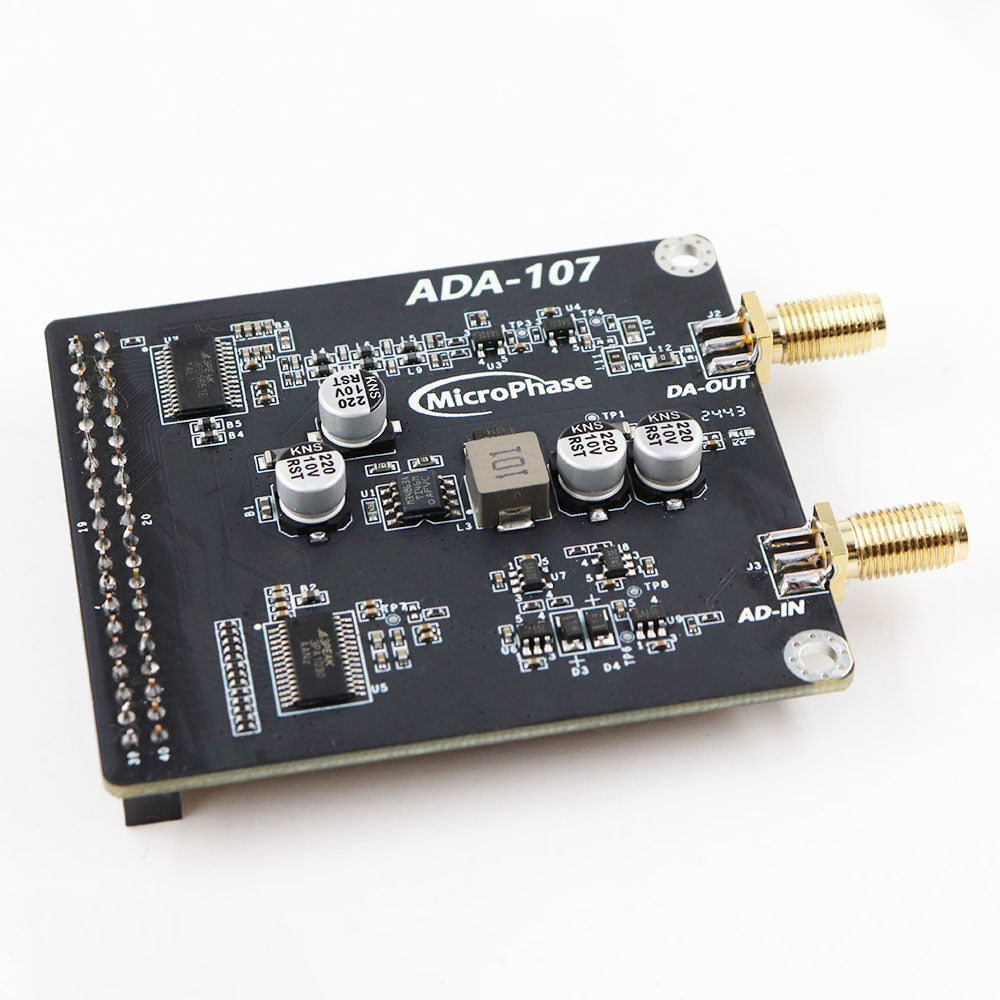

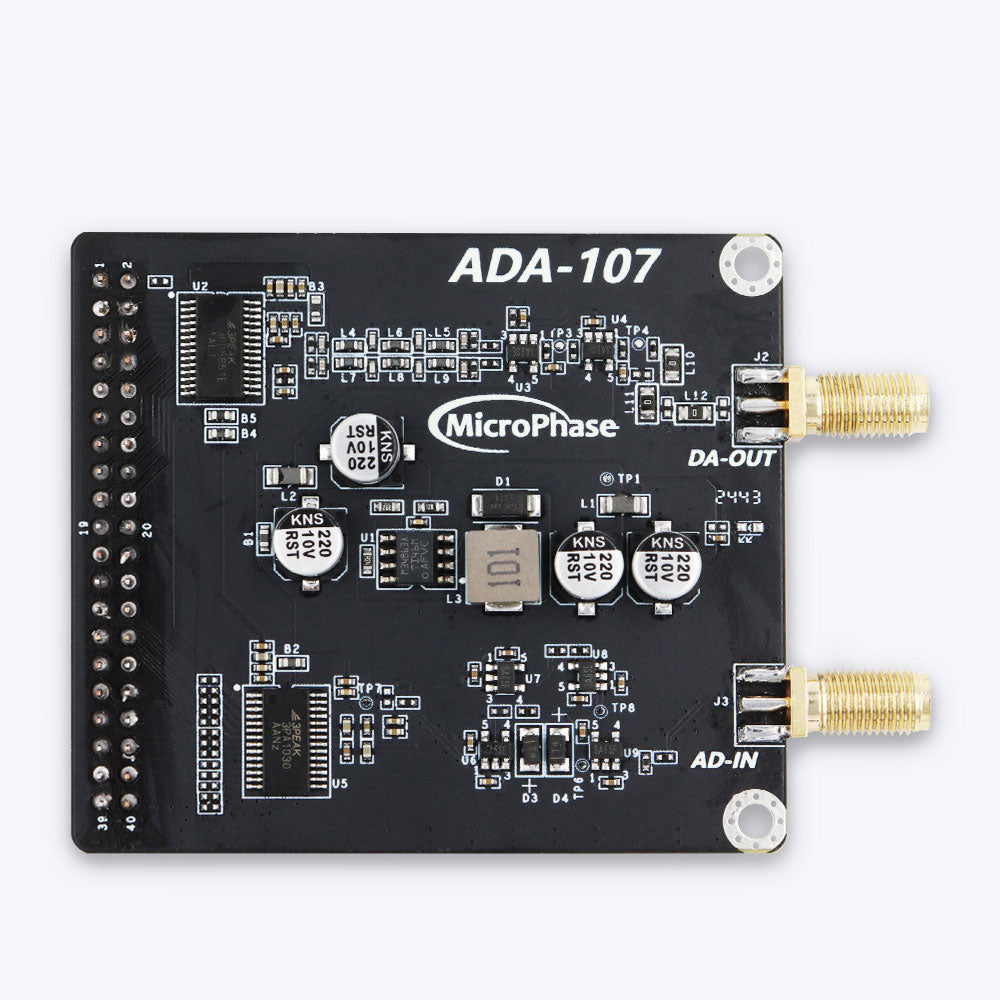

MicroPhase ADA-107 10Bit 50MSPS/125MSPS High Speed AD/DA Conversion Module Support DC/AC Coupling for FPGA Development Board
Specification:
- Bit width: 10bit
- ADC conversion rate: 50MSPS
- DAC conversion rate: 125MSPS
- Analog input range: +/- 5Vpp
- Analog output range: +/- 4.3Vpp
- Interface type: SMA
- Coupling method: support DC coupling/AC coupling
- Interface: 40Pin GPIO digital interface, level voltage 3.3V
- Working temperature: 0℃ to 70℃
- Product size: 66 x 58mm
Package Included:
- 1 x AD/DA Conversion Module
