MID-3000 Audio Testing System Omnidirectional Capacitive Microphone for Speaker/Power Amplifier Measurement and Debugging

Introduction:
- MID3000 is a condenser microphone used in conjunction with ART2300 test box to form a professional audio testing system. With REW software, it can provide accurate curve graphs for measuring speakers, amplifiers, environments, subwoofers, etc. It can also be used to adjust DSP curves, delays, and division points.

Microphone Calibration File Download:
- Please visit the official website http://www.midianangel.com/. In the calibration file download, enter the 8-bit serial number on the microphone body.

Import Calibration File:
- Calibration files can be imported before or after measurement to reduce measurement errors.

Specifications:
- Directivity: full frequency
- Sensitivity: -32dB
- S/N: 74dB/1kHz
- Local bottom noise: 20dB
- Impedance: 1.6K±30%/1kHz
- Frequency range: 20 - 20kHz
- Working voltage: 24 - 48V
- Working current: 1mA max.
- Microphone interface: 3-Pin XLRM

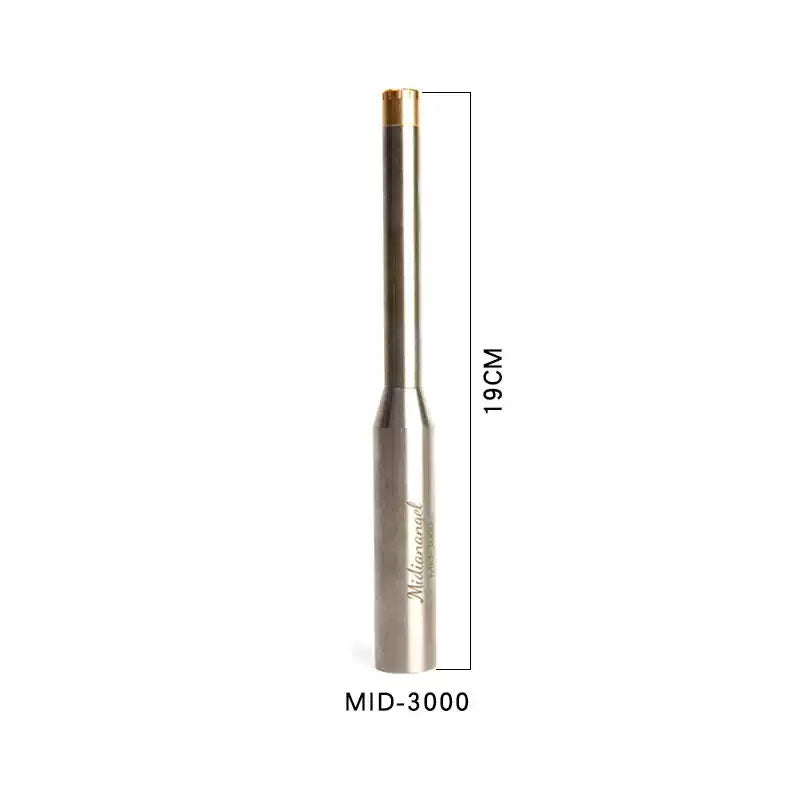

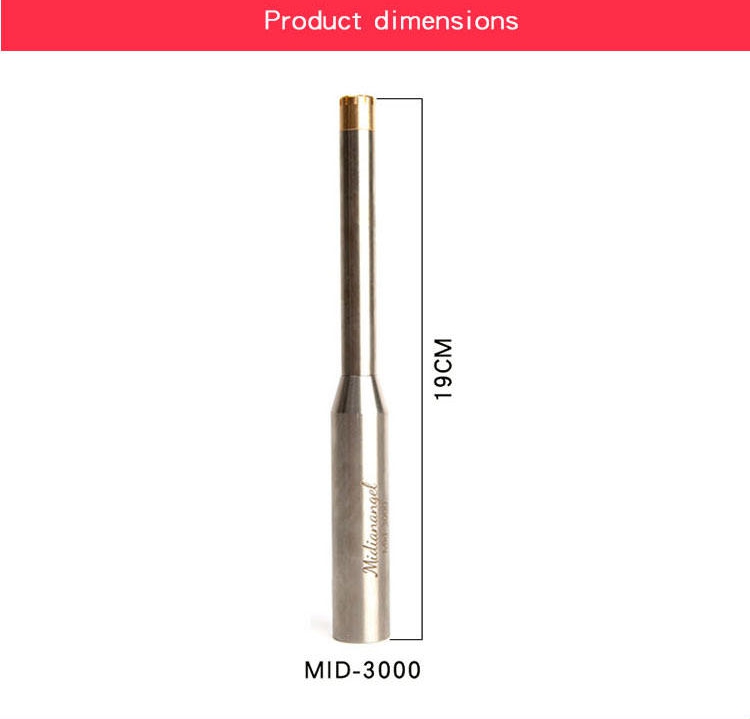

- Size: 21 x 190mm
- Net weight: 166g

Package Included:
- 1 x Microphone
- 1 x XLR Cable
- 1 x Storage Bag
