  3. NanoPi R2S Rockchip RK3328 with CNC Metal Case Mini Router Dual Gigabit Port 1GB SBC OpenWrt System
Por NanoPi

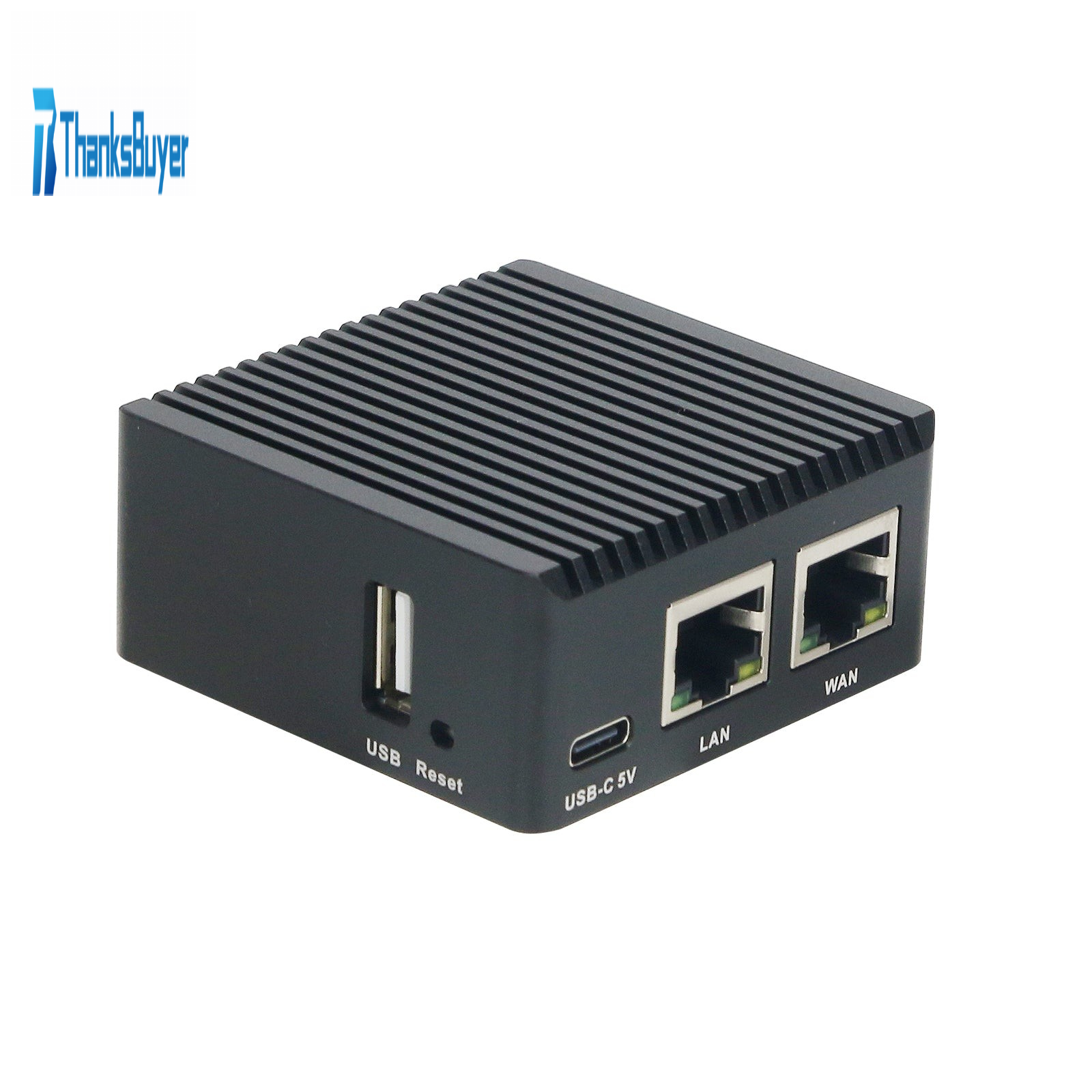

NanoPi R2S Rockchip RK3328 with CNC Metal Case Mini Router Dual Gigabit Port 1GB SBC OpenWrt System

$64.56
$64.56
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.
Availability: 2000 en stock
SKU: 73813
Tags:
Collections:
Text watermark
$64.56
$64.56

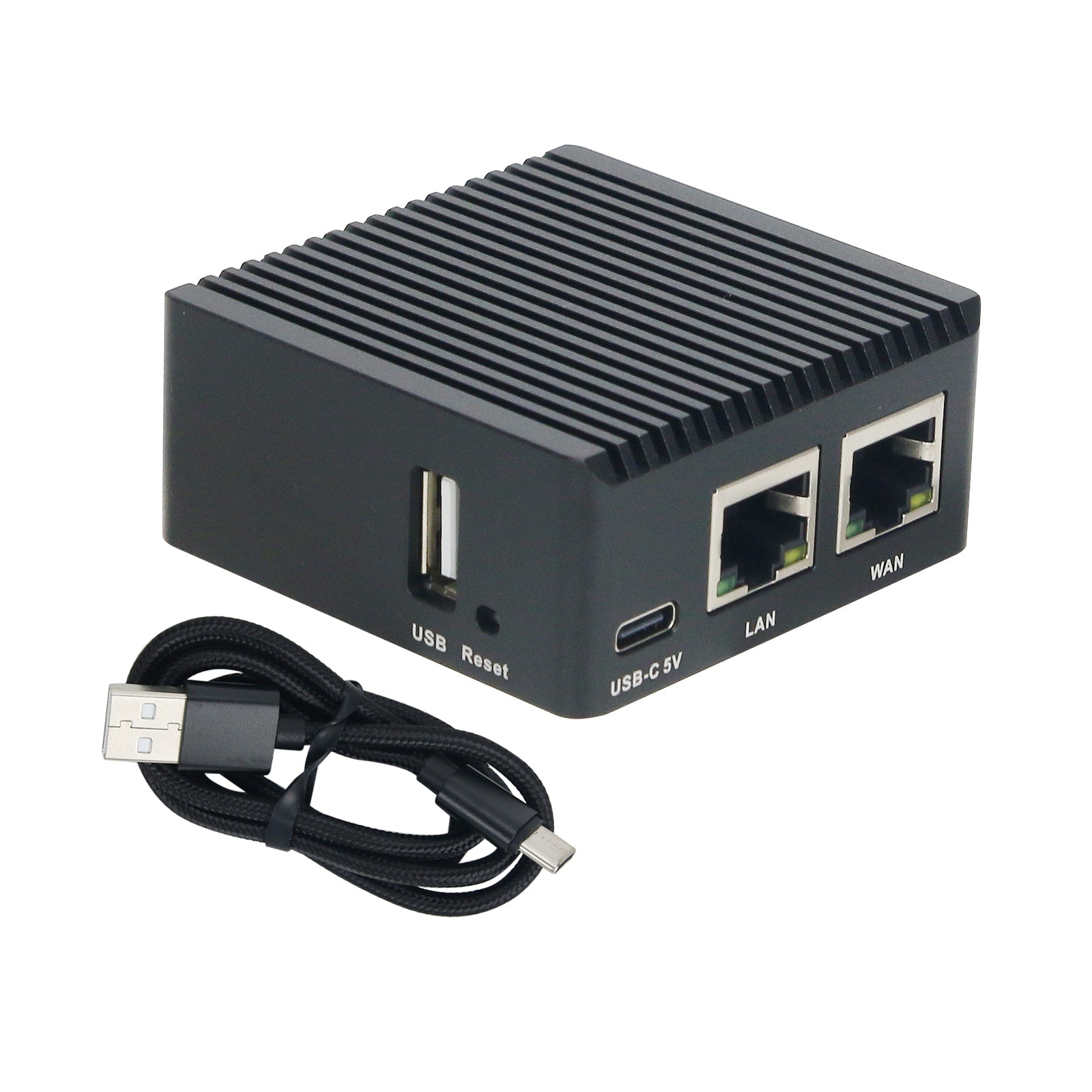

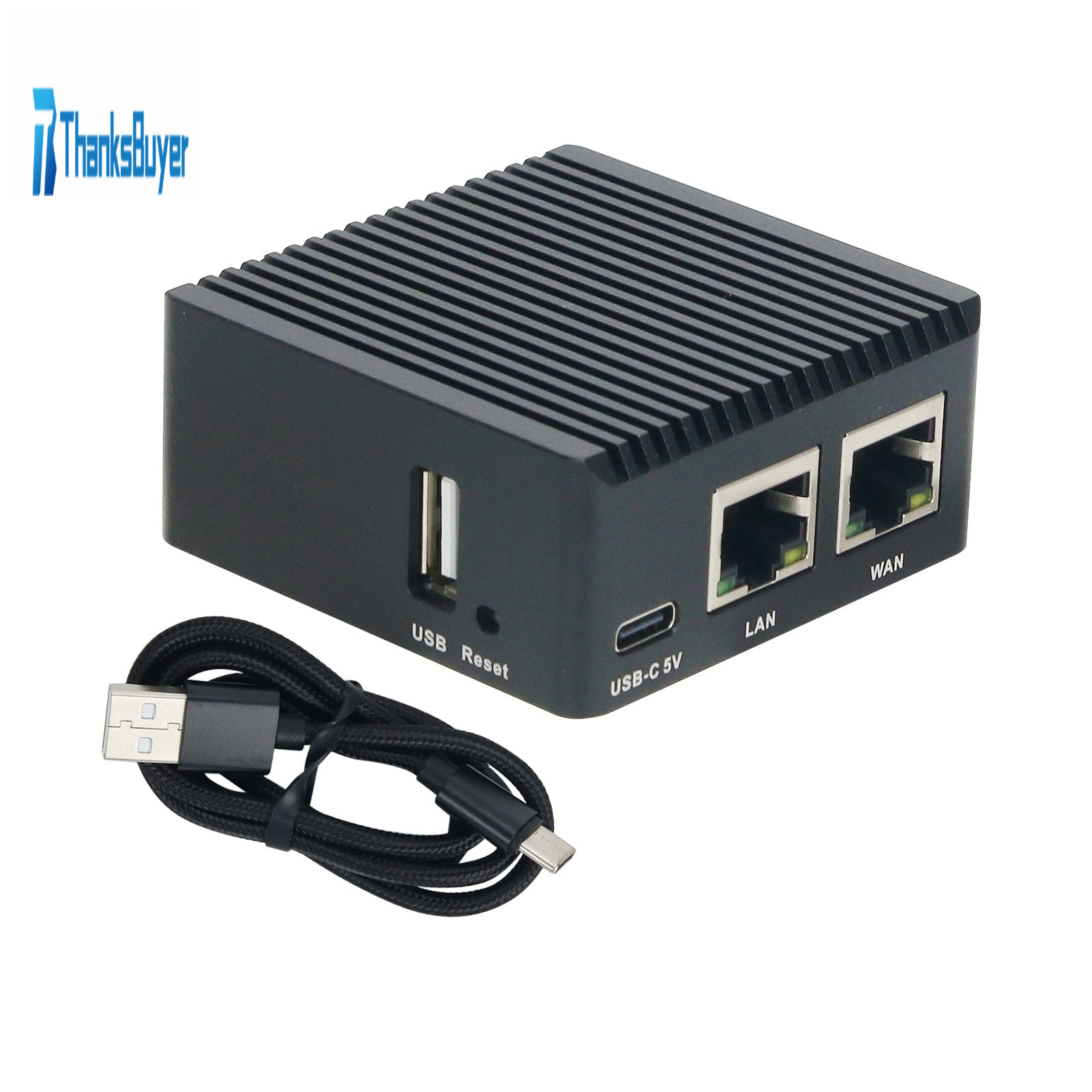

Package list：New NanoPi R2S Kit (with CNC Metal Case)




Introduction

  • The NanoPi R2S(as "R2S") is an open-source platform with dual-Gbps Ethernet ports designed and developed by FriendlyElec for IoT applications.

  • The NanoPi R2S uses the RK3328 SoC. It has two Gbps Ethernet ports and 1G DDR4 RAM. FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications, smart home gateways, etc.

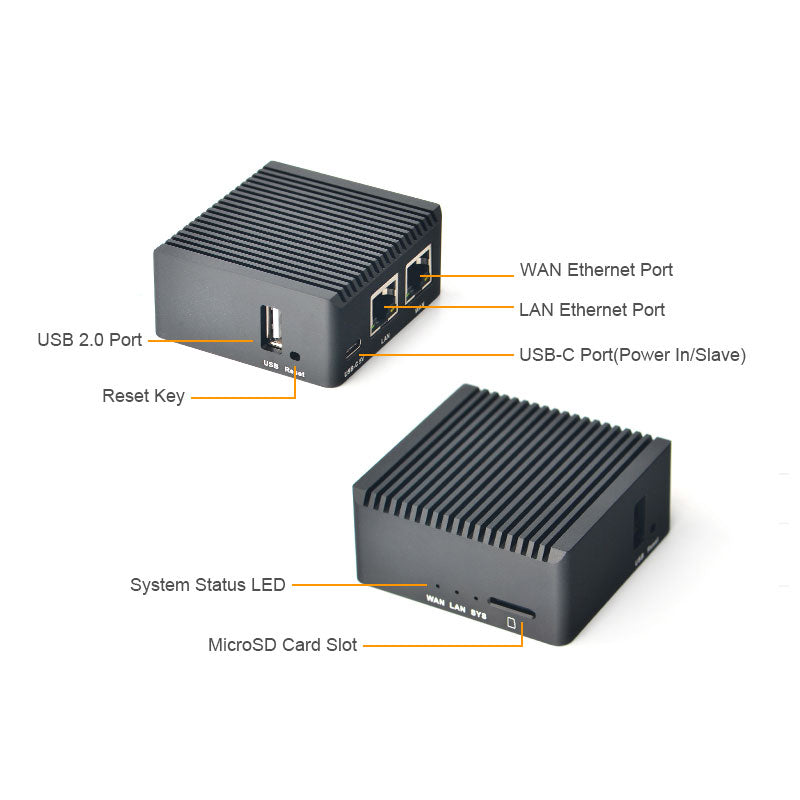

Hardware Spec

  • CPU: Rockchip RK3328, Quad-core Cortex-A53

  • DDR4 RAM: 1GB

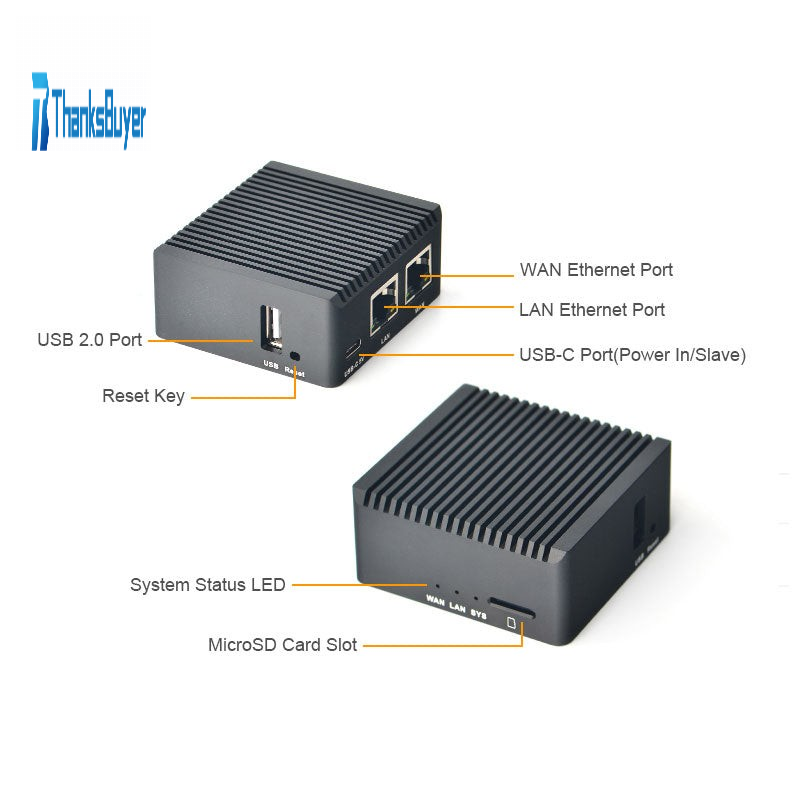

  • Network:

    • Internal 10/100/1000M Ethernet Port x 1

    • USB3.0 converted 10/100/1000M Ethernet Port x 1

  • USB2.0 Host: Type-A x1

  • MicroSD Slot x 1

  • MicroUSB: power input and USB Slave

  • Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector

  • LED: LED x 3

  • KEY: KEY x 1 programmable

  • PC Size: 55.6 x 52mm

  • Power Supply: DC 5V/2A

  • Temperature measuring range: 0℃ to 80℃

  • OS/Software: U-boot,Ubuntu-Core,OpenWrt

  • Network Transmission Rates

TX

RX

WAN

941 Mbps

941 Mbps

LAN

941 Mbps

941 Mbps

Notes：


1. test utility: iperf
2. use indepedent IP address section and test with a PC in simplex communication mode
