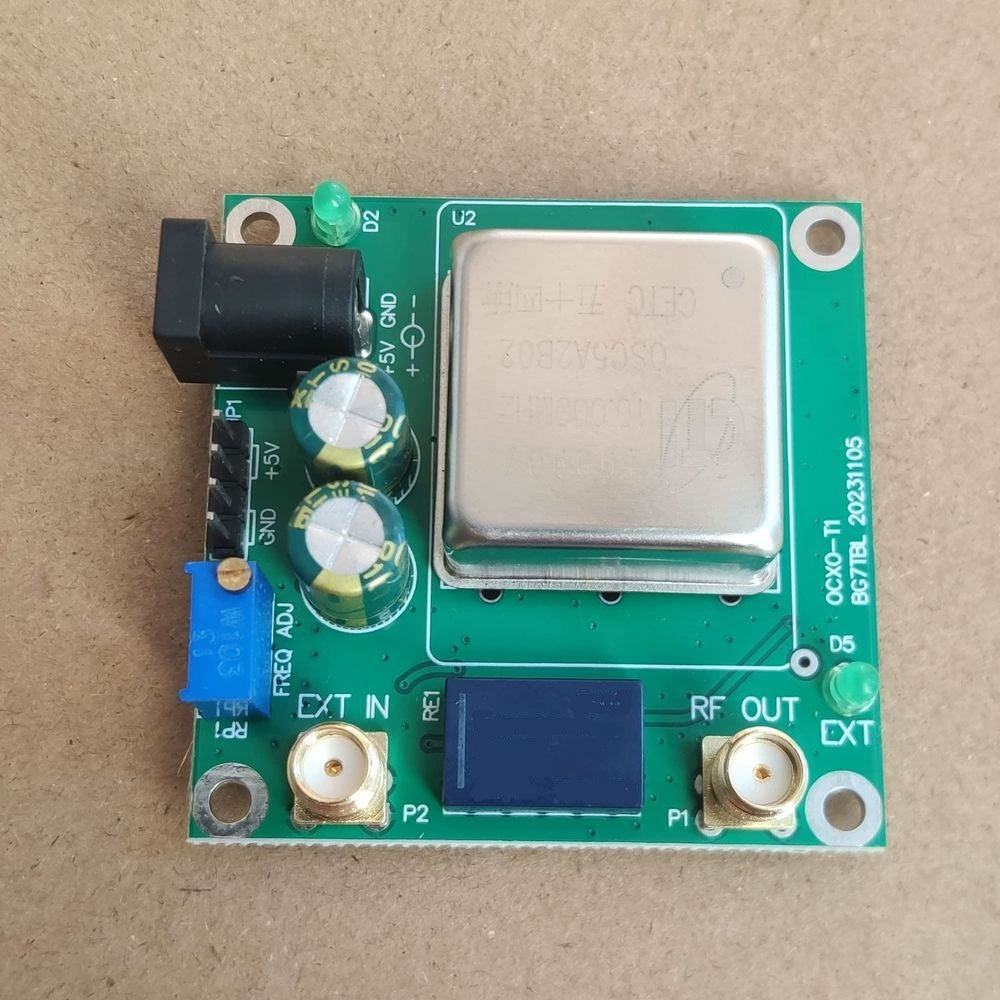

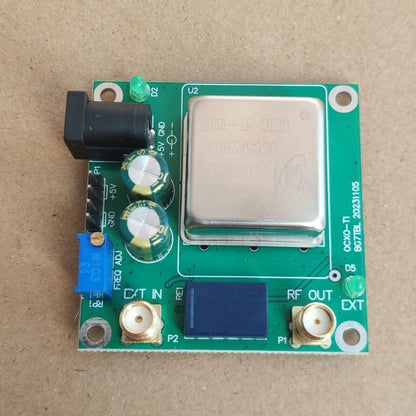

OCXO-T1 10MHz OCXO Frequency Standard Square Wave Input Switch Board Relay Automatic Switch with SMA Connector

OCXO-T1 10MHz OCXO Frequency Standard Square Wave Input Switch Board Relay Automatic Switch with SMA Connector

Specification:
- Product name: 10MHz OCXO frequency standard switch board
- Model: OCXO-T1
- Output: without input and output 10MHz/13DBM, support external input, output external frequency
- External input: 10M, -50DBM - +13DBM, sine wave, square wave, triangular wave, sawtooth wave, etc.
- Interface: SMA x 2; DC-5.5/2.1
- Switch type: relay
- Indicator:
  Power indicator (PWR): LED-D2
  External input indicator (EXT): LED-05
- Inside OCXO parameters:
  Daily aging: +/- 0.5PPB
  1-second stability: better than 0.05PPB
  Power-on type: less than 5 minutes
  Noise: 1Hz-80DBC/Hz, 10Hz-120DBC/Hz, 100Hz-140DC/Hz, 1K-145DBC/Hz
- Power supply: 5V power on < 4W; stability < 1.5W
- Product size: L x W x H = 53 x 50 x 15mm
- Net weight: 120g

Package Included:
- 1 x Frequency Standard Switch Board
