Optical Time Domain Reflectometer OTDR 1310/1550nm Dynamic 30/28dB 120KM without VFL MT-2300 Plus

Optical Time Domain Reflectometer OTDR 1310/1550nm Dynamic 30/28dB 120KM without VFL MT-2300 Plus

Description:

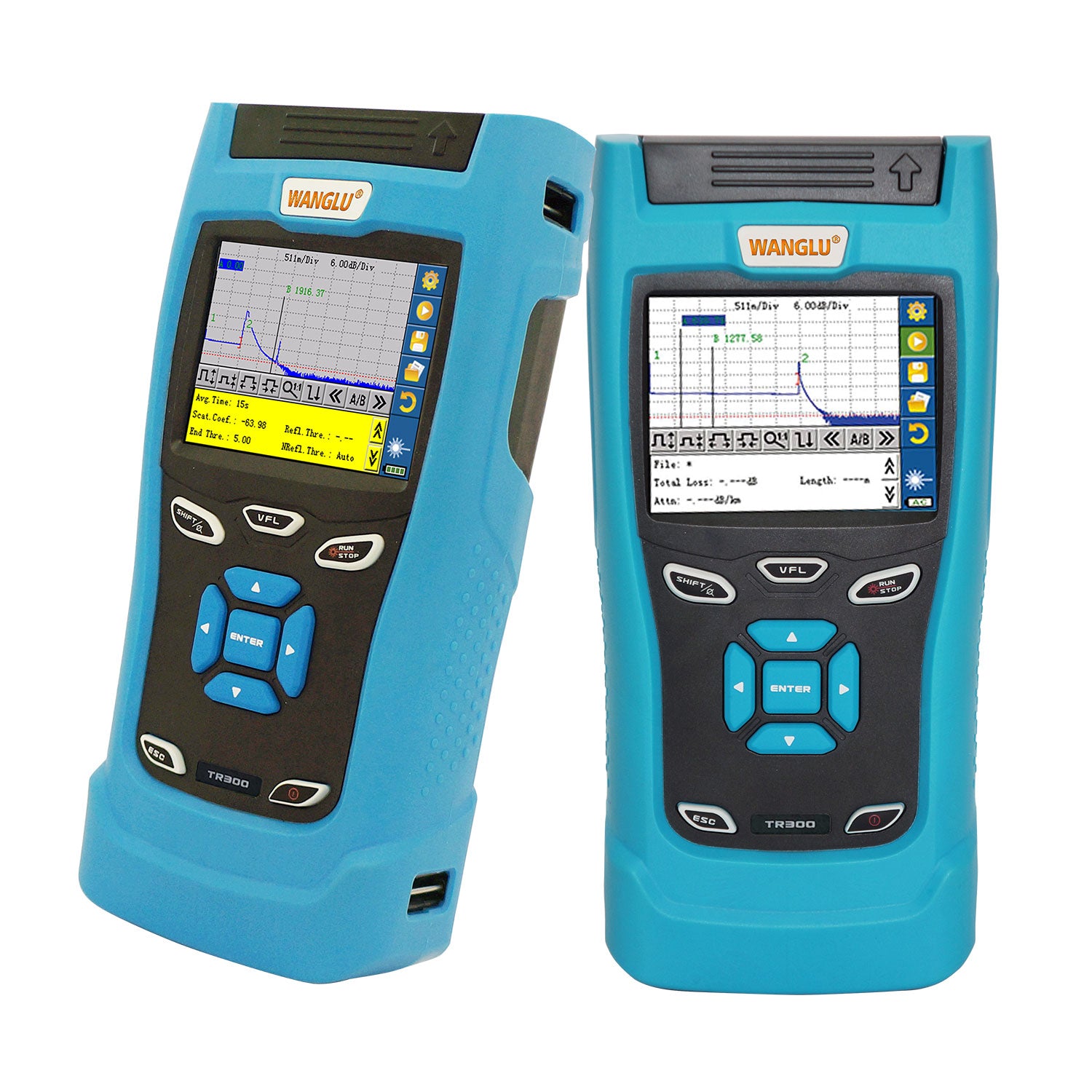

MT-2300 hand-held optical time domain reflectometer is a high-performance, cost-effective optical network analysis tester. It features lightweight, easy operation, highly intelligence, fast one-button automatic test. With user-friendly interface, it is easy to operate.

Features:
- Dynamic 30/20dB
- 1310/1550nm dual wavelengths can be tested simultaneously
- With 3.5" TFT LCD touch screen
- PC analysis software helps generate professional OTDR reports at fast speed
- A touch screen and buttons enable easy operation
- High Efficiency: One button to start automatic tests
- Auto-sleep function saves energy



Other Parameters:
- Operating Temperature: -10℃ to 50℃
- Storage Temperature: -40℃ to 70℃
- Relative Humidity: 0 to 95% (No Condensation)

Note:
1.Technical specifications describe the guaranteed performance of the OTDR when a typical UPC connector is used for measurement. The uncertainty caused by the reflection ratio of optical fibers is not taken into account. The dynamic range of MT-2300 is measured @120KM measuring range, 20480ns pulse width and 3min average time.
2. Dead zone measurement conditions: The reflection event occurs within 4KM. The reflection strength is smaller than -45dB. The minimum pulse width is used.

Package Included:
- 1 x MT-2300 Plus OTDR 30/20dB
