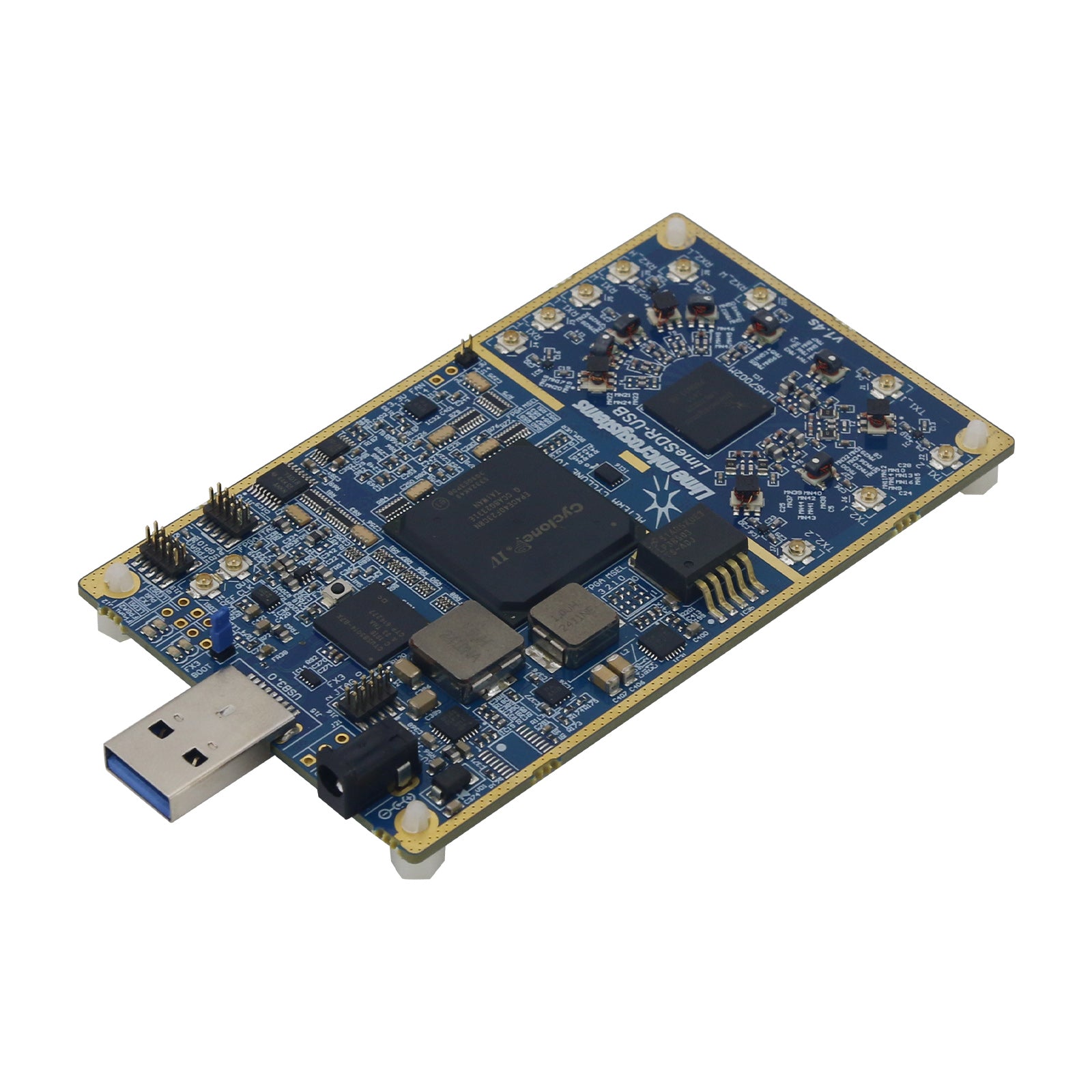

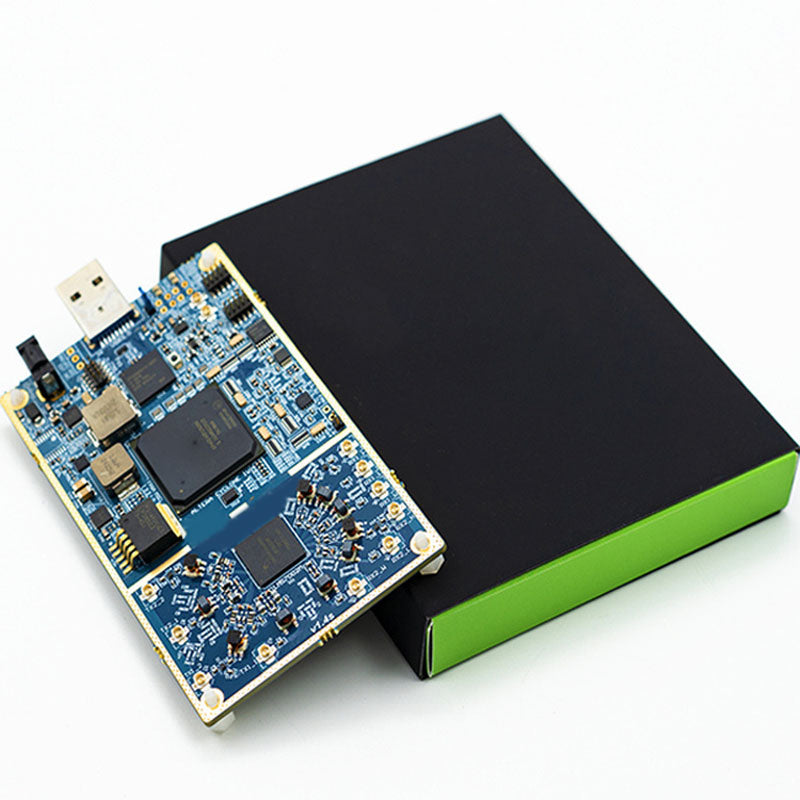

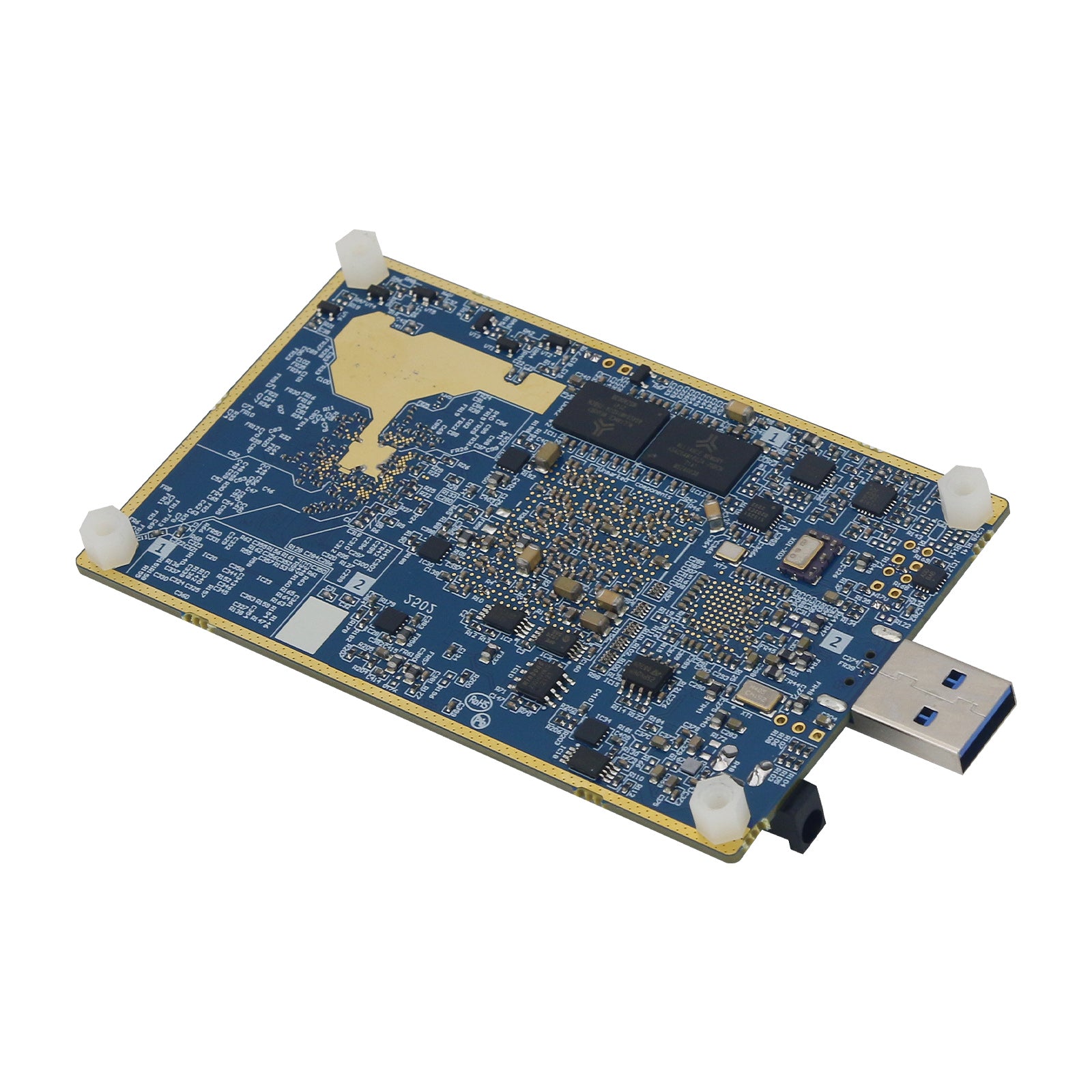

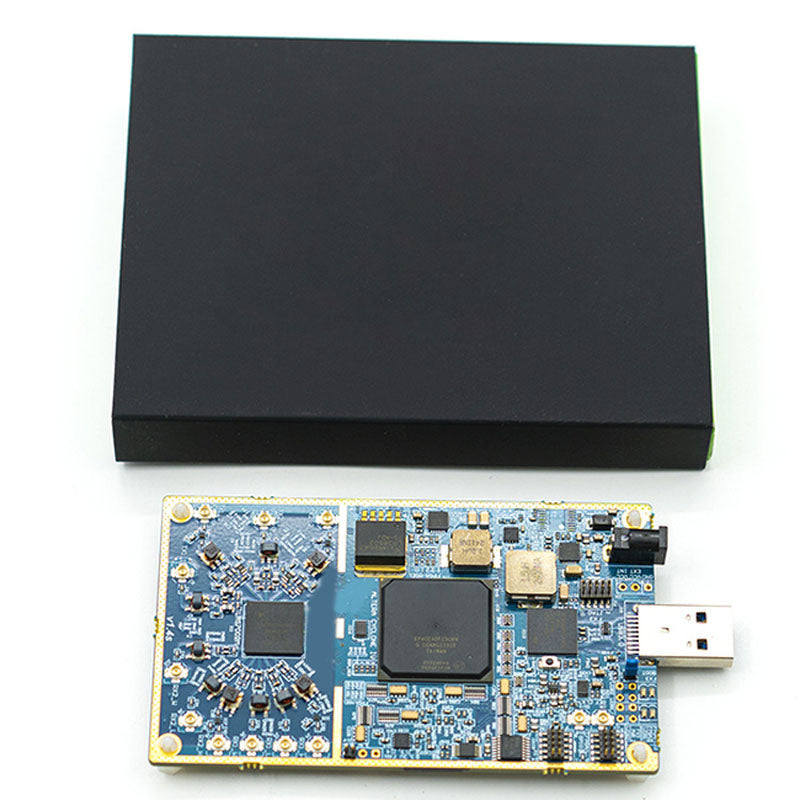

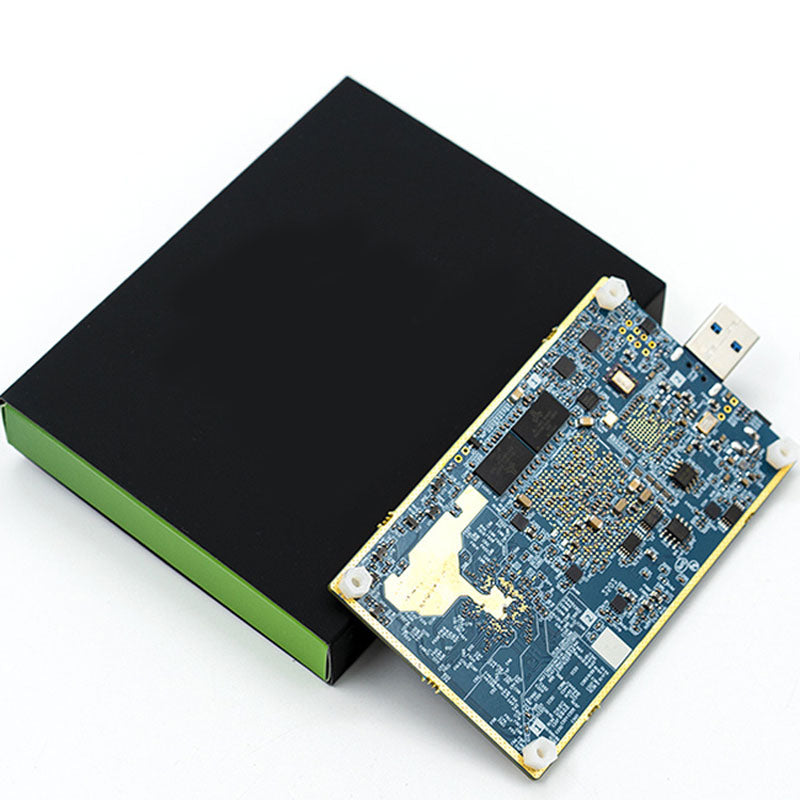

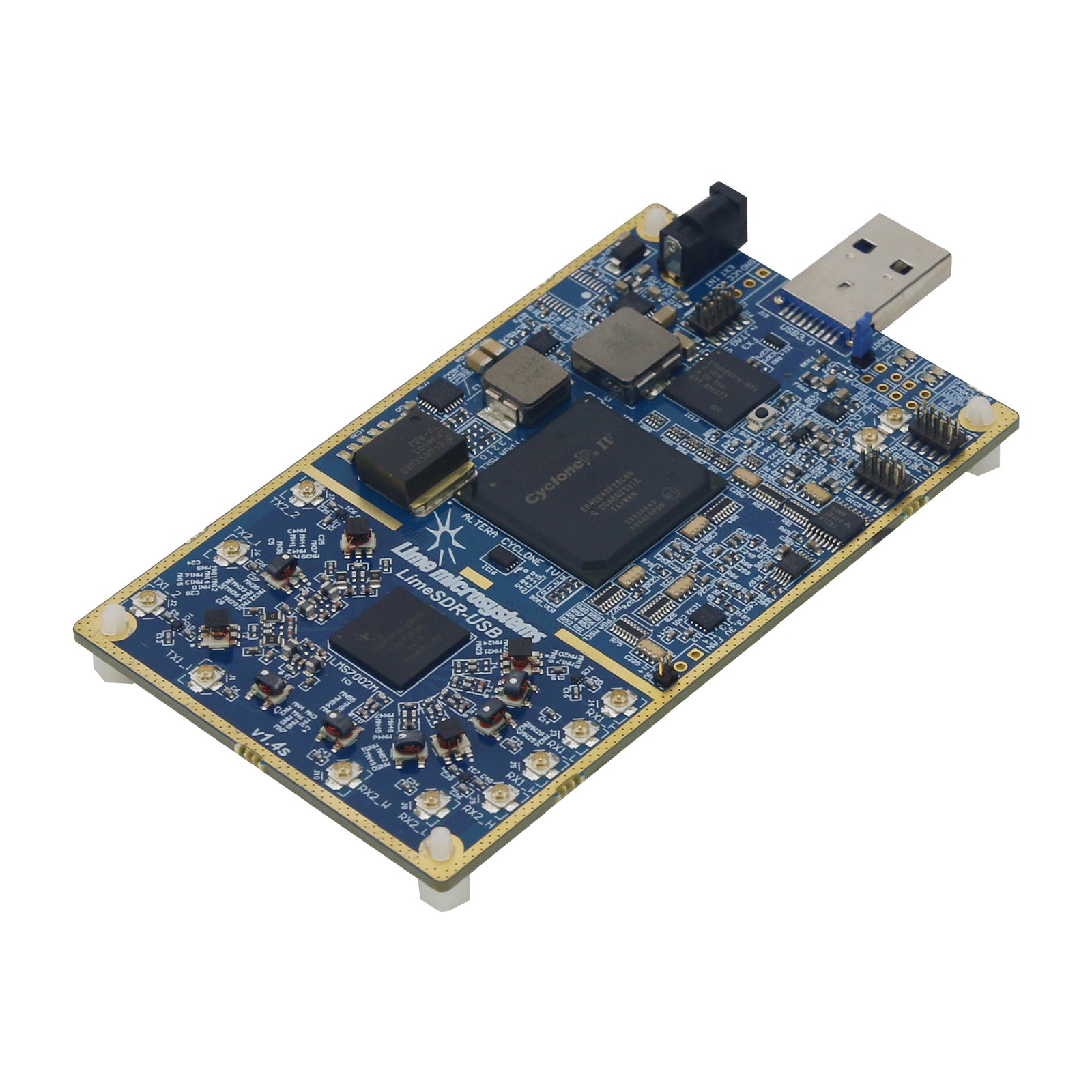

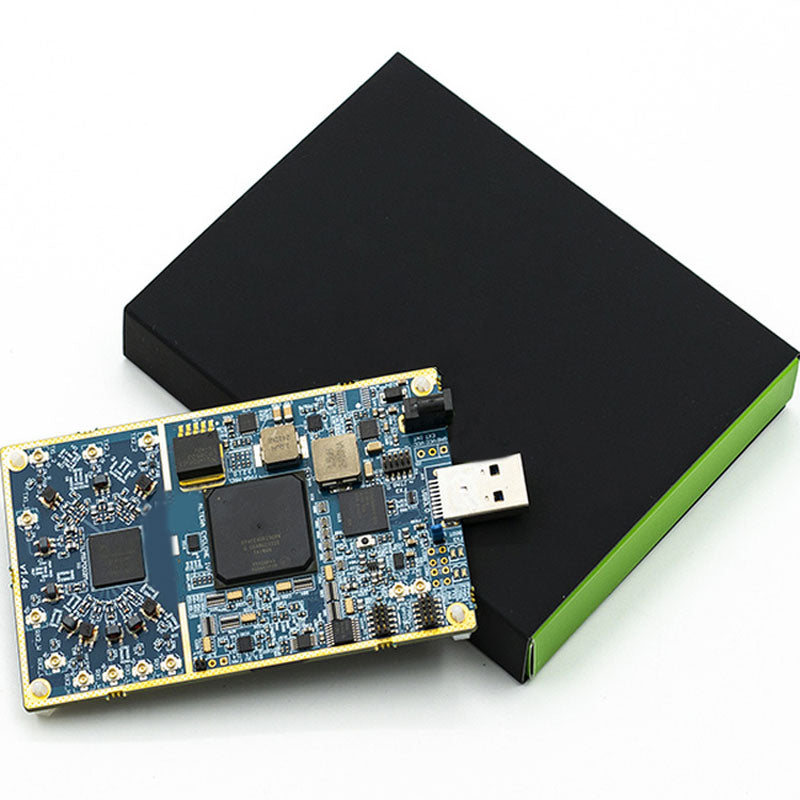

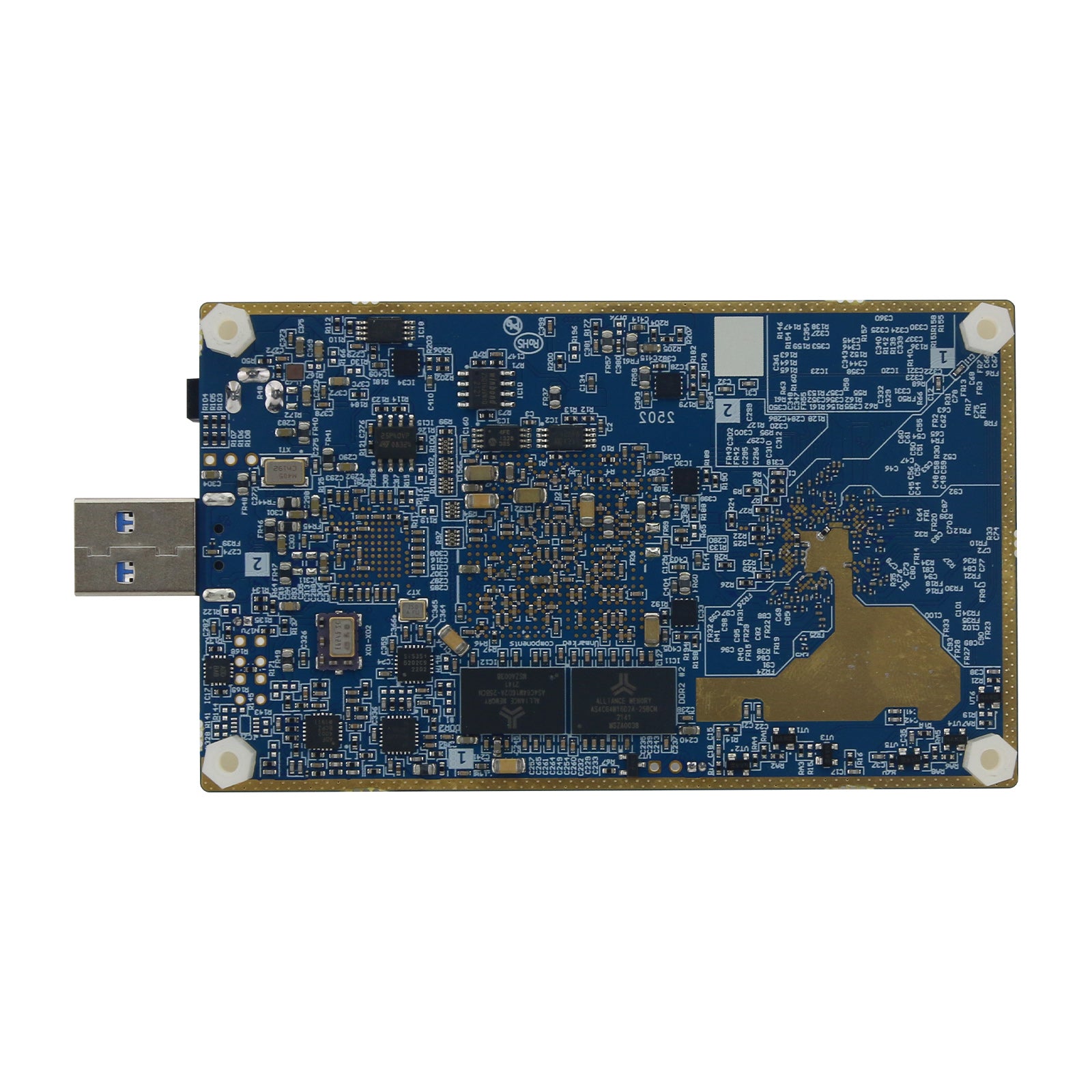

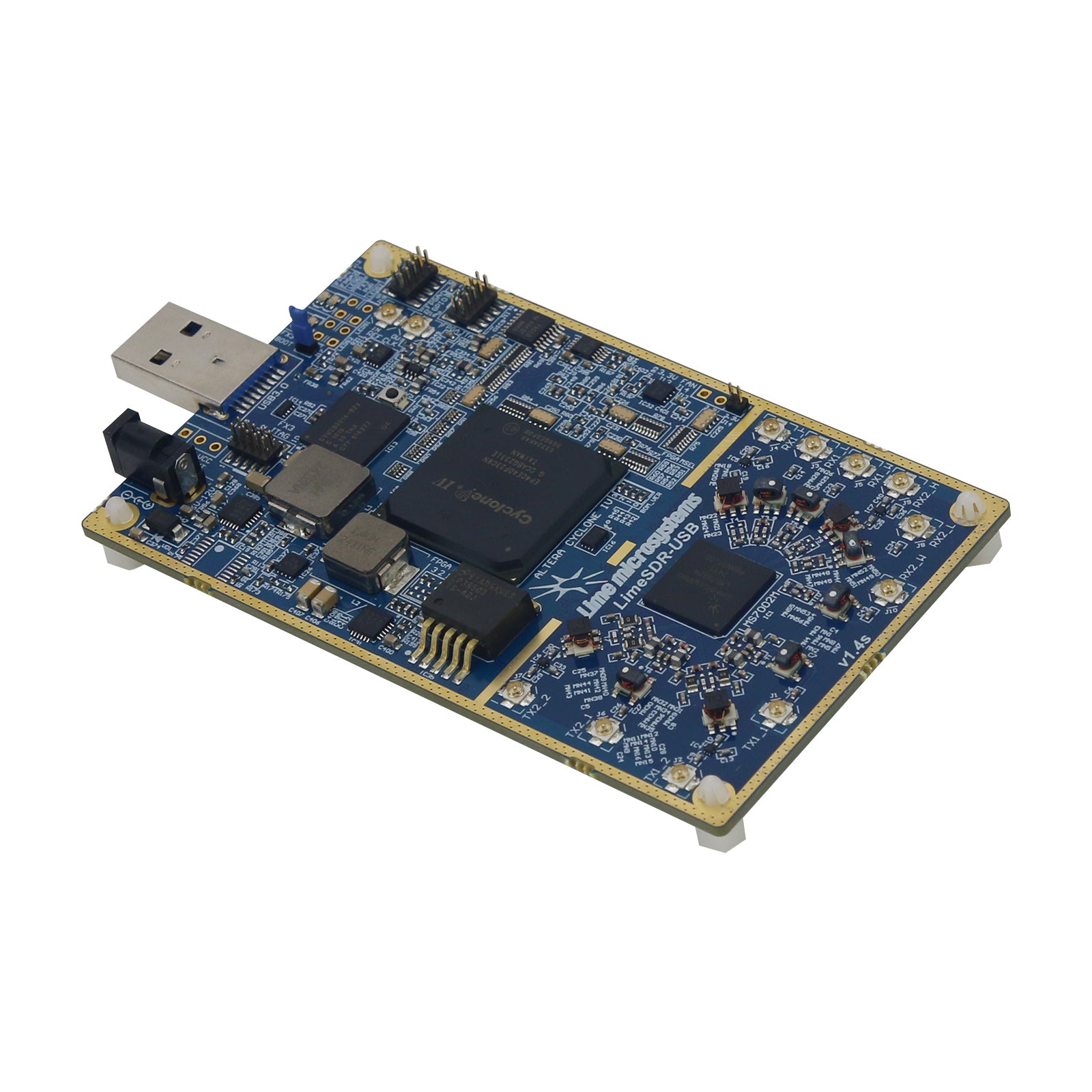

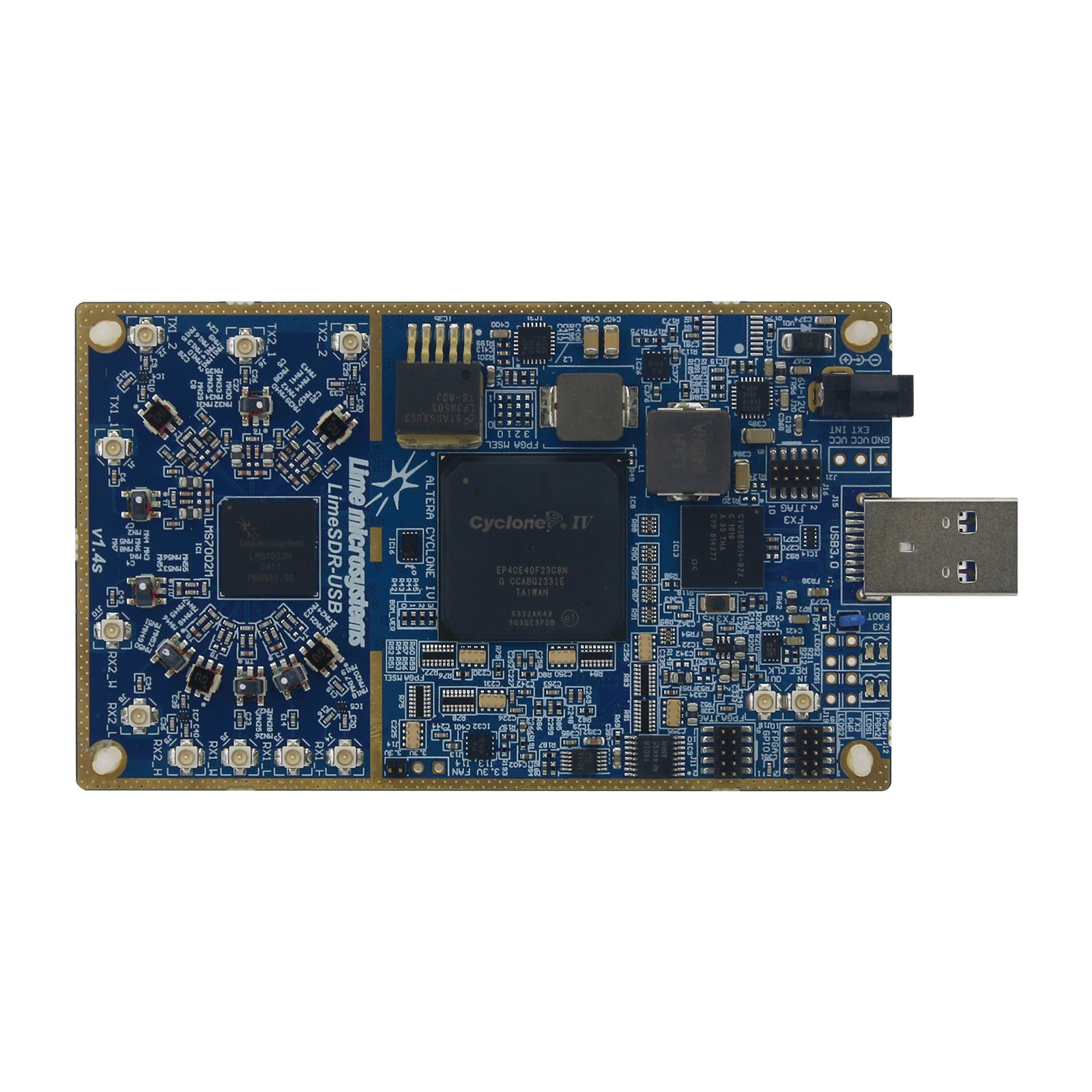

Original Lime-SDR 100KHz–3.8GHz Software Defined Radio SDR Development Board SDR RF Module

Original Lime-SDR 100KHz–3.8GHz Software Defined Radio SDR Development Board SDR RF Module

Description:
Lime-SDR is a low cost, open source, apps-enabled (more on that later) software defined radio (SDR) platform that can be used to support just about any type of wireless communication standard.

Lime-SDR can send and receive UMTS, LTE, GSM, LoRa, Bluetooth, Zigbee, RFID, and Digital Broadcasting, to name but a few.

While most SDRs have remained in the domain of RF and protocol experts, Lime-SDR is usable by anyone familiar with the idea of an app store – it's the first SDR to integrate with Snappy Ubuntu Core. This means you can easily download new Lime-SDR apps from developers around the world. If you're a developer yourself, you can share and/or sell your Lime-SDR apps through Snappy Ubuntu Core as well.

The Lime-SDR platform gives system developers, inventors, and even students an intelligent and flexible device for manipulating wireless signals, so they can learn, experiment, and develop products and applications.

From Radio Astronomy to Personal Telcos
Here are just some of the applications that are possible with the Lime-SDR:
* Radio astronomy
* RADAR
* 2G to 4G cellular basestation
* Media streaming
* IoT gateway
* HAM radio
* Wireless keyboard and mice emulation and detection
* Tire pressure monitoring systems
* Aviation transponders
* Utility meters
* Drone command and control
* Test and measurement
* Many more…

With state-of-the-art technical specs, fully open hardware and toolchain, and integration with Snappy Ubuntu Core's app distribution platform, Lime-SDR is limited only by our collective imagination.

Features & Specifications:
* RF Transceiver: LMS7002M MIMO FPRF
* FPGA: Altera Cyclone IV EP4CE40F23 – also compatible with EP4CE30F23
* Memory: 256 MBytes DDR2 SDRAM
* USB 3.0 controller: Cypress USB 3.0 CYUSB3014-BZXC
* Oscillator: Rakon RPT7050A at 30.72MHz
* Continuous frequency range: 100 kHz – 3.8 GHz
* Bandwidth: 61.44 MHz
* RF connection: 10 U.FL connectors (6 RX, 4 TX)
* Power Output (CW): up to 10 dBm
* Multiplexing: 2×2 MIMO
* Power: micro USB connector or optional external power supply
* Status indicators: programmable LEDs
* Dimensions: 100 mm x 60 mm

Packing List:
* 1 × SDR RF Module

Packaging Details:
* Weight: 0.3kg
