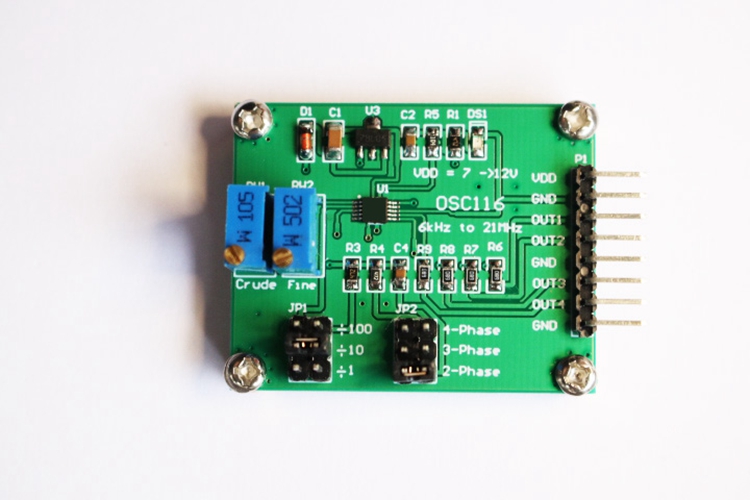

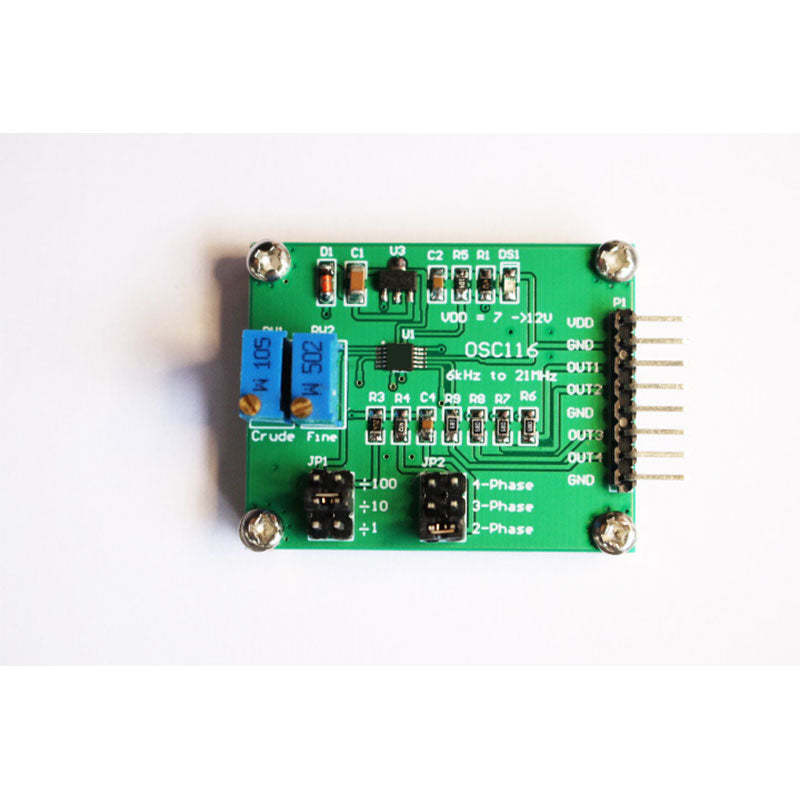

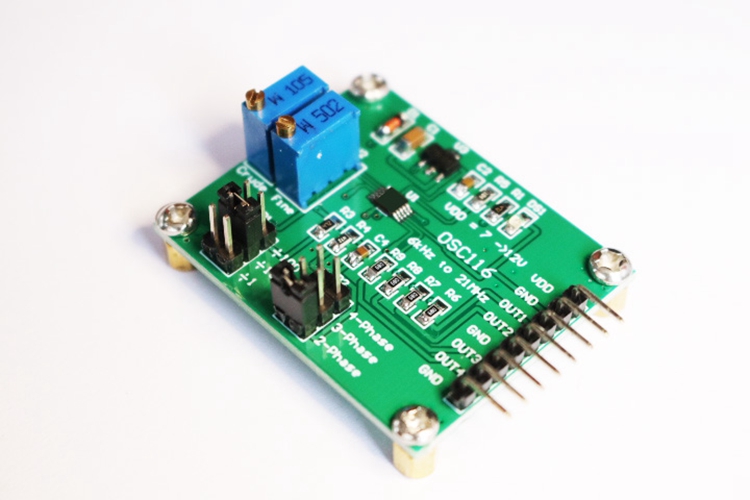

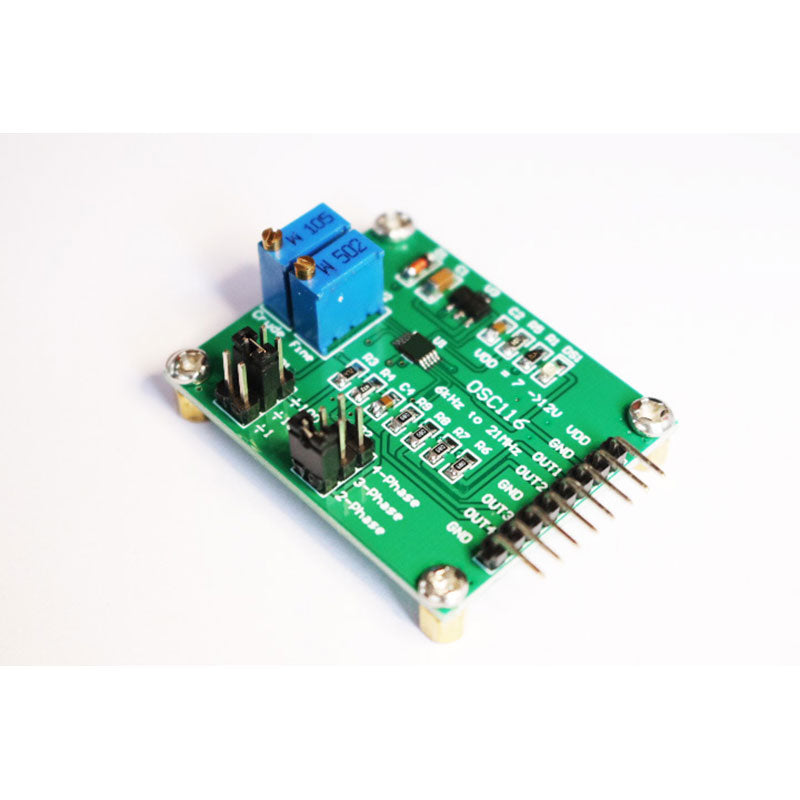

OSC116 5K ~ 21MHz Multiple Pulse Signal Generator Module 4-Channel TTL Pulse Signal Output

OSC116 5K ~ 21MHz Multiple Pulse Signal Generator Module 4-Channel TTL Pulse Signal Output

Description:

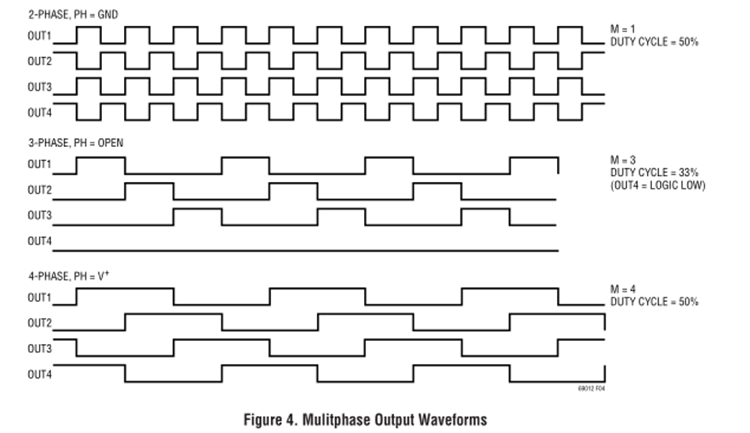

- The OSC116 module has 4-channel TTL pulse signal output and 3 output methods (2, 3, or 4 phase output).
- The module is simple to use and adjusts frequency data via two potentiometer operation inputs.
- Application: pulse signal generator, RF signal generator, clock signal generator.

Specification:
- 2 phase output frequency range: 5KHz ~ 21MHz
- 3 phase output frequency range: (5KHz ~ 21MHz)/3
- 4 phase output frequency range: (5KHz ~ 21MHz)/4
- Output amplitude range: Vpp = 2 ~ 5V
- Working voltage: 7 ~ 12V
- Size: 45 x 35 x 20mm
- Weight: 12g

Interface description:
- VDD: positive power supply (7 ~ 12V, current < 50mA)
- GND: negative power supply
- OUT1: pulse signal output 1
- OUT2: pulse signal output 2
- GND: negative power supply
- OUT3: pulse signal output 3
- OUT4: pulse signal output 4
- GND: negative power supply

Jumper:
- JP1 pin: select 3 different division factors (/100, /10, /1).
- JP2 pin: select 3 different output methods (2 phase, 3 phase, 4 phase)

Potentiometer:
- RW1 potentiometer: coarse frequency adjustment
- RW2 potentiometer: fine frequency tuning

Package Included:
- 1 x Pulse Signal Generator Module
