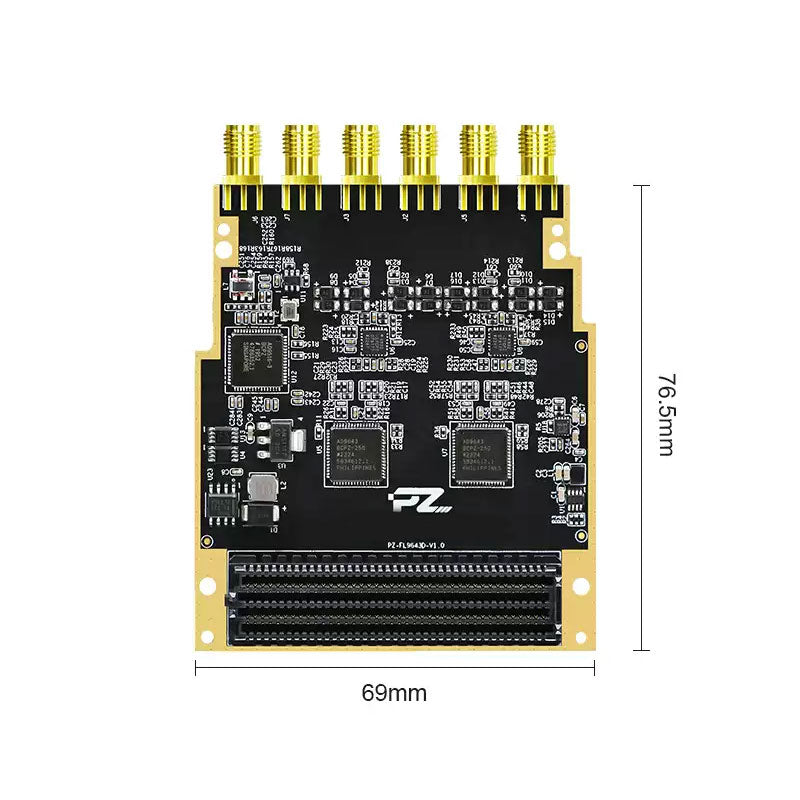

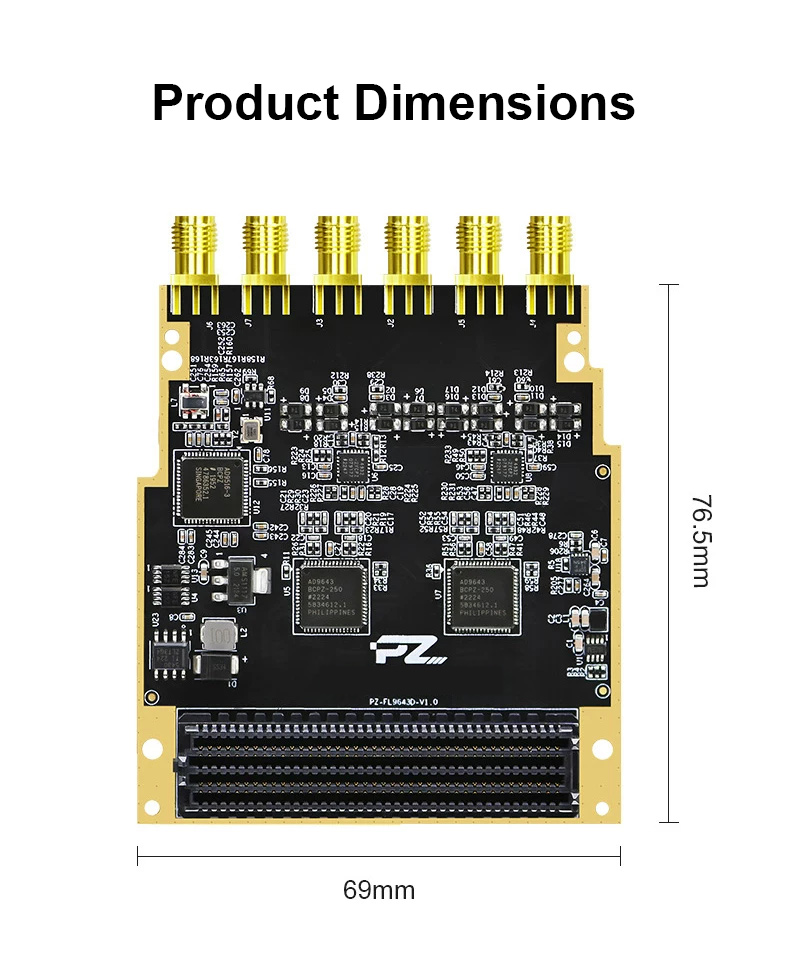

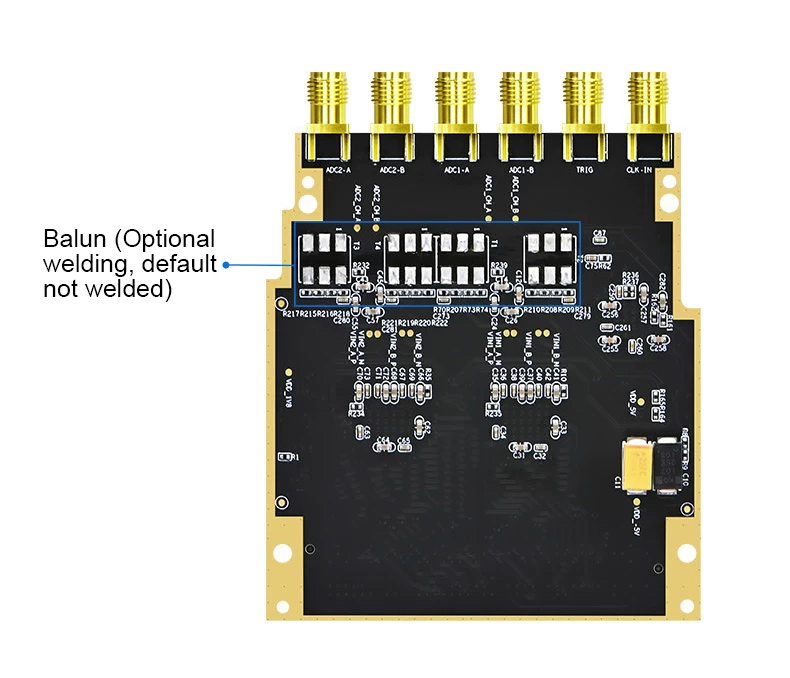

  3. PZ-FL9643D FPGA 4-Channel High-Speed ADC AD9643 14-Bit 250MSPS FMC-LPC LVDS Data Acquisition Board
Por PZ

PZ-FL9643D FPGA 4-Channel High-Speed ADC AD9643 14-Bit 250MSPS FMC-LPC LVDS Data Acquisition Board

$868.68
$868.68
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.
Availability: 2000 en stock
SKU: 105221
Tags:
Collections:
$868.68
$868.68

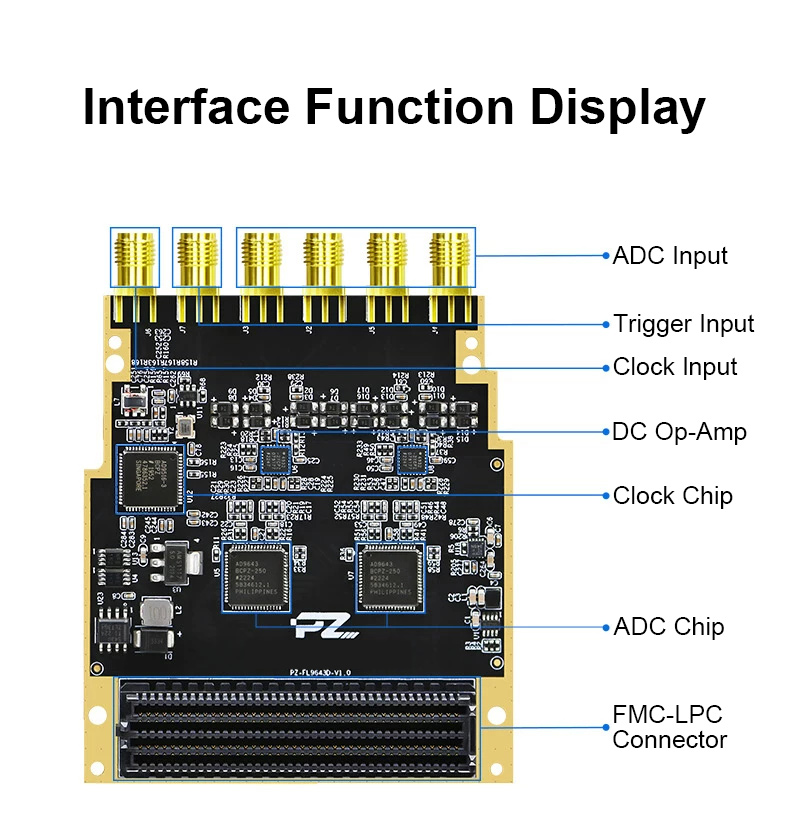

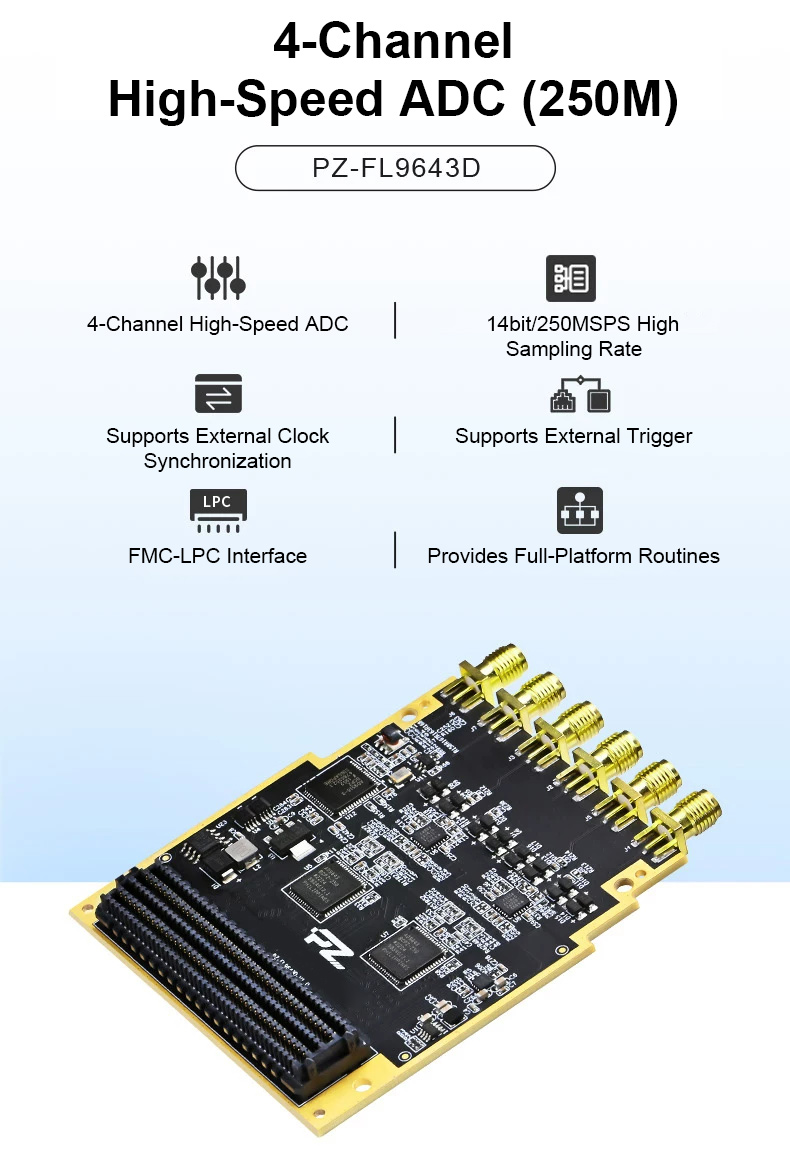

Features:
* 4-Channel High-Speed ADC
* 14bit/250Msps
* Supports External Clock Synchronization
* Supports External Trigger
* FMC-LPC Interface
* Typical Application Areas: General Industry, Communication & Networking, Embedded Hardware, Internet of Things, and Industrial Automation

Specifications:
* Chip Model: AD9643
* Number of Channels: 4-Channel
* Trigger Channel: 1 Channel
* Clock Channel: 1 Channel
* Input Mode: DC/AC Dual Mode (DC Default)
* Resolution: 14bit
* Maximum Sampling Rate: 250MSPS
* Voltage Range: 1.75VPP
* Operating Temperature: -40 to 85°C
* Power Supply Voltage: 12V
* Connector Type: FMC-LPC

Packing List:
* 1 x PZ-FL9643D Module
* 1 x Heatsink

Packaging Details:
* Package Weight: 0.15kg
