PZ7045F-SOM FPGA Core Board FMQL45T900 PSOC7000 350K Logic Cells 1GB+1GB DDR3 Development Module
$1,619.42 - $1,769.99
Impuesto incluido.
Los gastos de envío se calculan en la pantalla de pago.
Precio habitual
$1,619.42
Precio habitual
Precio de oferta
$1,619.42
Precio unitario
por
No se pudo cargar la disponibilidad de retiro
Availability:
2000 en stock
SKU:
105285
Tags:
Collections:
Precio habitual
$1,619.42
Precio habitual
Precio de oferta
$1,619.42
Available Configurations:
* Core Board Only
* Core Board + Heatsink
* Core Board + Connector
* Core Board + Downloader
* Core Board + Heatsink + Connector
* Core Board + Heatsink + Downloader
* Core Board + Connector + Downloader
* Core Board + Heatsink + Connector + Downloader
Features:

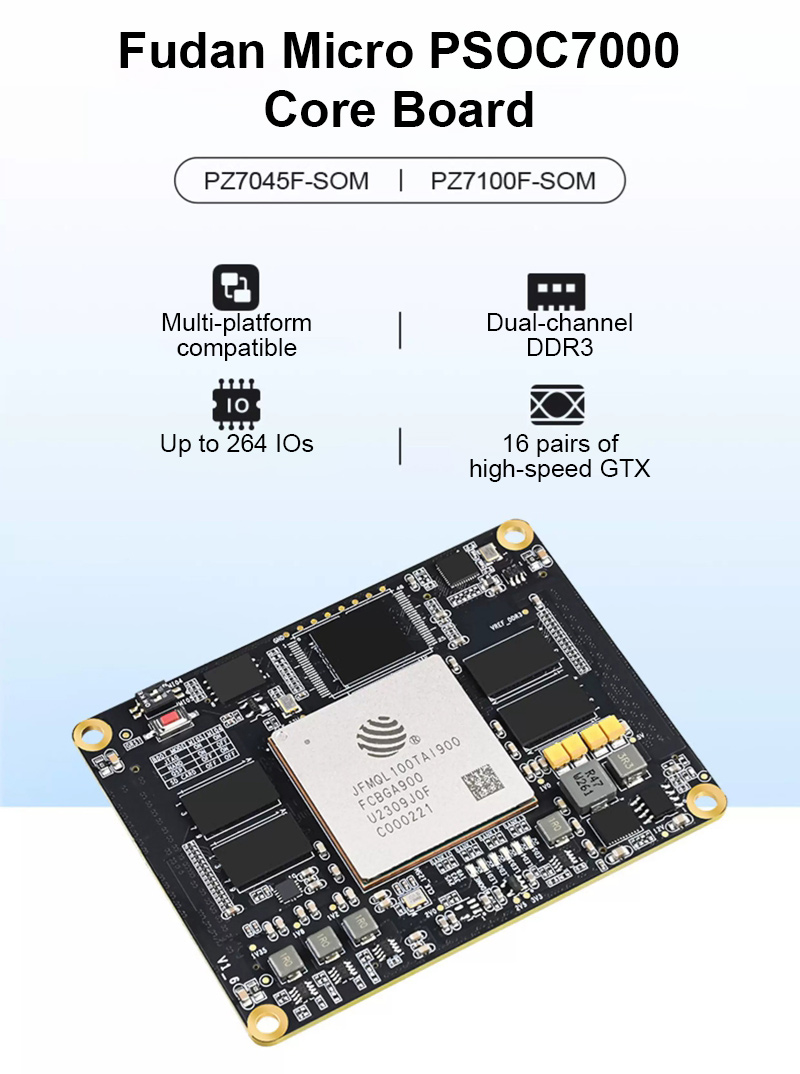

* Fudan Micro PSOC7000 core board
* Multi-platform compatible
* Up to 264 IOs
* 1GB+1GB DDR3, 8GB eMMC and 256Mb QSPI flash
* 16 pairs of high-speed GTX
More Information:
* Industry Certification: Industrial Grade
* Processor Architecture: FPGA, For ARM + FPGA
* Expansion Interface: GPIO
* Operating System Support: Linux
* Typical Applications: Energy & Environment, 51 MCU Learning, Embedded Hardware, Consumer Electronics, and Internet of Things
* Network Interface: Gigabit Ethernet (1Gbps)
* Compatible Expansion Module: 1 Module
Packing List (Varies by Selected Configuration):
Core Board Only:
* 1 x PZ7045F-SOM Core Board
Core Board + Heatsink:
* 1 x PZ7045F-SOM Core Board
* 1 x Heatsink
Core Board + Connector:
* 1 x PZ7045F-SOM Core Board
* 4 x Baseboard Connectors
Core Board + Downloader:
* 1 x PZ7045F-SOM Core Board
* 1 x Downloader
* 1 x ARM Emulator

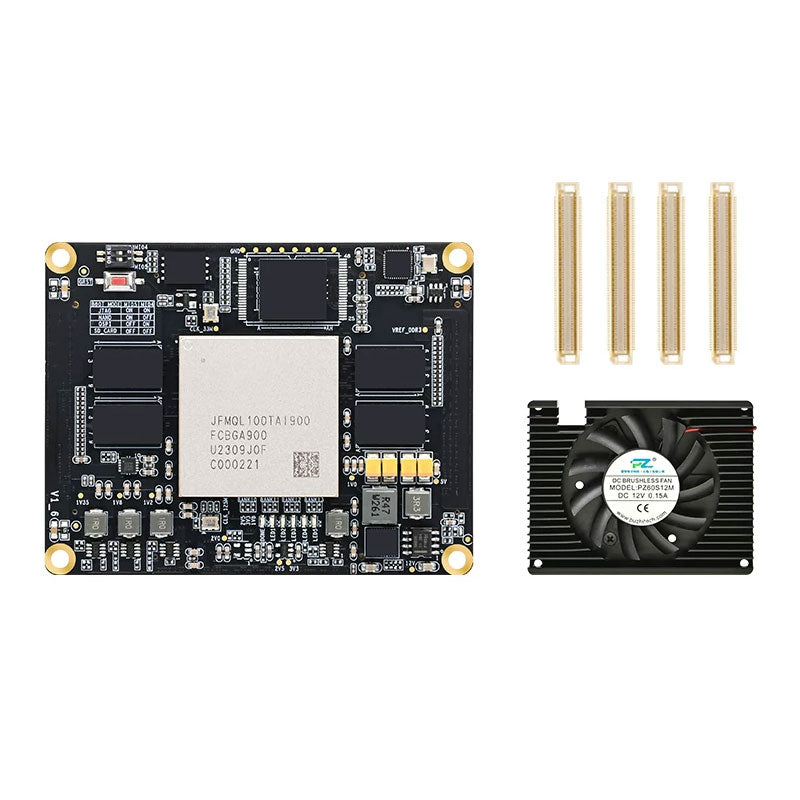

Core Board + Heatsink + Connector:
* 1 x PZ7045F-SOM Core Board
* 1 x Heatsink
* 4 x Baseboard Connectors
Core Board + Heatsink + Downloader:
* 1 x PZ7045F-SOM Core Board
* 1 x Heatsink
* 1 x Downloader
* 1 x ARM Emulator
Core Board + Connector + Downloader:
* 1 x PZ7045F-SOM Core Board
* 4 x Baseboard Connectors
* 1 x Downloader
* 1 x ARM Emulator

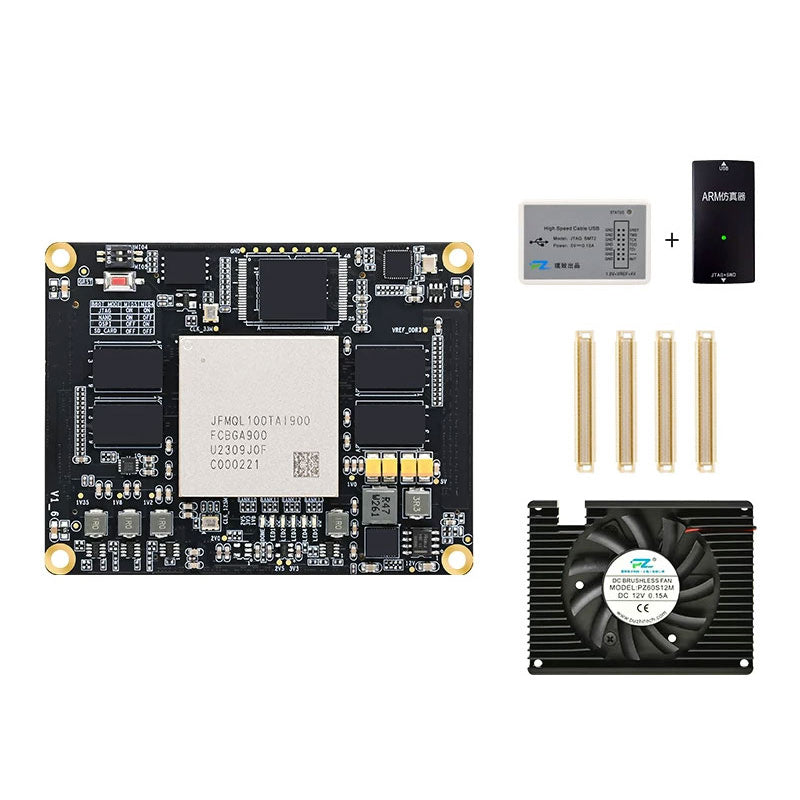

Core Board + Heatsink + Connector + Downloader:
* 1 x PZ7045F-SOM Core Board
* 1 x Heatsink
* 4 x Baseboard Connectors
* 1 x Downloader
* 1 x ARM Emulator
Packaging Details:
* Package Weight: 0.15kg
