Description:
The module can be used in 300-1500M PD (partial discharge) measurement systems. It is used to amplify the signal reception in the corresponding frequency range. The module has a typical gain value of 38dB and a built-in frequency selection filter network, which effectively suppresses out-of-band received signals and filters clutter while improving sensitivity.

The module adopts imported LNA chip featuring super low noise. Its CNC shell package has excellent electromagnetic shielding performance and excellent noise figure. Therefore, the module can be widely used in PD receiver system circuits.

Technical Specifications:

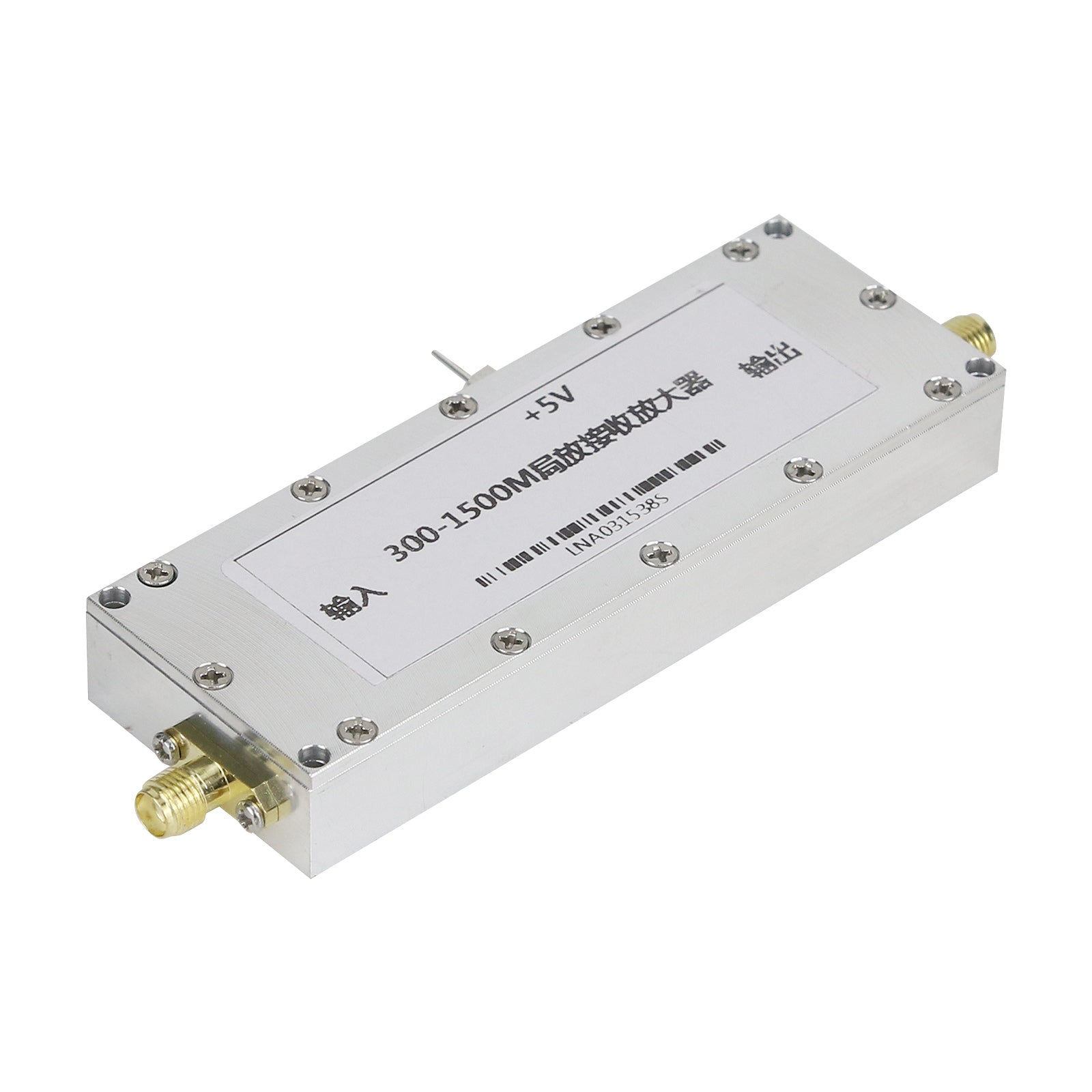

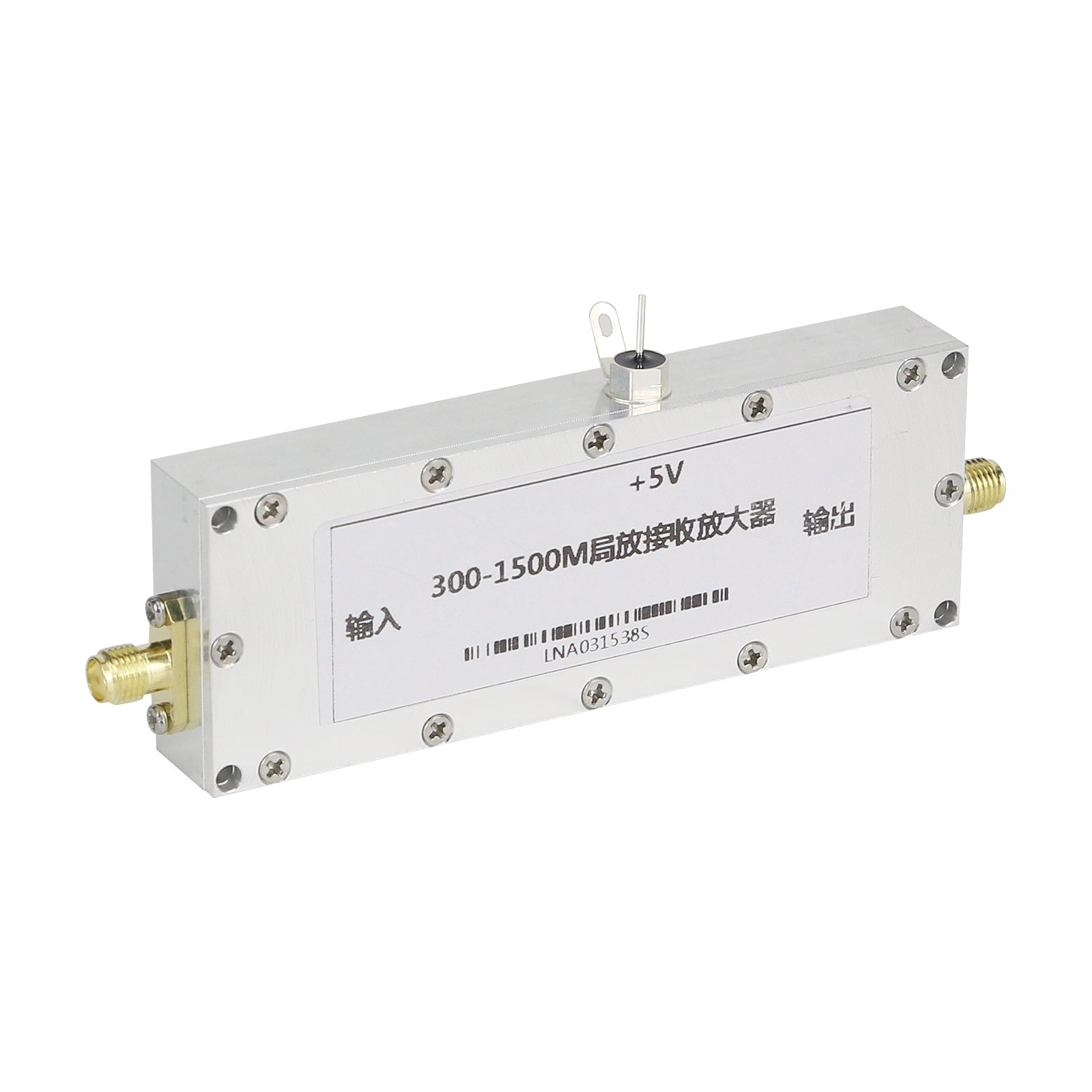

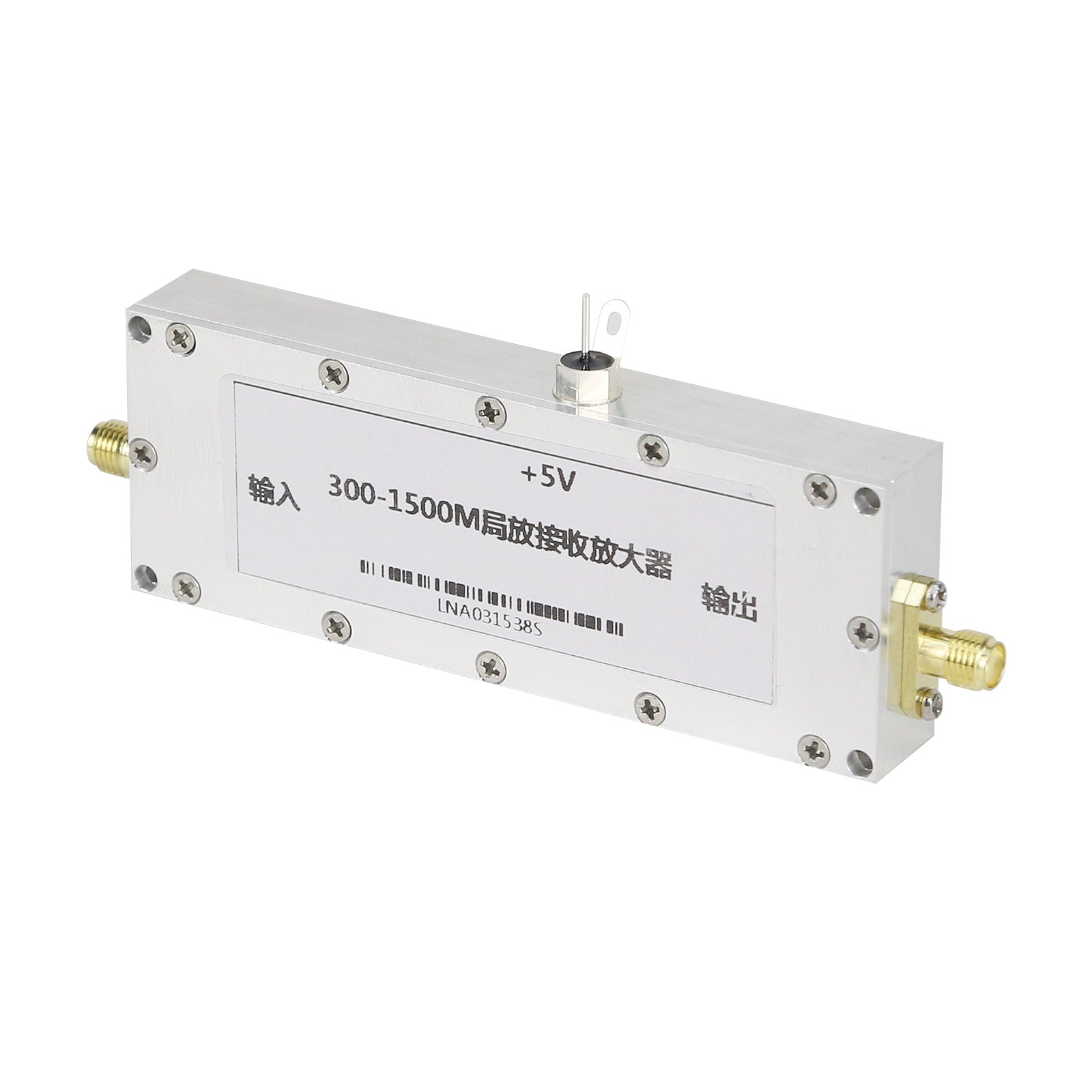

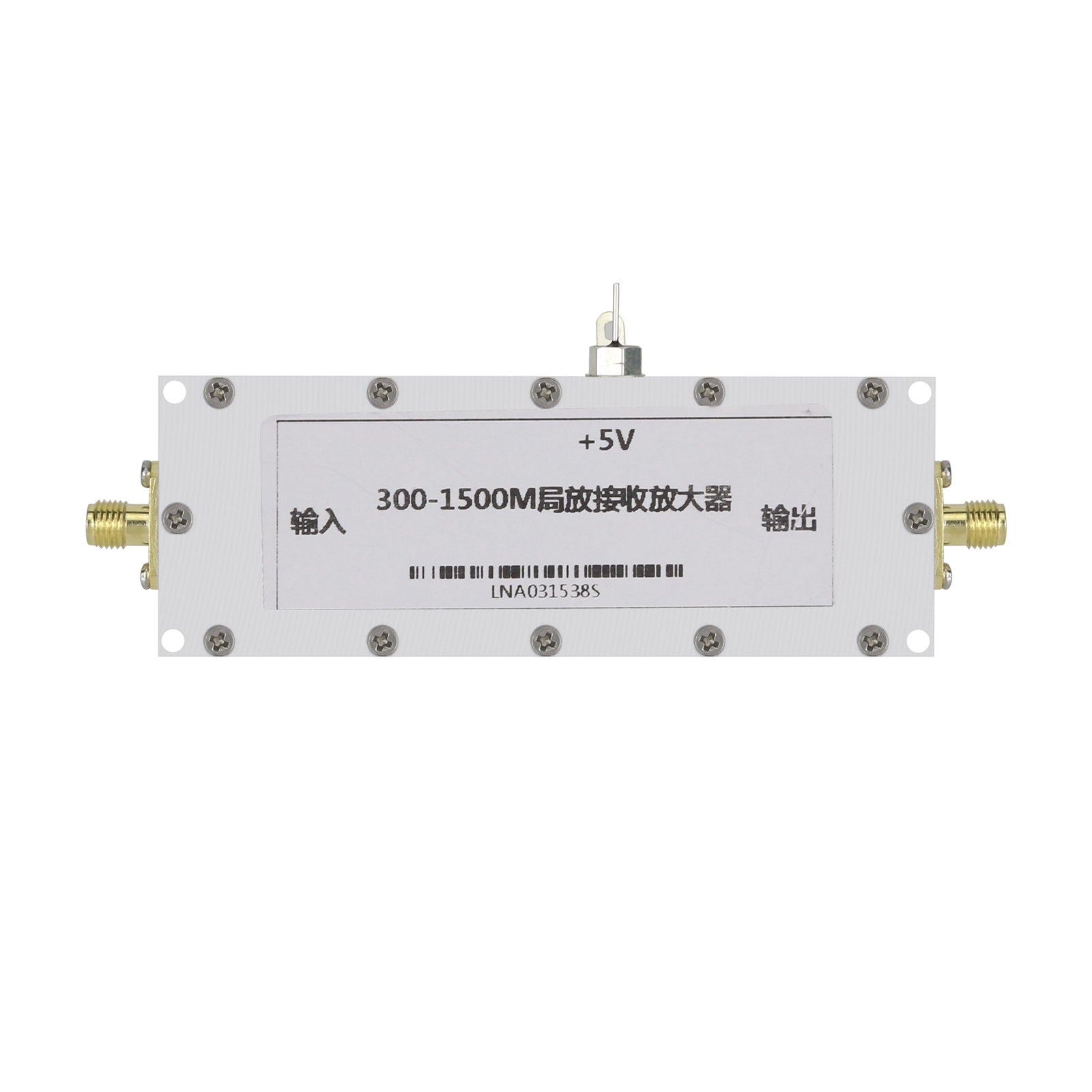

- Module Model: QM-LNA031538S
- Operating voltage: +5V power supply
- Operating Current: 80mA (Low Power Consumption)
- Working frequency: 300-1500MHz
- Gain: 38dB
- P1dB Output Power: 100mW (20dBm)
- Noise figure: 1.6dB
- Input and output interface: SMA (female connector)

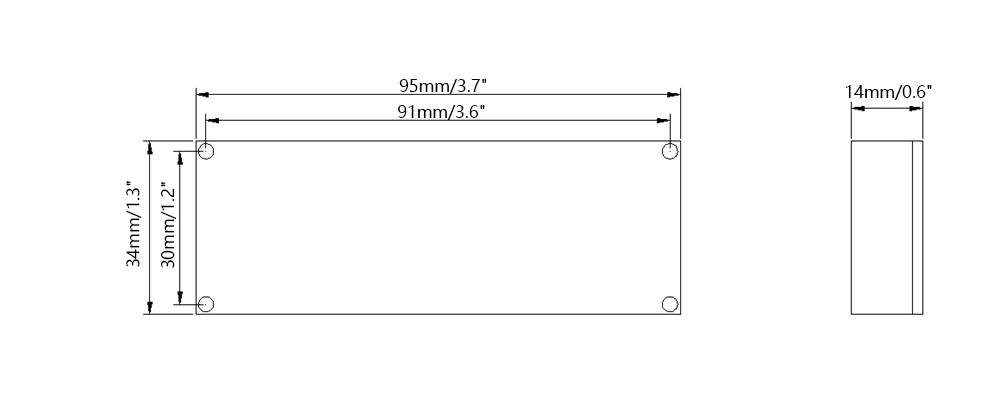

- Module size: 95 x 34 x 14mm/3.7 x 1.3 x 0.6" (not including the size of connectors)

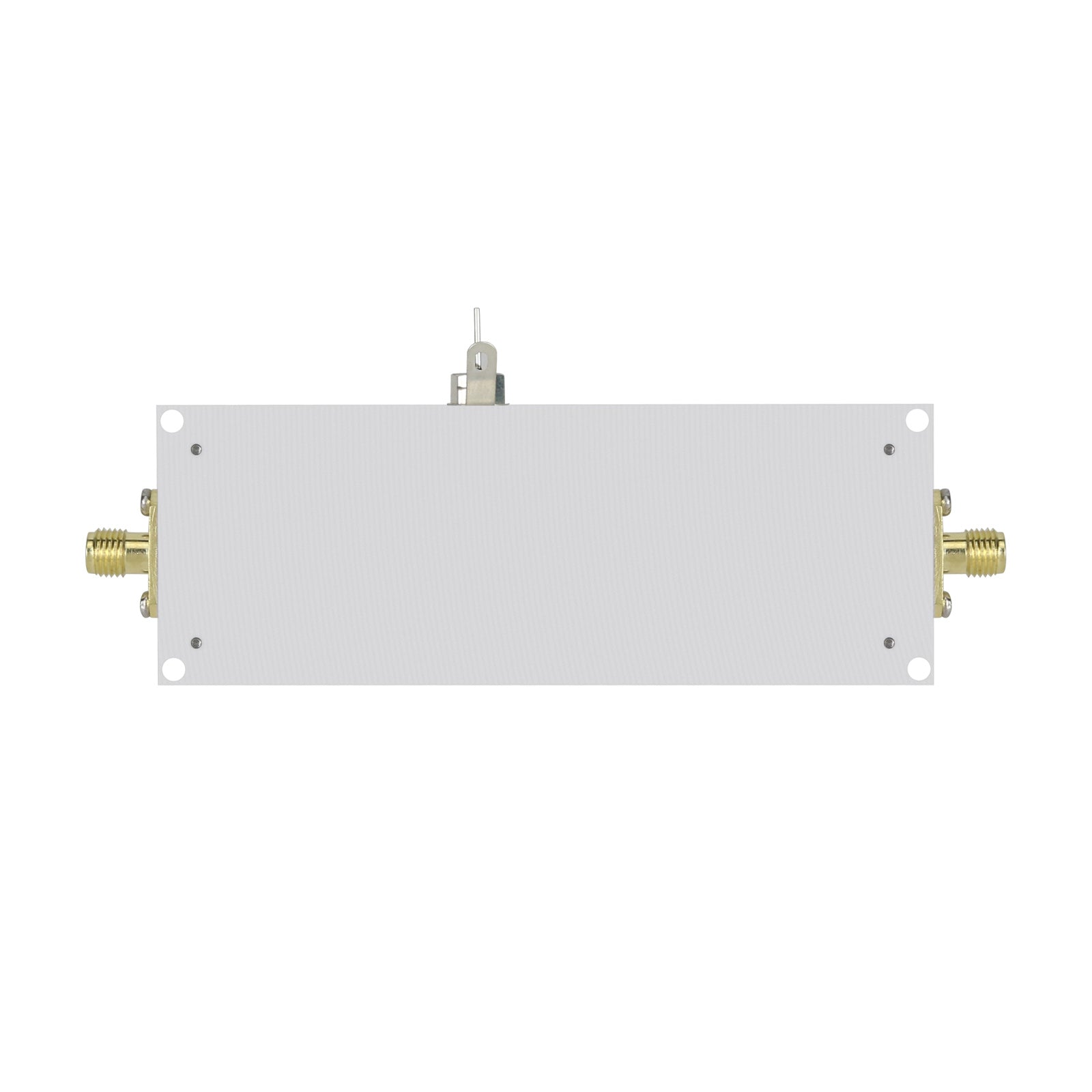

- With mounting holes

Package Included:
- 1 x Amplifier Module
