RDLC320-A CO2 Laser Controller Laser Cutter Controller for Laser Engraving and Cutting Machines

RDLC320-A CO2 Laser Controller Laser Cutter Controller for Laser Engraving and Cutting Machines

Description:
RDLC320-A is a laser-cutting controller. It is used to control and manage the operations of a laser-cutting machine. The controller receives commands from a computer and sends signals to the laser cutting machine's components to execute the desired actions, such as cutting or engraving on a material.

RDLC320-A is based on high-performance floating 32-bit DSP+FPGA architecture. The co2 laser cutter controller can complete large-scale complex motion control algorithms to achieve continuous path control and position control of multi-axis motion, as well as energy tracking control to maintain laser energy balance at any speed point. Large-scale logic gate array FPGA can complete complex communication protocols and flexible IO expansion. Communication transfer speed is fast and easy to operate.

Advantages:
- Better resistance to high voltage and static electricity
- The software can be adjusted separately to facilitate dual laser head control
- Online upgrade of the motherboard program
- Online upgrade of the boot screen
- The system comes with a time system
- Support working time preview
- Support machine tool backlash compensation function.
- Add Z-axis linkage function
- Support hard limit
- Perfect power-off restart for the engraving function.
- Support system start reset or not optional
- Support multi-source logic

Technical Parameters:
- Digital laser control signal
- Differential output, TTL level and 20mA drive capability
- PWM frequency: 2.5K~100K adjustable
- PWM duty cycle: 2%~98% adjustable
- Analog laser control signal: 0~5V automatic following adjustment
- Motor control signal: differential output, TTL level and 20mA drive capability
- Motor control pulse frequency: up to 500KHZ
- Maximum USB transfer rate is 12M and the maximum distance is 5m/16.4ft
- Interpolation: Linear/circular arc/B-spline; accuracy +/- 0.5 pulses
- 4-channel universal opto-isolated OC gate output and maximum 600mA drive capacity
- 4-channel universal opto-isolated input and TTL level

Package Included:

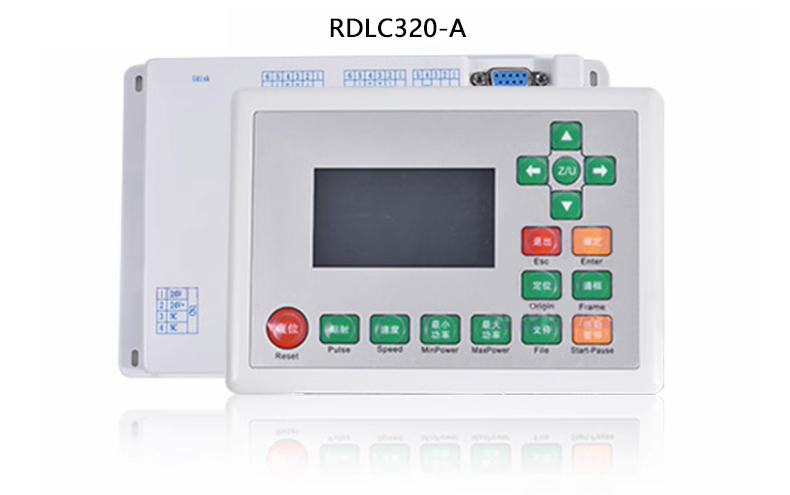

- 1 x Panel

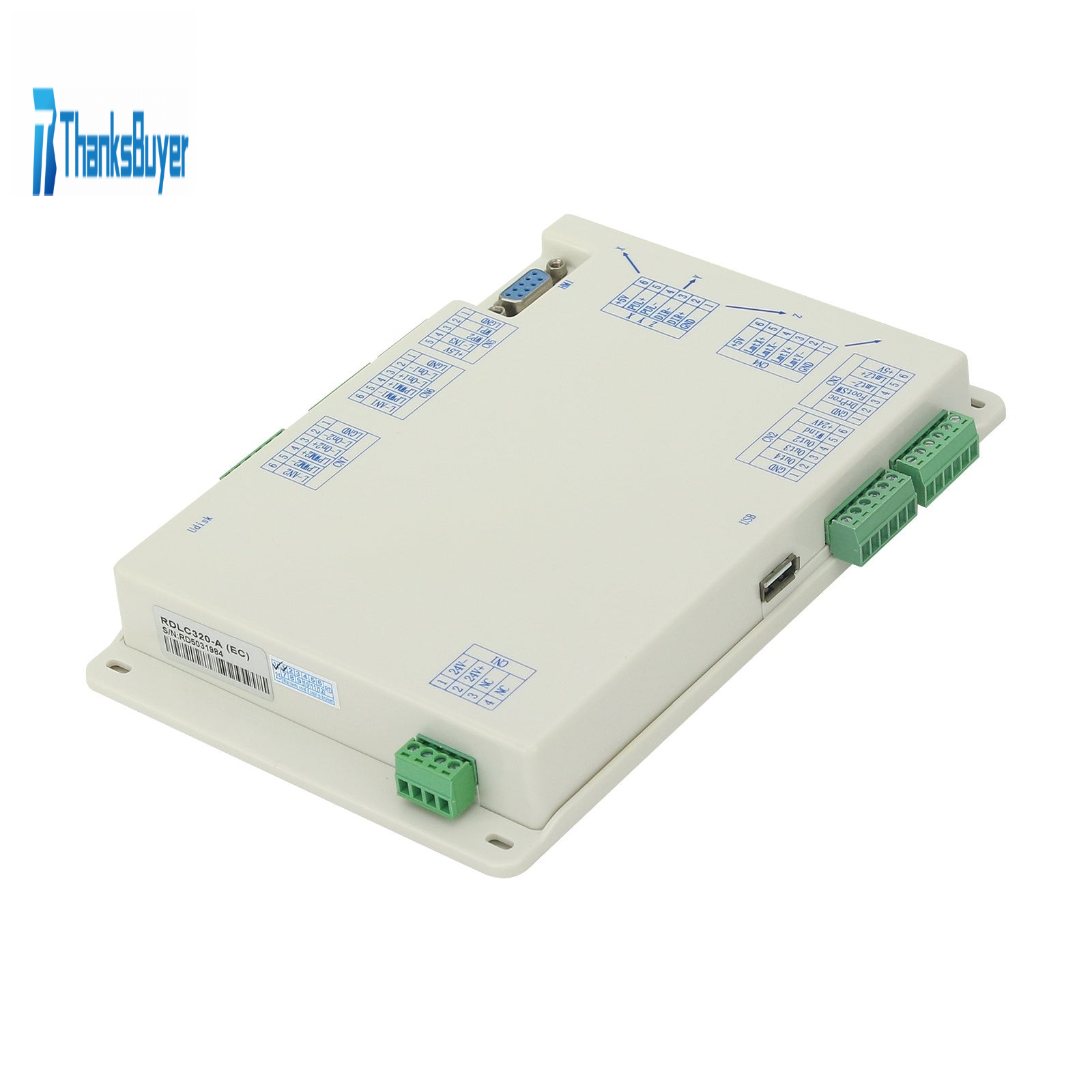

- 1 x Mainboard
- 1 x Cable 1
- 1 x Cable 2
