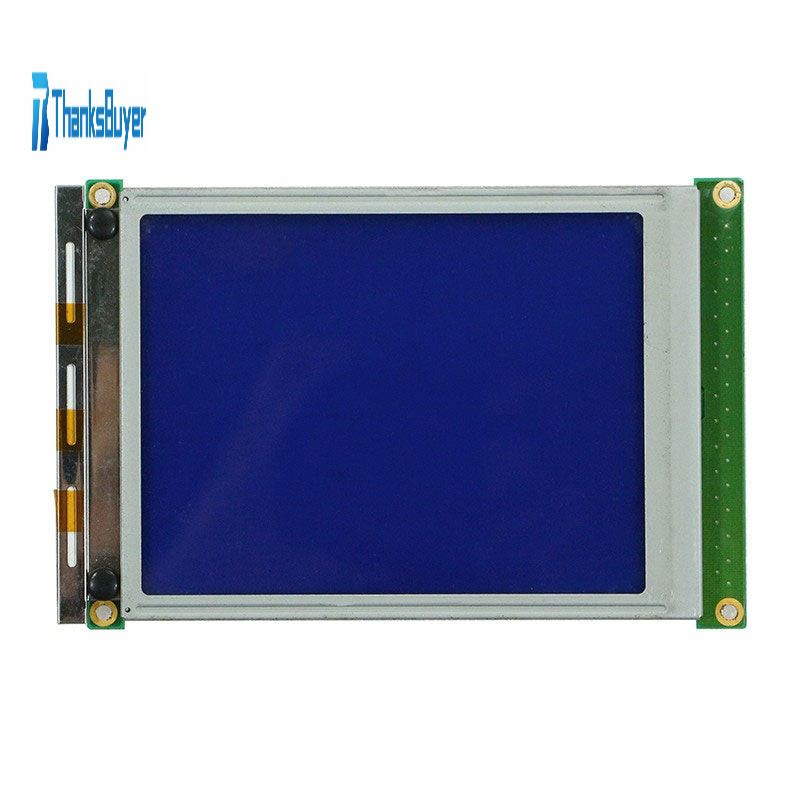

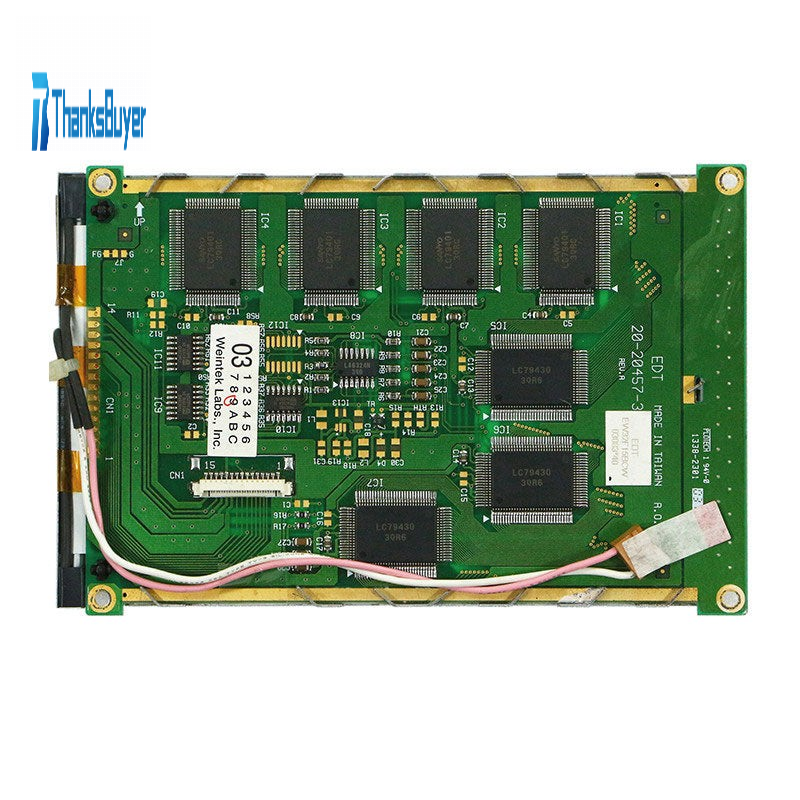

Second-hand EDT EW32F15BCW LCD Screen High Performance LCD Screen with 200-900ohm Film and Glass Terminal Resistance

Second-hand EDT EW32F15BCW LCD Screen High Performance LCD Screen with 200-900ohm Film and Glass Terminal Resistance

Parameter:
- Touch screen structure: ito film + tio glass
- Working temperature: -20℃~70℃
- Light transmittance: ≥80%
- Response tome: ≤10ms
- Surface hardness: ≥3H (pencil)
- Operation intensity: <80g
- Service life: 1million times click
- Connection material: FPC soft flat cable

Features:
- Max voltage: DC5V 1-5mA
- Optical characteristics: film and glass type≥80% (more than 78% under visible wave with wavelength of 550nm)
- Insulation resistance: analog 25V (DC) ≥ 20Mohm
- Film terminal resistance: 200-900ohm
- Glass terminal resistance: 200-900ohm
- Chattering time: ≤10ms
- Tapping durability: ≥ 1 million times (using 2.6mm rubber head, 250gf pressure, 2 times/second frequency)
- Pen sliding durability: >100000 times (using 2.0mm polyester pen, pressure of 250gf, frequency of 60mm/s, 10~100mm strokes at the same position)

Highlight:
- For Asahi material of Japan
- Four-wire resistance screen:
  working temperature: -30℃~70℃
  linear standard: ≤1.2%
- Five-wire resistance screen:
  working temperature: -30℃~80℃
  linear standard: ≤1.5%

Package Included:
- 1 x LCD Screen

Note:
- It is a second-hand product.
