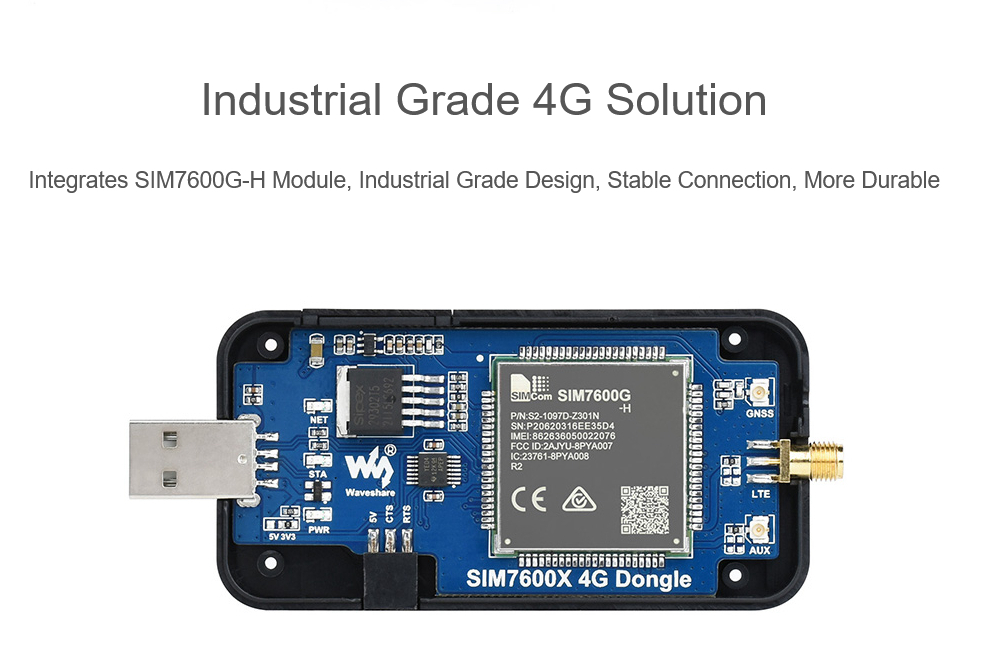

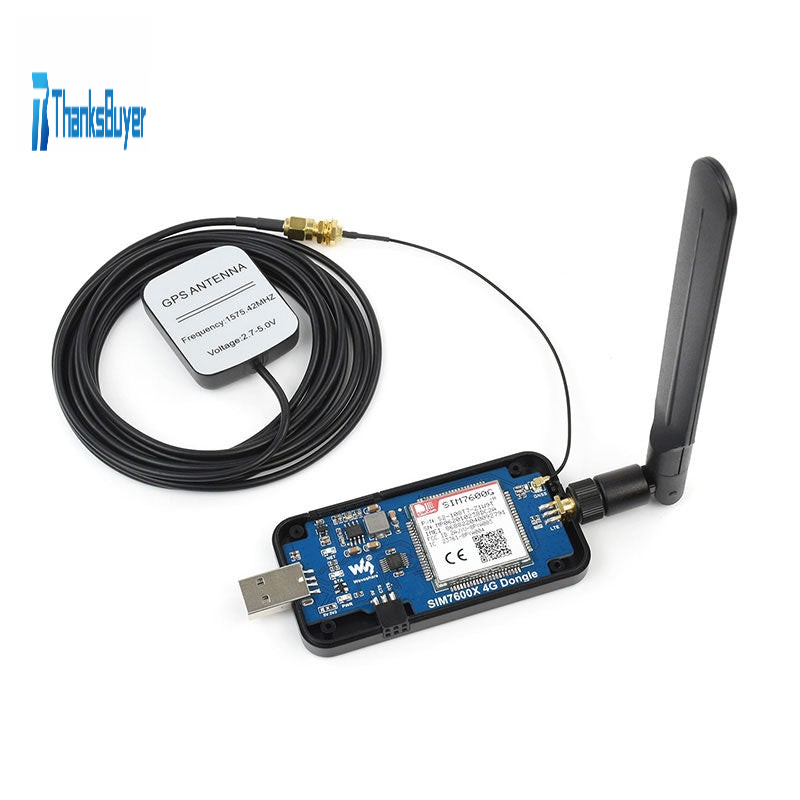

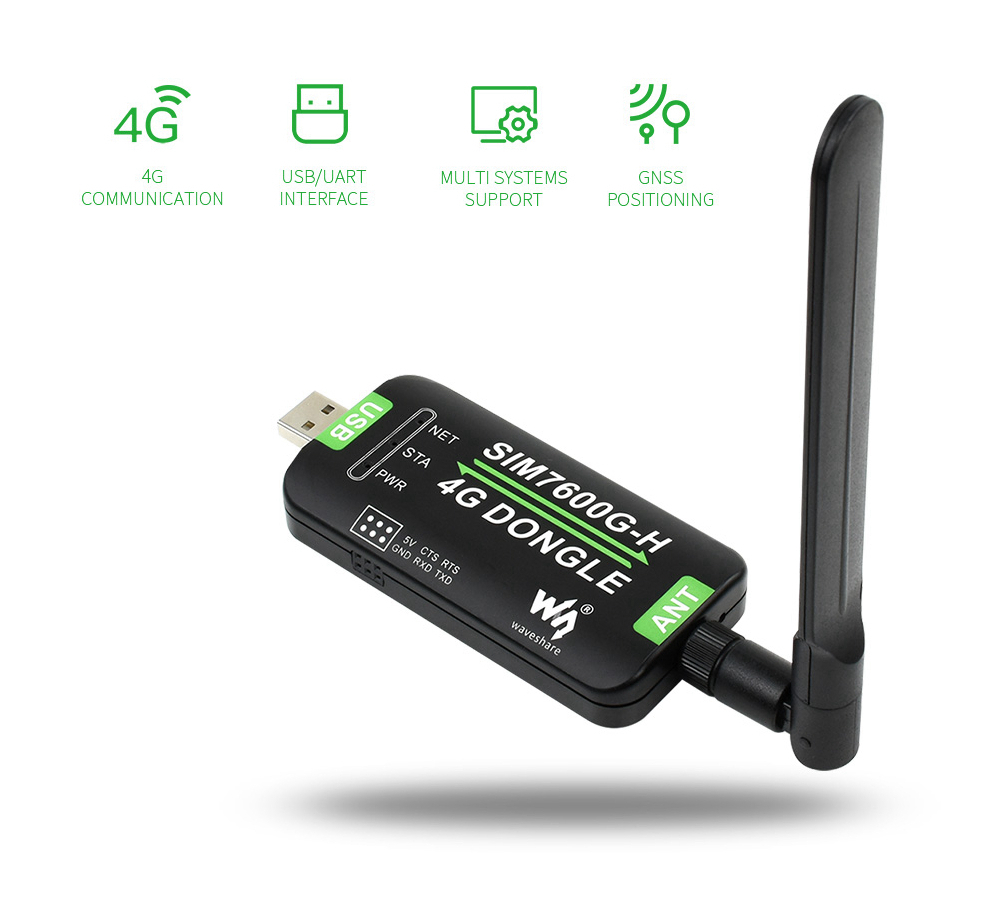

SIM7600G-H 4G DONGLE Industrial Grade Module with Antenna Supports GNSS Positioning Global Band

SIM7600G-H 4G DONGLE Industrial Grade Module with Antenna Supports GNSS Positioning Global Band

Description:

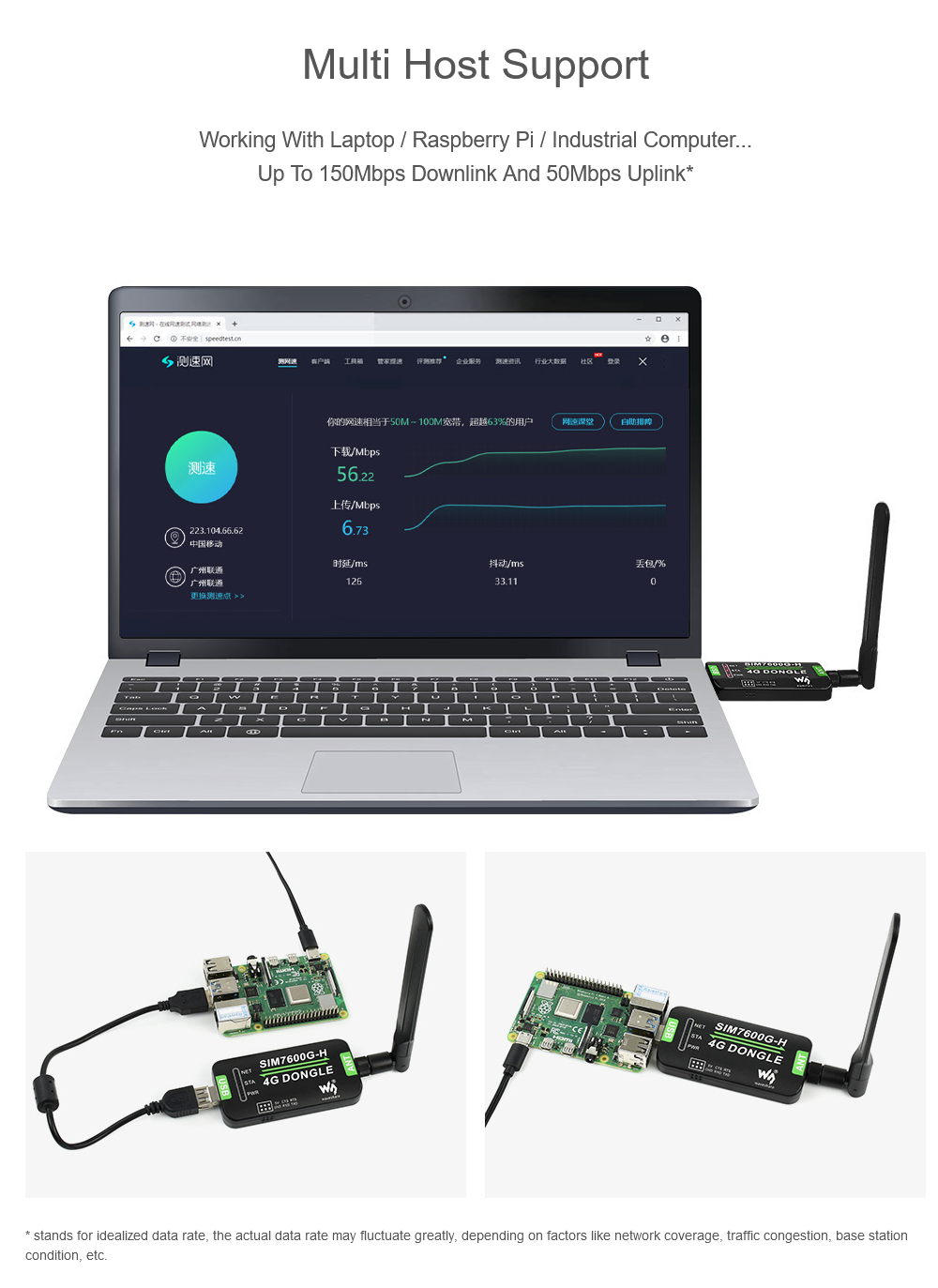

SIM7600G-H is a global band industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate and supports operating systems including Windows/Linux. By simply connecting it to laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.

Features:

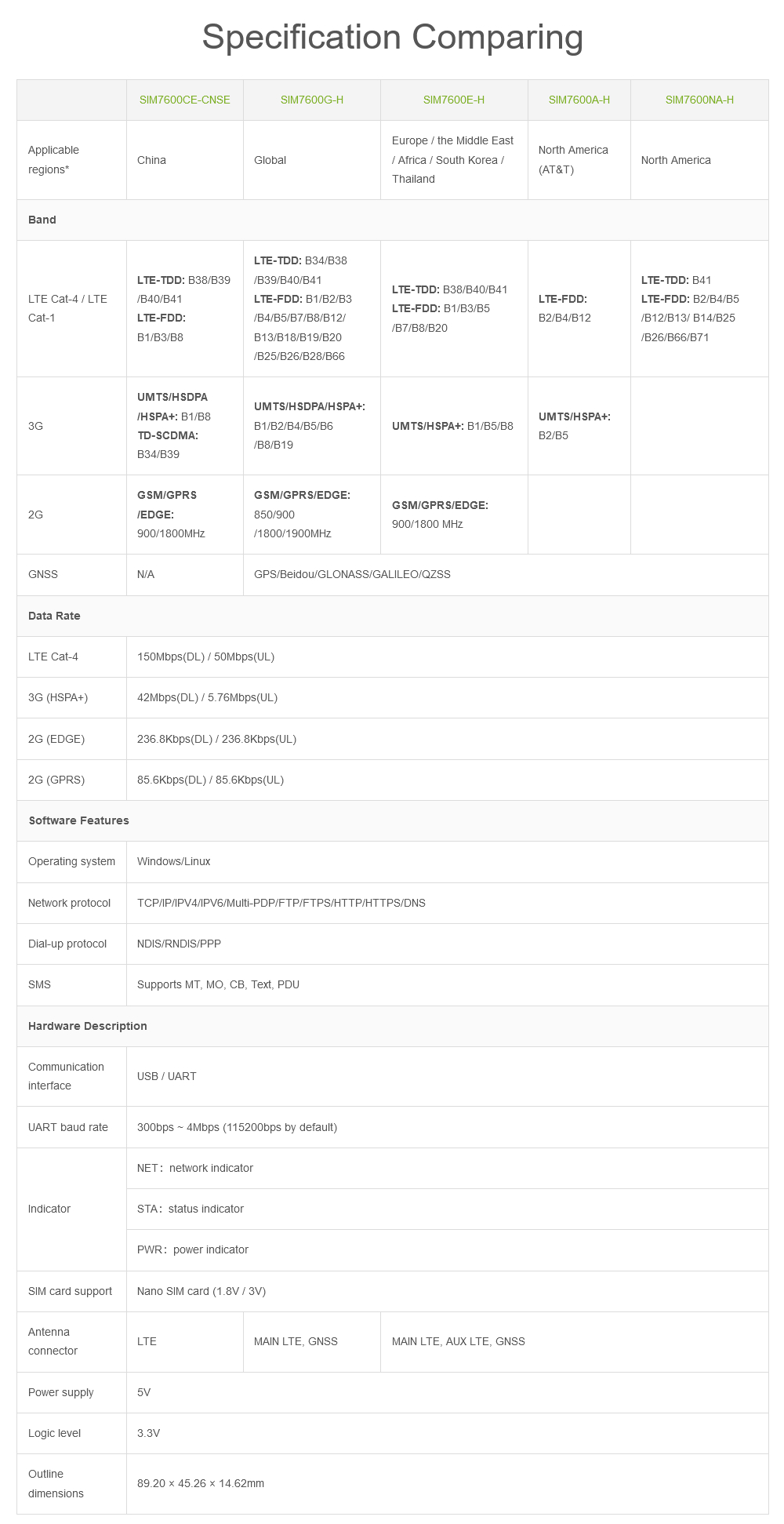

- Supports 2G/3G/4G network connection, global band

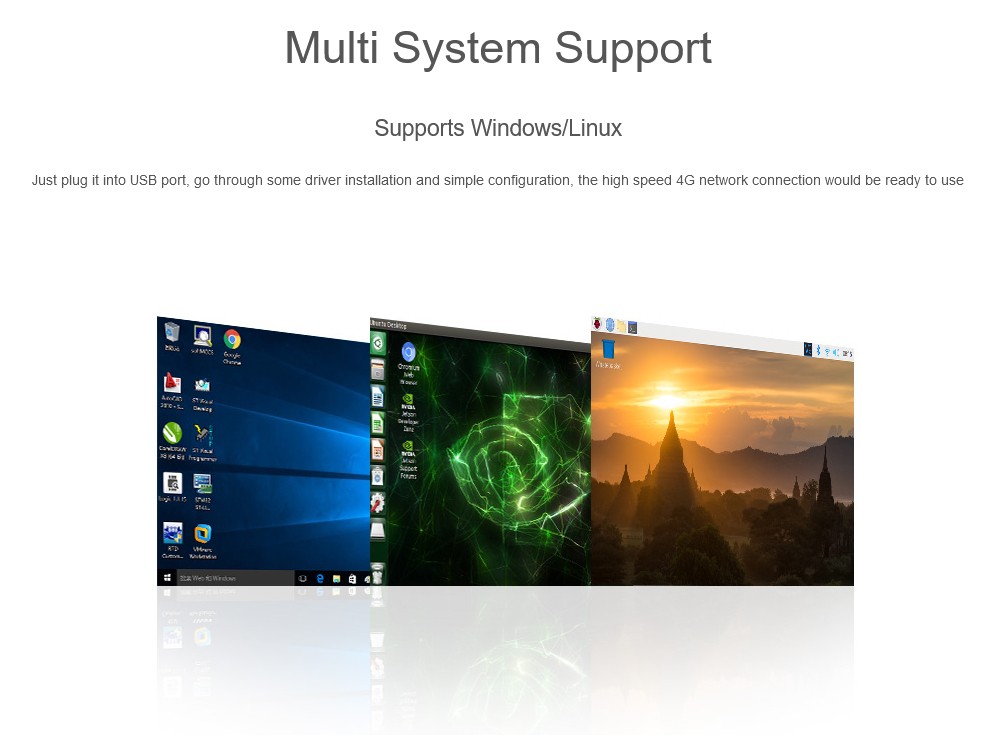

- Driver provided, for operating systems including Windows/Linux

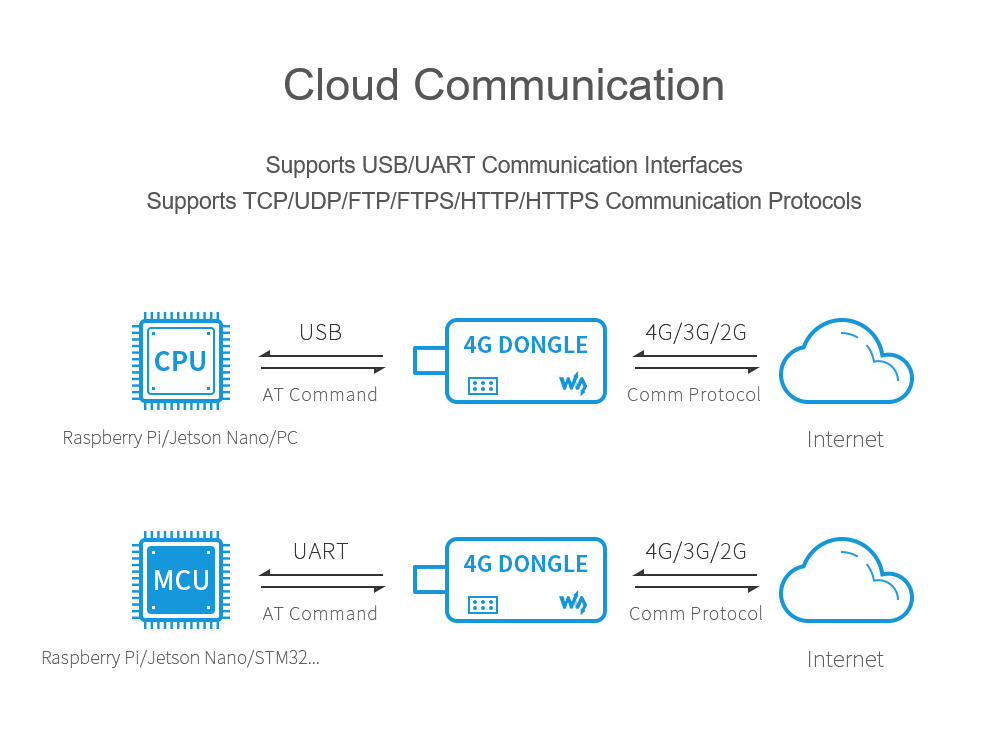

- Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
- Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer
- Onboard UART port with hardware flow control, for connecting with host boards like Ar-duino/STM32

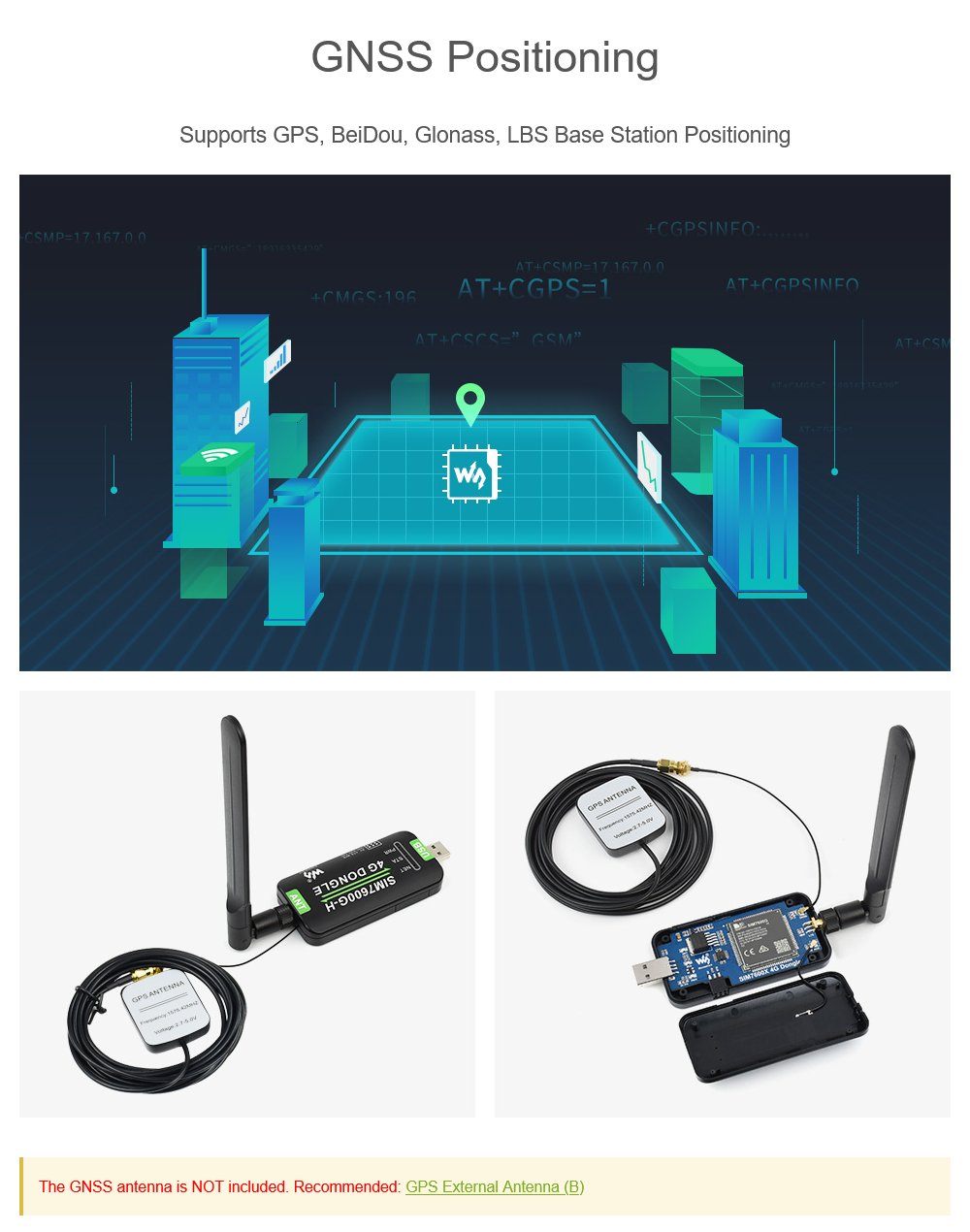

- Onboard GNSS connector: supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)
- Nano SIM card slot: supports 1.8V / 3V nano SIM card

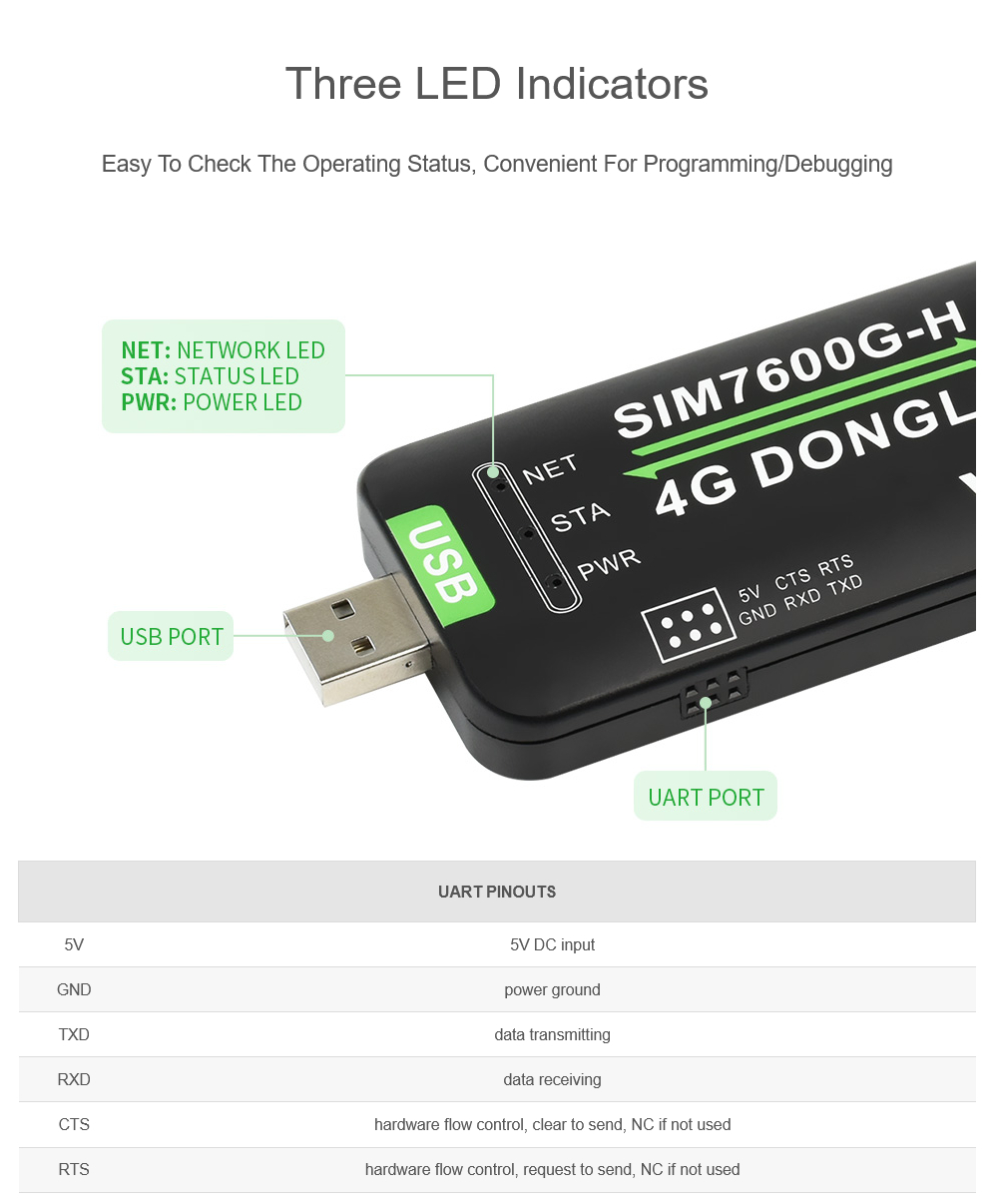

- 3x LED indicators: easy to monitor the working status

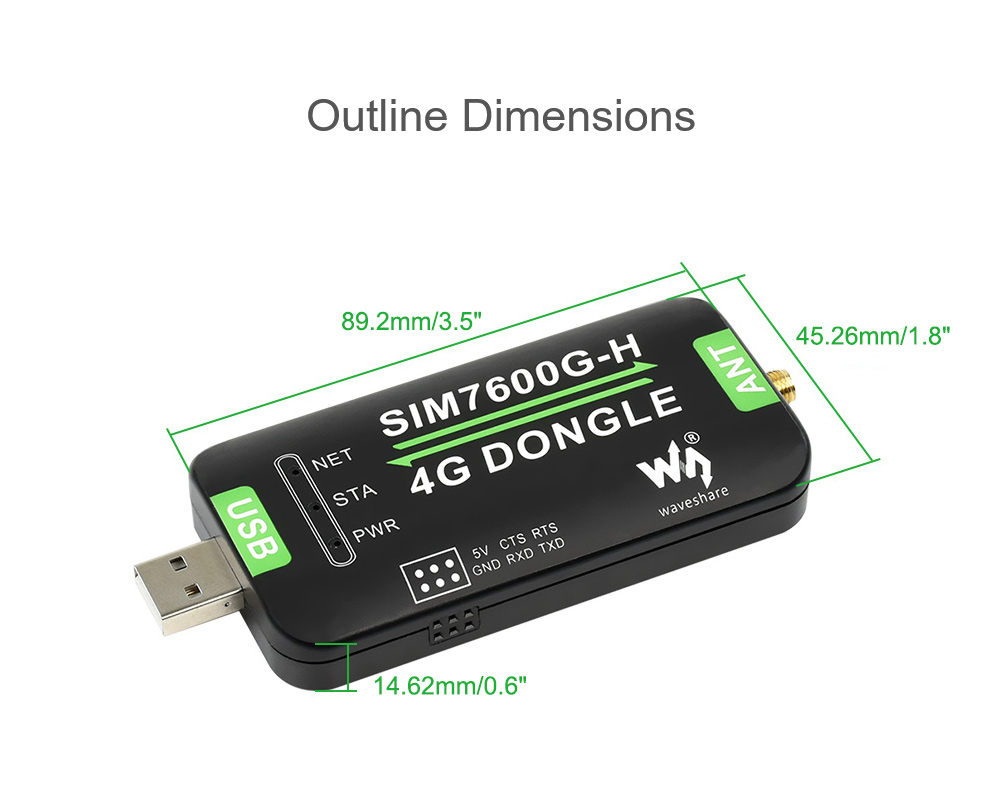

- Portable customized enclosure, mini size, nice looking
- Baud-rate support: 300bps~4Mbps (115200bps by default)
- Baud-rate auto-negotiation: 9600bps~115200bps

Wiki:
www.waveshare.com/wiki/SIM7600G-H_4G_DONGLE

Package Included:
1. SIM7600G-H 4G DONGLE x1

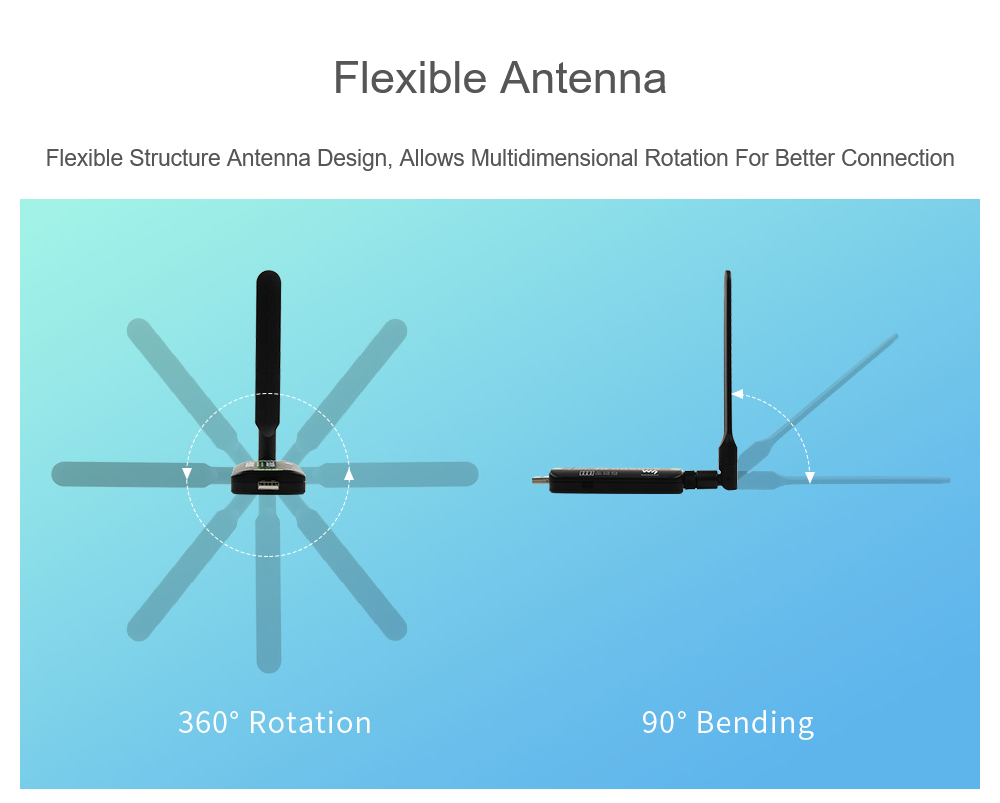

2. LTE Antenna x1
3. USB extension cable x1
4. 6PIN jumper wire x1
5. Screws tool kit x1

Packaging Details:
- G.W.: 0.15kg
