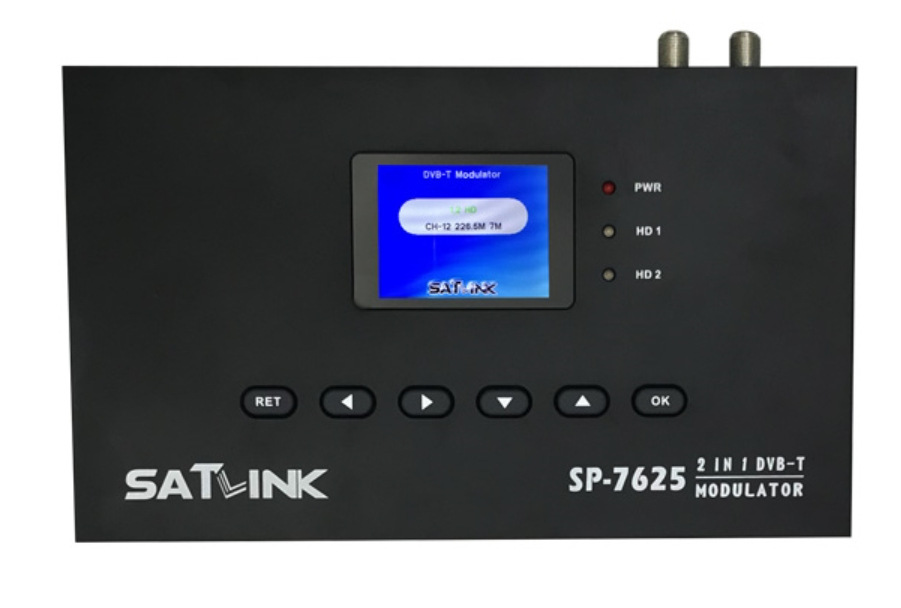

ST-7625 DVB-T Modulator COFDM Modulator 100-860 MHz for Converting Audio and Video Signals for Satlink

ST-7625 DVB-T Modulator COFDM Modulator 100-860 MHz for Converting Audio and Video Signals for Satlink

Description:
ST-7625 DVB-T modulator is developed to adapt terrestrial digital television. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating for MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out.

Features:
- Integration of H.264/AVC HD Encoder and DVB-T Modulator in a small rack mount system
- Quad HD video inputs
- Adopt multiple audio formats
- 2 HD input and 1 DVB-T RF output
- Bandwidth: 6/7/8MHz
- Electronic attenuator
- Frequency range: 100~860MHz
- LCN (Logical Channel Number) support
- Excellent modulation quality
- User friendly configuration interfaces including 2.4-inch LCD with buttons
- Upgrade by PC

Package Included:
- 1 x ST-7625 Modulator
