Tarot TL300M11 640x512 Thermal Visible Dual Sensor Camera 1080P 20 Color Palettes AV/PAL Output

Tarot's latest mini 640 thermal imaging and 1080P visible-light dual-camera module features a rugged, durable all-aluminum alloy housing. Its ultra-compact size and lightweight design make it ideal for use with various multi-rotor drones, fixed-wing aircraft, unmanned ground vehicles (UGVs), unmanned surface vehicles (USVs), and FPV racing drones.

With a 50Hz frame rate, the module delivers clear, smooth video without stuttering. Its AV video output provides zero-latency transmission. It supports four picture-in-picture (PIP) output modes: thermal imaging only, visible-light imaging only, thermal-dominant PIP, and visible-light-dominant PIP. It is suitable for a wide range of applications, including search and rescue, power line inspection, agriculture, and security.

* Dual imaging output: 640 thermal imaging and 1080P visible-light imaging.

* Zero-latency AV video output.

* Supports switching between four video output modes via a standard PWM signal.

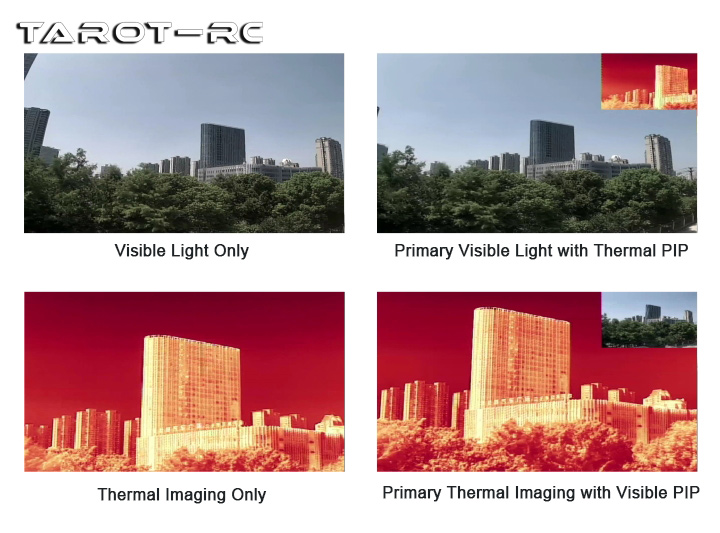

* Four video output modes: thermal imaging only, visible-light imaging only, thermal-dominant PIP, and visible-light-dominant PIP.

* Adjustable tilt angle from -29° to 90°.

* Supports a wide input voltage range of 7-30V.

* Lightweight design: only 68g.

* Video Output: AV/PAL Format

* Advanced Features: 4 Picture-in-Picture (PIP) modes; Supports PWM & physical button switching for PIP; Physical button supports 20 pseudo color switching

* Video Switching Method: Single-channel PWM control or dual-channel independent PWM control

* Operating Voltage: 7-30V

* Typical Power Consumption: Approx. 3.12W at 25°C (12V, 260mA)

* Control Signal: PWM

* Operating Temperature: -20°C to 50°C

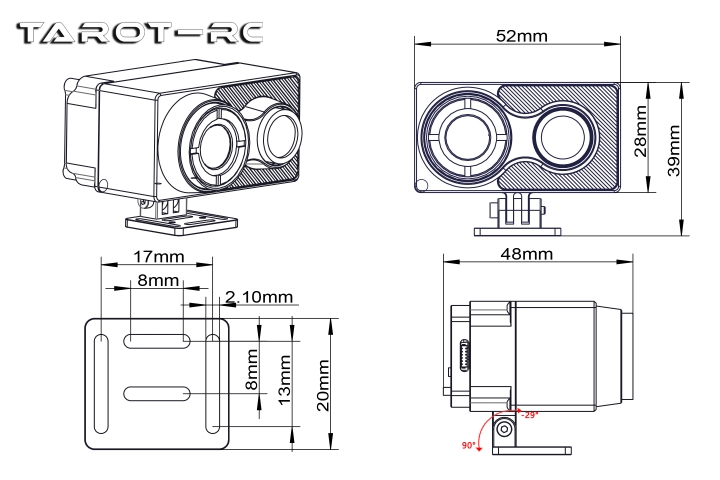

* Dimensions (LxWxH): 52mm x 28mm x 39mm

* Weight: 68g

* Resolution: 640x512

* Lens Type: 13mm F1.2

* FOV (Horizontal x Vertical): 33.5° x 26.9°

* IFOV (Instantaneous Field of View): 0.95 mrad

* Detection Distance: Vehicle: 1661m, Human: 542m

* Recognition Distance: Vehicle: 415m, Human: 135m

* Identification Distance: Vehicle: 208m, Human: 68m

* Pixel Pitch: 12μm

* Detector Frame Rate: 50Hz

* Spectral Range: 8-14μm

* NETD (Noise Equivalent Temperature Difference): ≤50mK at 25°C, F#1.0

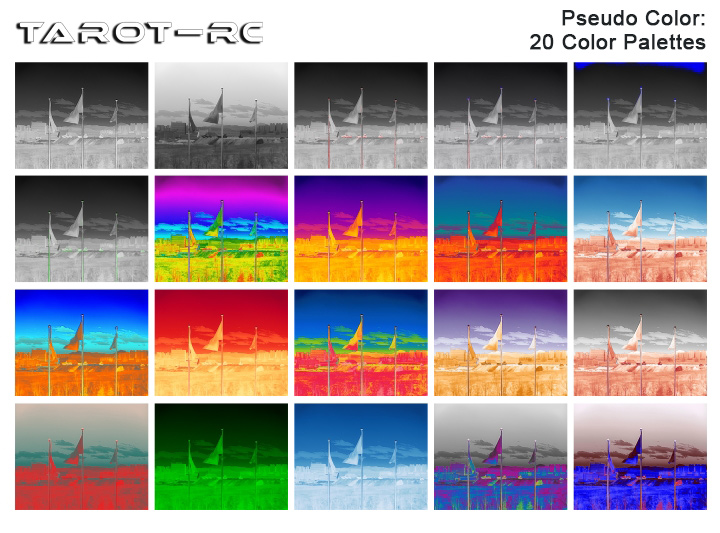

* Pseudo Color: 20 colors/Physical button switching

* Sensor Type: 1/2.8" CMOS

* Effective Pixels: 1920 (H) x 1080 (V)

* Min. Illumination: 0.001Lux/F2

* Focal Length: 3.08mm

* Aperture: 2.0±10%

* FOV: D:122°

* Frame Rate: 60Hz

* 1 x 640 Dual-Sensor Imaging Module/640S2A

* 1 x Wiring Kit

* Package weight: 0.2kg
