Tarot TL3T20 3-Axis Gimbal Camera 640x512 Drone Thermal Imaging Camera for Inspection Monitoring

Tarot TL3T20 3-Axis Gimbal Camera 640x512 Drone Thermal Imaging Camera for Inspection Monitoring

Description:

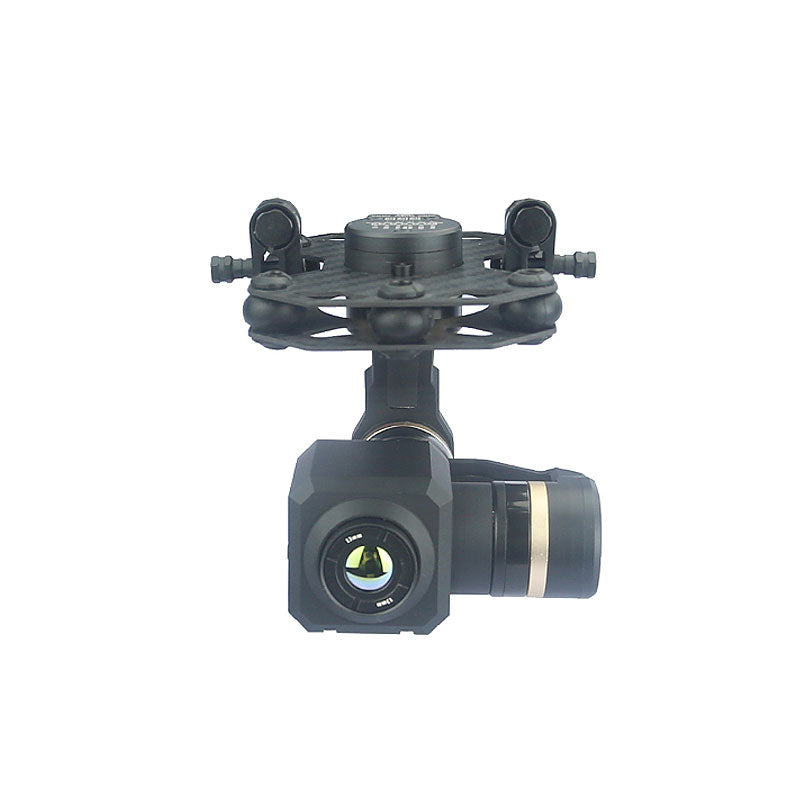

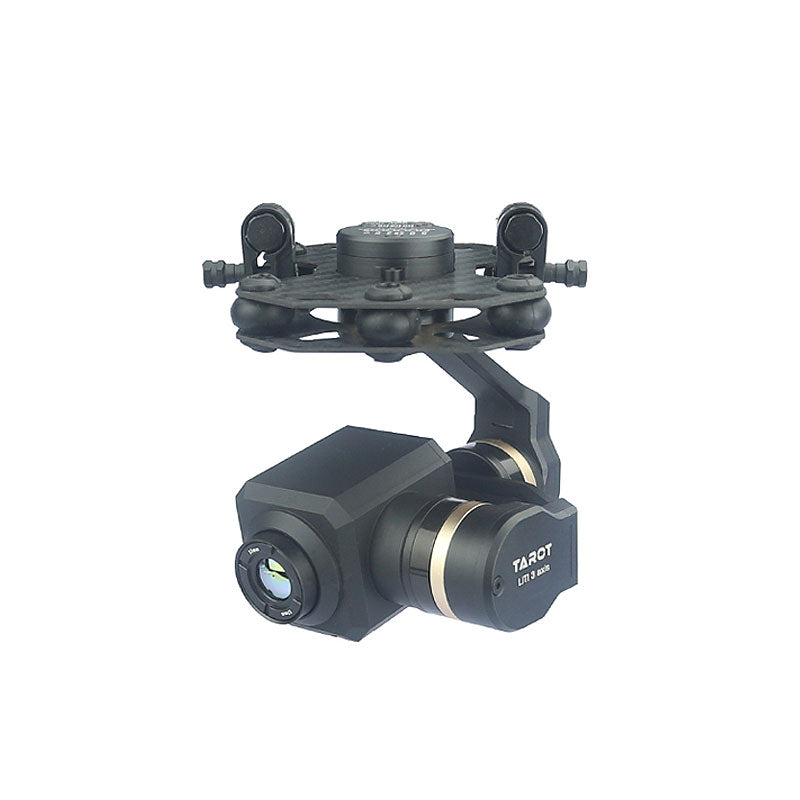

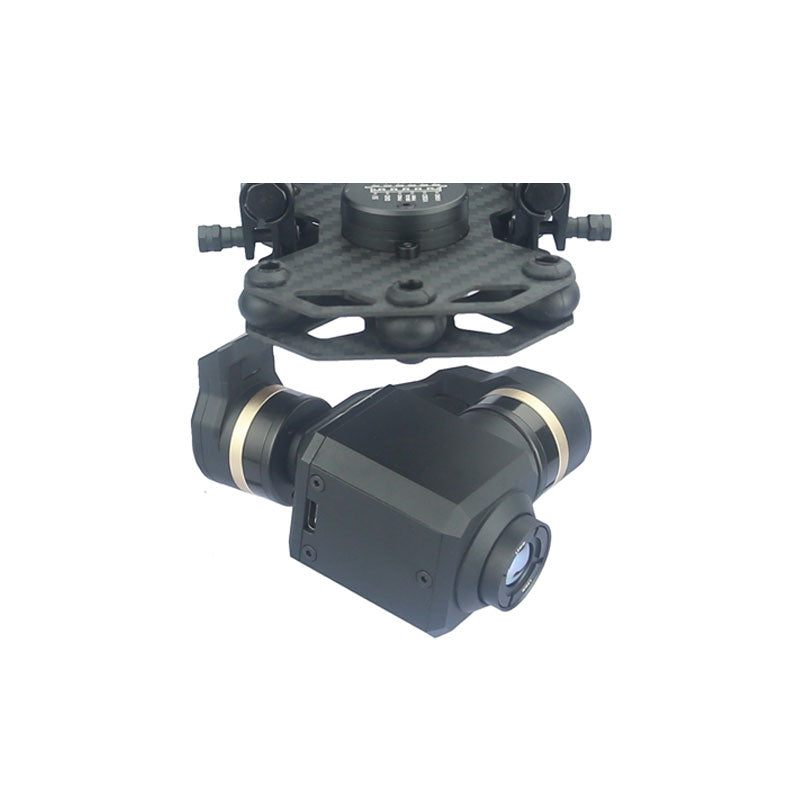

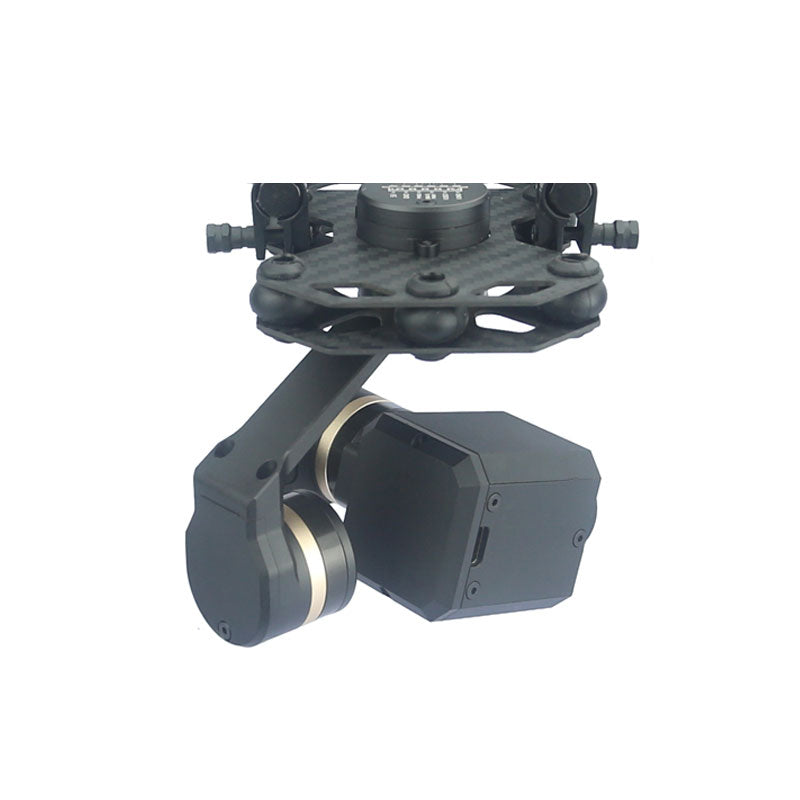

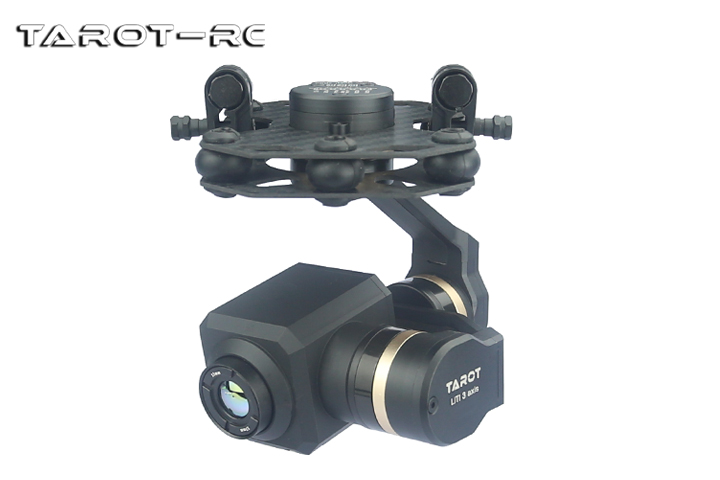

TL3T20 is a professional 3-axis thermal imaging gimbal camera by Tarot. With a built-in 640 thermal imaging movement, this gimbal can meet the needs of many industries such as power inspection and fire protection. It adopts a full CNC integral ribbed structure industrial design, and built-in independent IMU to accurately control the gimbal attitude. It integrates a servo drive module dedicated to gimbal. The gimbal camera supports pointing, following, and FPV first-view working modes. Equipped with a professional-grade 640 thermal imaging camera, it can be applied to fire fighting, forest public security, public security monitoring, search and rescue, environmental law enforcement, etc.

Features:

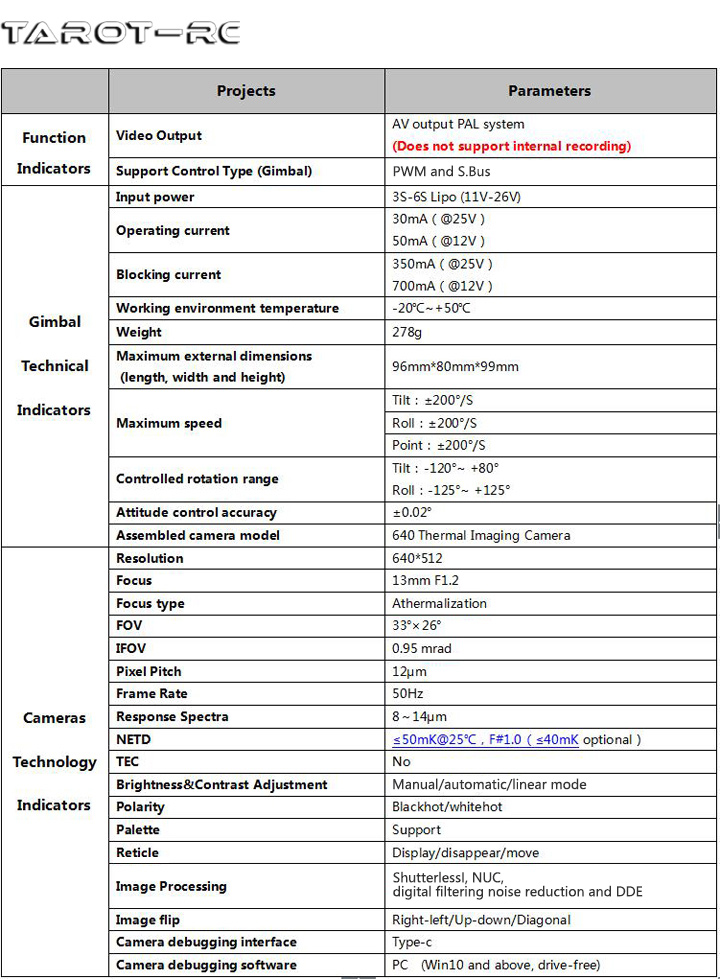

1. Support wide voltage 3-6S input
2. Mechanical three-axis image stabilization and image stabilization accuracy of ± 0.01°
3. Light and strong aluminum alloy structure with good heat dissipation performance
4. Highly optimized servo motor vector control algorithm
5. Fast AV signal video output mode
6. Controlled angle of rotation (PAN): ±125°
7. Tilt direction controllable angle (TILT): -120° to +80°
8. Support S-Bus/PWM receiver
9. Movement thermal imaging output resolution 640*512
10. Multiple modes can be chosen on the movement debugging software (computer)

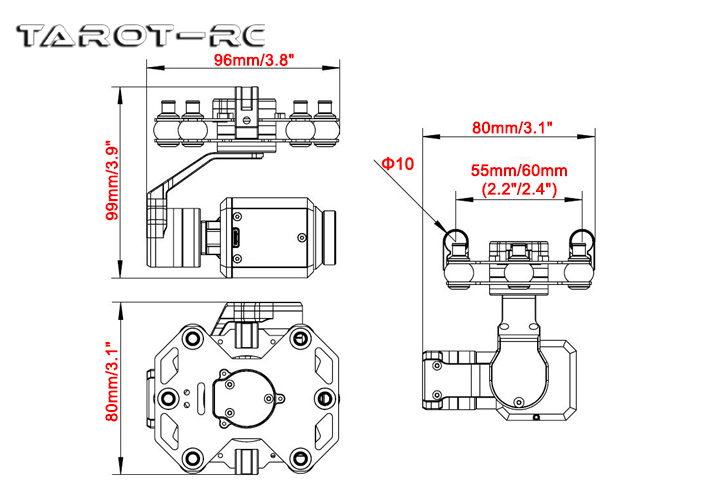

11. Weight 278g/0.6lb

Package Included:
- 1 x Thermal Imaging Gimbal Camera

Note:
- Internal recording of the system is not supported.
