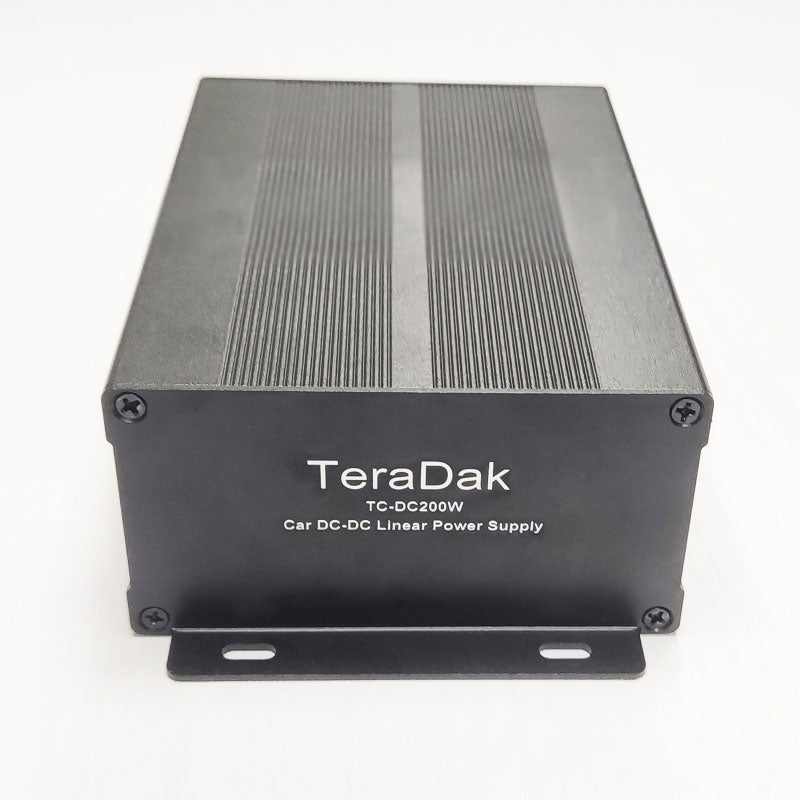

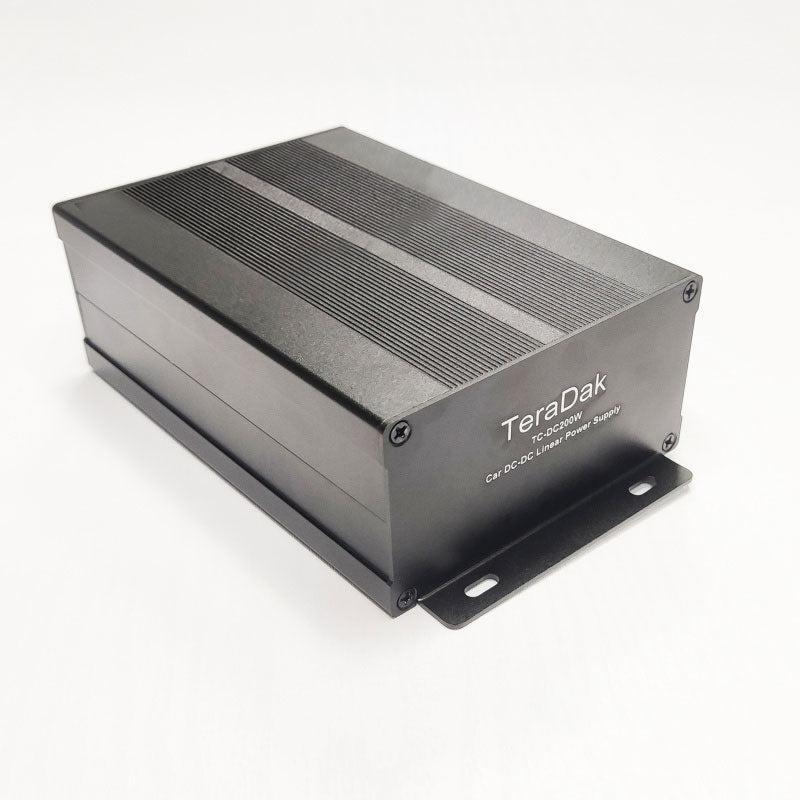

TeraDak TC-DC200W Car DC-DC Linear Power Supply Anti-Interference with ACC Control (Output DC19V)

TeraDak TC-DC200W Car DC-DC Linear Power Supply Anti-Interference with ACC Control (Output DC19V)

Description:
Isolated Car DC-DC Linear Power Supply is designed with ACC control.

VCC is car battery powered. And ACC is the control signal.

When the car power supply is turned on, it will automatically connect to the battery to supply power, and the car will automatically power off after turning off.

More Details:
- Voltage regulation control board
- DC LC high current
- EMI filtering
- 15A transistors

Specifications:
- Input voltage: 10-32V
- Output voltage: DC19V
- Output current: up to 10A (MAX)
- Input current: 16A (MAX) (enhance heat dissipation when it is over 10A)
- Output power: natural cooling 100W (MAX); enhanced heat dissipation 150W (MAX)
- To drive 65W and 90W laptops, including dual-core laptops
- When used with a 12V battery, it can drive an ordinary 19V 3.42A laptop, and the temperature of the module is about 45°C
- Conversion efficiency: 70%-75% (measured when input 10V and output 19V 5A) (for reference only)
- Output ripple: 10uV ~16uV
- Operating temperature: industrial grade (-40°C to +80°C) (when the ambient temperature exceeds 40°C, please reduce the power or add a fan)
- Full load temperature rise: 45°C to 60°C
- No-load current: 20mA
- Load regulation: ±0.5%
- Voltage regulation: ±5%
- Dynamic response speed: 5% 200uS
- Short circuit protection: None (please install a fuse or protection circuit at the input)
- Input with anti-reverse connection: none (buyers can connect diodes in series at the input)

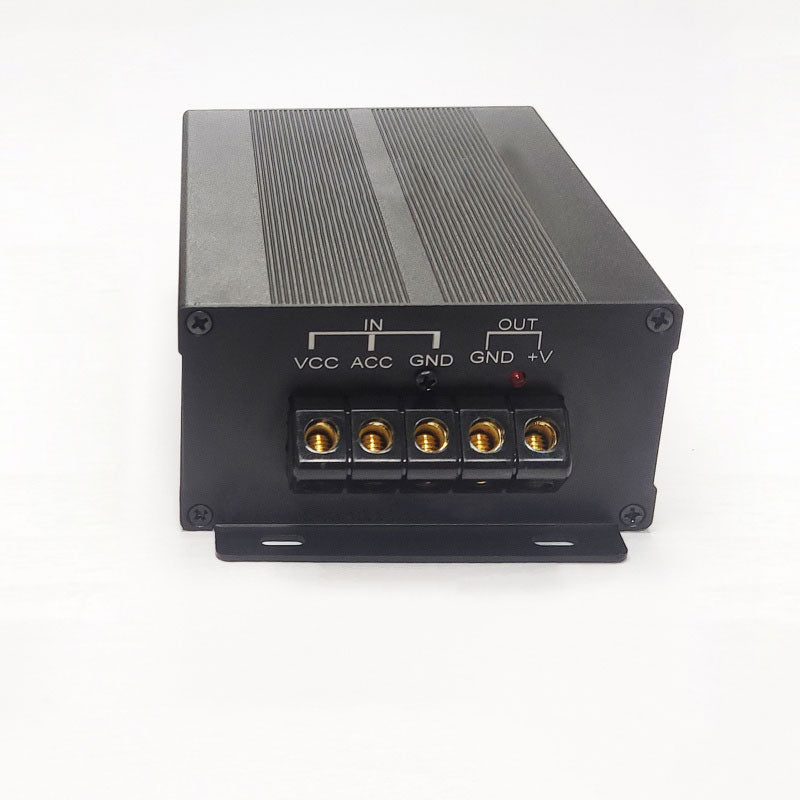

- Wiring method: terminal (no soldering)
- Size: 163 x 106 x 55mm/6.4 x 4.2 x 2.2" (LxWxH)

Package Included:
- 1 x Linear Power Supply

Note:
- When using, please decide whether to add a fan according to the actual situation. During use, please ensure that the temperature of the heat sink does not exceed 80°C.
- Battery is not included.
