TF-NOVA 14°x1°FOV Detection Compact LiDAR Module Radar Sensor Laser Ranging Module for Vehicle/UAV Drones

TF-NOVA 14°x1°FOV Detection Compact LiDAR Module Radar Sensor Laser Ranging Module for Vehicle/UAV Drones

Description:
- Line Pattern Laser Beam: TF-NOVA has a 14°x1° FoV and can detect an area of 25 x 1.7cm² at 1m, similar to two laid flat chopsticks. Notes: The light spot is vertical.
- Compact Size: The size is 26.5 mm x 21.05 mm x 12 mm and about 7cm³ in volume. It provides great convenience and flexibility for system integration.
- Outdoor and Indoor Stable Detection: TF-NOVA reliably detects a 5cm target with 10% reflectivity at a range of 2m in both bright sunlight and low light. In summer, black vehicles can be detected within 2m.
- Multiple Interfaces: TF-NOVA supporting both standalone and networked operations. Additionally, it can be configured for I/O output mode, significantly reducing data processing workload. Also supports for UART and IIC interfaces.

Specification:
- Measuring range:
  ≥14m at 90% reflectivity, 0Klux
  ≥13m at 10% reflectivity, 0Klux
  ≥7m at 90% reflectivity, 100Klux
  ≥4m at 10% reflectivity, 100Klux
- Blind area: ≤0.1m
- Accuracy: ±5cm at 0.1 - 4m
- Precision: < 1cm (1 sigma) at 0.1 - 4m
- Distance resolution: 1cm
- Frame rate: 100Hz
- Light source: VCSEL
- Central wavelength: 905nm
- Laser transmitting FOV: 14°x1° (typical value)
- Laser safety level: Class 1 Eye-safe (EN60825)
- Average power consumption: < 500mW
- Start peak current: < 850mA
- Start time: < 1s
- Power supply voltage: DC5±5%V
- Working temperature: -25℃ ~ 70℃
- Storage temperature: -30℃ ~ 80℃

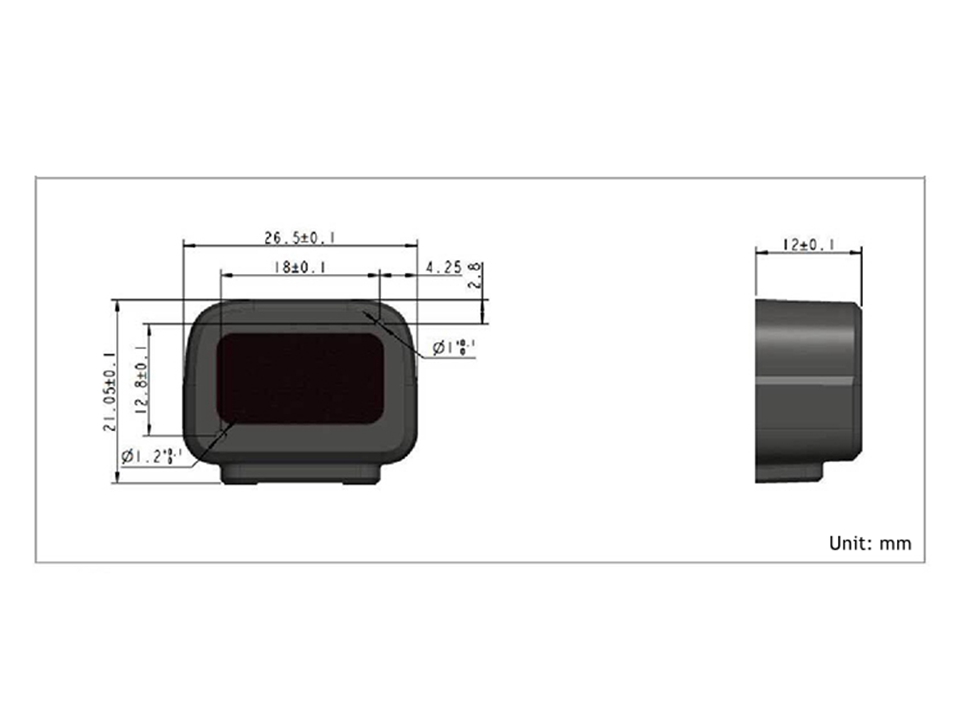

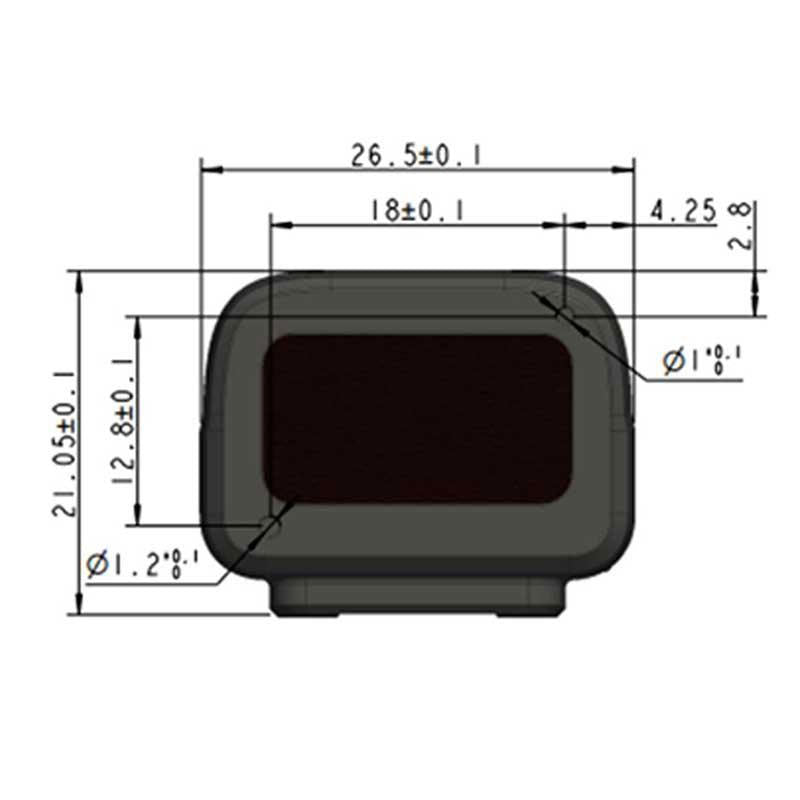

- Product size: 26.5 x 21.05 x 12.0mm
- Net weight: < 5g

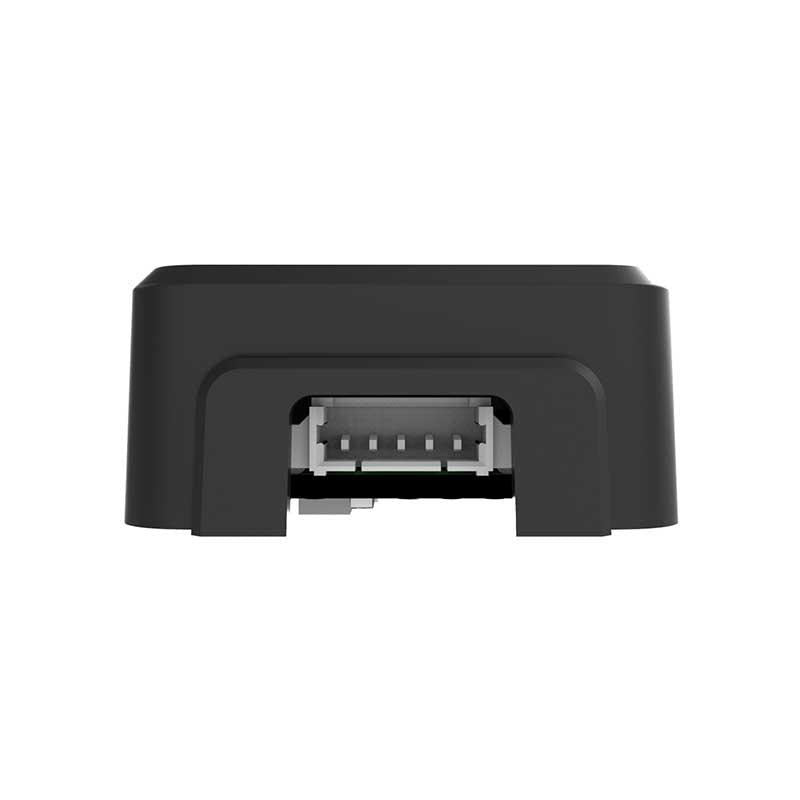

- Hardware interface: 1.25mm-5Pin
- Protection level: N.A.
- Front window glass protection level: IP65
- Cable length: 10cm
- Communication interface: UART, IIC, I/O
- Baud rate: default 115200
- Data bit: 8
- Stop bit: 1
- Parity check: None

Package Included:
- 1 x Radar Sensor
