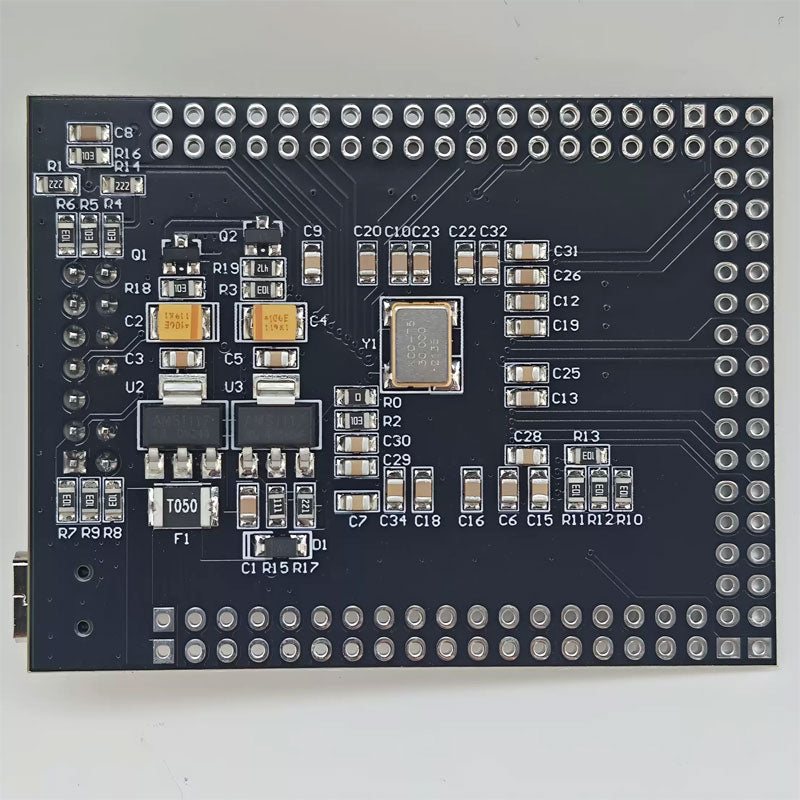

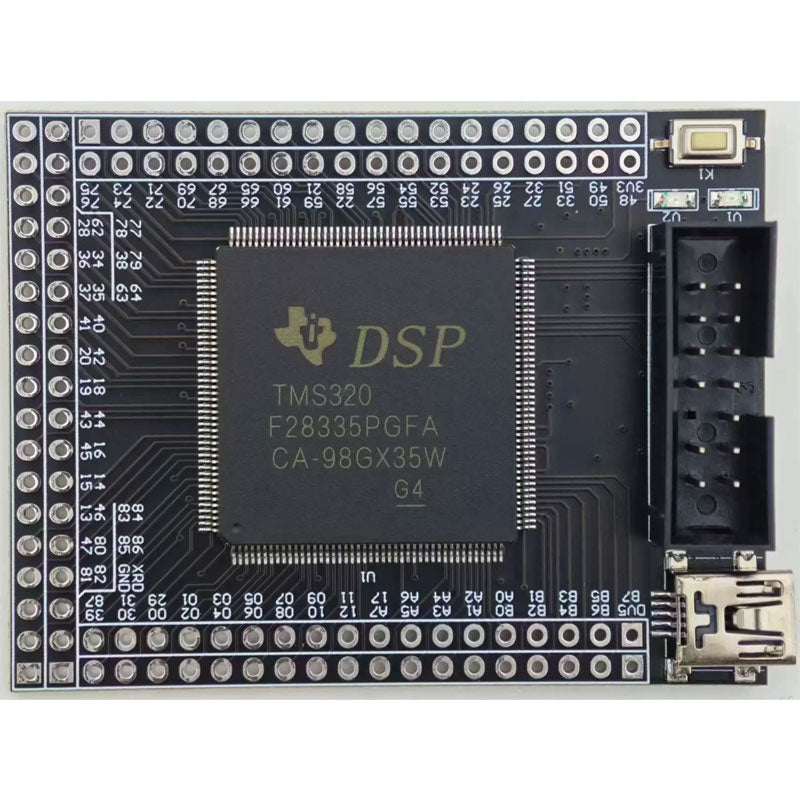

TMS320F28335 DSP Development Board C2000 Core Board DSP System Board Superior to TMS320F2812

* Finished Product: All components soldered, with pin headers

* Complete power system, requires only an external 5V power input to work

* 5070 package 30MHz active crystal oscillator, master clock can be set independently via PLL

* One power indicator LED to indicate the power-on status of the board

* One test LED, which can be controlled by the user through a program

* One reset button for user manual reset

* Mini USB socket (5V/500mA)

* Anti-reverse insertion 14P/2.54mm standard JTAG socket

* Three rows of standard 2.54mm-pitch DIP18x2 pin headers break out all chip I/O ports, providing a total of 105 I/O channels, including 89 GPIOs and 16 ADC channels.

* On-board Chip Model: TMS320F28335PGFA

* Development Board Size: 46.5mm x 61mm

* Power Supply: 5V/500mA (powered via pin header or mini USB)

* PCB Layers: 4 layers

* Download Method: JTAG

* Development Environment: CCS

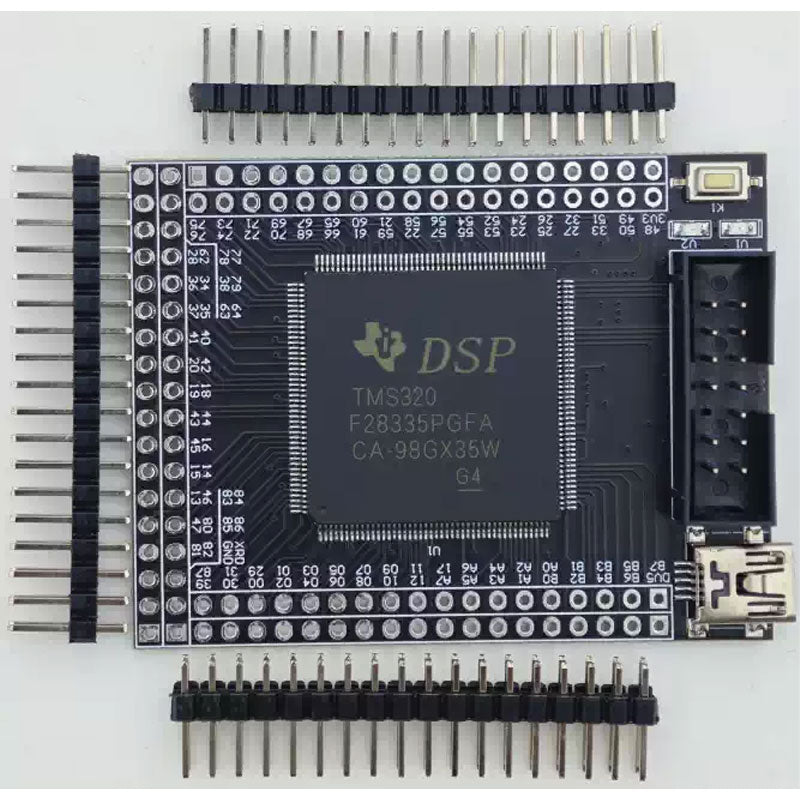

* 1 x Board

* 3 x Pin Headers

* Package weight: 0.22kg
