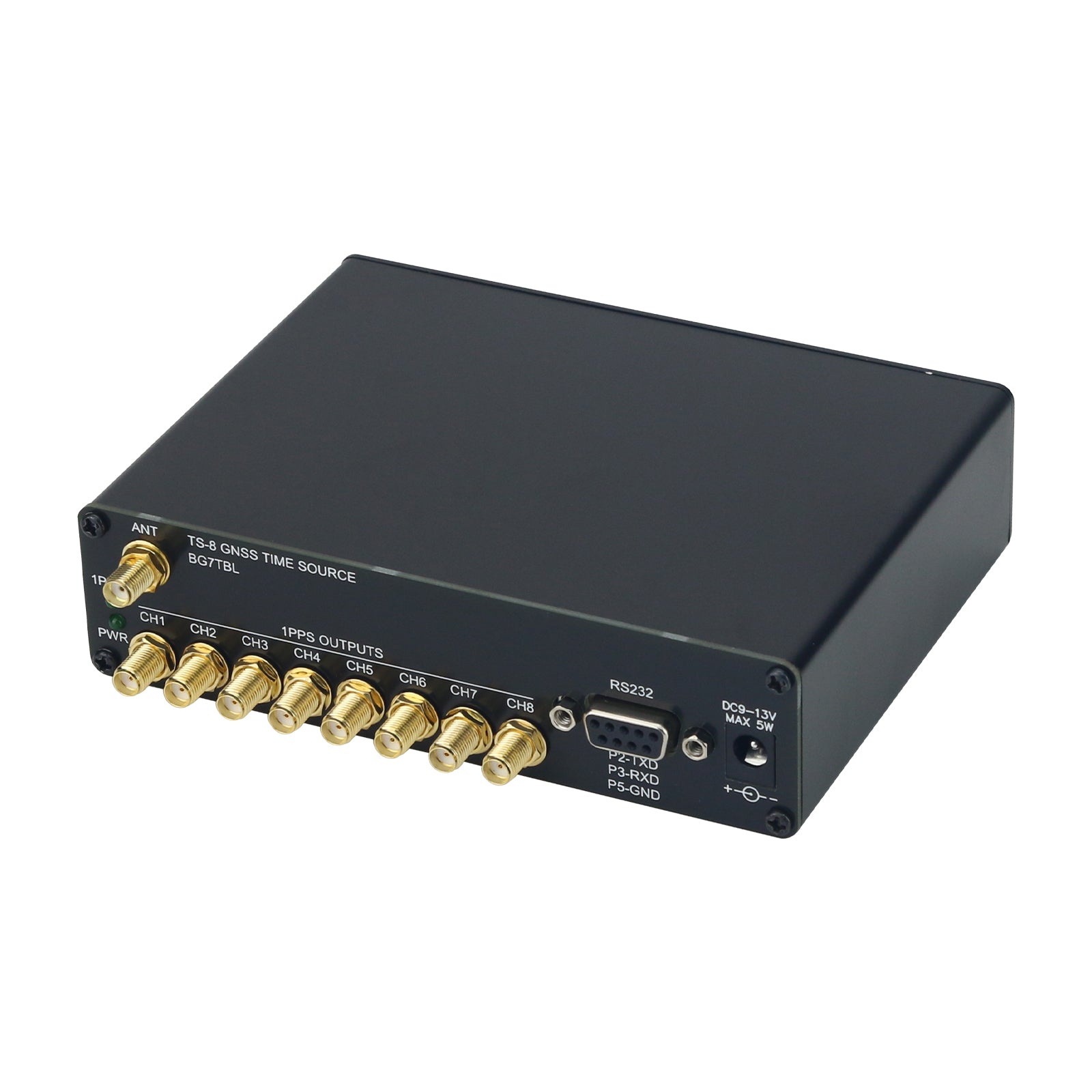

TS-8 BG7TBL Time Source Clock Source 8-Channel Square Wave 0 - 3.3V 1PPS Output LEA-M8T GNSS GPS Beidou Second Pulse Timing

TS-8 BG7TBL Time Source Clock Source 8-Channel Square Wave 0 - 3.3V 1PPS Output LEA-M8T GNSS GPS Beidou Second Pulse Timing

Specification:
- Model: TS-8
- Power supply: 5.5/2.1 socket, DC 9-13V, <=0.2A
- Antenna: SMA port, DC3.3V/0.1A

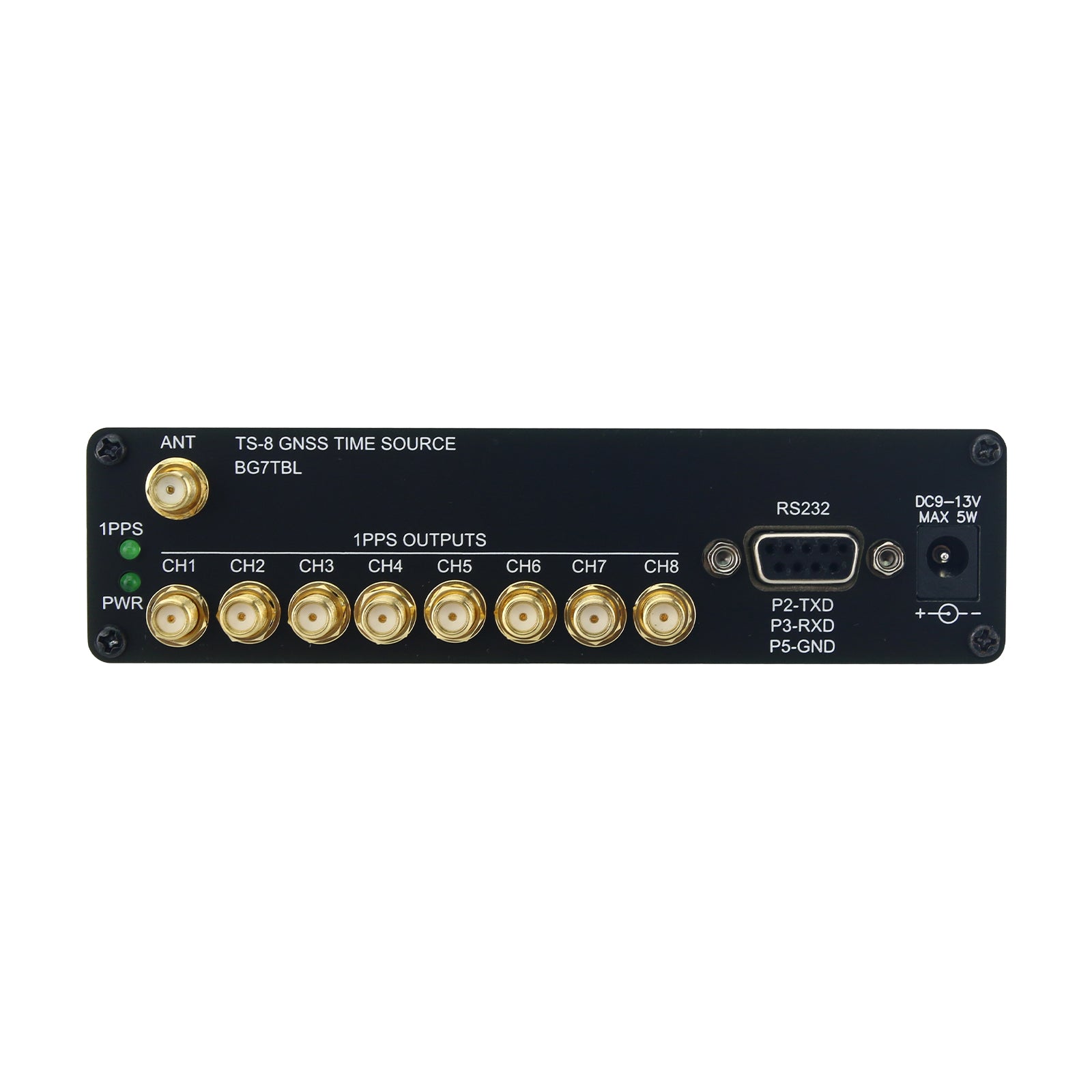

- 1PPS output: 8-channel SMA port, square wave, 0 - 3.3V; 30ns rms, rise edge alignment with UTC; directly output from GNSS output without timing
- Serial port output: RS232 level, 9600BPS, GPS NMEA0183 protocol signal
- Built-in module: LEA-M8T
- LED:
  PWR: light up when power on
  1PPS: flash when 1PPS output
- Size: W x H x D = 140 x 43 x 120mm (includes SMA connector)
- Weight: 0.7kg

FAQ:
Q: What is clock source? And what does it used for?
A: To output a accurate absolute time. It is used for radio timing.

Q: Can it be used without antenna?
A: No, the signal inside will output directly from the module.

Q: When is the output signal valid?
A: When 1PPS LED is flashing.

Q: What should I do if I want to output multiple signals?
A: It can be connected with a distributor.

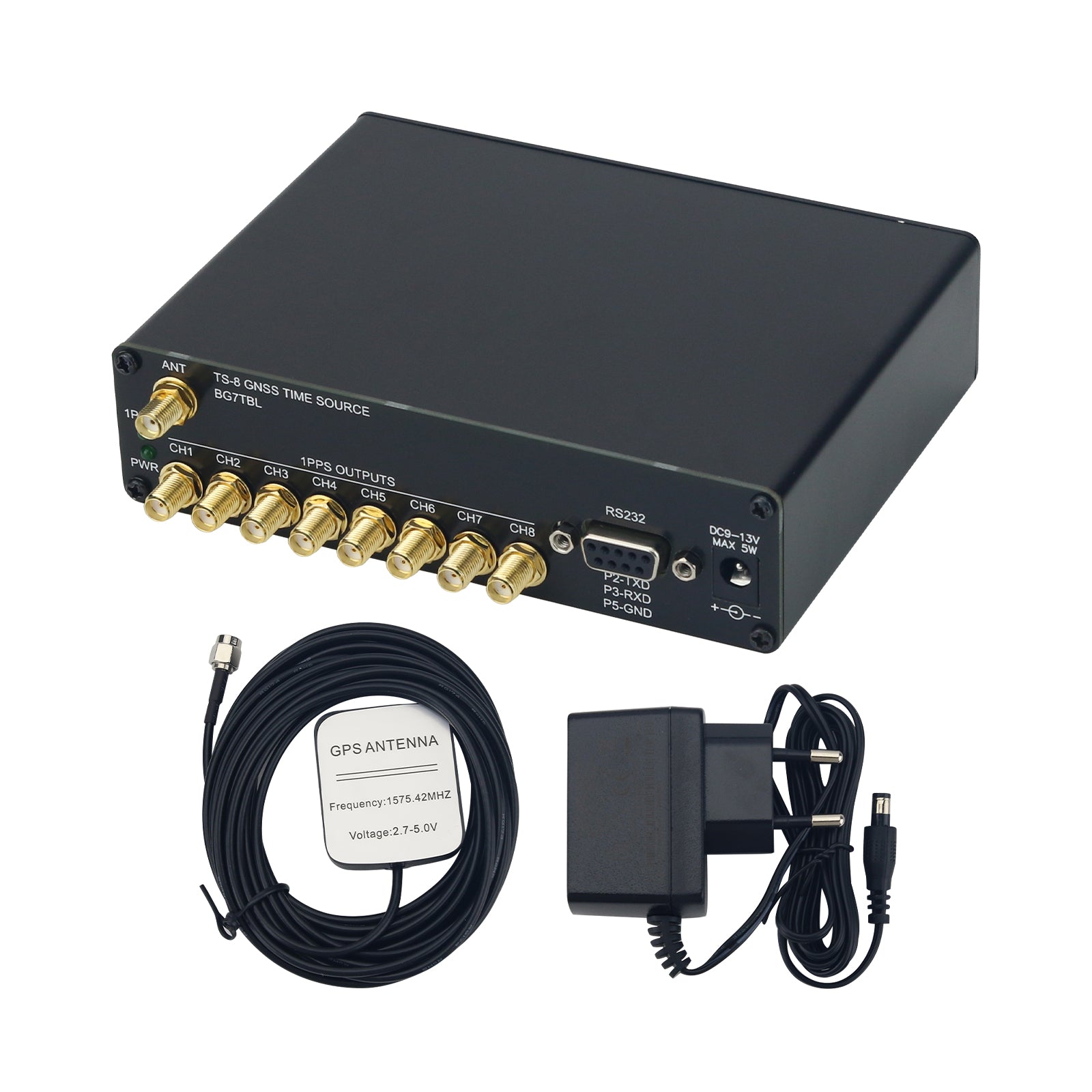

Package Included:
- 1 x Clock Source
- 1 x AC110 - 220 - DC12V Adapter
- 1 x 5m GPS Antenna
