TX-100 450-950MHz Wireless Microphone Signal Amplifier Antenna Amplifier w/ Antenna & Distributor

TX-100 450-950MHz Wireless Microphone Signal Amplifier Antenna Amplifier w/ Antenna & Distributor

Features:
- Wireless mic signal amplifier enables no signal blind spot
- High-quality wingspan: longer signal transmission and greater range
- Made from industrial-grade standard glass copper and copper film coating, its antenna is durable, anti-corrosion, anti-ultraviolet, shock-proof and lightweight
- Long-term and stable working performance in different environments
- Adjustable microphone signal gain: According to the data displayed on the receiver RF indicator or level meter, users can adjust the gain for the best effect in the current environment
- 800m/2624.7ft long-distance signal transmission. Stable signal and smooth transmission

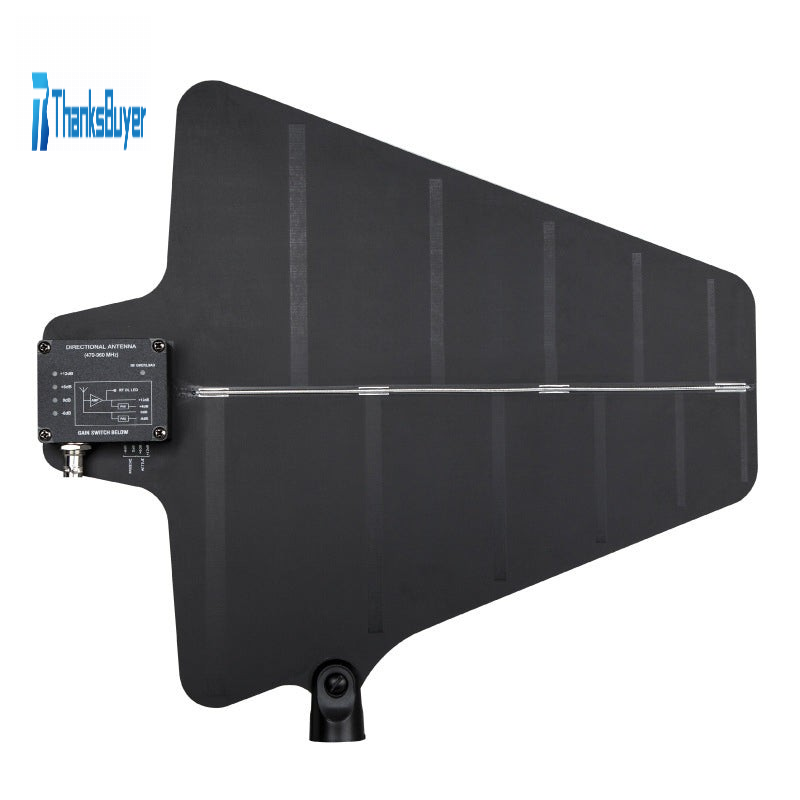

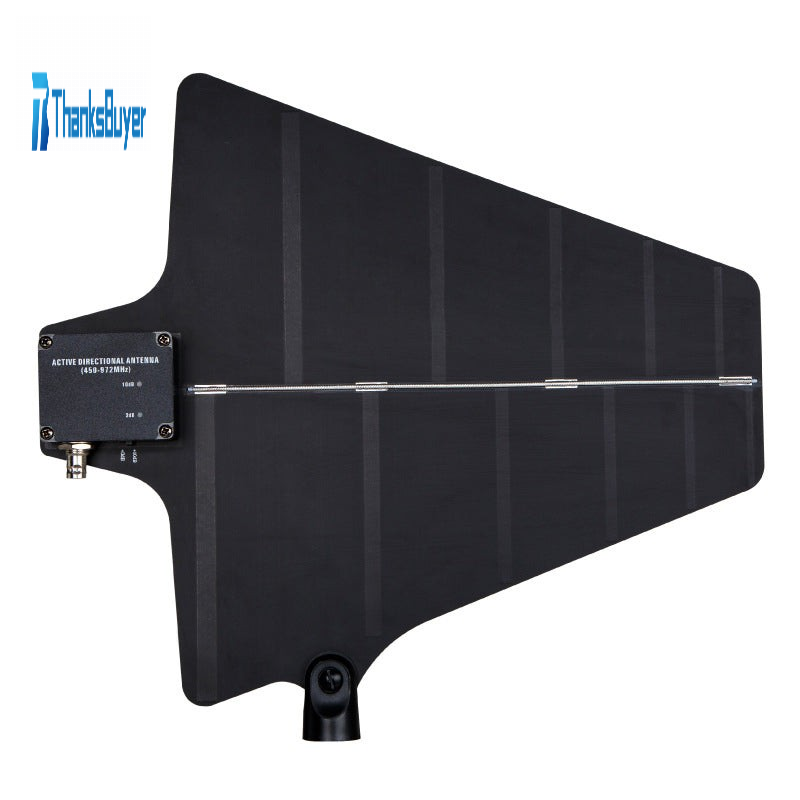

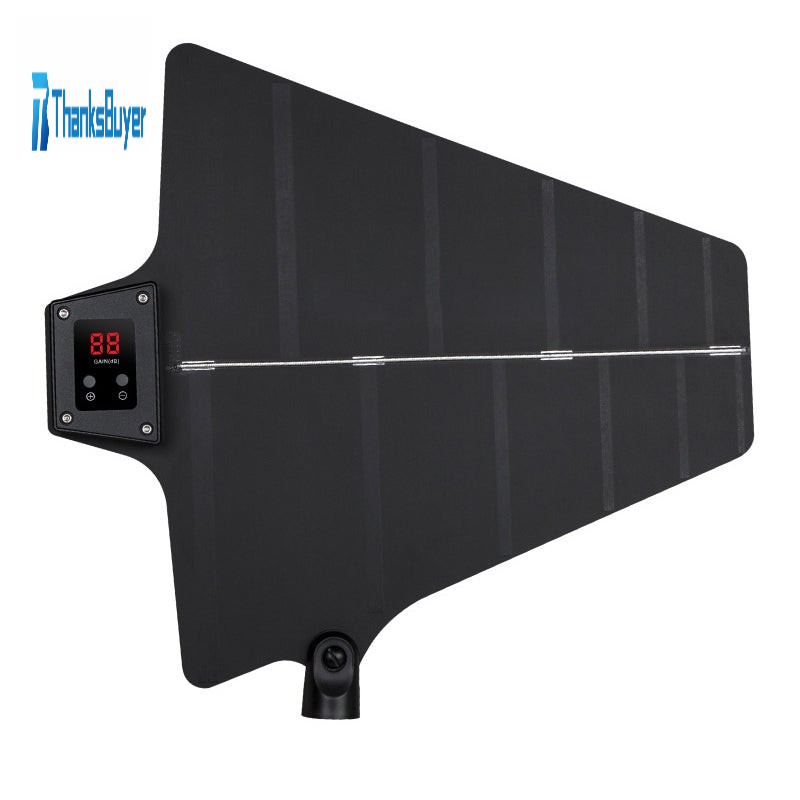

Directional Antenna:
- Frequency range: 450~950MHz
- 3dB beam width: 90 degrees in the vertical plane and 120 degrees in the horizontal plane
- System impedance: 50Ω
- Amplification gain: 15dB±1dB
- Noise figure: < 2dB
- Output third-order intermodulation intercept point: +14dBm
- System impedance: 50Ω
- Power supply: 5~12V/80mA DC
- Connector: BNC
- Antenna size: 360 x 320mm/14.2 x 12.6"

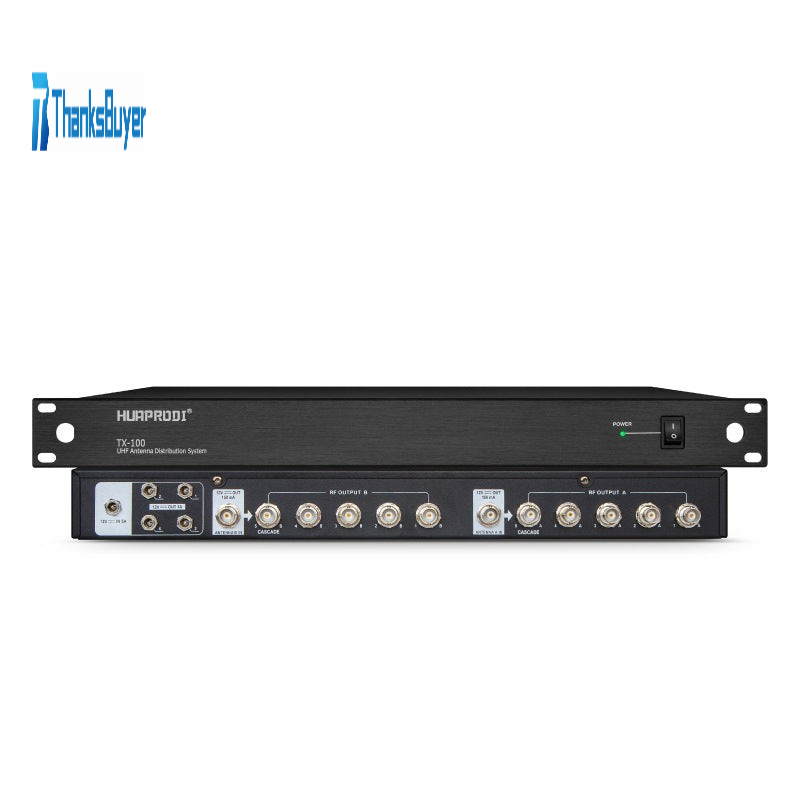

Antenna Distribution System:
- Frequency range: 450~950MHz
- RF output gain: 1dB±1dB
- Output third-order intermodulation intercept point: +14dBm
- Noise figure: < 2dB
- System impedance: 50Ω
- Antenna input connector power supply: 5V/80mA DC
- Output power supply: each channel outputs 12V/1000mA DC
- Host power supply: external power supply 12V/5A DC
- Connector: BNC
- Size: 480 x 205 x 45mm/18.9 x 8.1 x 1.8" (LxWxH)

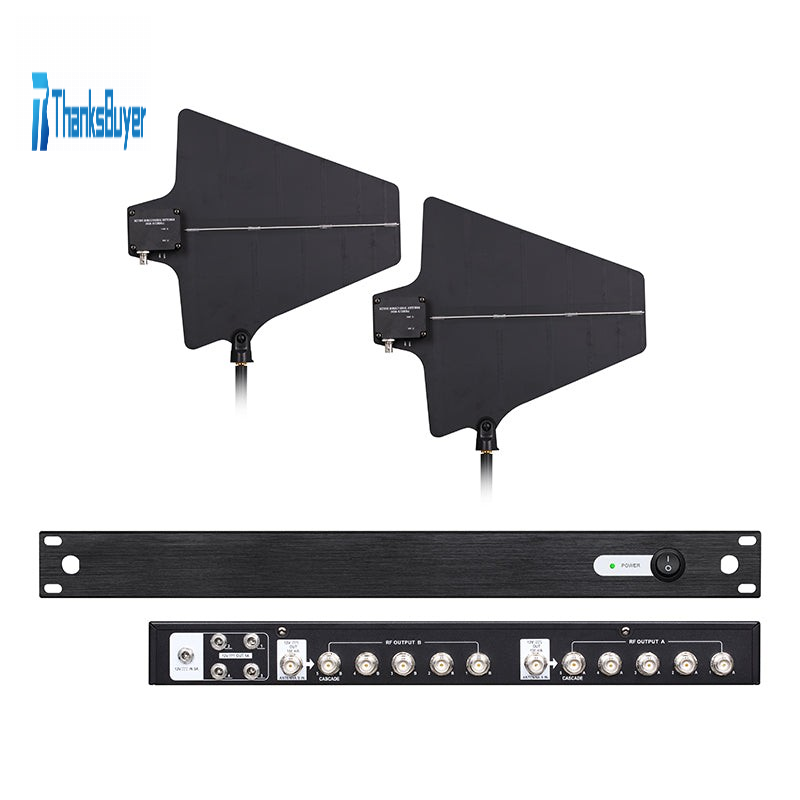

Package Included:
- 2 x Directional Antennas
- 1 x Antenna Distribution System
