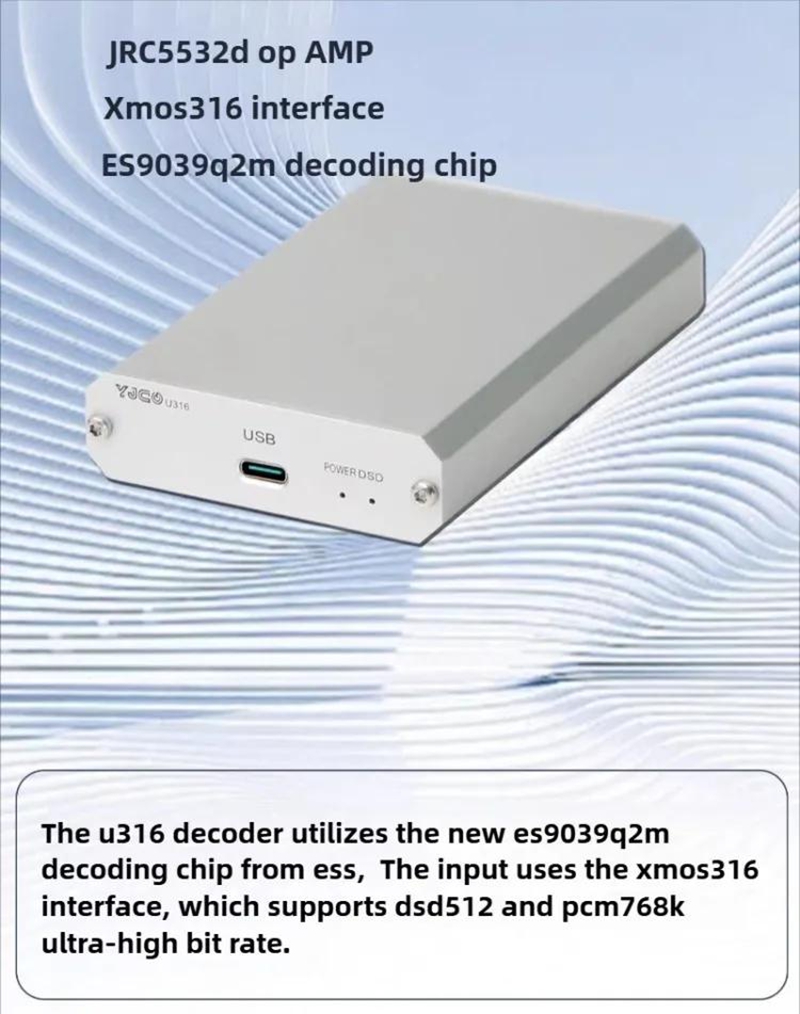

U316 Advanced USB Decoder ES9039Q2M HiFi DAC JRC5532D Op Amp XU316 Digital Interface for XMOS

Using Instruction:
- The USB cable used to connect the U316 must be a Type-C data cable or a Type-C OTG cable. Do not use a charging cable.
- No additional software installation is required when connecting the U316 to a mobile phone or computer. For Windows 10 or later version is needed for connection to a computer. To play DSD files on a computer, an ASIO driver needs to be installed, which can be obtained from customer service. To play DSD files on a mobile phone, install the HiBy Player. When a DSD signal is input, the DSD indicator light on the panel will light up.

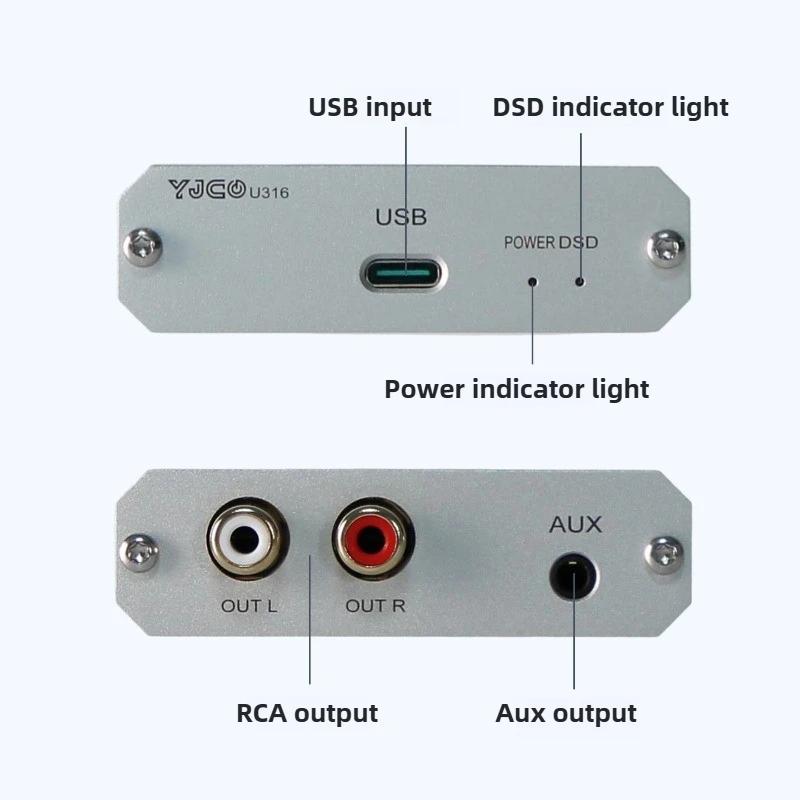

- The AUX output port is designed for use with a 3.5mm AUX cable and is not suitable for directly driving headphones.

Specification:
- Model: U316
- Input: USB
- Output: RCA, 3.5mm
- Working voltage: USB 5V

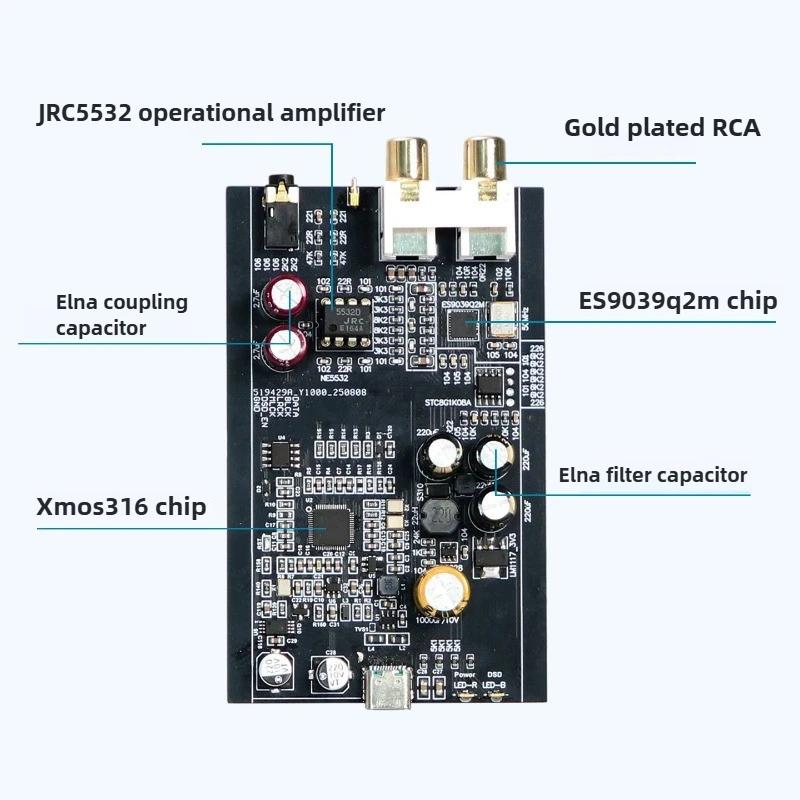

- Digital interface: XMOS316
- Decoding chip: ES9039Q2M
- Decoding parameter: DSD64-512; PCM 24BIT 768K (For WIN10 comes with a built-in driver that supports 384K)
- THD+N: <0.002%
- SNR: 120dB
- Frequency response: 20-20K at 1kHz±0.3dB

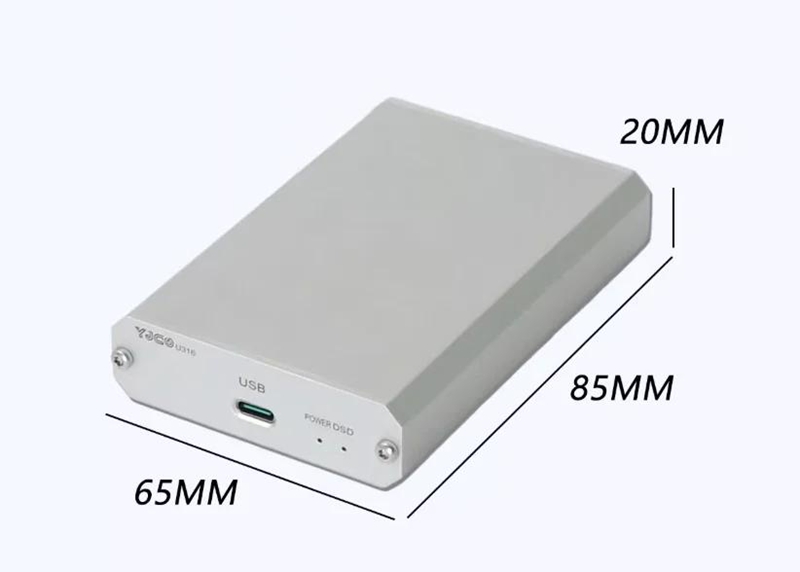

- Product size: 20 x 69 x 104mm
- Net weight: 100g

Package Included:
- 1 x USB Decoder
