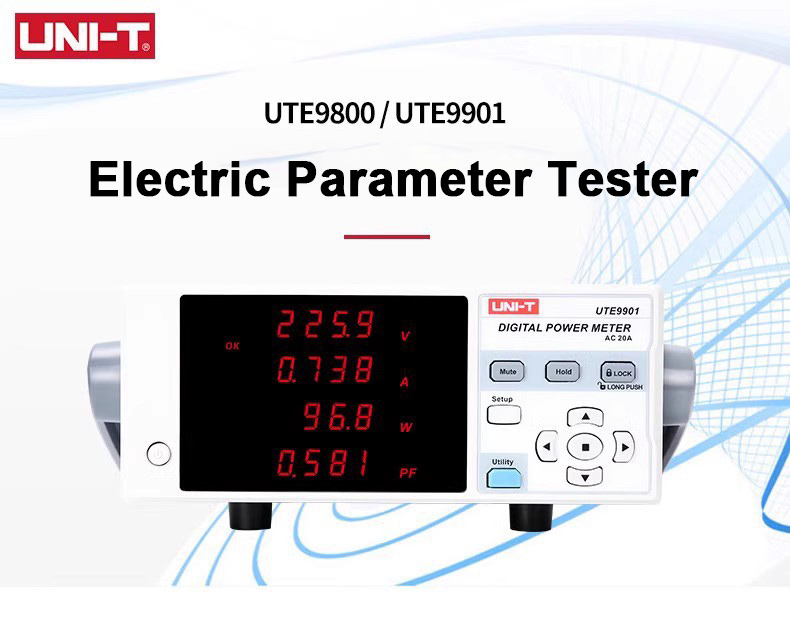

UNI-T UTE9800 AC 20A Digital Power Meter Electric Parameter Tester for Four Parameters V A W & PF

UNI-T UTE9800 AC 20A Digital Power Meter Electric Parameter Tester for Four Parameters V A W & PF

Description:
The Intelligent Electrical Parameter Meter (also known as a Digital Power Meter) is an economical and portable measuring instrument. It features automatic range switching, a fundamental frequency of 45Hz to 65Hz, and a bandwidth of 5kHz. This multifunction meter integrates voltage, current, power, and power factor measurements in one device.

Applications:
* Widely suitable for production, testing, evaluation, and research across various fields, such as lighting products, household appliances, motors, and power supplies.
* Power consumption testing of household appliances
* Power consumption testing of air conditioners
* Power consumption testing of lighting appliances
* Power consumption testing of LED lamps
* Power consumption testing of chargers and switching power supplies

Features:

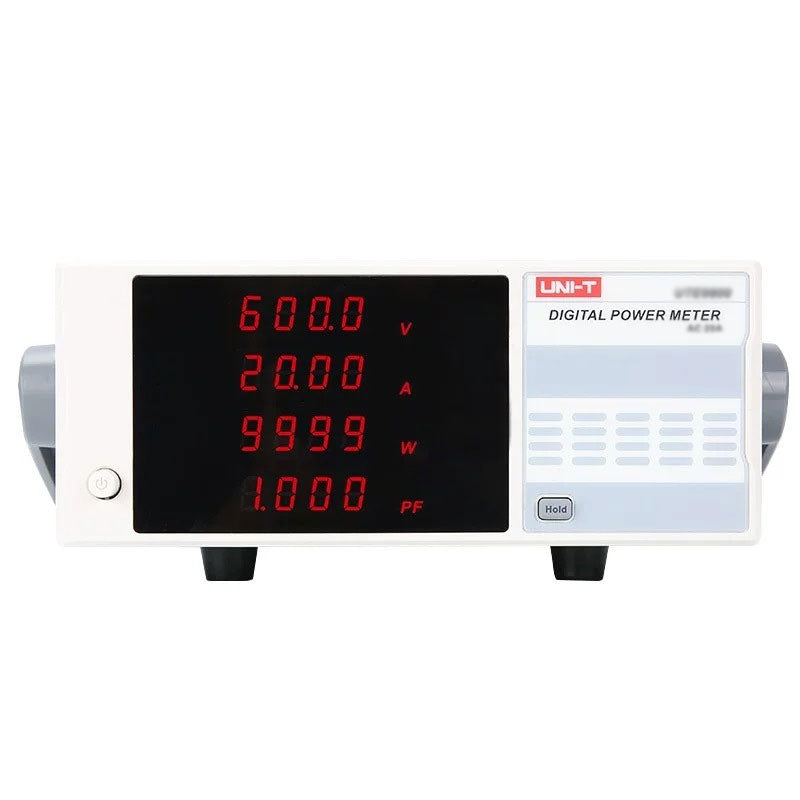

* 4-window LED digital display
* UTE9800 measures four parameters: V, A, W, PF; UTE9901 measures five parameters: V, A, W, PF/Hz

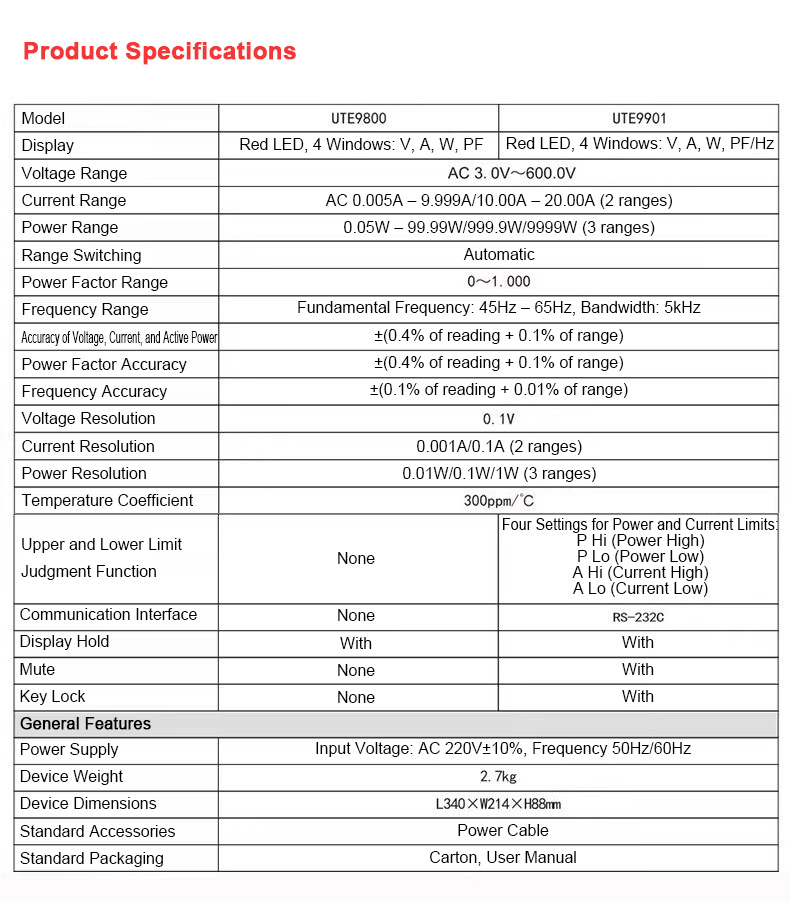

* True RMS Measurement Range: Voltage: 3.0V–600.0V; Current: 0.005A–20.00A; Power: 0.05W–9999W; Power Factor; Frequency: 45Hz–65Hz, Bandwidth 5kHz
* Automatic voltage and current range switching to improve measurement accuracy

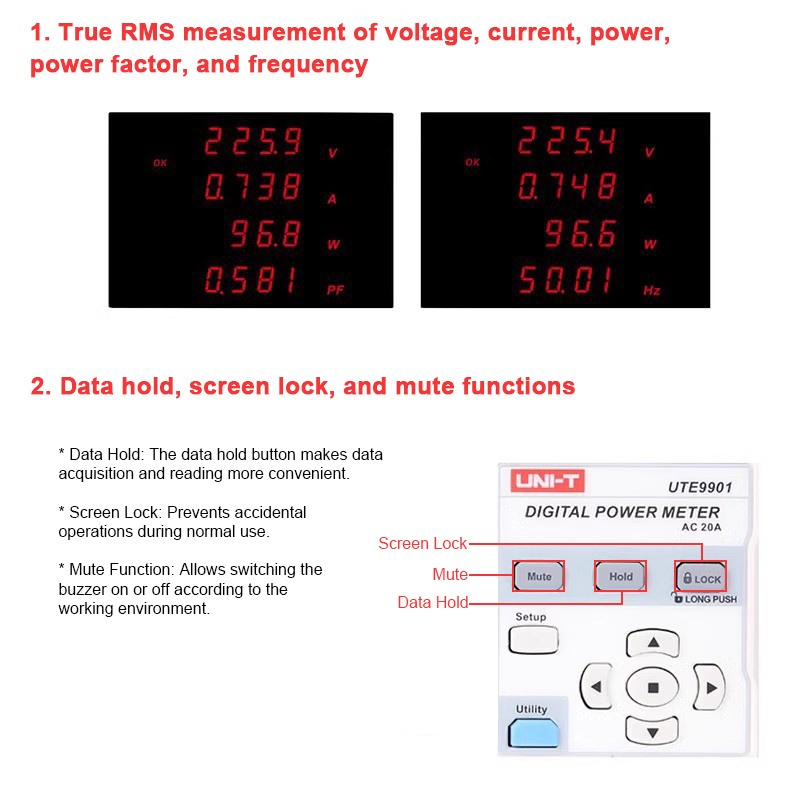

* Supports Data Hold function for easier reading
* Mute and Key Lock functions available (UTE9901 only)

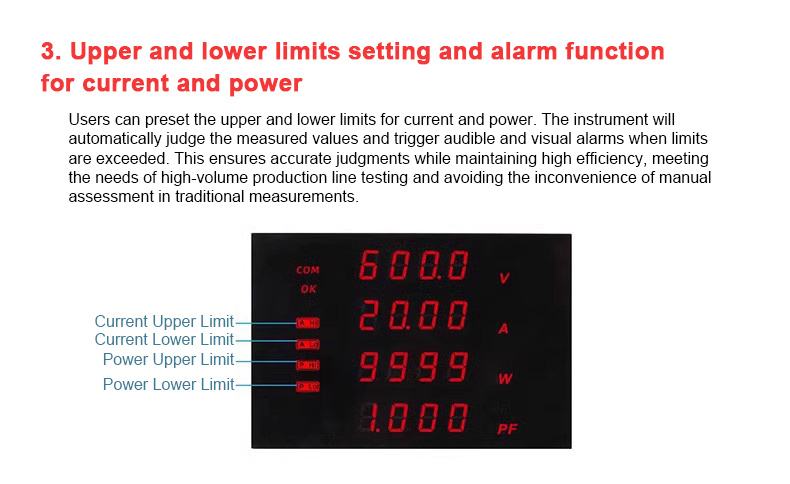

* Upper and lower limit setting and alarm function for current and power (UTE9901 only)

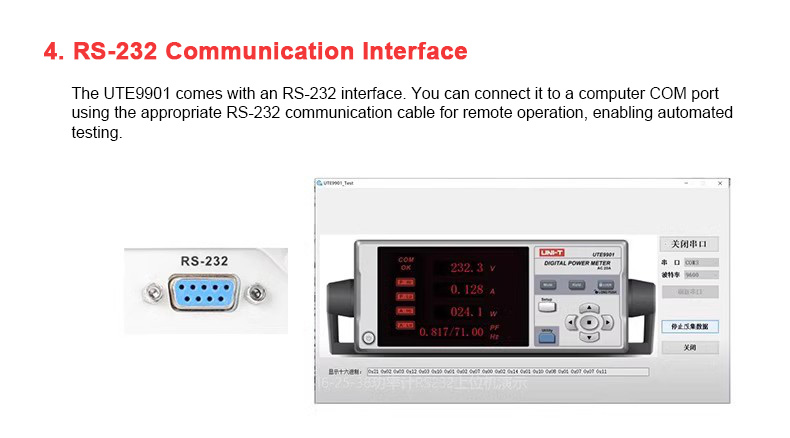

* Standard RS-232 data interface (UTE9901 only)
* Suitable for industrial production lines, half 2U rack standard

Packing List:
* 1 × Digital Power Meter
* 1 × Power Cable
* 1 × User Manual

Packaging Details:
* Weight: 3.2kg
