USB 2.0 Protocol Analyzer USB Sniffer Bus Analyzer Logic Analyzer Main Unit with USB 3.0 Monitoring Port
Precio habitual
$110.80
Precio habitual
Precio de oferta
$110.80
Precio unitario
por
Impuesto incluido.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Availability:
2000 en stock
SKU:
105915
Precio habitual
$110.80
Precio habitual
Precio de oferta
$110.80
Available Options:
Option 1: USB Analyzer Main Unit With USB 3.0 Monitoring Port
* One USB analyzer main unit
* USB 3.0 monitoring port
* USB 2.0 bus protocol analysis
Option 2: USB Analyzer Main Unit Only (No Cable Harness)
* One USB analyzer main unit
* Cable harness not included
Option 3: USB Analyzer Main Unit With Cable Harness
* One USB analyzer main unit
* Cable harness included
Description:

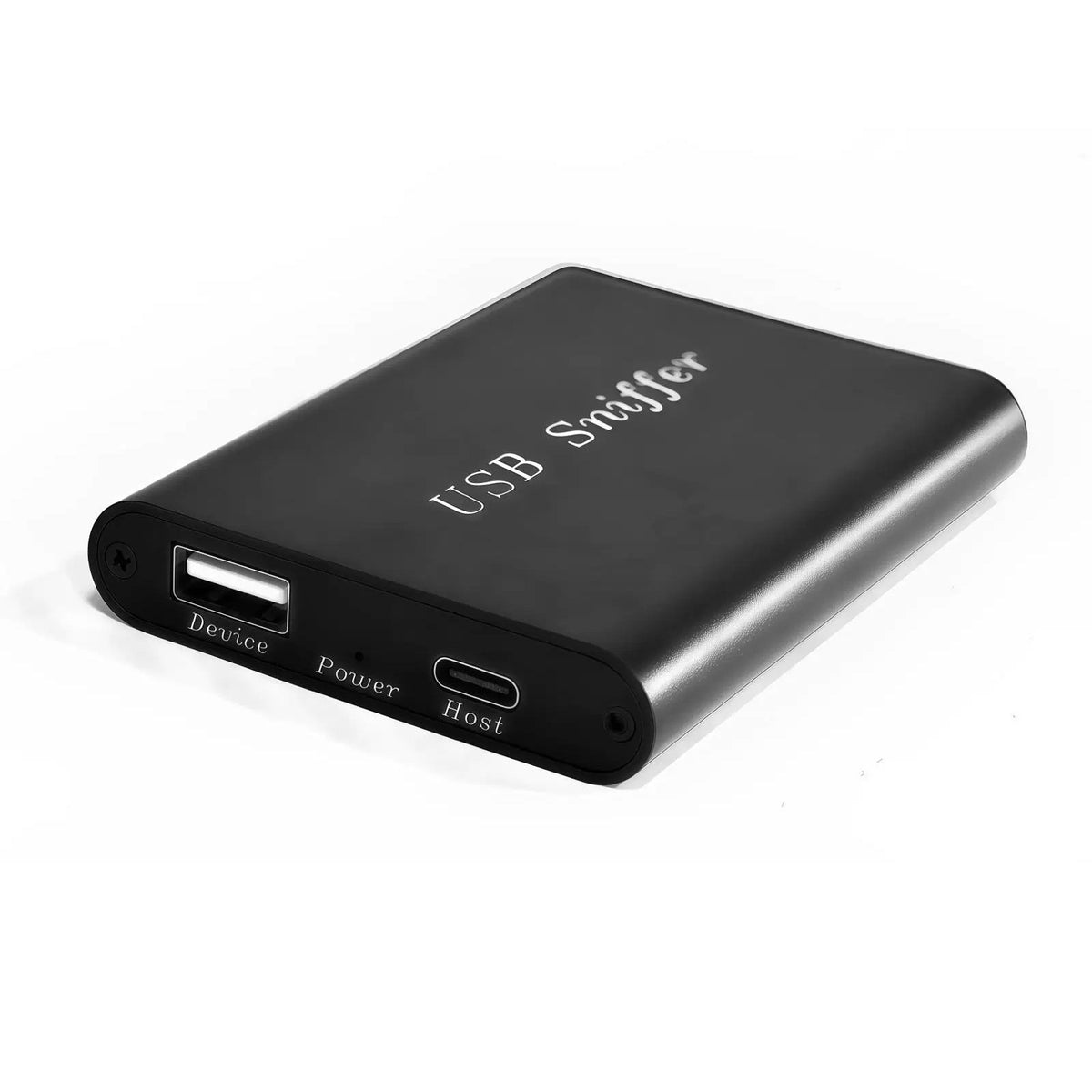

The USB Sniffer is a USB packet monitoring and analysis device that works with PC software to monitor, record, and analyze USB data traffic.

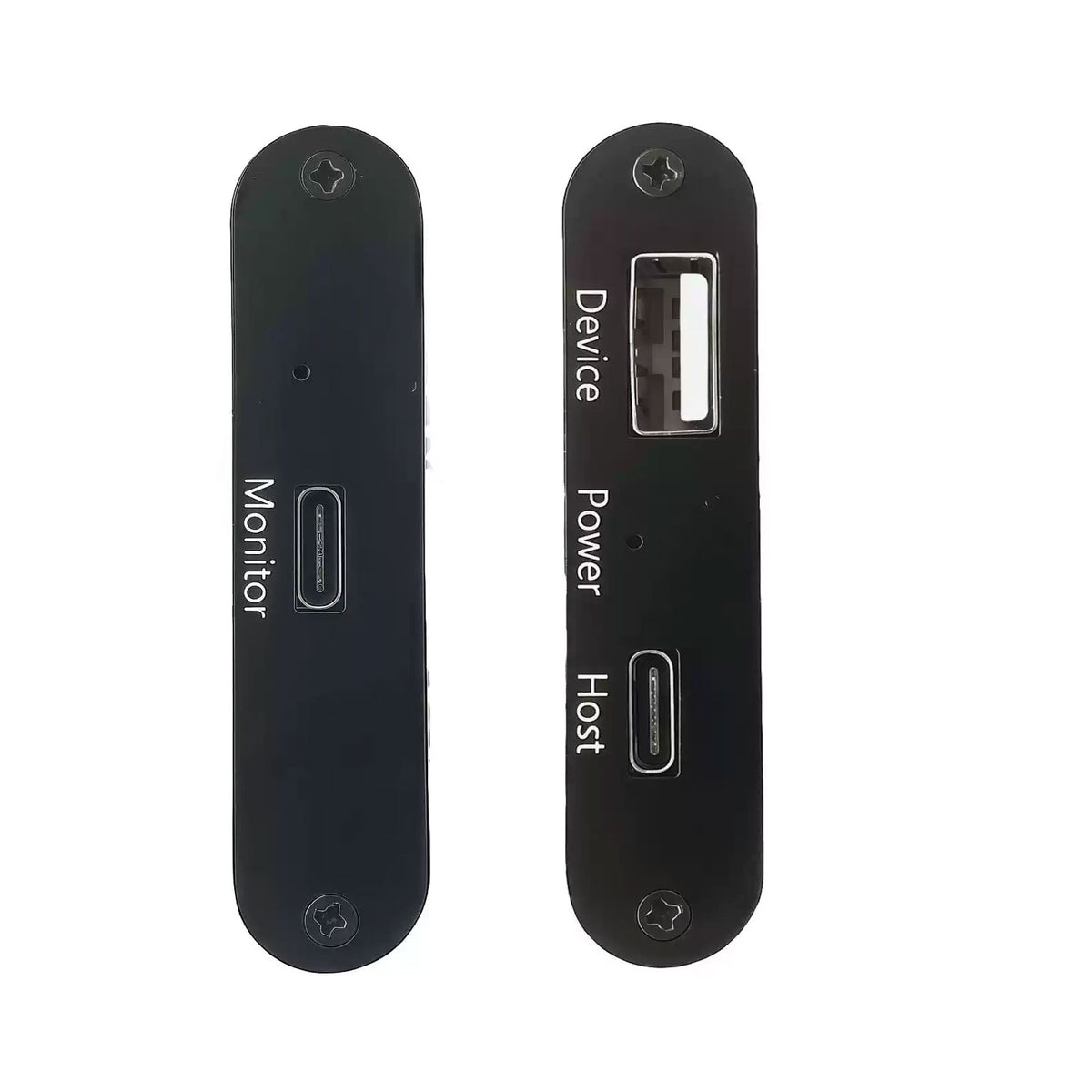

The device features three USB interfaces: Monitor, Device, and Host.
* Monitor (USB Type-C): Connects to the user's computer and works with the PC software to monitor and analyze USB data traffic.
* Device (USB Type-A): Connects to the peripheral device under test, such as a development board, data logger, or other USB device.
* Host (USB Type-C): Connects to the host computer of the USB system under test, typically a PC.
The accompanying PC software supports two monitoring modes: Wireshark-compatible monitoring and USB Packet View-compatible monitoring. This flexibility makes USB traffic inspection and analysis more convenient for different development and debugging workflows.
Features:
* USB 2.0 Protocol Analyzer
* Cost-Effective Solution: Affordable USB 2.0 protocol analysis for development and debugging.
* Aluminum Alloy Enclosure: Durable housing for everyday use.
* USB Packet Viewer Compatibility: Supports USB Packet Viewer software.
* Multiple USB Speeds: Supports High-Speed, Full-Speed, and Low-Speed USB devices.
* FPGA-Based Design: Built on an FPGA architecture for USB protocol analysis.
Common Applications:
Scenario 1: Microcontroller USB Data Analysis
* Monitor and analyze USB communication between a PC and a microcontroller to troubleshoot common USB development and debugging issues, including:
1. USB enumeration failures, where the microcontroller-based USB device cannot be recognized properly.
2. Unexpected disconnections of the microcontroller-based USB device.
3. USB data transmission errors or failures, including cases where the device cannot send data.
4. WinUSB development and debugging issues.
Scenario 2: Mobile Phone USB Data Analysis
* Analyze USB communication between devices (for Android or iPhone) and PC applications to help troubleshoot data exchange issues and accelerate the development of PC-to-mobile communication applications.
Scenario 3: USB Flash Drive Data Analysis
* Analyze USB communication between USB 2.0 flash drives and various embedded devices to identify and troubleshoot issues such as:
1. USB flash drives not being recognized by embedded devices.
2. Firmware or software upgrade failures when using a USB flash drive.
Software Support:
* Driver-Free on Windows
* Wireshark Support
* USB Packet Viewer Support
Software Usage:
* Application 1: Wireshark-Based Protocol Analysis.
* Application 2: USB Packet Viewer-Based Protocol Analysis.
Package Includes:
* 1 x USB Analyzer Main Unit
* 1 x Cable Harness (Included Only If Selected)
Packaging Details:
* Package weight: 0.5kg
