uTD24V5A uTD24V15A nTD24V10A nTD60V15A nTD80V15A KD100 Power Monitor Bidirectional Current Voltage Meter Low Power Analyzer Battery Tester
$214.41 - $739.11
Impuesto incluido.
Los gastos de envío se calculan en la pantalla de pago.
Precio habitual
$214.41
Precio habitual
Precio de oferta
$214.41
Precio unitario
por
No se pudo cargar la disponibilidad de retiro
Availability:
2000 en stock
SKU:
105943
Tags:
Collections:
Precio habitual
$214.41
Precio habitual
Precio de oferta
$214.41

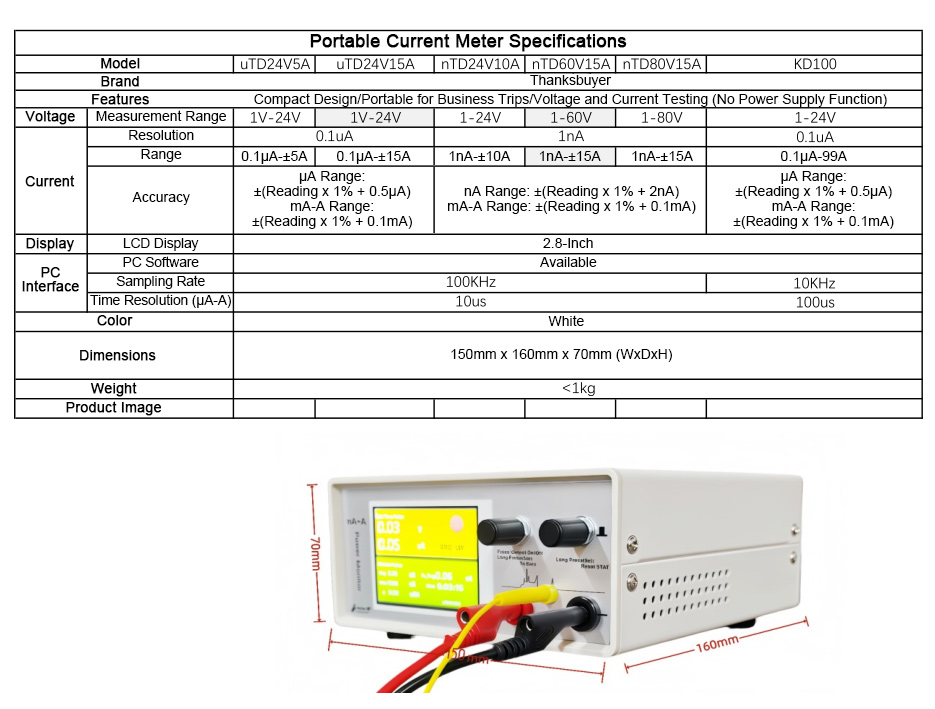

Available Models:
* Option 1: uTD24V5A — 0.1μA to ±5A/24V/100K
* Option 2: uTD24V15A — 0.1μA to ±15A/24V/100K
* Option 3: nTD24V10A — 1nA to ±10A/24V/100K
* Option 4: nTD60V15A — 1nA to ±15A/60V/100K
* Option 5: nTD80V15A — 1nA to ±15A / 80V/100K
* Option 6: KD100 — 0.1μA to 99A/24V/10K
Features:

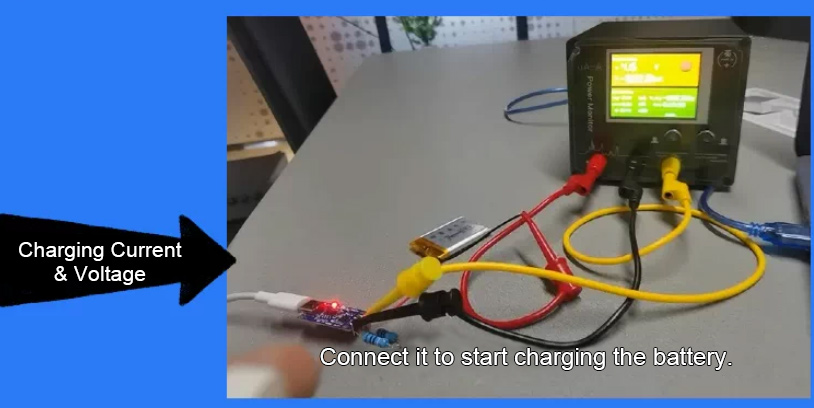

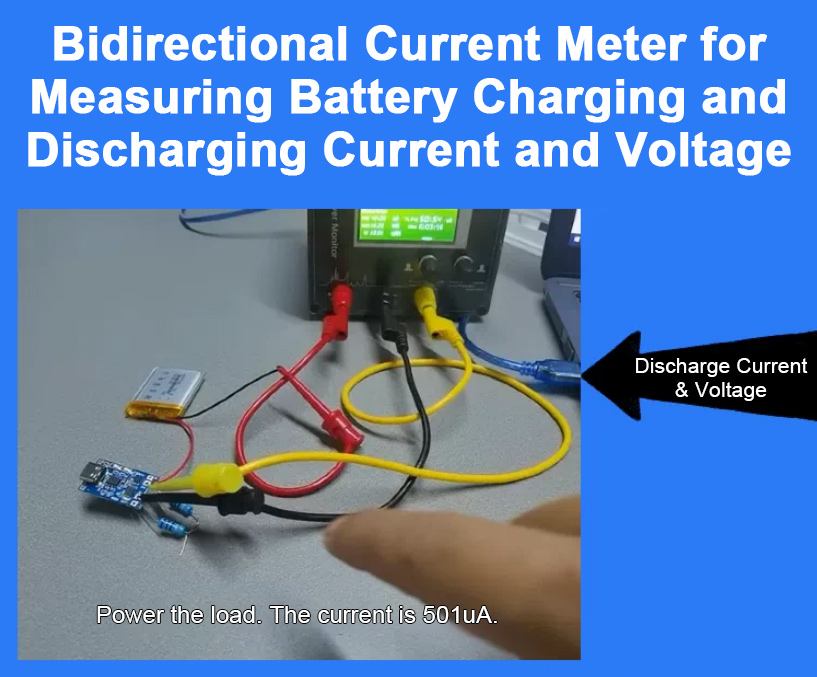

Bidirectional Current Meter
* Current Waveform Analysis
* Low-Power Tester
* Voltage Waveform Analysis
* Automatic ± Current Switching
* Simultaneous Voltage and Current Measurement (When measuring nanoamp-level current, voltage measurement cannot be performed simultaneously)

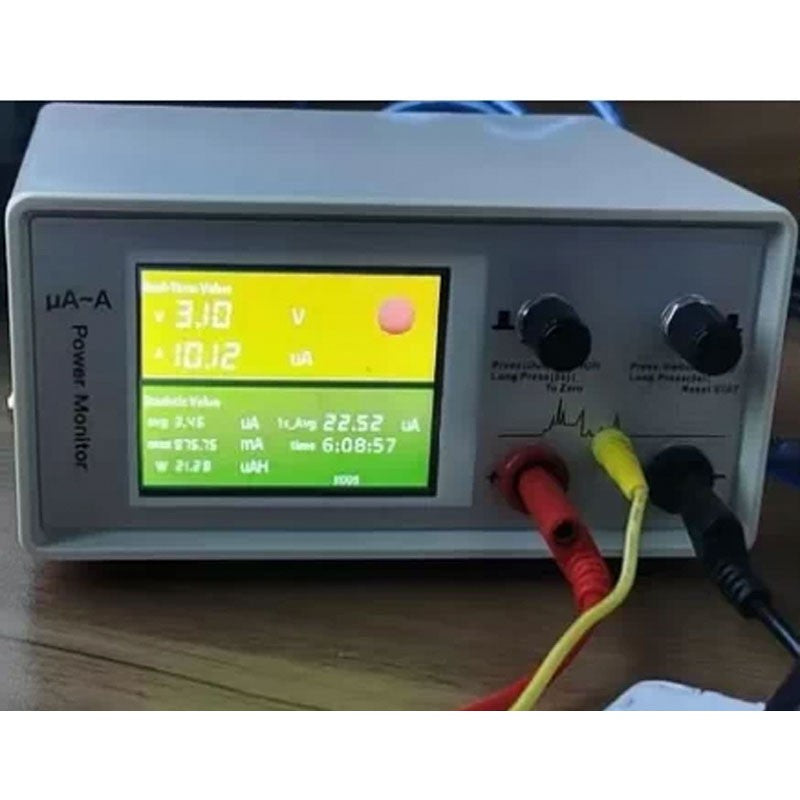

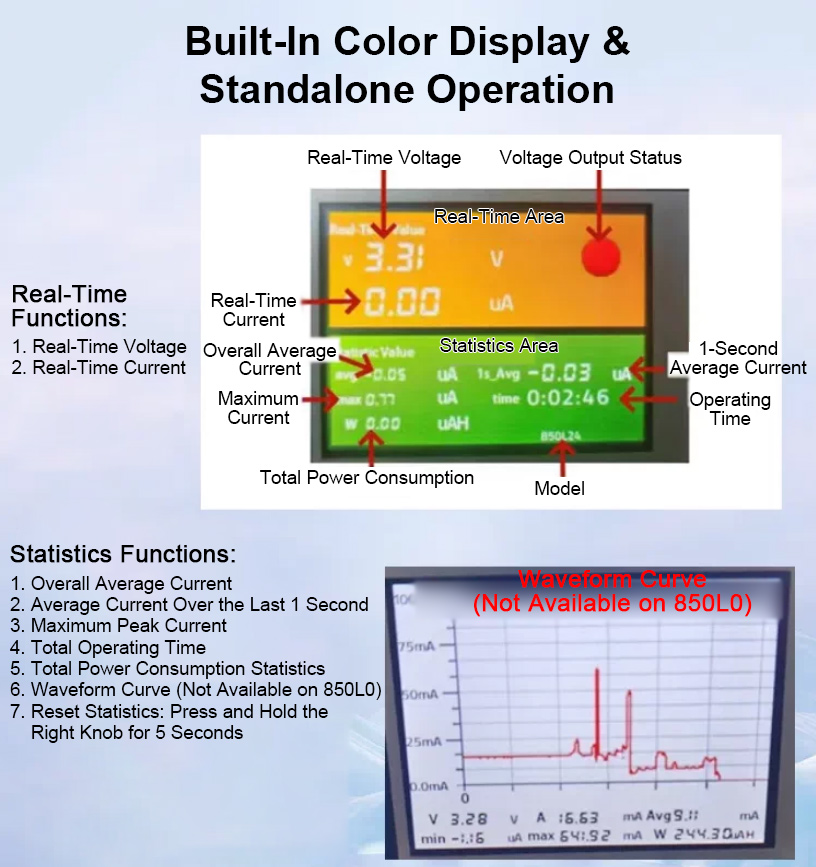

Built-In Color Display & Standalone Operation
1. Real-Time Functions:
* Real-Time Voltage
* Real-Time Current
2. Statistics Functions:
* Overall Average Current
* Average Current Over the Last 1 Second
* Maximum Peak Current
* Total Operating Time
* Total Power Consumption Statistics
* Waveform Curve (Not Available on 850L0)
* Reset Statistics: Press and Hold the Right Knob for 5 Seconds
Compact and Portable Design
* Ideal for Travel and On-the-Go Testing
Packing List:
* 1 x Power Analyzer
Packaging Details:
* Package weight: 1.2kg
Important Notes:
* This device does not have a power supply function and does not output voltage.
* When measuring nanoamp-level (nA) current, voltage measurement cannot be performed simultaneously.
* Batteries are not included.
