V5i-D Dual Opamp Operational Amplifier to Upgrade Xduoo XD-05 Headphone Amp PLUS ASUS Tiger AE-9 Sound Card
No se pudo cargar la disponibilidad de retiro
V5i-D Dual Opamp Operational Amplifier to Upgrade Xduoo XD-05 Headphone Amp PLUS ASUS Tiger AE-9 Sound Card
Description:

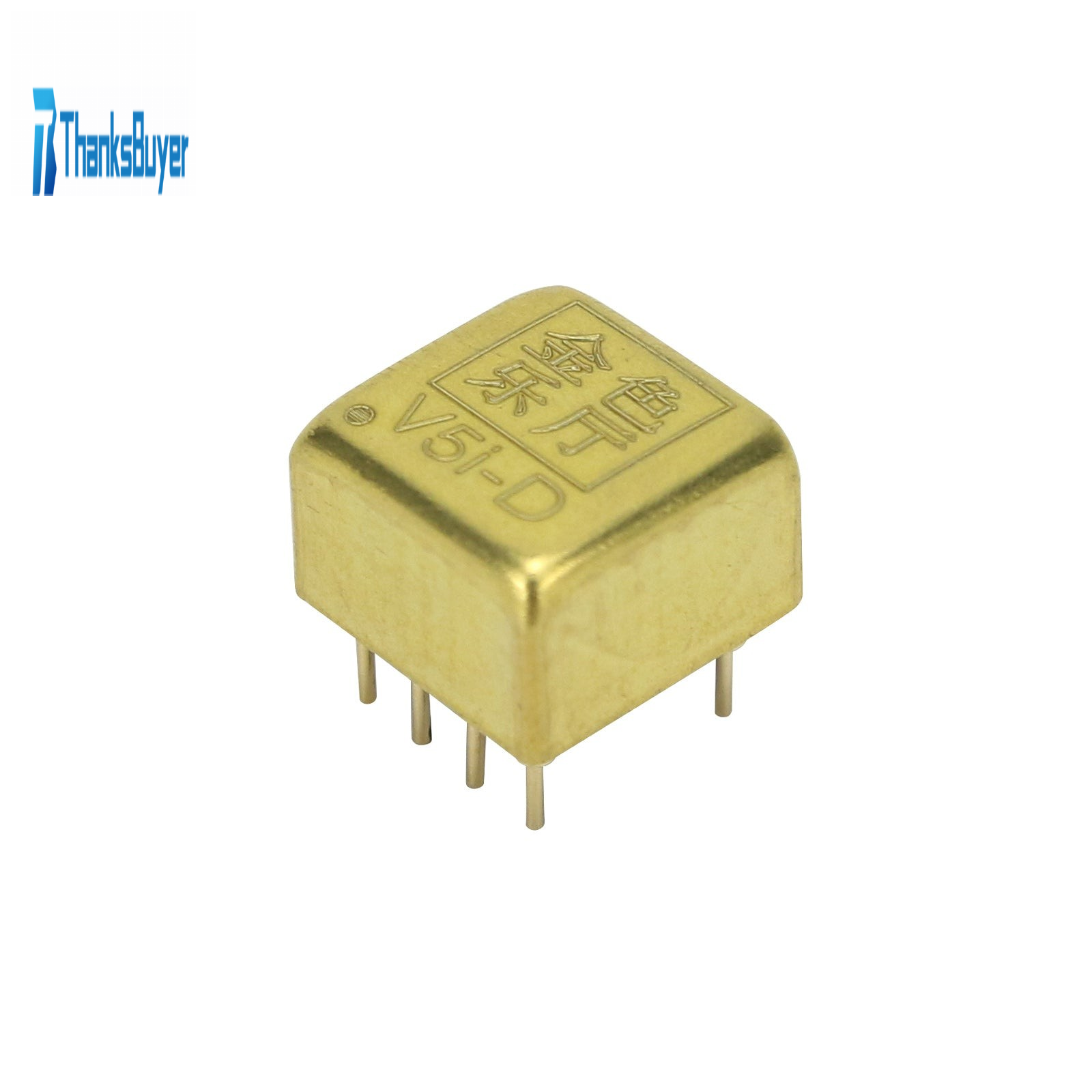

V5i-D is an op amp dedicated for audio. It is a flagship dual op amp, which is suitable for audiophiles to improve the sound quality in one step. It can upgrade AD827SQ, AMP9922AT, MUSES02, MUSES01, OPA2604AP, LME49720HA, etc.
The sound quality of the V5i-D is mellow and warm, the transition of the three-band connection is smooth and natural, and the restoring force is outstanding.
Specifications:
- Amplifier type: Audio-Specific
- Number of amplifier channels: Dual op amp
- Conversion rate: 10V/μs
- Bandwidth: 16MHz
- Current - input bias: 90nA
- Voltage-input offset: 482µV
- Current - power: 8mA
- Current - output/channel: 56mA
- Rated voltage: ±2 to ±18V
- Working temperature: -40℃ to 85℃
- Installation type: in-line

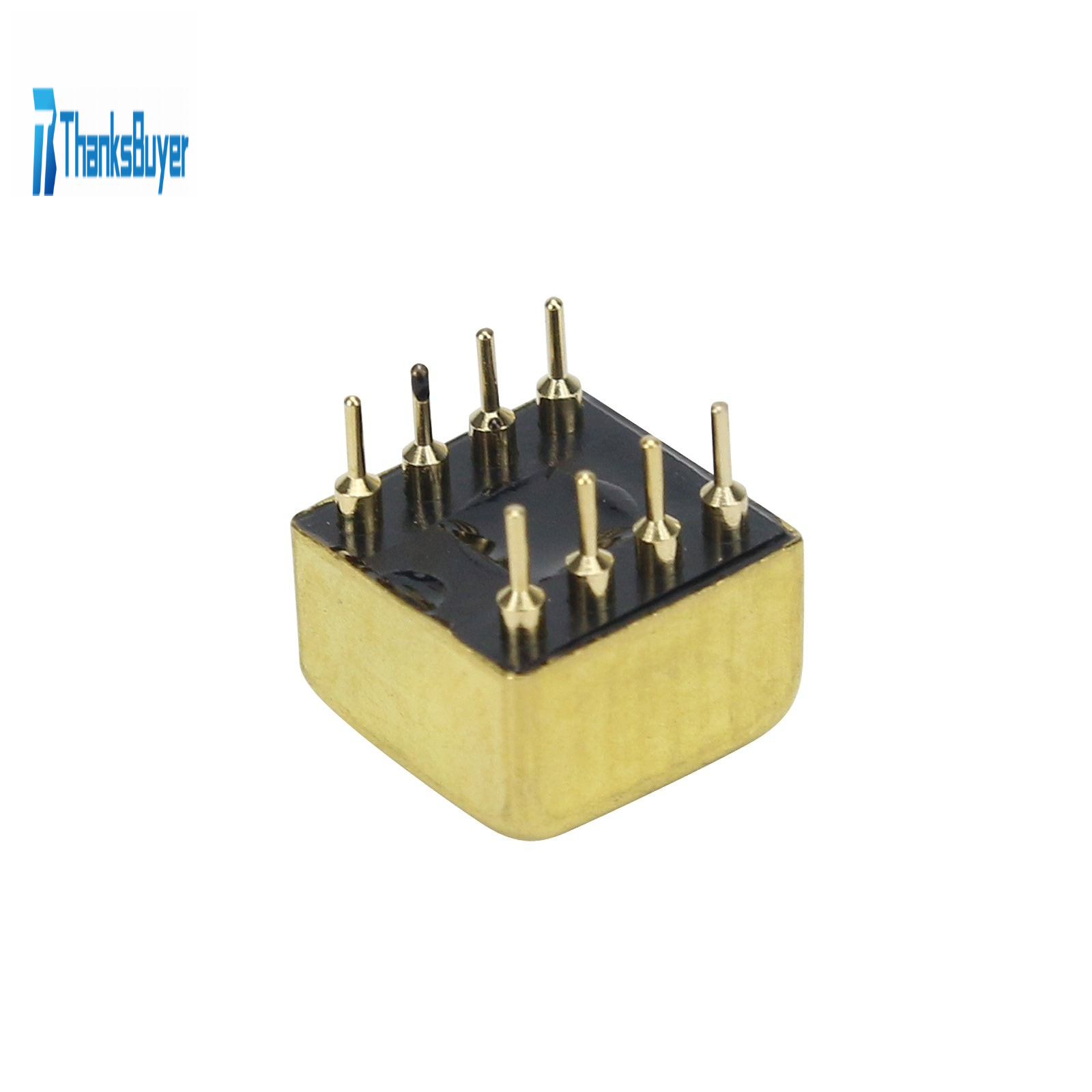

- Package: Dual in-line module (for replaceable standard in-line DIP8 package)
Package Included:
- 1 x Op Amp
