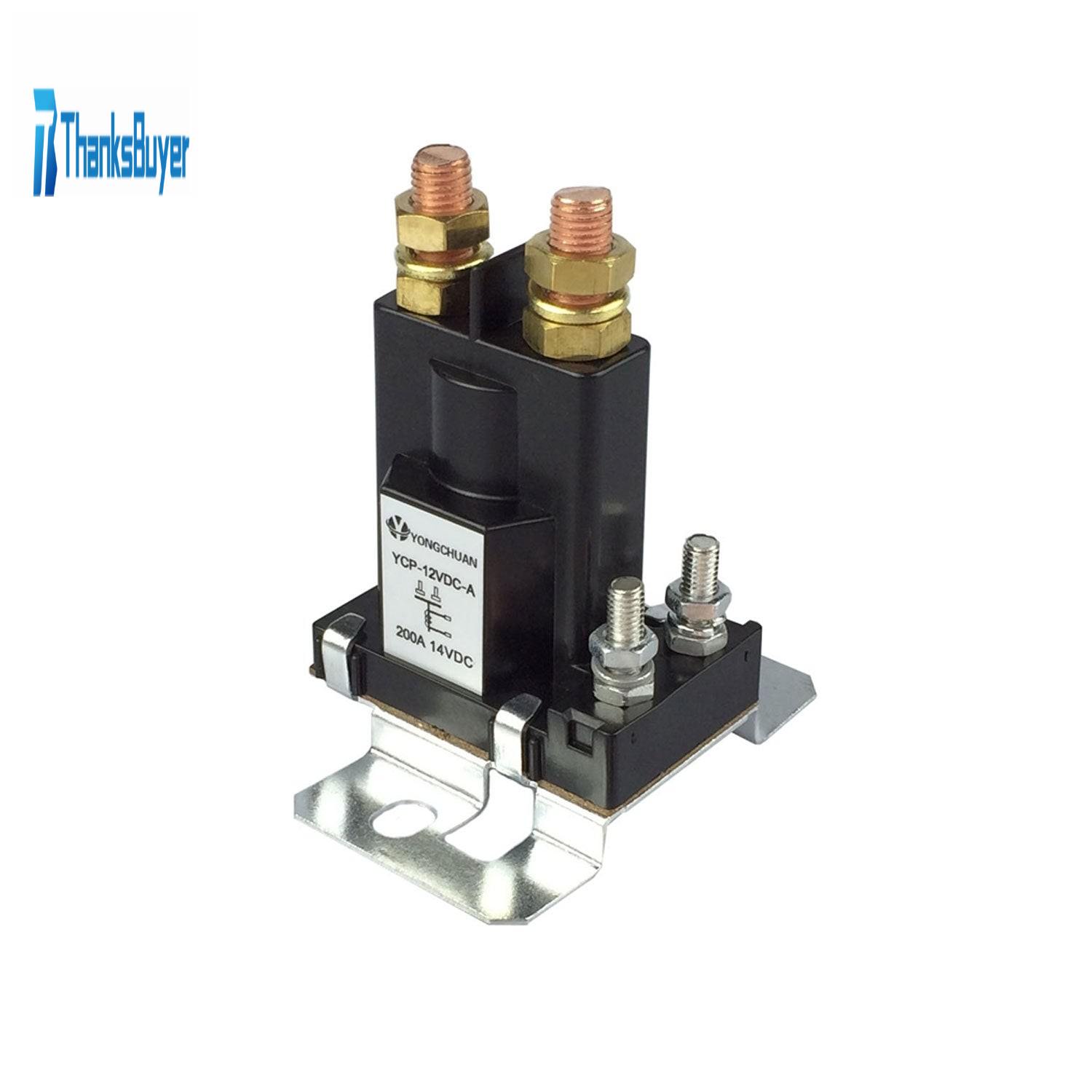

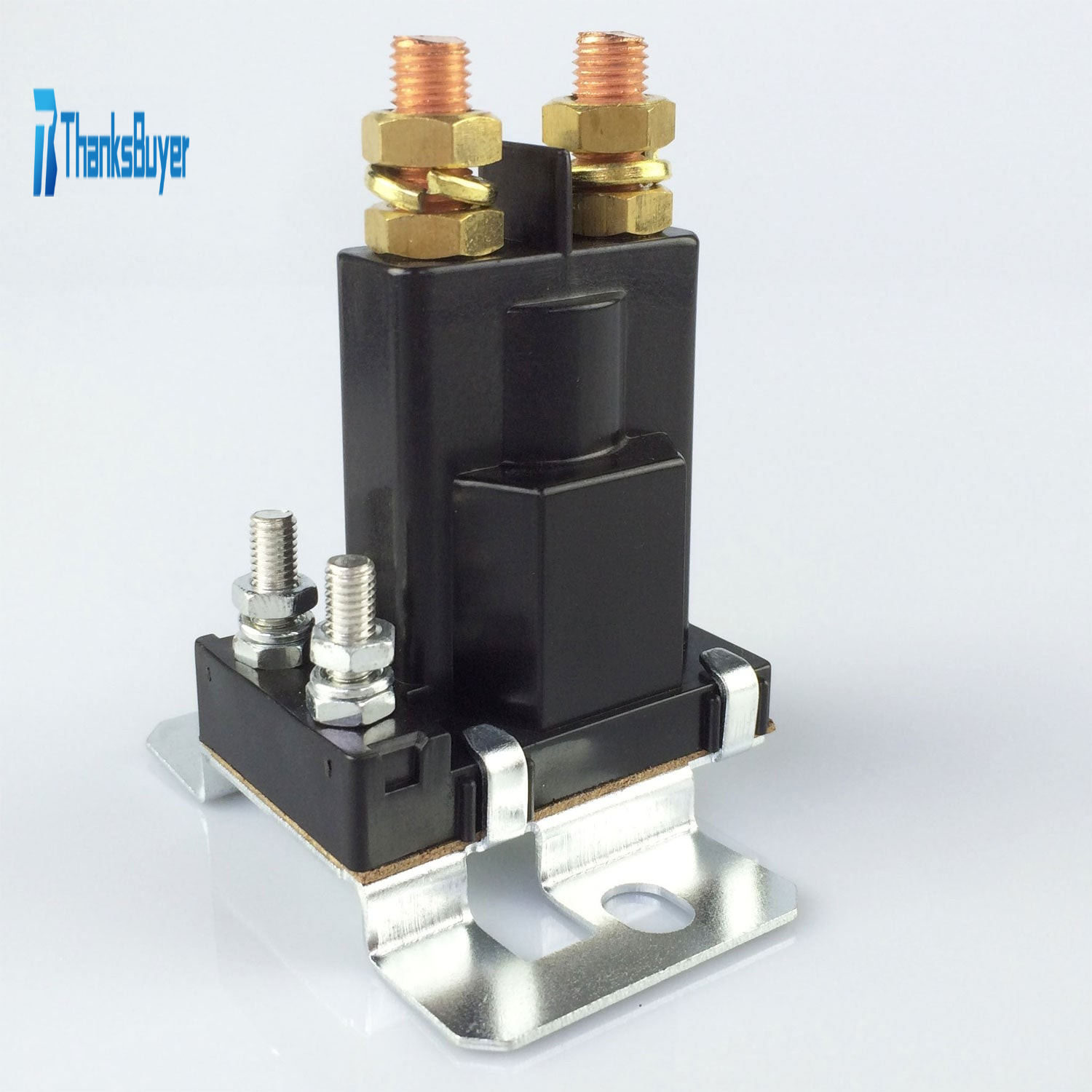

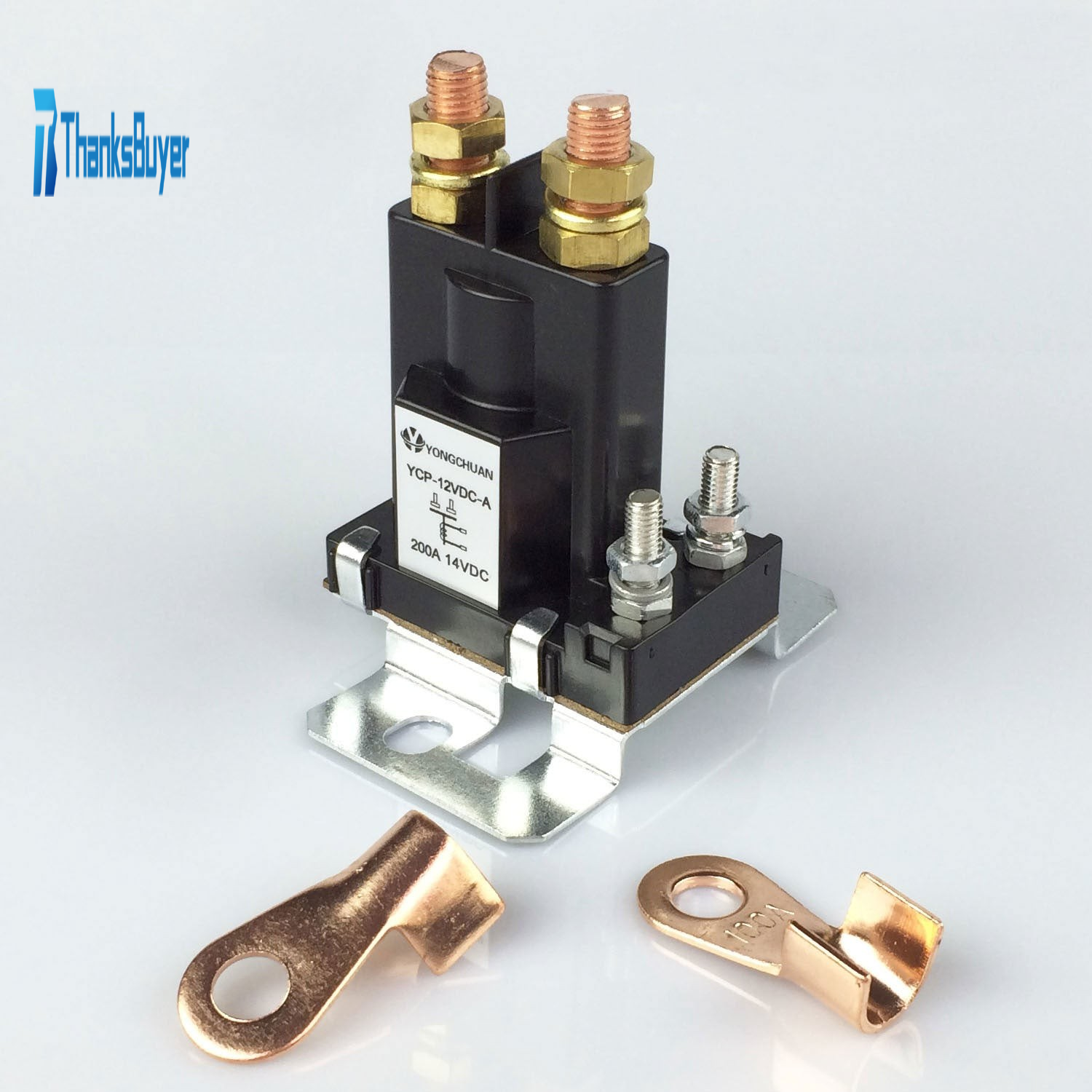

Waterproof 24V 200A High Power and High Current Relay DC Contactor with Switch Copper Terminal
Features:
- Waterproof
- Big contactor load:200A
- Contactor: a group of bridge normally open, double breakpoints
Contactor parameters:
- Contactor form: 1A (SPNO)
- Contactor material: Silver Alloy
- Contactor load:
Load Property |
Continues current |
Surge Current (A) |
Electric lifespan |
Contactor material |
Conventional resistive load |
200A 14VDC |
400 |
50000 |
Silver Alloy |
| Motor Load |
100A 48VDC |
400 |
250000 |
Silver Alloy |
Coil parameters
- Coil Voltage : Rated 12V (max 13.2) /Rated 24V (max 26.4), Rated 48V (max 52.8)
- Coil Resistance (ohm): 35 @12V/95@24V/370@48V
- Coil power: 4W a@ 12V/6W @ 24V and 48V
Specification:
- Dielectric strength:500V
- weight:170.5g
- size: 7.5*5.4*8.26mm
