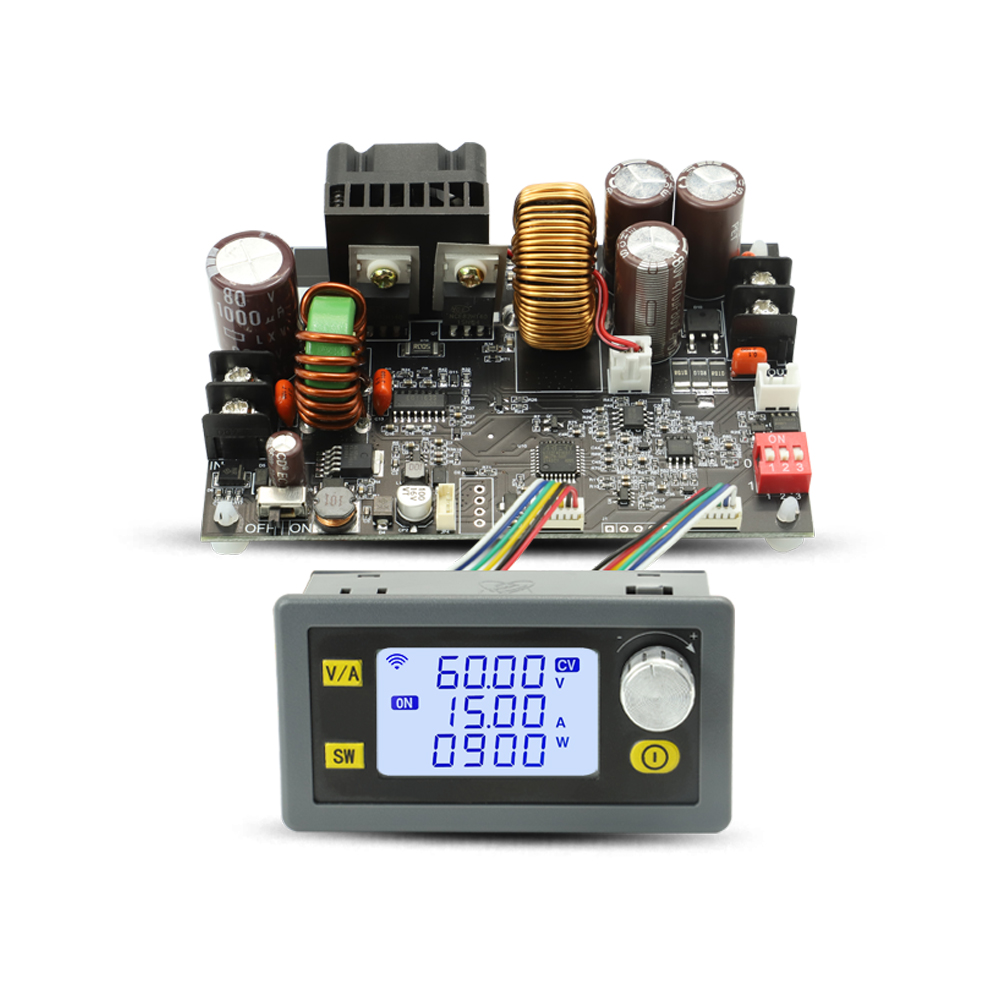

XY6015L Kit CNC Adjustable DC Stabilized Voltage Power Supply Constant Voltage and Constant Current 15A/900W

XY6015L Kit CNC Adjustable DC Stabilized Voltage Power Supply Constant Voltage and Constant Current 15A/900W

Parameter:
- Model: XY6015L
- Input voltage: 6.0~70V
- Output voltage: 0.0~60V
- Output current: 0~15.00A
- Typical value of output ripple: 100mv VPP
- Output power: 0~900W
- Maximum output voltage: (input voltage+1.1) - 2
- Input voltage measurement resolution: 0.01V
- Output voltage setting measurement resolution: 0.01V
- Current setting measurement resolution: 0.01A
- Input voltage measurement accuracy: ± 1%+5 characters
- Output voltage setting and measurement accuracy: ± 0.4%+1 word
- Output current setting and measurement accuracy: ± 0.5%+3 words
- Cooling fan on: current>2A power>50W temperature>50 ℃
- Turn off the cooling fan after it is turned on: current<1.5A, power<45W, temperature<45 ℃

Protection mechanism:
- External temperature protection: 0 - 110 ℃, default off
- Input overvoltage protection: 71V default
- Input undervoltage protection: 4.8-71V adjustable, default 4.8V
- Output overvoltage protection: 0-65V, Default: 65V
- Output overcurrent protection: 0-16A, default 16A
- Output over power protection: 0-950W, Default: 950W
- Over temperature protection: 60 -- 110 ℃, 95 ℃ by default
- Timeout protection: 0 - 100H adjustable, default off
- Overcapacity protection: 0~9999AH adjustable, default off
- Super energy protection: 0~9999WH adjustable, default off

Package Included:
- 1 x XY6015L Kit
