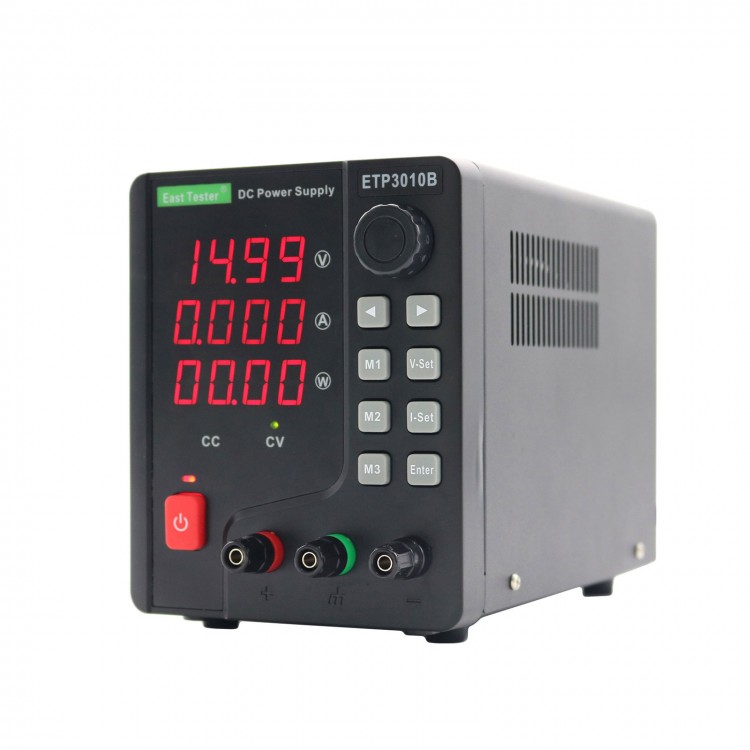

ETP3010B 0-30V 300W Single Channel DC Regulated Power Supply 4-digit LED Digital Display for CC/CV Automatic Test

ETP3010B 0-30V 300W Single Channel DC Regulated Power Supply 4-digit LED Digital Display for CC/CV Automatic Test

Description:
- A single channel DC regulated power supply, 4 digit LED digital display; Automatic switching between voltage (CV) and current (CC) modes; The output voltage and current limit can be adjusted continuously. Using advanced switching power control technology and components, high efficiency, light weight, energy saving and environmental protection.

Characteristics:
- The maximum power of this series is 300W, the voltage is 60V, the current is 10A
- The highest resolution is 10mV, 1mA
- LED digital display, 4-digit digital voltage, current and power display
- CV and CC modes are automatically switched, and the status indicator prompts
- Over voltage, over current, over power, over temperature protection
- Intelligent temperature control fan, energy saving
- 3 groups of quick parameter storage and call functions
- Encoder adjustment, the specified number of accurate adjustable
- Communication interface: RS232

Specification:
- Model: ETP3010B
- Output voltage: 0 ~ 30V
- Output current: 0 ~ 10A
- Output power: 300W
- Stabilized state:
  Voltage stability: <= 0.1% +/-3mV
  Load stability: <= 0.1% +/-3mA
- Steady state:
  Current stability: <= 0.1% +/-3mV
  Load stability: <= 0.1% +/-3mA
- Display accuracy:
  Voltage: 0.5% +/- 3 words
  Current: 0.5% +/- 3 words
- Ripple noise: Vpp <= 1%
- Display resolution:
  Voltage: up to 10mV
  Current: up to 1mA
  Power: up to 10mW
- Display mode: 4 digital LED digital tube display, 0.56 inch
- Power input: AC220V +/- 10%/50Hz or AC110V +/- 10%/60Hz (please specify when purchasing)
- Product size: 190 x 115 x 150mm (L x W x H)
- Product weight: 1.3kg

Package Included:
- 1 x Host
- 1 x Power Cord
- 1 x 5A Output Line
- 1 x User Manual
