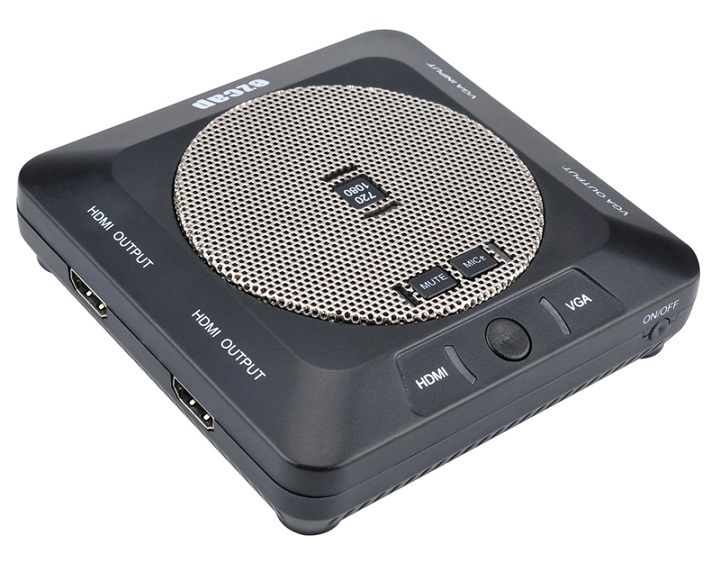

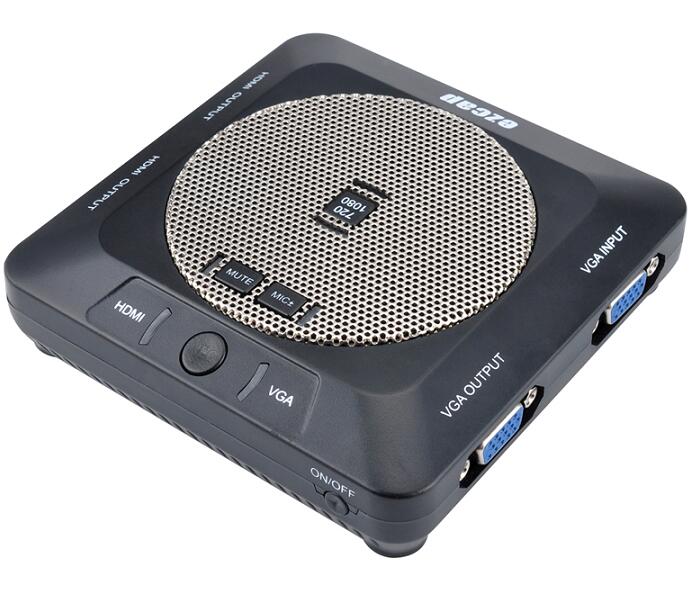

EZCAP Lessons Lecture Card HDMI VGA HD Educational Video Conference Recording Box with Microphone

EZCAP Lessons Lecture Card HDMI VGA HD Educational Video Conference Recording Box with Microphone

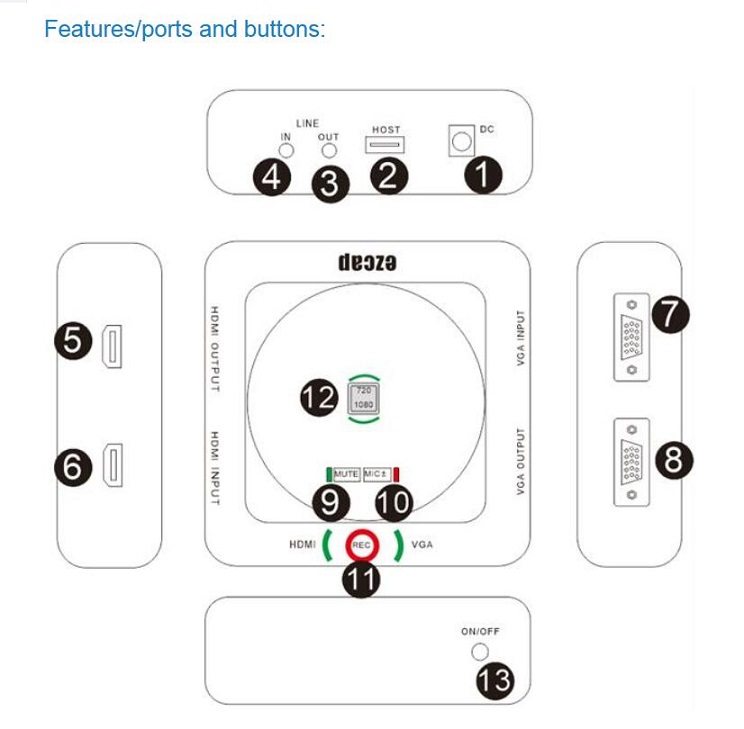

Features/ports and buttons:

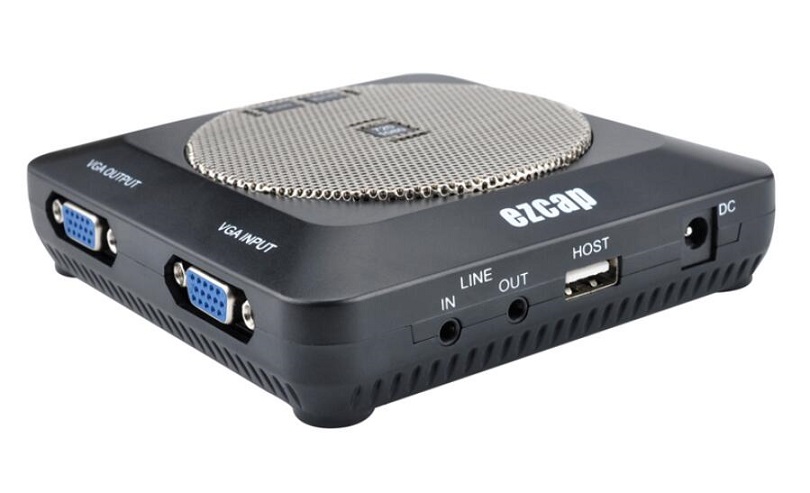

1. DC—DC 5V power supply.
2. HOST—For plugging USB flash drive or USB HDD to save recorded files.
3. LINE IN—Connect line audio so mixed with video.
4. LINE OUT—By pass from line in (not output from HDMI)
5. HDMI OUTPUT—Pass through from HDMI input or VGA input.
6. HDMI INPUT

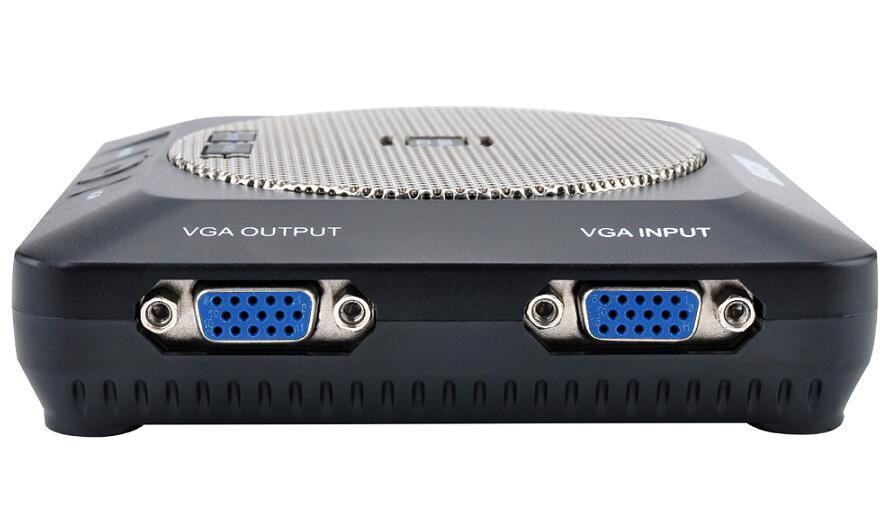

7. VGA INPUT
8. VGA OUTPUT—Loop through display video from VGA input only.
9. MUTE — Button for microphone on or mute.See below "Mute key, and microphone volume"
10. MIC+-— Button for switching microphone gain. See below "Mute key, and microphone value".
11. REC—Press to start recording,red REC LED will turn on,press again to stop recording,LED will flash few seconds,then turns off. HDMI LED on means record from HDMI input,VGA LED on means record from VGA input.If no video input,both HDMI and VGA LEDs will turn off,but still can record voice with black screen.
12.720/1080—When input video is 1920*1080,press this button to set the resolution of record video between 720 and 1080,720 LED on means record 720,1080 LED on means record 1080.Before you press this button to set recording video quality,1080 green LED keeps on when input 1080 resolution video or no video source input,and 720 green LED keeps on when input 720 or less than 720 resolution video.
13.ON/OFF—Short press to power on,and MUTE green LED will turn on.Long press 3 seconds again to power off,green LED will turn off.It's no effect during recording.

Product Description:
- With ezcap289 Lecture Card,just press one button to record digital lesson contents or meeting presentations.With integrated microphone,recording HD lecture combined with voice.It is plug & Play,standalone working no need PC.
- The integrated microphone includes noise canceling technology to effectively collect the teacher's voice,and reduce irrelevant background noises for clear,pleasant audio.With one switch button,easily set the gain of microhone for different size room.

Standards specification:
- Storage Media:USB Drive Stick,Portable Hard Disk;Max Capacity: 2T
  Note:The exFAT format is not supported.
- Record Format:Video: MP4,Audio:AAC Stereo
- Record Quality:Max: 18Mbps@1080P 30fps
- Record File:Max: 2GB/Per File,With RTC (Real Time Clock)
- Record Place:Max: 140MB/Minute,8.4GB/Hour
- Power Supply:DC 5V/2A

Resolution:
- Input / Pass-through:720 x 480 (60p),720 x 576 (50p),1280 x 720p (50p),1280 x 720p(60p),1920 x 1080 (50i),1920 x 1080 (60i),1920 x 1080 (24p),1920 x 1080 (25p),1920 x 1080 (30p),1920 x 1080 (50p),1920 x 1080 (60p)
- Acquisition:720 x 480 (60p),720 x 576 (50p),1280 x 720p (50p),1280 x 720p(60p),1920 x 1080 (50i),1920 x 1080 (60i),1920 x 1080 (24p), 1920 x 1080 (25p),1920 x 1080 (30p),1920 x 1080 (25p),1920 x 1080 (30p)
- Note: Upscaling is not supported.

Connections:
- Interface:USB 2.0 Host
- Video Input:HDMI,VGA
- Audio Input:HDMI,3.5mm Line In
- Video Output:Digital: HDMI (Pass through from HDMI and VGA),VGA (Pass through from VGA)
- Audio Output:Digital: HDMI (Pass through from HDMI and VGA),3.5mm Line Out

Hardware Extra:
- Codec:Hardware H.264 encoder
- User Interface:Record button,720p/1080p switch button,microphone gain set button,microphone mute button;LED indicator for working status;Power on/off button
- Dimensions:115x115x28.3mm(LxWxH)
- Weight:185g

Applications:
- Software:Arcsoft Showbiz
- Video Editing:Timeline/Storyboard edit,Split/Divide Scenes,Multi Trim Scenes
- Video Export:1.Upload to YouTube;2.Portable Device:iPod,iPhone,iPod Touch,Apple TV,PSP,PS3,Xbox;3.File:MPEG 1/2/4,WMV HD, Quicktime (MOV)
- Operating System:Windows 8 (32/64 bit),Windows 7 (32/64 bit),Windows Vista (32/64 bit)
- CPU:Intel Core 2 Duo 2.8GHz,AMD Athlon 64X2 Dual Core 3.0GHz
- Memory:4 GB RAM
- Graphics Card:VGA card with support for DirectX 10.0c or above

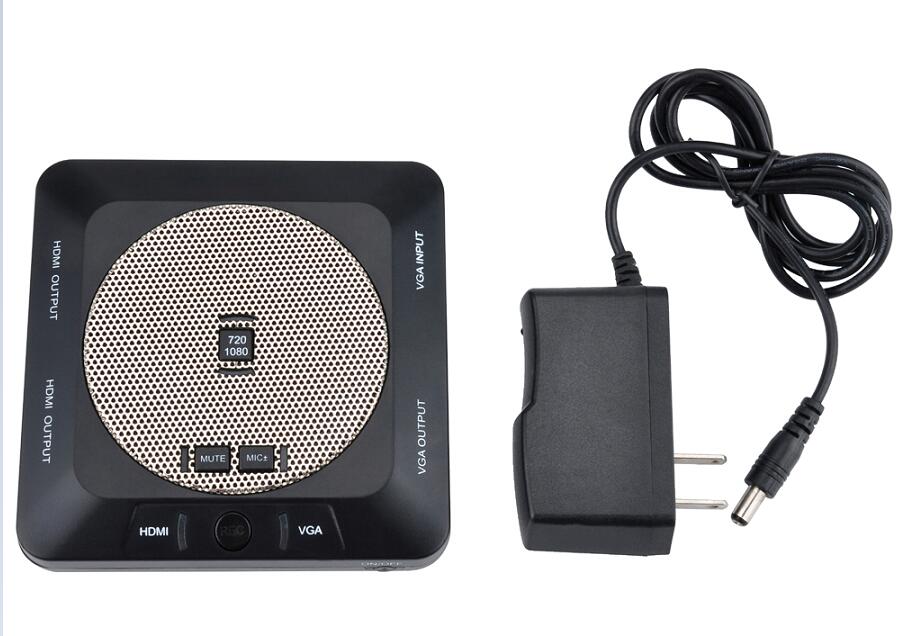

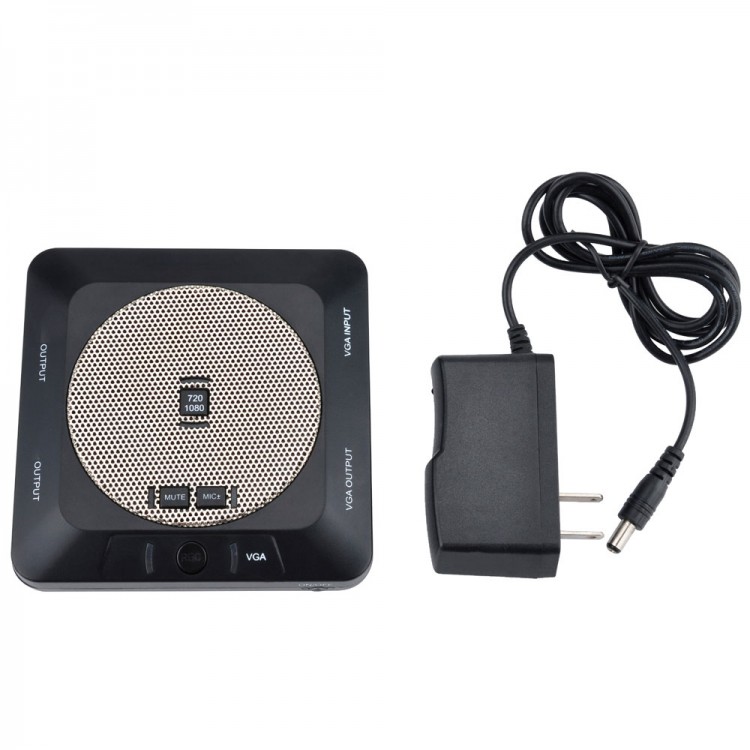

Package List:
- 1 x ezcap289 Lecture
- 1 x 5V DC adaptor
- 1 x Software CD
- 1 x User manual
