• F1510-T Wireless Plasma Cutting Controller CNC Remote Control + F1510-R Receiver

F1510-T Wireless Plasma Cutting Controller CNC Remote Control + F1510-R Receiver

Availability: In stock, usually dispatched in 1 business day

  • Price:$102.72
  • Price in reward points: 1027 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $100.67 $98.61 $95.53 $91.42 Contact US
Quantity:

F1510-T Wireless Plasma Cutting Controller CNC Remote Control + F1510-R Receiver

System Features:

- Up to 45 common graphic libraries
- Graphic scale, rotation and mirror image
-Graphic matrix, interlaced, repeated
- According to the thickness of steel plate, speed limit can be automatically set at the corner to effectively prevent over-burning
- Metric and imperial systems switching
- Graphic steel plate correction
- Customizable coordinate system
- Customizable IO
- System and parameter backup, and online upgrading
- All Chinese/Foreign-language (English, Japanese, Russian, French, other custom languages) operation menu. One button to switch between Chinese and foreign languages.
- Line selection and numerical selection
- Support edge cutting and offset cutting
- With power-off, break-point protection memory function
- Dynamic/static processing graphic display, graphic enlargement/reduction, dynamic tracking cutting point in zoomed state
- Support for special nesting software such as Wentai, TYPEIII and PM2000
- Encryption & decryption function: Different management rights and corresponding passwords can be set to maintain the management's rights and interests.

Wireless Remote Control Module Performance & Characteristics:

- 433MHz free ISM frequency channel, free license on trial
- Remote controlling 10mW, distance > 30m, at least not below 0.5m
- Hardware test error code, software optimizing algorithm, bi-direction communication, insure the communication stable and reliable
- Send module matches address with receive module, the address can be set manually, at most 128 supportable addresses
- Receiver module is set into 8421 port mode or P2P mode, at most 16 output ports

Interpretation of Jumper Switch:
1. Address segment
The first seven bits of jumper switch (No.1 -7) are address codes; the status of
this seven bits requires that sender and receiver must be same. If they are different,
receiver cannot reply.
Not: If open the sender, there is also a 8-bit jumper switch inside. Therefore in
the same time, 128 pairs of sender and receiver can simultaneously work at most.

2. Function select segment
The first bit of jumper switch is function select segment. When it is set to short
circuit, select 8421 code receive mode. When it isn't set to short circuit, select
independent IO port(P2P) receive mode.



Package Included:

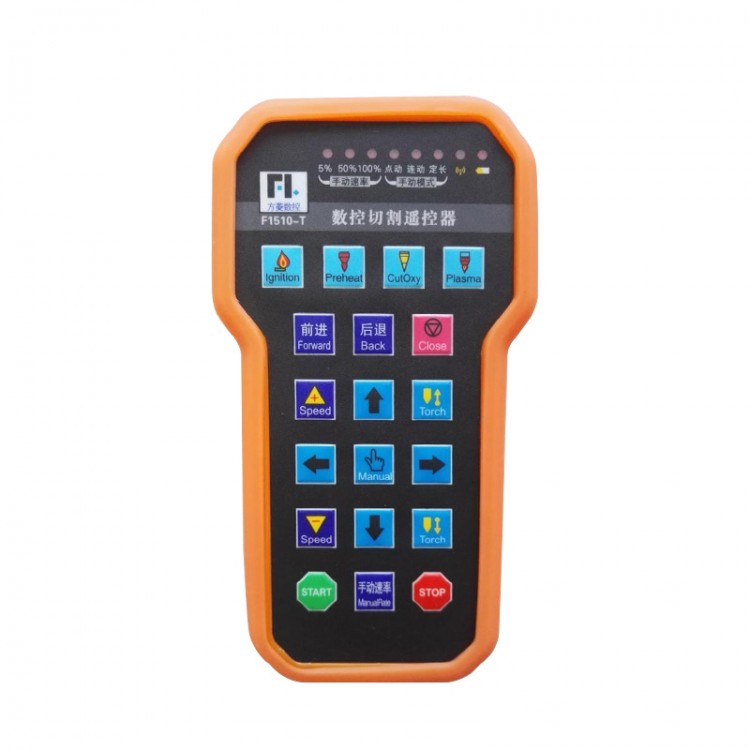

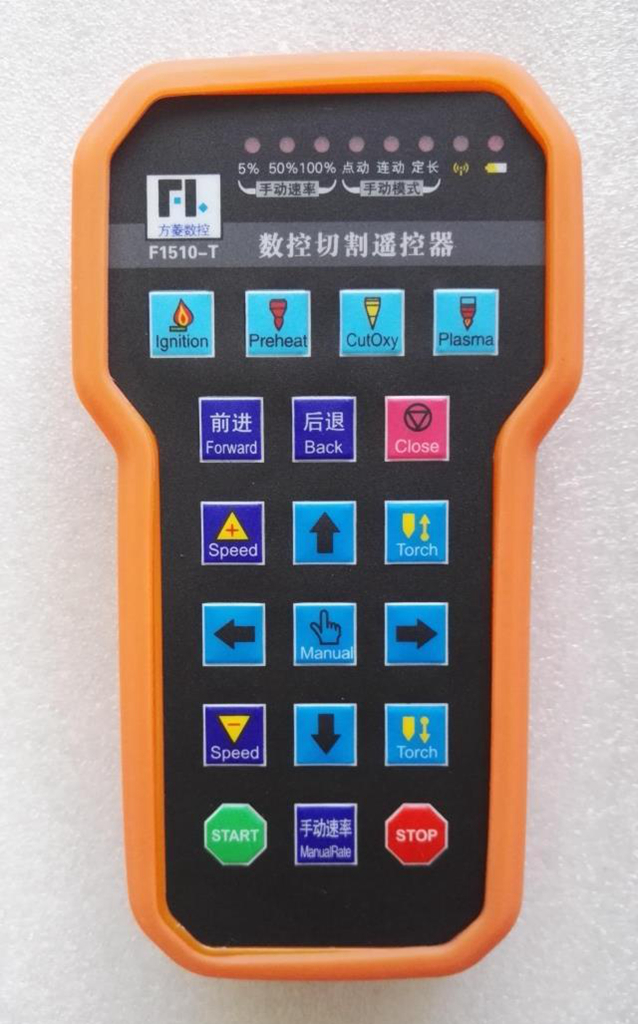

- 1 x F1510-T Plasma Cutting Controller

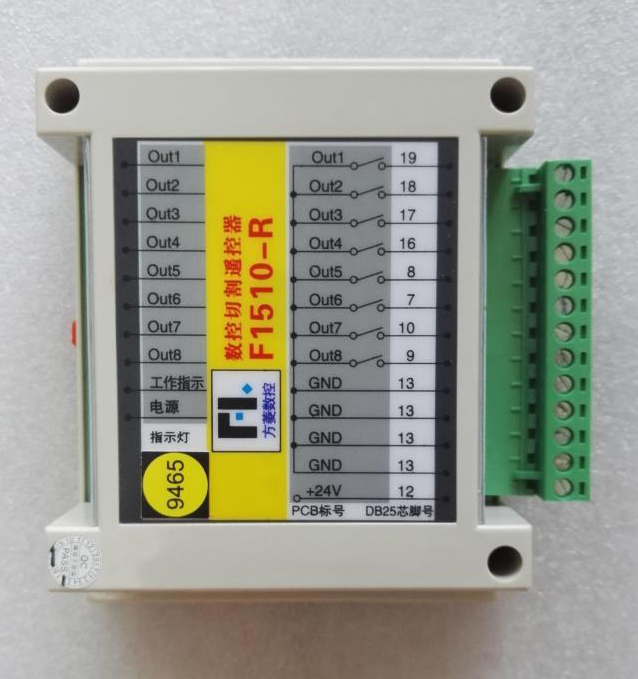

- 1 x F1510-R Receiver
