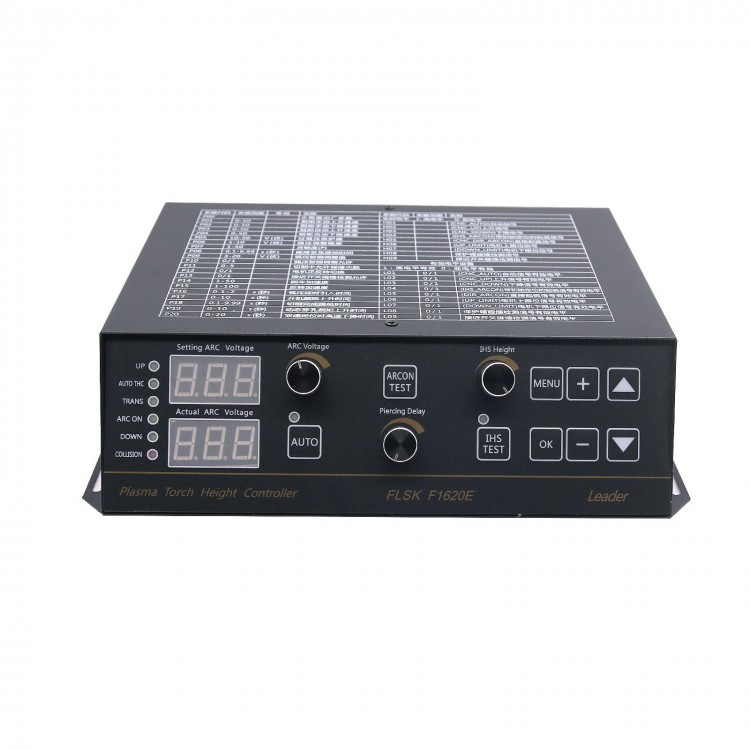

F1620E Automatic Plasma Torch Height Controller THC for Arc Voltage CNC Plasma Cutting Machine

F1620E Automatic Plasma Torch Height Controller THC for Arc Voltage CNC Plasma Cutting Machine

Description:
Based on the field us of plasma power supply and advantages of may arc voltage regulators, the F1620E Plasma Torch Height Controller is easy to operate and works stably. It features complete functions and affordable price. It is particularly suitable for torch height control of portable, benchtop, and gantry cutters.

Features:
- As arc voltage and signal indicators, its high-brightness digital tube and LED light displays clearly and works stably to against interference.
- Easy to operate with buttons and numeric knobs for parameter adjustment.
- 60° Front panel makes it perfect for portable CNC cutting machine.
- Built-in easy parameter settings allow flexible changes to operating parameters to accommodate a variety of complex operating conditions.
- By changing the parameters, it can adapt to external working conditions without having to make any adjustments to the hardware inside the device.
- The active level of the input signal can be set. The default effective input signal is low level which can be changed to high level.
- The input and output are optocoupler isolation, which effectively protects the device from overvoltage and electromagnetic pulse.
- The arcing relay and the arc-starting success relay adopt Omron power relay, which is reliable in operation.
- The real-time level of the input signal can be viewed during various work processes.
- The real-time level of the input signal can be viewed during various work processes.
- In the case where the height adjuster has a piercing delay, the dynamic punching function can be used when starting the arc.
- In the cutting process, real-time monitoring of whether the actual arcing, if the arc breaks in the middle, the height adjuster will notify the CNC system in time, and close the arcing relay to avoid long-term air-to-air arcing in case of arc breaking.
- In the process of automatic height adjustment, it is ensured that the actual arc voltage always closely follows the set arc voltage, and there is basically no static difference.
- During the auto-adjustment process, the arc voltage setpoint can still be changed to fine-tune the torch height in real time during the cutting process.
- In the process of automatic height adjustment, the collision signal can be fed back to the CNC system to avoid the CNC system still moving forward after the collision.
- In the automatic height adjustment process, the arc voltage intelligent adjustment function can be used.
- After the cutting is completed, the height adjuster automatically raises the torch, and the lifting height can be set arbitrarily.

Technical Parameters:
- Operating Voltage: Rated DC 24V (Power Supply Range: 22V-35V)
- Lifting Motor: DC24V DC motor
- Drive Mode: PWM (pulse width modulation) continuous speed regulation
- Output Current: 0A-3A (maximum output current of motor port is 5A)
- Output Power: Max 100W
- Operating Temperature: 0℃ ~50℃
- Initial Position: initial positioning of the proximity switch, initial contact of the protective cap
- Partial Pressure Ratio: 100:1
- Arc Voltage Sampling Accuracy: 0.2V
- Arc Voltage Adjustment Accuracy: 1V
- Cutting Torch Lifting Speed: Depends on the maximum speed of the lifting mechanism
- Arc Voltage Setting Range: 30V~600V which can be changed in real time through the panel knob
- Maximum Cutting Tracking Speed: Depends on the maximum speed of the lifting mechanism
- Over-load Protection: Automatic Over-load, Over-heat, Under-voltage Protection and Power Supply Reverse Connection Protection

Package Included:
- 1 x F1620E Automatic Plasma Torch Height Controller
