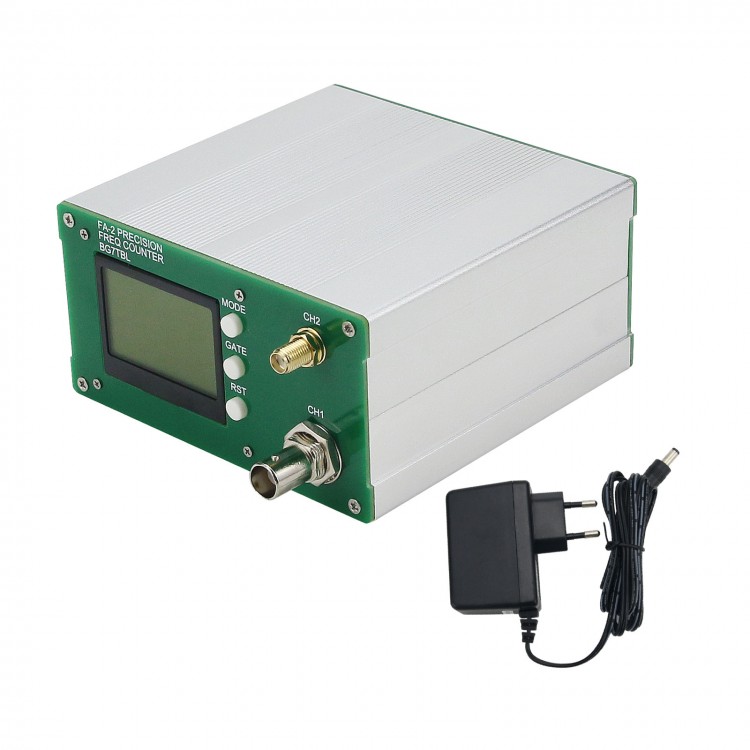

FA-2-6GP Frequency Counter Meter 6GHz 11bits/sec SMA BNC Connector 11.7-12.5V w/ 12V Power Adapter

FA-2-6GP Frequency Counter Meter 6GHz 11bits/sec SMA BNC Connector 11.7-12.5V w/ 12V Power Adapter

Specification:
Model: FA-2-6GP
Statistical Mode Data Types: average, max., min., P-P
Power Supply: DC 11.7-12.5V; start: <0.4A; stabilize: <0.2A
Gate Time: 0.1S/1S/10S
Internal Reference Frequency: 10MHz
Internal Reference Type: OCXO
Internal Reference Ageing: 0.5Hz
Internal Reference Output Power: 4dBm
External Reference Input Range: 0dBm~+20dbm
Size: 106 x 55 x 105mm (L*H*D)
Weight: 350g

Introduction of CH1:
CH1 Frequency Range: 1Hz-300MHz
CH1 Input Impedance: 50 ohm/1M ohm
CH1 LPF ON Input Frequency Range: 1Hz to 100KHz

CH1 Input Sensitivity Reference:
50 ohm: 25mVrms-2Vrms
1M ohm: 25mVrms-2Vrms

CH1 Frequency Accuracy:
0.1s Gate Time: 0.001Hz@10M
1s Gate Time: 0.0001Hz@10M
10s Gate Time: 0.00001Hz@10M

CH1 Test Speed: 11 bits/second@10MHz
CH1 Power Test Range: -50dBm~+20dBm, 1M~550M@50 ohm
CH1 Power Test Accuracy: 0.5dB@10MHz
CH1 Connector Type: BNC

Introduction of CH2:
CH2 Frequency: 30MHz-6GHz
CH2 Input Impedance: 50 ohm
CH2 Power Accuracy: 1dB@2.45GHz

CH2 Frequency Accuracy:
0.1s Gate Time: 1Hz@1GHz
1s Gate Time: 0.01Hz@1GHz
10s Gate Time: 0.001Hz@1GHz

CH2 Input Power: -20dBm~+13dBm@0.5~5G
CH2 Connector Type: SMA

Operating Modes:
CH1 Frequency Test Mode
CH1 Statistical Mode
CH2 Frequency Test Mode
CH2 Statistical Mode

Functions of Front Panel:
MODE: change operating modes
GATE: change gate time
RST: restart test
CH1: channel 1 input
CH2: channel 2 input

Functions of Rear Panel:
10M REF INPUT: external 10M reference input
10M REF OUTPUT: 10M reference output
USB: USB port
STD ADJ: internal OCXO frequency fine adjustment
Power switch
DC plug

Package List:
-1 x Frequency Counter
-1 x DC 12V Power Adapter
