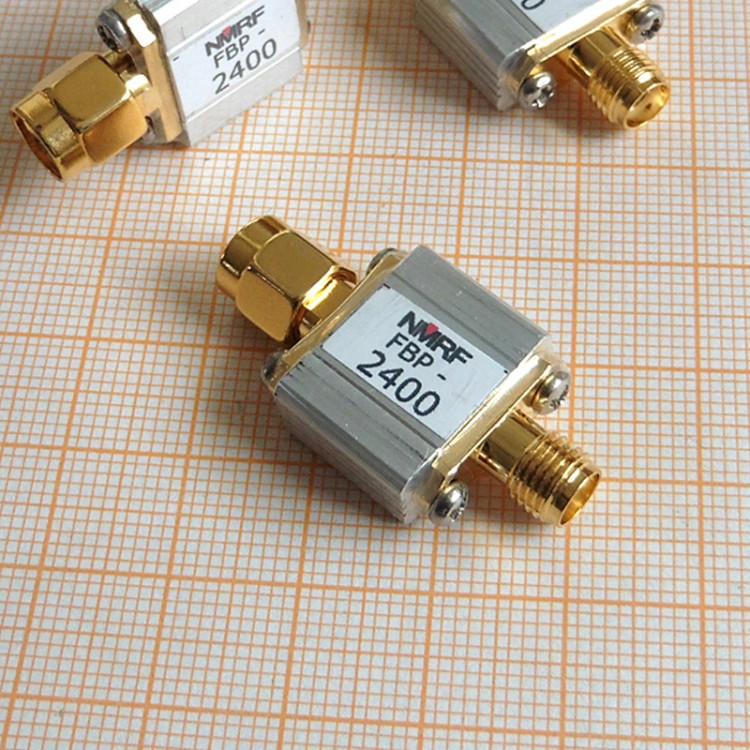

FBP-2400 2.4G 2450MHz Band Pass Filter RF Bandpass Filter for WiFi Bluetooth Zigbee Anti-jamming
Description:
The filter has a center frequency of 2450MHz and a bandwidth of 150MHz. It is an LC bandpass structure with non-sharp cutoff characteristics. It is used for performance optimization of 2.4GHz receivers, etc., and dedicated to anti-interference of WiFi, Bluetooth, and Zigbee systems. It also effectively filters out-of-band signals, reduces noise, and increases dynamic range.
Specifications:
- Model: FBP-2400
- Impedance: 50 Ohms
- Center frequency: 2450 MHz
- 1dB passband: 2400～2500 MHz
- Insertion loss: < 2 dB at 2400～2500 MHz
- Maximum carrying power: 10 W (40 dBm) at 1 minute

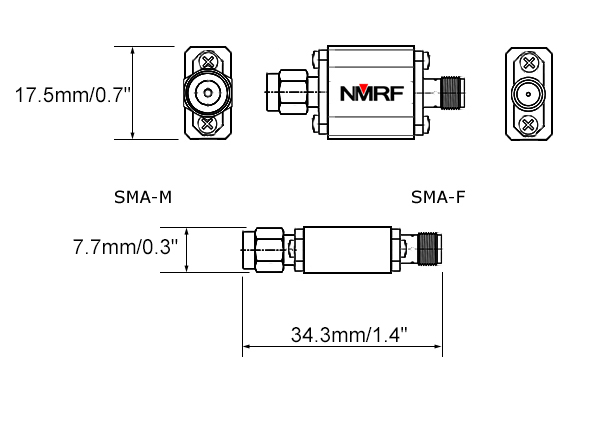

- Interface: SMA-M and SMA-F

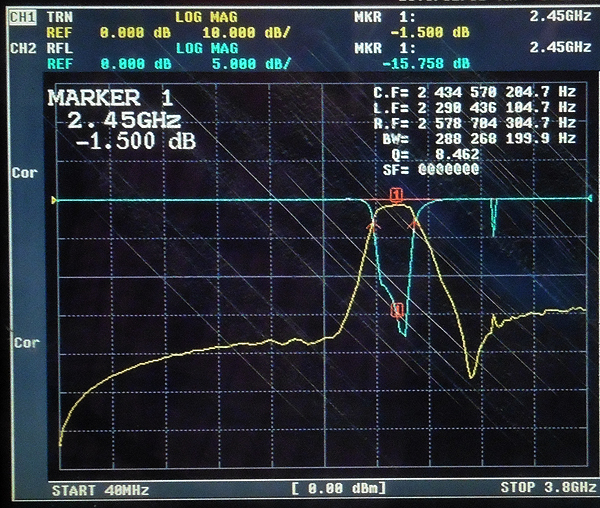

Insertion loss chart:
