FBP-2400 2.4G 2450MHz RF Bandpass Filter SMA Interface for WiFi Bluetooth Zigbee Anti-Interference

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.88
  • Price in reward points: 239 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.40 $22.92 $22.21 $21.25 Contact US
Quantity:

FBP-2400 2.4G 2450MHz RF Bandpass Filter SMA Interface for WiFi Bluetooth Zigbee Anti-Interference

Features:

- Center frequency of 2450MHz and a bandwidth of 150MHz.
- LC bandpass structure with non-sharp cutoff characteristics.
- Used for performance optimization of 2.4GHz receivers and the like
- Dedicated to anti-interference for WiFi, Bluetooth, and Zigbee systems, which can effectively filter out-of-band signals, reduce noise, and increase dynamic range

Specifications:

- Model Number: FBP-2400
- Impedance: 50 Ohms
- Central frequency: 2450 MHz
- 1dB Passband: 2400~2500 MHz
- Insertion Loss: < 2 dB @2400 ~ 2500 MHz
- Maximum Load Power: 10 W (40 dBm) @ 1 minute
- Interface: SMA-M, SMA-F

Package Included:
- 1 x RF Bandpass Filter

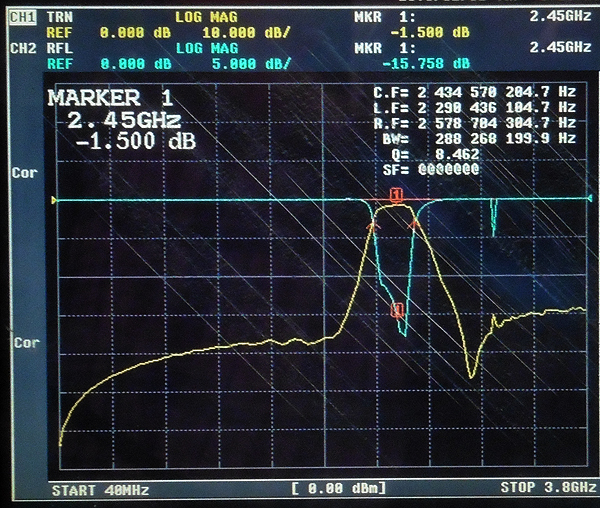

Insertion Loss:

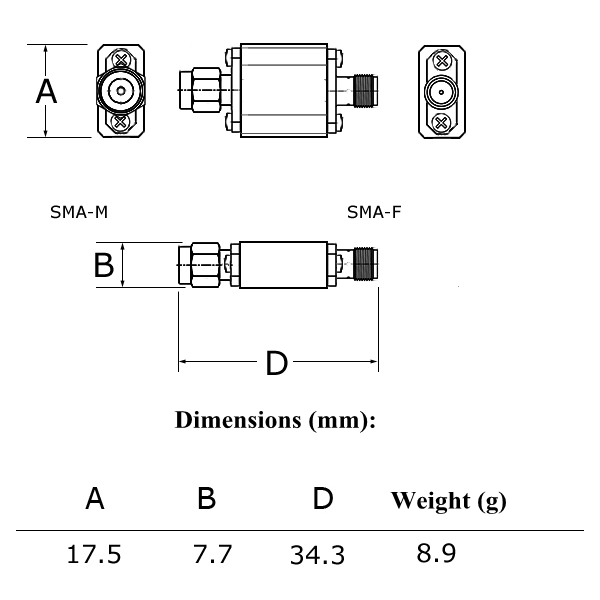

Dimensions:
