Fingerprint Door Access System RFID Access Control System Kit + 280KG Magnetic Door Lock

Fingerprint Door Access System RFID Access Control System Kit + 280KG Magnetic Door Lock

Click to Download:
https://www.thanksbuyer.com/download/59101-Diagram_Connection-Access_Control.pdf
https://www.thanksbuyer.com/download/59101-Fingerprint_Time_Attendance_Hardware_User_Manual-Rev1.10.pdf
https://www.thanksbuyer.com/download/59101-Fingerprint-Time-Attendance-Software-Manual-RevE2.1.0.pdf
https://www.thanksbuyer.com/download/59101-Simple_Manual_hardware-Access_Control_Function.pdf

Features:
Fingerprint Access Control + Time Attendance Terminal:
- Strictly follow the national security product standard
Suitable for the entrances and exits of apartment, multi-family houses, office, factory, hotel, school, etc
- TCP/IP + RS485 communication + USB flash drive download / upload
- Anti-dismantlement alarm, threatens alarm, not block alarm are available
- Sensor with quality image, accepts dry, wet fingers
- Adjust image distortion, assure fingerprint matching consistency
- Support 360-degree rotation identification, easy to use
- Fingerprint / Card / Password identification modes are all available.

Management Software
The powerful management software is designed to read attendance record from the terminal or USB stick, to set your checking rules, to calculate worked hours, and to generate various kind of statistical reports.
The key functions include:
1) Monitor employee attendance
2) Calculate and maintain overtime
3) Track vacation and sick time
4) Quickly retrieve historical data
5) Print out time card
6) Schedule employee hours
7) Flexible holiday / shift rule and shift pattern setting

Electric Magnetic Lock (NC Mode)
- NC mode - (locked while supplied with power), fail safe mode
-Suitable for: wooden door, glass door, metal door, fireproof door, etc
-Safety function: built-in voltage spike suppressor
-Material: stainless steel
-Anti-residue magnesium designed
-Holding force about 280kg (600 lbs)

Exit Button:
-Design with no Mechanical Bolt
-Aluminum Panel with Elegant Style
-Easy to Install
-500000 Cycles tests
-Two Contact Output, Suitable for all kinds of Locks
-The Best Choice for Access Control

RFID Key Ring:
- Pre-programmed with unique 10-digit ID number in each key fob (This RFID card is read only and not rewritable.)
- Operation Frequency: 125KHz
- Standard: EM4100 compatible
- With card ID printing
- Size: 42 x 30 x 3 mm
- Quantity: 10
- Material: PVC

Power Supply:
- Compatible with E/M lock, access controller, exit push button and RFID reader
- Can reduce the load of access controller, save wiring to reduce the hidden trouble
- Set NC / NO outputs, can control various types of electric locks
- Based relay control circuit, lock time can be adjusted with 0 -15 seconds
- Automatic protection function for dangerous situation: overload / over voltage / short circuit
- Protection mechanism: power may be temporarily disconnected or the fuse auto insured
- Operative device: E/M Lock, access controller, exit push Button
- Compact design and light weight
- Worldwide voltage input 110 - 240V

Door Bell:
- Wired door bell 12V for security access control
- Brand New and high quality
- Features a bell sound, small size and wall-mount hole, very easy to install

Specifications:

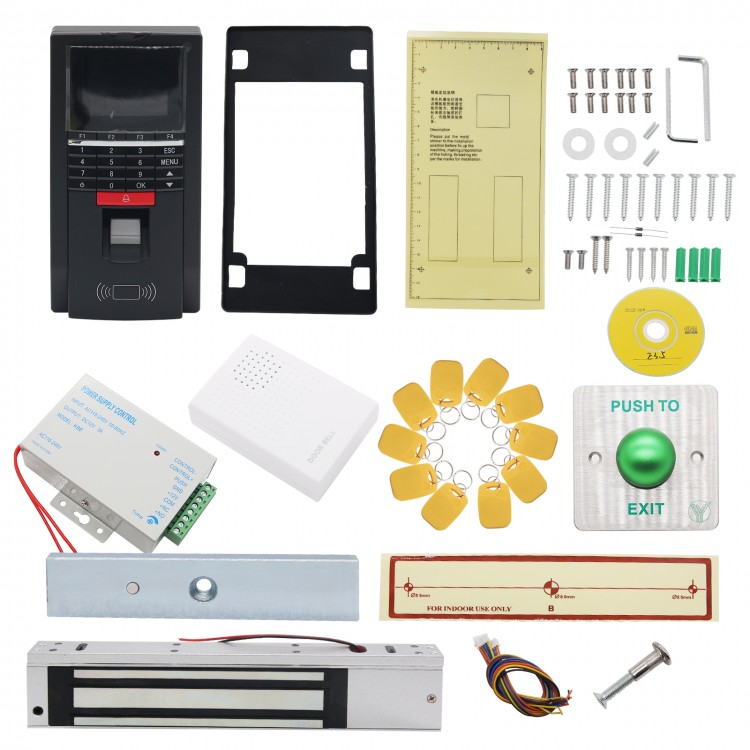

Package Included:
- 1 x MF131 Fingerprint Access Control + Time Attendance Terminal (Black)
- 1 x Electric Magnetic Lock (NC Mode)
- 1 x Exit Button
- 10 x RFID Key Rings
- 1 x AC 110 - 240V to DC 12V Power Supply Converter for Door Access Control (worldwide voltage)
- 1 x Wired Door Bell 12V for Access Control
