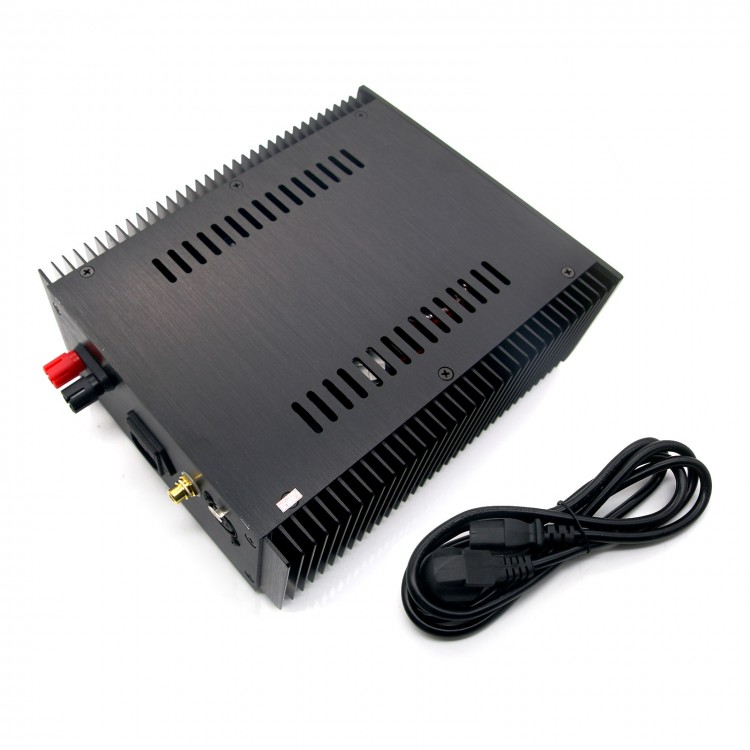

Finished Pass A30 Mos Single-ended Pure Class A Power Amplifier Mono 30W HiFi Audio Amp

Availability: In stock, usually dispatched in 1 business day

  • Price:$239.90
  • Price in reward points: 2399 Reward Points: 24
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $235.10 $230.30 $223.11 $213.51 Contact US
Quantity:

Finished Pass A30 Mos Single-ended Pure Class A Power Amplifier Mono 30W HiFi Audio Amp


Product Details:
- Based on the classic PassA30 circuit.
- 200W high-quality toroidal transformer power supply, using 6 Nover 10000uf capacitor composed of CRC filter, the total filter capacity of 60000uf.
- upc1237 speaker protection system, switch machine without impact, while the implementation of the midpoint of DC protection, protect your expensive speakers.
- Three pairs of high-power field-coupled parallel flow output, to ensure the driving force.
- In the differential input link to join a mid-point fine-tuning circuit, you can correct the midpoint offset to a certain extent.
- Aluminum chassis.
- Mono design of the amplifier, fundamentally eliminate the problem of separation.

Specifications:
- Maximum distortion-free output power: 30W 1KHz without distortion continuous power.
- Distortion: 1KHz sine wave 30W output <0.01%
- Input Sensitivity: <2Vrms
- Amplifier voltage gain: 11 times
- Input: RCA, XLR
- Size: 280 * 212 * 90mm
- Weight: 6.8Kg


Note: This is a mono amplifier, if you need to build stereo, need 2 units.


Package Included:
- 1pcs × Finished mono amplifier
