FMCADDA-9689-9152 2-Channel 14Bit 2.6G ADC + 2-Channel 16Bit 2.2G DAC High Speed FMC Sub Card Acquisition Card

FMCADDA-9689-9152 2-Channel 14Bit 2.6G ADC + 2-Channel 16Bit 2.2G DAC High Speed FMC Sub Card Acquisition Card

Description:

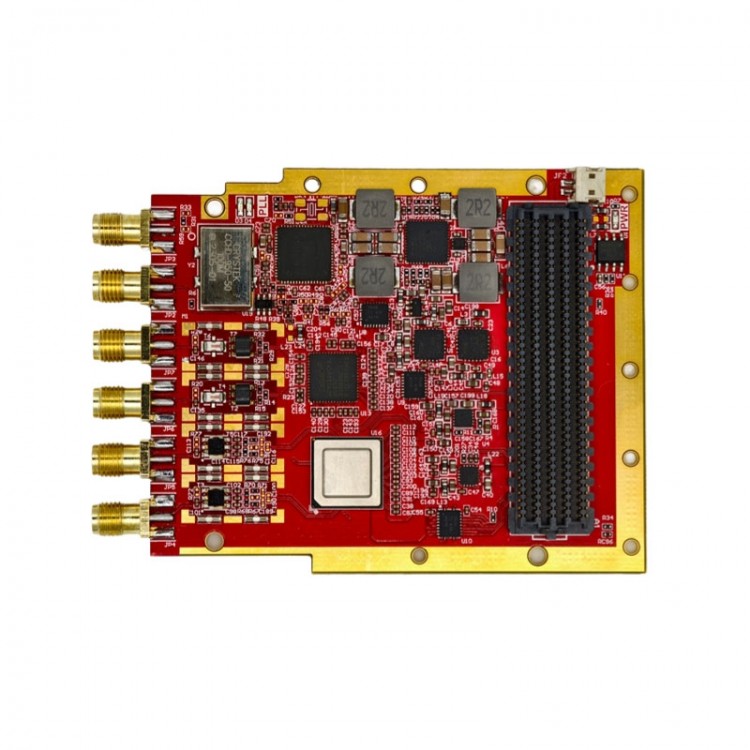

- The high-speed digital analog ADDA sub card FMCADDA-9689-9152 is equipped with dual channel 14bit 2.6G JESD204B ADC AD9689 and dual channel 16bit 2.2G JESD204B DAC AD9152. It is a FMC HPC standard interface sub card that complies with VITA57.1 standard, with a gold-plated process board, onboard OCXO, and JESD204B PLL synchronous clock distributor. The ADDA input and output use standard SMA interfaces, supporting external clock input and triggering IO.

Specification:
- Model: FMCADDA-9689-9152
- ADC sampling rate/bit/channel: 2.6Gsps, 14bit, dual channel ADC (AD9689BCPZ-2600)
- ADC front-end input frequency response: 10MHz - 500MHz (RF transformer AC coupling)
- ADC front-end input amplitude: 1.1Vpp max (50ohms)
- ADC driver interface: JESD204B (8Lane, support Lane speed rate up to 15Gbps)
- DAC sampling rate/bit/channel: 2.2Gsps, 16bit, 2-channel DAC (AD9152BCPZ)
- DAC front-end output frequency response: 5M - 800MHz (RF transformer AC coupling)
- DAC front-end output amplitude: about -4dBm (at 50MHz monophonic, 50ohms)
- DAC driving interface: JESD204B (4Lane/Chip, support Lane speed rate up to 15Gbps)
- Clock characteristics: onboard OCXO, 10M low phase noise OCXO (-140dBc/Hz at 1kHz), support external input reference clock; onboard LMK04828 high performance JESD204B clock chip
- Sub card interface: standard FMC HPC board to board high density connector

Package Included:
- 1 x FMC Sub Card
