FMCADDA-9643-9122 2-Channel 14Bit 250M ADC + 2-Channel 16Bit 1.2G DAC High Speed FMC Sub Card Acquisition Card
Description:

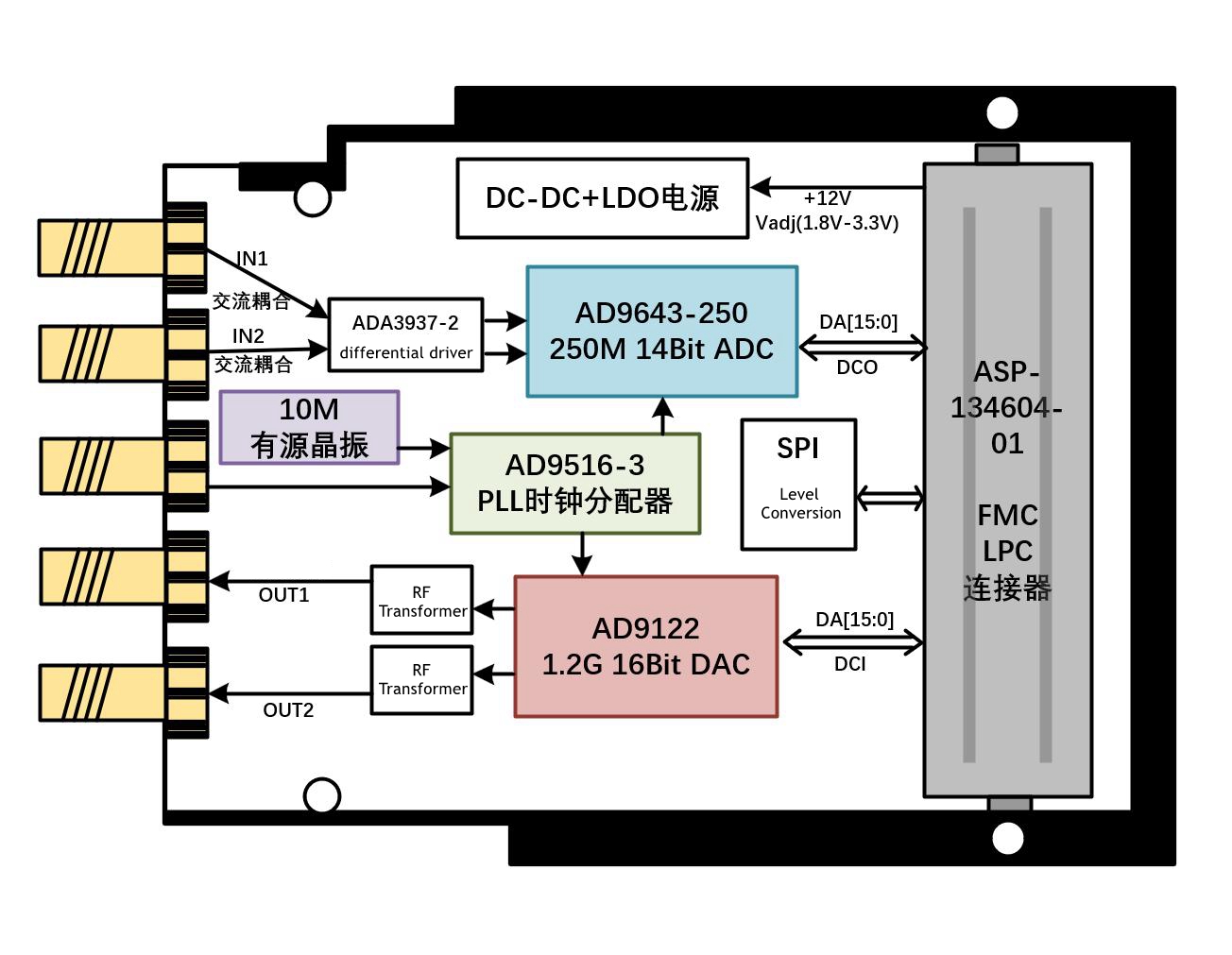

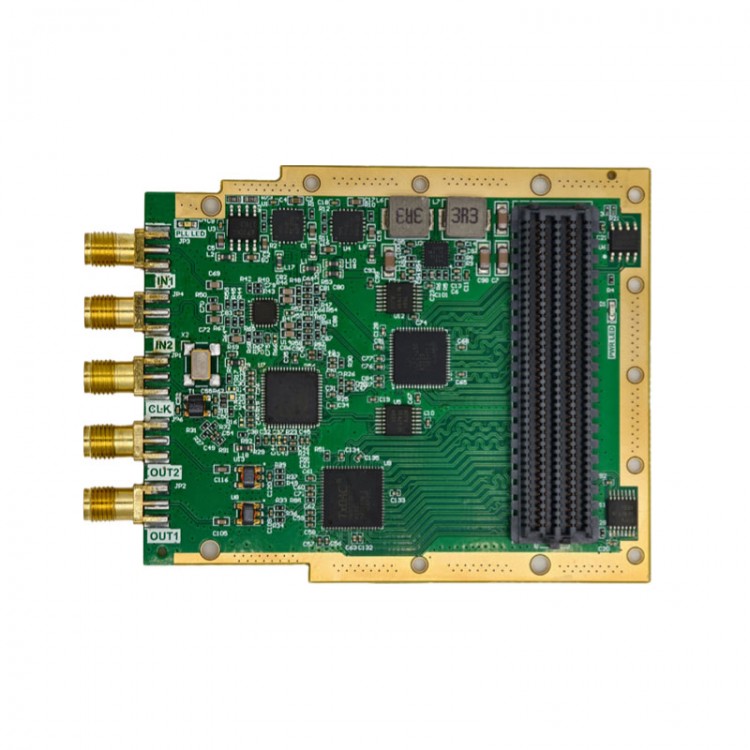

- FMCADDA-9643-9122 meets the VITA57.1 FMC LPC standard. By being plugged into an FPGA board, it achieves 2-channel 250M 14bits ADC analog-to-digital sampling and 2-channel 1.2G 16bits DAC digital-to-analog output. The board is equipped with a crystal oscillator, supports external clock input, and has a standard SMA connection port to meet high-performance sampling and output functions. It is suitable for multi-purpose use such as engineering development and scientific research verification.
ADC (AD9643BCPZ-250):
- Maximum sampling frequency: 250Msps (2CH)
- Sampling bits: 14 bits
- Analog input bandwidth: 400MHz (input frequency range LF-400MHz)
- ADC data output interface: parallel DDR format
- Maximum analog input range: 1.40-2.00Vpp (AC coupling, register configurable)
- ADC input front-end: differential driver ADA4937-2, amplification factor of 1
- Input port impedance: 50ohm
DAC (AD9122BCPZ):
- Maximum output update rate: 1.2GHz (I, Q2CH, can be independently controlled)
- Maximum data input rate: 600MHz (can interpolate *1, *2, +4, +8)
- Analog output bandwidth: 500MHz
- DAC data output interface: parallel DDR format
- DAC output front-end: RF transformer AC coupling, frequency range of 400K-500M
- Maximum output power: about 0dBm (single frequency, 50ohm impedance)
- Output port impedance: 50ohm
- Interface type: FMC LPC interface (FPGA board compatible with LPC when FMC HPC is used).
Precaution:
- There is no need to worry about signal definition mismatch for standard FMC interfaces. If your motherboard is an official evaluation board for Xilinx, it will definitely match. If it is another self-developed or niche development board, for safety reasons, we suggest sending your signal definition to our customer service to help you determine if it is usable before shipping.
Package Included:
- 1 x FMC Sub Card
