FMCADDA-9250-9144 2-Channel 14Bit 250M ADC + 4-Channel 16Bit 2.8G DAC High Speed FMC Sub Card Acquisition Card

Description:

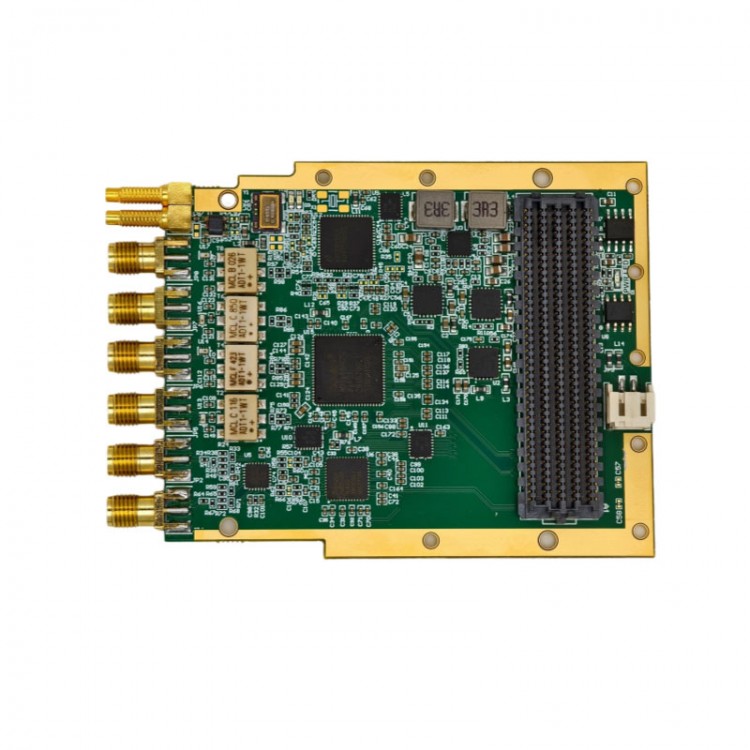

- The high-speed analog-to-digital ADDA sub card FMCADDA-9250-9144 is equipped with a dual channel 14bit 250M JESD204B ADC and a four channel 16bit 2.8G JESD204B DAC. The FMC HPC standard interface complies with the VITA57 standard, with a gold-plated process board, onboard temperature compensated crystal oscillator, and JESD204B PLL synchronous clock distributor. The ADDA input and output use standard SMA interfaces, supporting external clock input and trigger IO (SSMC interface).

Specification:
- Model: FMCADDA-9250-9144
- ADC sampling rate/bit/channel: 250Msps, 14bit, dual channel ADC (AD9250BCPZ-250)
- ADC front-end input frequency response: DC-400MHz (DC coupling, driver of ADA4930-2 single-end to differential)
- ADC front-end input amplitude: 2Vpp max (50ohms)
- ADC driver interface: JESD204B (2Lane, support Lane speed rate up to 5Gbps)
- DAC sampling rate/bit/channel: 2.8Gsps, 16bit, 4-channel DAC (AD9144BCPZ)
- DAC front-end output frequency response: 500kHz - 500MHz (transformer AC coupling)
- DAC front-end output amplitude: about -5dBm (monophonic, 50ohms)
- DAC driving interface: JESD204B (8Lane, support Lane speed rate up to 12.5Gbps)
- Clock characteristics: onboard TCXO, 50M TXCO, temperature drift of 0.3ppm, support external input reference clock; onboard LMK04828 high performance JESD204B clock chip
- Sub card interface: standard FMC HPC board to board high density connector

Precaution:
- There is no need to worry about signal definition mismatch for standard FMC interfaces. If your motherboard is an official evaluation board for Xilinx, it will definitely match. If it is another self-developed or niche development board, for safety reasons, we suggest sending your signal definition to our customer service to help you determine if it is usable before shipping.

Package Included:
- 1 x FMC Sub Card
