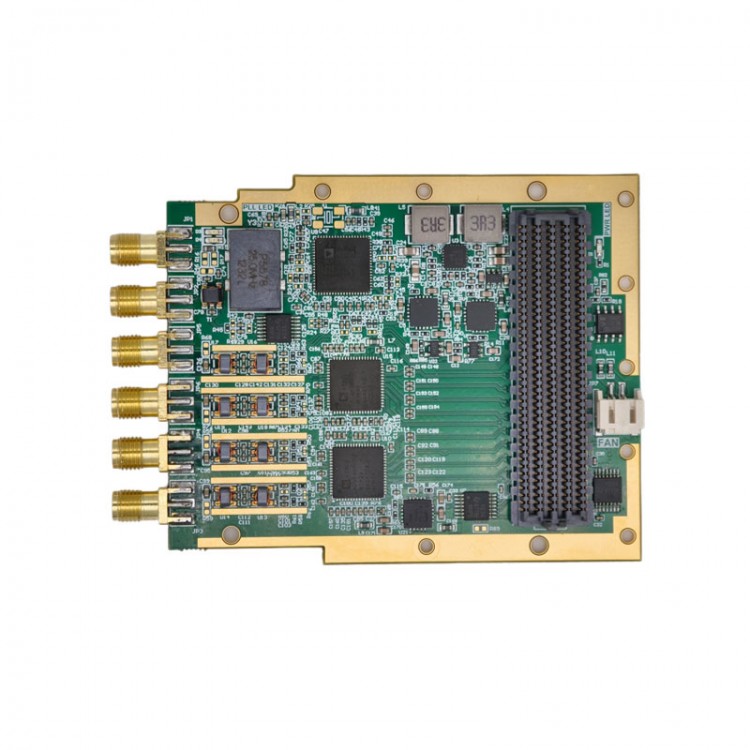

FMCADC-9695D2 4-Channel 14Bit JESD204B 1300M High Speed ADC FMC Sub Card High Dynamic Acquisition Card

FMCADC-9695D2 4-Channel 14Bit JESD204B 1300M High Speed ADC FMC Sub Card High Dynamic Acquisition Card

Description:
- High speed digital analog acquisition sub card JESD204B ADC 1300M four channel acquisition FMC sub card, FMC HPC standard interface, chip adopts dual AD9695 1.3G 14bit ADC, on-chip supports high-performance NCO and reduced rate extraction. The sinking gold process board, low phase noise crystal oscillator, and JESD204B PLL synchronous clock distributor support external clock and trigger IO.

Specification:
- Model: FMCADC-9695D2
- ADC chip: dual AD9695-1300 (1300Msps 14bit dual channel ADC)
- ADC input frequency response: 500kHz - 500MHz (transformer AC coupling input)
- ADC data interface: JESD204B high speed transceiver Lane
- ADC power consumption: 1.6W (1pcs)
- Others: shielding structure; heat dissipation structure; support external input clock and trigger IO interface

Precaution:
- There is no need to worry about signal definition mismatch for standard FMC interfaces. If your motherboard is an official evaluation board for Xilinx, it will definitely match. If it is another self-developed or niche development board, for safety reasons, we suggest sending your signal definition to our customer service to help you determine if it is usable before shipping.

Package Included:
- 1 x FMC Sub Card
