FMCADC-9695DCD2 4-Channel 14Bit 1300M JESD204B ADC DC Coupling Version High Speed FMC Sub Card Acquisition Card
Description:

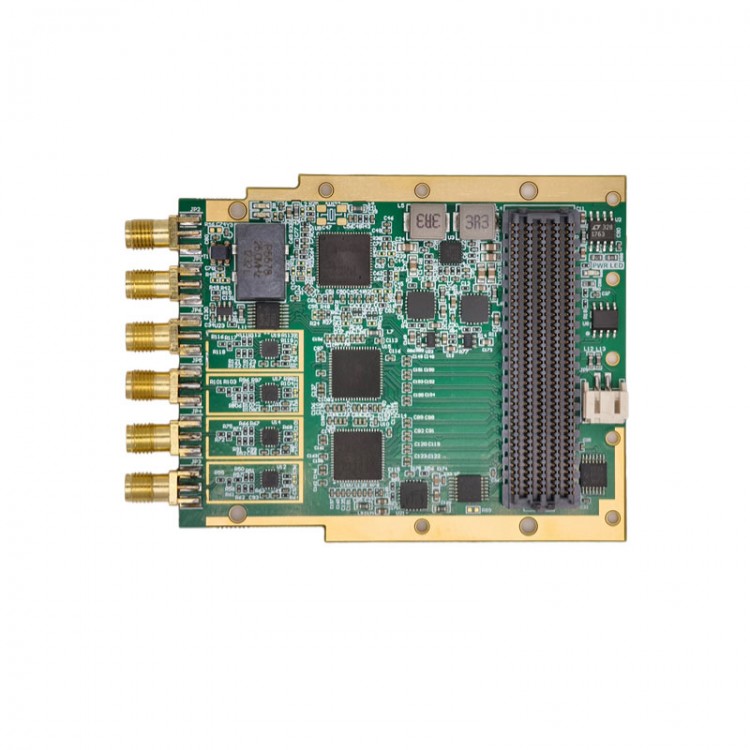

- The high-speed digital analog AD sub card FMCADC-9695DCD2 is equipped with 2pcs dual channel 14bit 1300M JESD204B ADC AD9695. It is a FMC HPC standard interface sub card that complies with VITA57.1 standard, with a gold-plated process board, differential driver DC coupling input, onboard OCXO and JESD204B PLL synchronous clock distributor. The ADDA input and output use standard SMA interfaces, supporting external clock input and triggering IO.
Specification:
- Model: FMCADC-9695DCD2
- ADC sampling rate/bit/channel: 1300Msps, 14bit, dual channel ADC (AD9695BCPZ-1300)
- ADC front-end input frequency response: DC - 500MHz (differential driver DC coupling)
- ADC front-end input amplitude: 2Vpp max (50ohms)
- ADC driver interface: JESD204B (4Lane, support Lane speed rate up to 16Gbps)
- Clock characteristics: onboard OCXO, 25M low phase noise OCXO, temperature drift of 0.2ppm, support external input reference clock; onboard LMK04828 high performance JESD204B clock chip
- Sub card interface: standard FMC HPC board to board high density connector
Package Included:
- 1 x FMC Sub Card
