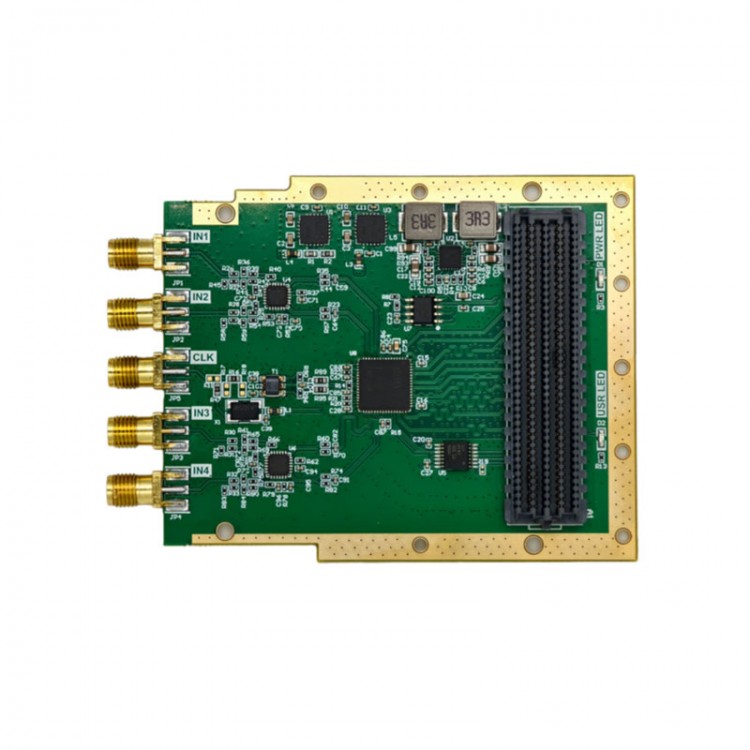

FMCADC-6445 4-Channel 125M 14Bit FMC Sub Card High Speed ADS6445 Chip DC-400MHz ADC Input Acquisition Card
Description:
- High speed ADC125M four channel FMC acquisition sub card ADS6445, serial LVDS data interface, automatic training to receive and analyze data, FMCLPC cooling standard design, onboard crystal oscillator, supports external clock input and FMC clock input to ADC, standard SMA connection port, good performance testing.

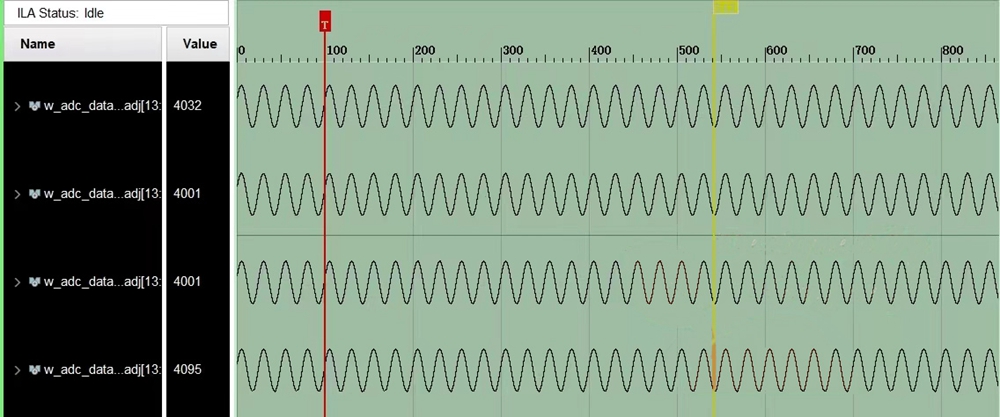

- 4-Channel synchronous performance acquisition, with the highest sampling rate of 125M.
- DC coupled input, input analog bandwidth of 500M, maximum input amplitude of 2Vpp, front-end using high-performance differential driver ADA4937-2.
Specification:
- Model: FMCADC-6445
- ADC chip: ADS6445 (125Msps 14bit 4-channel ADC)
- ADC input frequency response: DC-400MHz (differential driver DC coupling input)

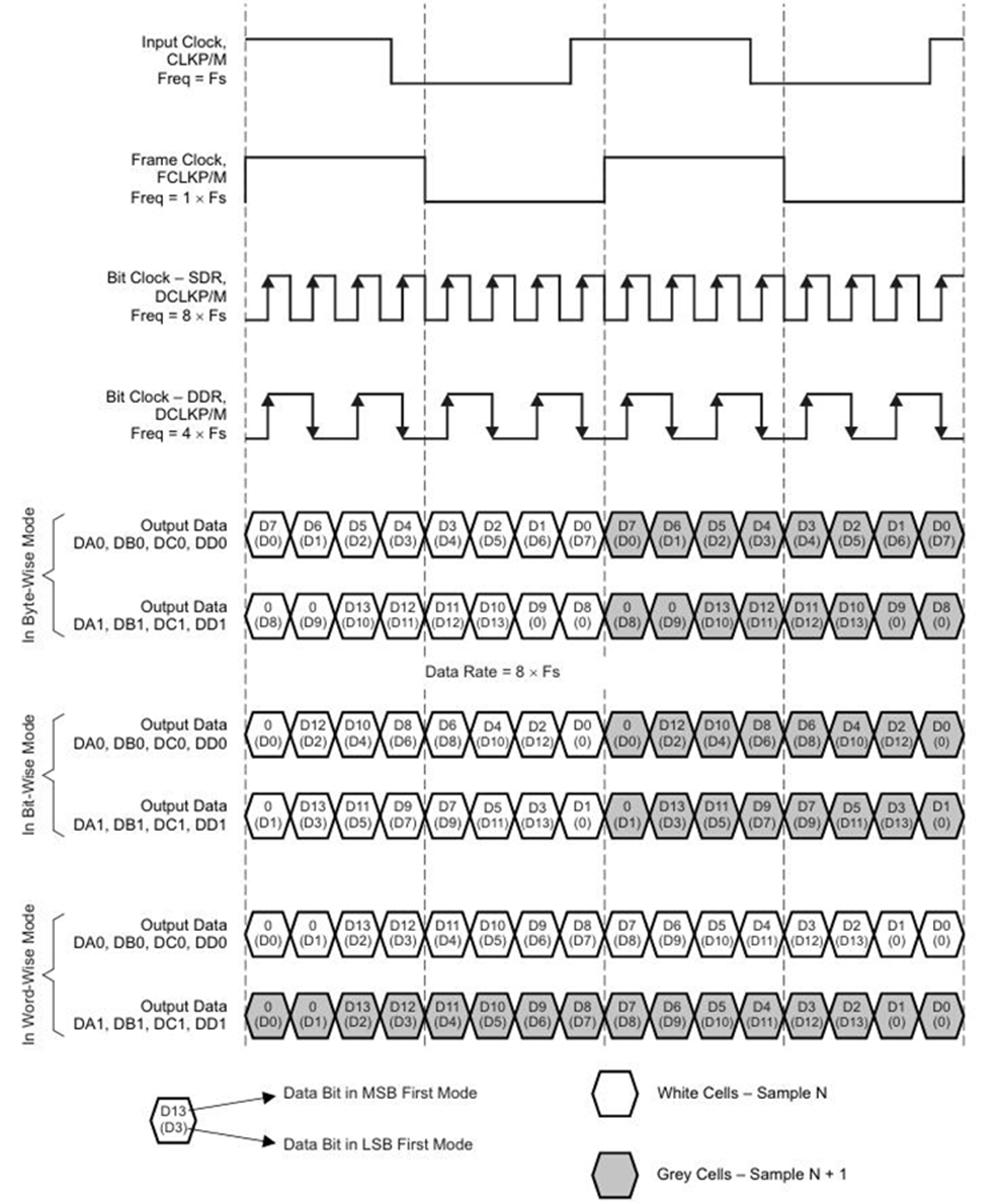

- ADC data interface: LVDS serial port
- ADC power consumption: 1.7W
- Others: support external input clock interface
Precaution:
- There is no need to worry about signal definition mismatch for standard FMC interfaces. If your motherboard is an official evaluation board for Xilinx, it will definitely match. If it is another self-developed or niche development board, for safety reasons, we suggest sending your signal definition to our customer service to help you determine if it is usable before shipping.
Package Included:
- 1 x FMC Sub Card
